Full Rotation & Adjustment
Smooth rotation and tilt provide precise aiming for changing display requirements.

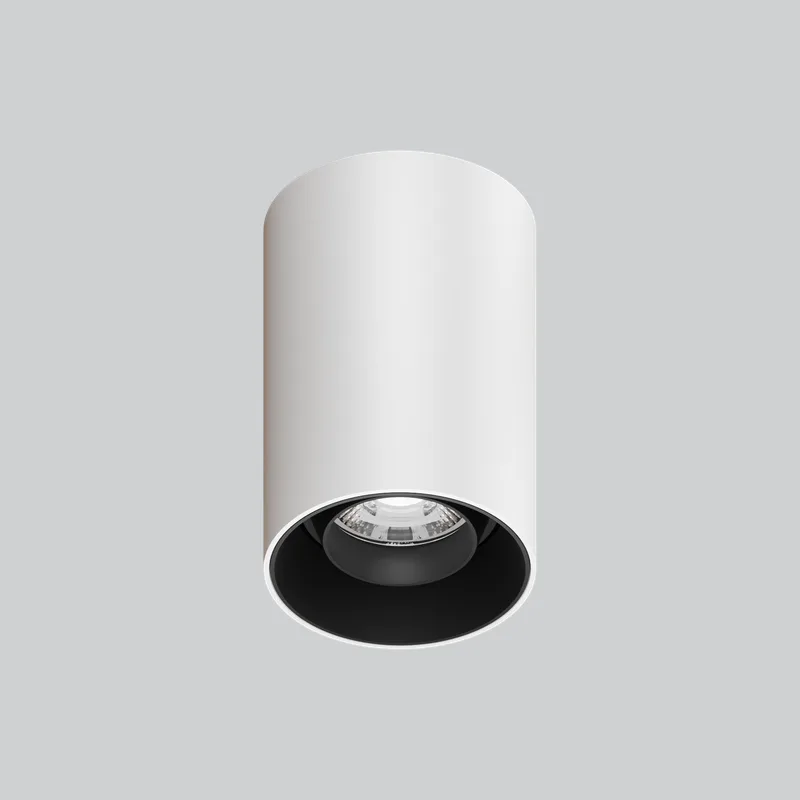

ADJ ADJUSTABLE SURFACE SPOTLIGHT
360° rotation. Precise aiming. Easy maintenance.
* ADJ is a precision surface-mounted spotlight designed for architectural spaces requiring maximum aiming flexibility and long-term reliability.
* Its adjustable and rotatable head enables accurate beam positioning, while the removable light engine simplifies maintenance and future upgrades.
* Available in multiple sizes and wattages, ADJ is widely used in retail stores, galleries, hospitality projects and commercial interiors.
Key Specifications
Applications: Retail / Hospitality / Office / Gallery
Diameter Range: Ø62 / Ø84 / Ø116
Power Range: 6W–20W
Beam Angle: 19°–57°
Features: 360° Rotation / Removable Light Module
Control: ON/OFF / TRIAC where available
* Its adjustable and rotatable head enables accurate beam positioning, while the removable light engine simplifies maintenance and future upgrades.
* Available in multiple sizes and wattages, ADJ is widely used in retail stores, galleries, hospitality projects and commercial interiors.
Key Specifications
Applications: Retail / Hospitality / Office / Gallery
Diameter Range: Ø62 / Ø84 / Ø116
Power Range: 6W–20W
Beam Angle: 19°–57°
Features: 360° Rotation / Removable Light Module
Control: ON/OFF / TRIAC where available
Available products
Choose the right size

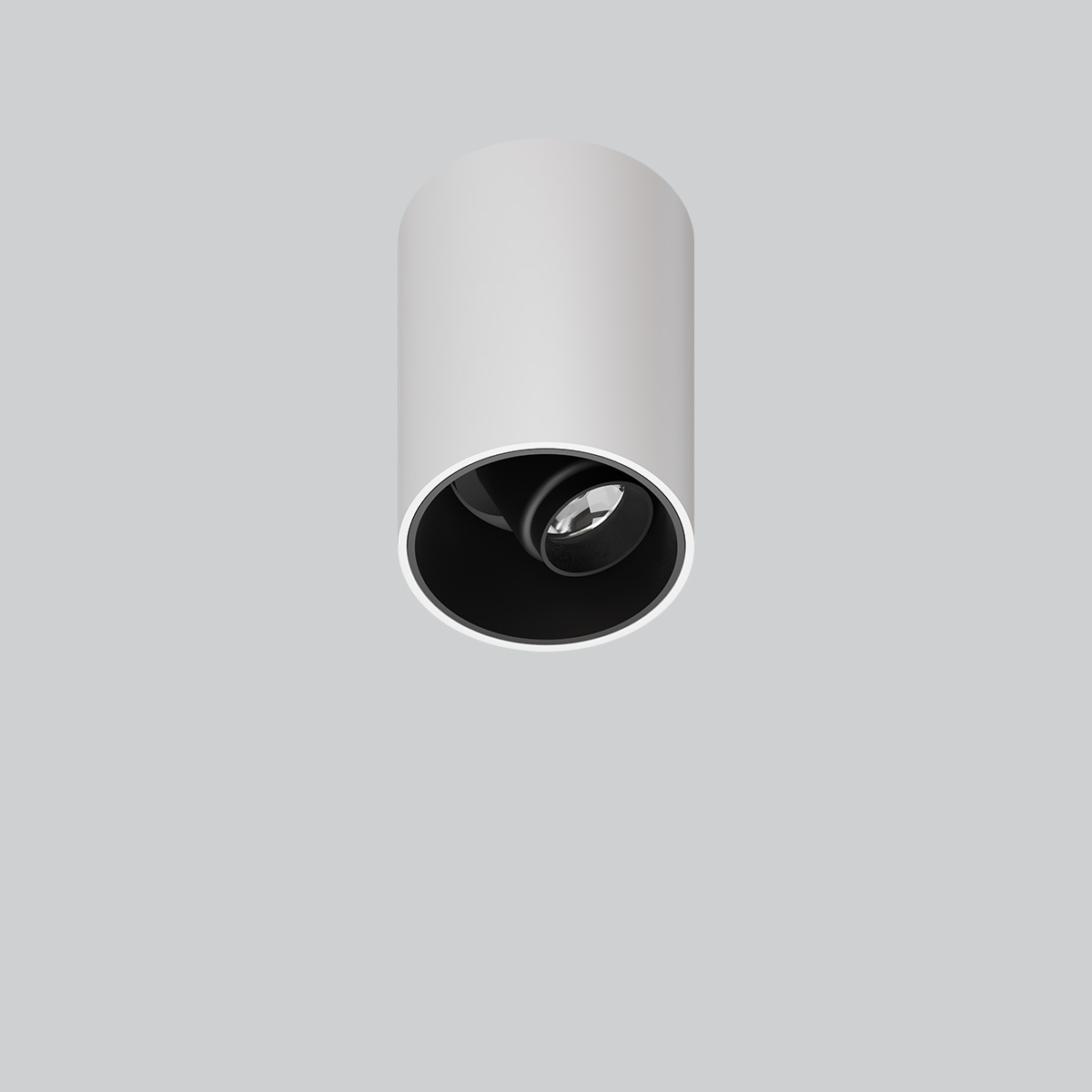

ADJ 62
Wattage: 6W
Size: Ø62*90mm
Lumen Output: 445lm
Beam Angle: 20° / 25° / 38° / 57°

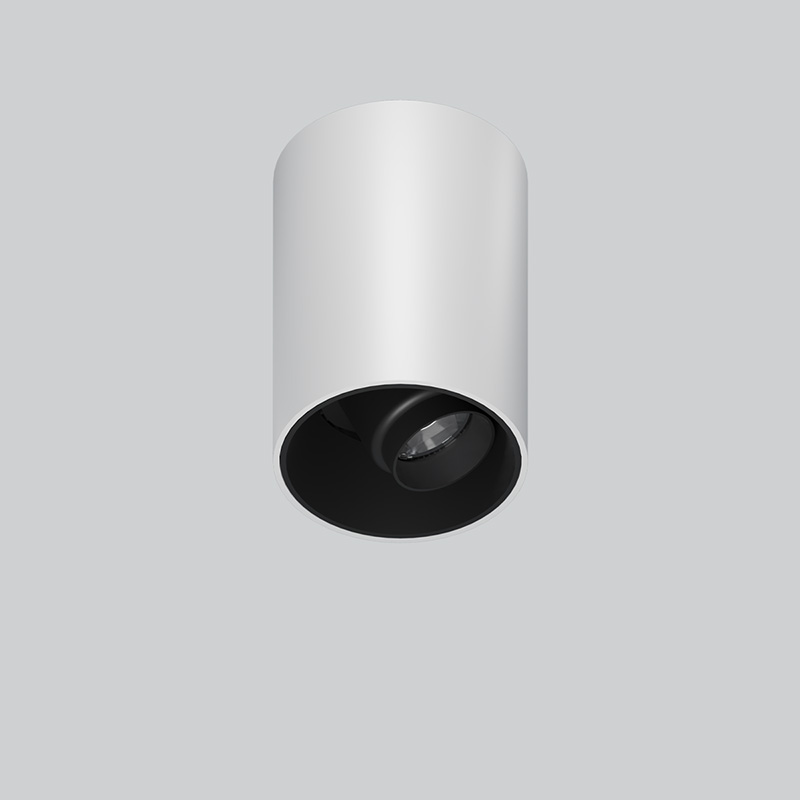

ADJ 84
Wattage: 14W
Size: Ø84*120mm
Lumen Output: 1243lm
Beam Angle: 24° / 30° / 44° / 53°

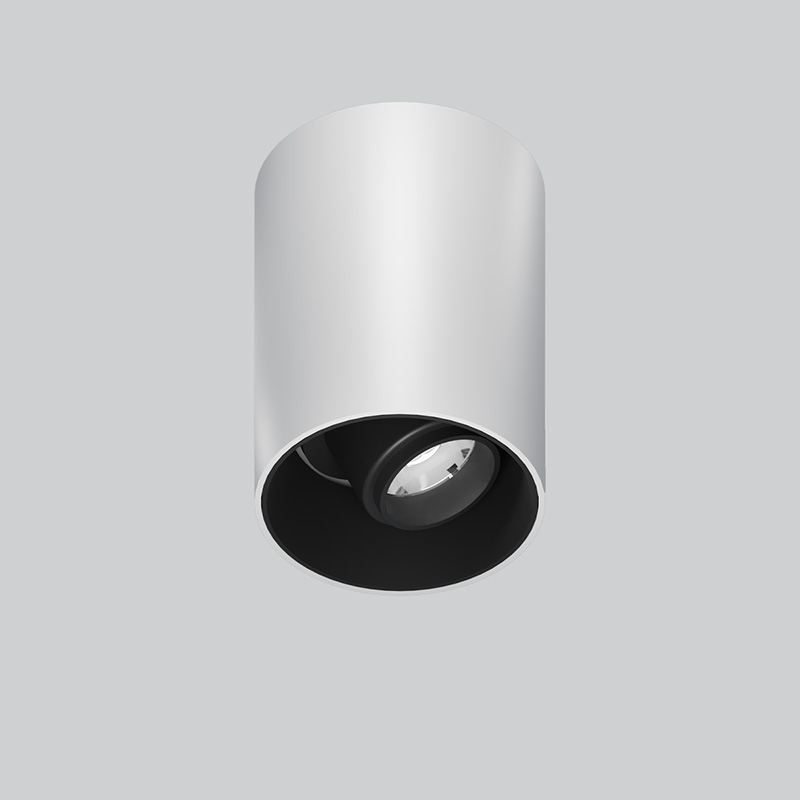

ADJ 116
Wattage: 20W
Size: Ø116*160mm
Lumen Output: 2190lm
Beam Angle: 19° / 25° / 41° / 53°
Why Choose ADJ
ADJ is developed for architectural projects where flexibility and precision are equally important.
Its fully adjustable and rotatable spotlight head enables accurate beam positioning, making it ideal for spaces where displays or layouts frequently change.
The removable light engine simplifies maintenance while reducing long-term servicing costs for commercial projects.
With refined mechanical construction and premium finishing, ADJ combines elegant appearance with reliable everyday performance.
Characteristics
What defines ADJ
Removable Light Module
The light engine can be easily removed for maintenance or future upgrades.
Precision Mechanical Design
High-quality construction ensures stable positioning and long-term durability.
Professional Visual Comfort
Deep optical design reduces glare while maintaining excellent beam control.
Applications
Where ADJ Performs Best
ADJ Surface Mounted is an adjustable cylinder for projects that need directional accent lighting without recessed ceiling construction. Use it in 2.6–3.8 m retail, gallery, residential and showroom interiors where the outer housing stays aligned while the light engine aims at products, art or feature surfaces.

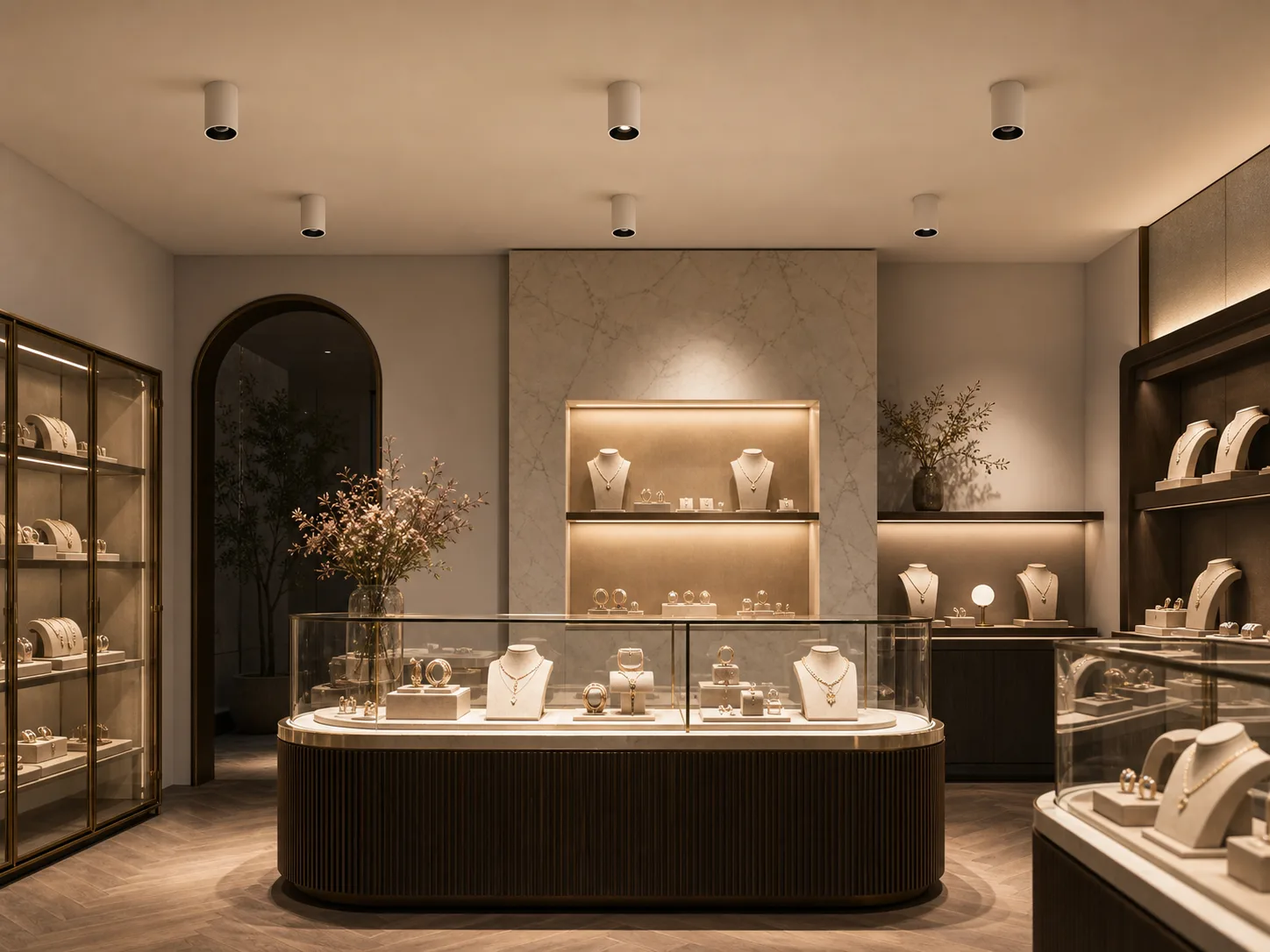

Jewelry & Luxury Retail
ADJ works for jewellery counters, accessories and premium showcases where the ceiling needs to look clean but the beam still needs aiming. Check reflections from glass, metal and mirrors at real counter height before final commissioning.
- Best for luxury counters, small showcases and product islands
- Adjustable internal module keeps the outer cylinder visually aligned
- Use narrow or medium beams according to target distance
- Verify sparkle, hotspot and glare on polished surfaces

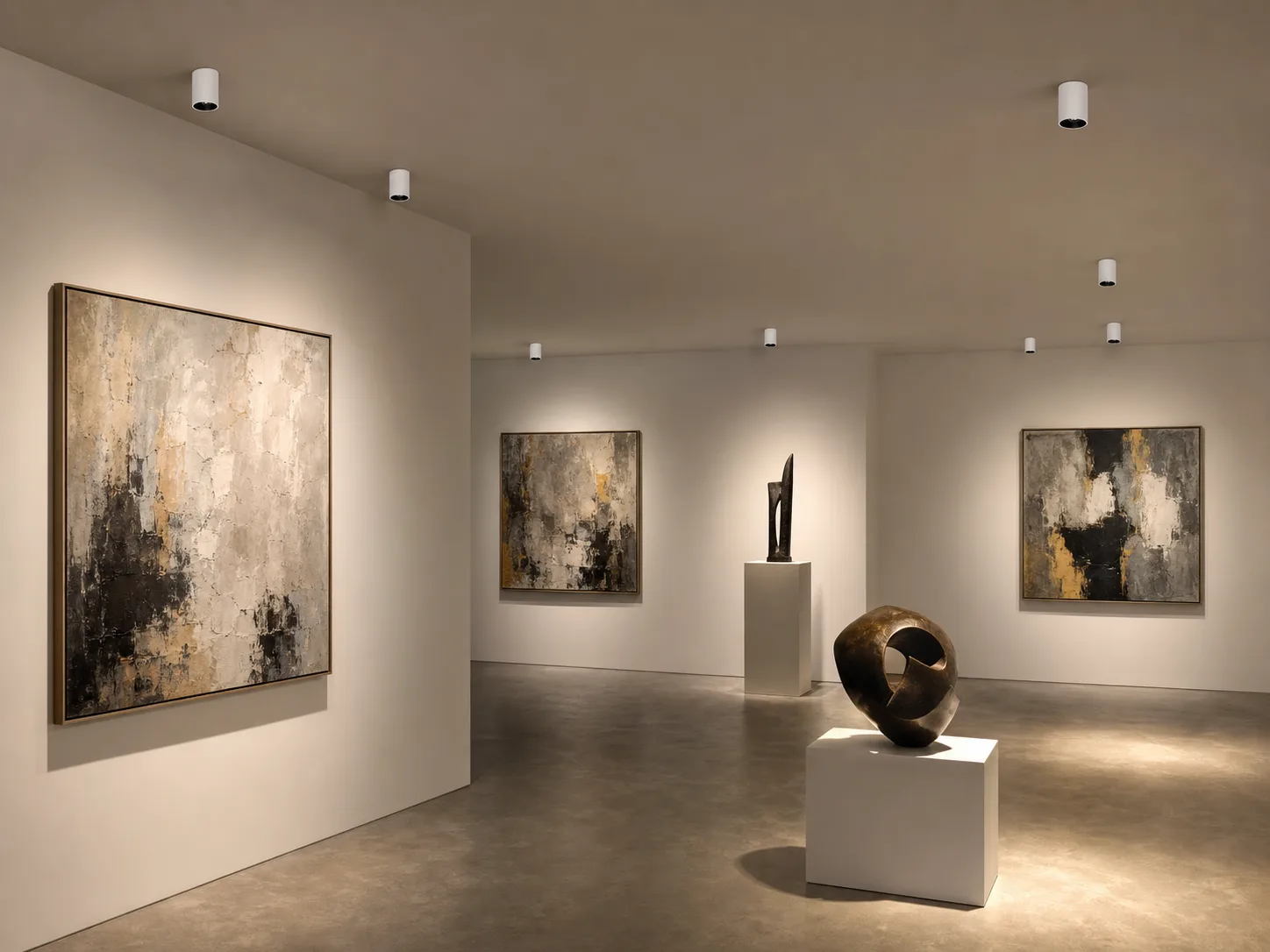

Museum & Gallery Lighting
For small galleries and private collections, ADJ provides a surface-mounted accent option when recessed adjustable fixtures are not possible. Keep a consistent offset from the wall and confirm beam size with IES files.
- Suitable for artwork, small objects and temporary exhibition accents
- Surface mounting helps with solid ceilings or retrofit spaces
- Adjustable aiming supports changing display layouts
- Confirm conservation lux limits and visitor glare

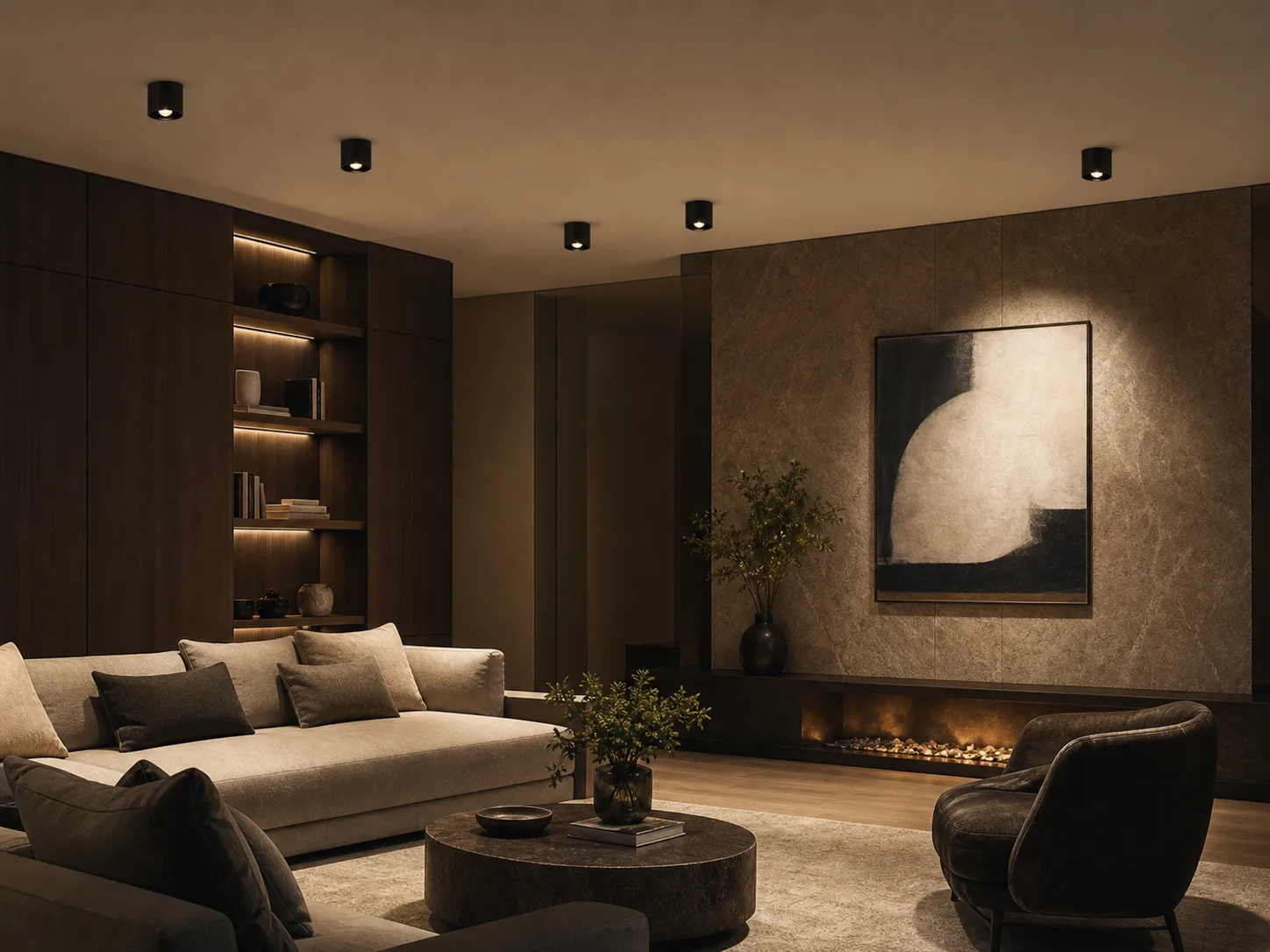

Residential Accent Lighting
In homes, ADJ is useful for art walls, dining sideboards and feature corners where a fixed downlight would not aim correctly. Use it as an accent layer, not the only general lighting source for the room.
- Good for art walls, wardrobes, dining edges and feature corners
- Avoids recessed construction while retaining directional aiming
- Works around 2.5–3.4 m residential ceilings in many layouts
- Pair with softer ambient lighting for daily comfort

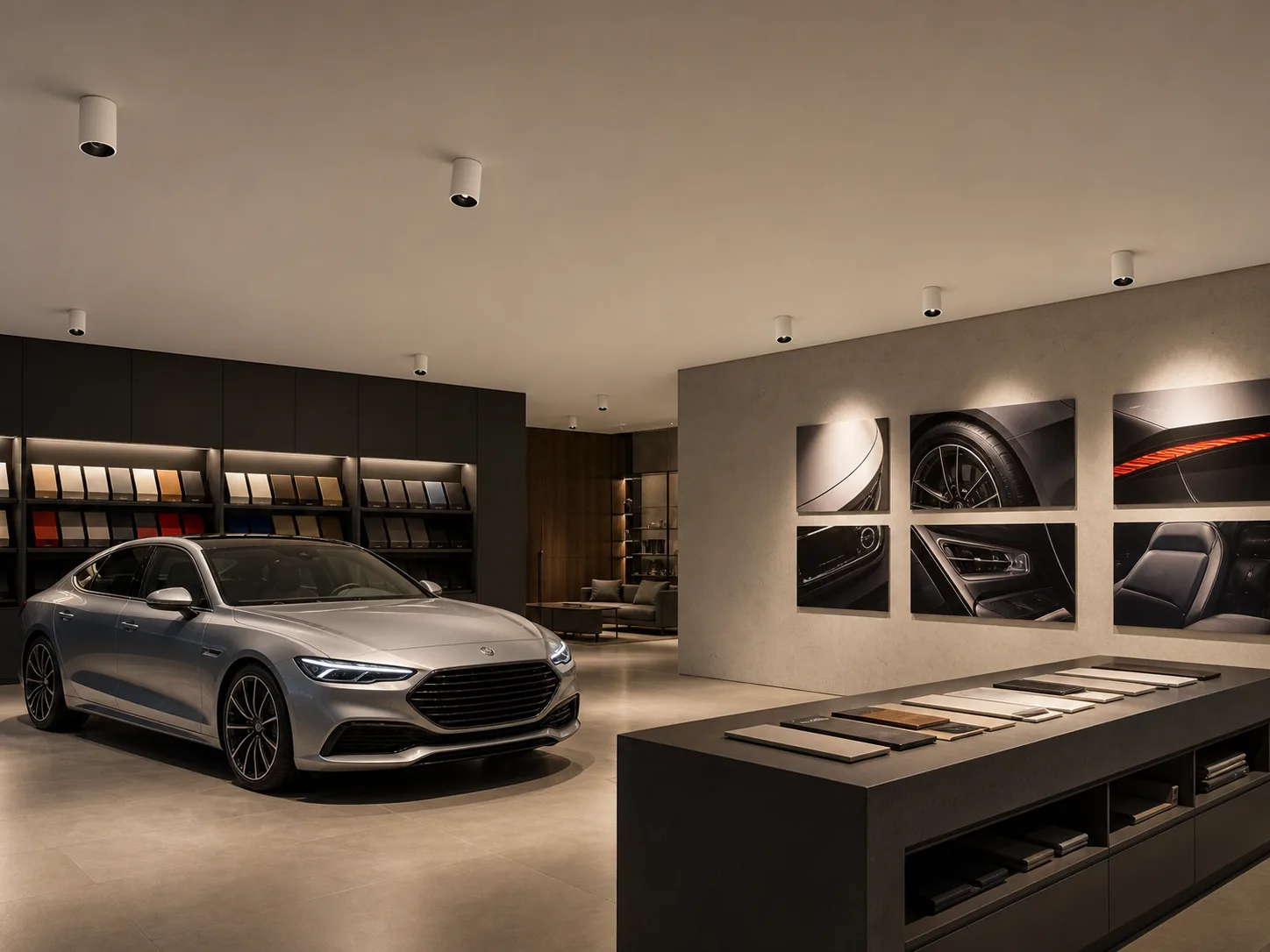

Premium Showroom Lighting
ADJ supports car, furniture, material and lifestyle showrooms where displays move but the ceiling grid must stay ordered. Document aiming angles after commissioning so staff can reset scenes after layout changes.
- Useful for premium showrooms and flexible display areas
- Directional module helps adapt to changing product positions
- Keep fixture rhythm consistent for a calmer ceiling appearance
- Record aiming and dimming settings for future merchandising changes
Projects
Projects using ADJ
See how ADJ delivers precision and performance in real-world projects.
Retail
Premium Jewelry Boutique
ADJ uses a fixed surface-mounted housing and internally adjustable optical module to focus high-CRI light on jewelry and display cases.
Product usedADJ 62
Beam angle20°–57°
ControlTRAIC
Museum
Contemporary Art Gallery
The fixed cylindrical bodies preserve a clean ceiling line while internal gimbal optics aim controlled light at individual artworks.
Product usedADJ 84
Beam angle24°–53°
ControlON/OFF
Residential
Private Residence Accent Lighting
Compact ADJ cylinders mount directly to the ceiling, while their recessed internal modules adjust to highlight artwork and living areas.
Product usedADJ 62
Beam angle20°–57°
ControlTRIAC
System catalogue
Download ADJ system catalogue
Download the latest family catalogue, technical files and specification resources for this product system.
Project support
Request ADJ for your next project
Get quotation support, samples and technical files for this product family.
