Compact Architectural Form
A clean and modern housing helps EMMA fit comfortably into retail and hospitality interiors.
EMMA COMPACT ARCHITECTURAL TRACK LIGHT
Compact form. Comfortable distribution. Modern architectural appearance.
* EMMA is a compact architectural track light family designed for interiors that need comfortable illumination and a refined visual appearance.
* Its modern form factor supports retail displays, hospitality interiors and commercial spaces where the luminaire should feel integrated rather than dominant.
* The range is suitable for retail, fashion stores, restaurants and hospitality lighting projects.
Key Specifications
Applications: Retail / Fashion Store / Restaurant / Hospitality
Diameter Range: Ø45 / Ø62 / Ø73 / Ø90
Power Range: 11W-36W
Design: Compact architectural track light
Distribution: Comfortable light distribution
Control: ON/OFF / TRIAC / DALI where available
* Its modern form factor supports retail displays, hospitality interiors and commercial spaces where the luminaire should feel integrated rather than dominant.
* The range is suitable for retail, fashion stores, restaurants and hospitality lighting projects.
Key Specifications
Applications: Retail / Fashion Store / Restaurant / Hospitality
Diameter Range: Ø45 / Ø62 / Ø73 / Ø90
Power Range: 11W-36W
Design: Compact architectural track light
Distribution: Comfortable light distribution
Control: ON/OFF / TRIAC / DALI where available
Available products
Choose the right size
EMMA 45
Wattage: 11W
Size: Ø45*100mm
Lumen Output: 935lm
Beam Angle: 19°/29°/44°/56°
EMMA 62
Wattage: 14W
Size: Ø62*130mm
Lumen Output: 1627lm
Beam Angle: 18°/27°/38°/54°
EMMA 73
Wattage: 24W
Size: Ø73*148mm
Lumen Output: 2963lm
Beam Angle: 14°/28°/40°/50°
EMMA 90
Wattage: 36W
Size: Ø90*160mm
Lumen Output: 4509lm
Beam Angle: 16°/20°/30°/45°
Why Choose EMMA
EMMA helps designers create a consistent lighting language while matching the functional needs of real architectural projects.
With its focused product positioning and application-specific features, the system simplifies specification while supporting visual comfort, reliable performance and design flexibility.
Suitable for retail / fashion store / restaurant / hospitality projects.
Characteristics
What defines EMMA
Comfortable Light Distribution
The optical design supports pleasant illumination for merchandise, dining areas and customer circulation spaces.
Flexible Retail Use
Suitable for accent lighting, feature displays and general visual presentation in fashion and lifestyle stores.
Modern Commercial Appearance
Designed for projects that require functional track lighting with a softer architectural presence.
Applications
Where EMMA Performs Best
EMMA should be specified as a compact architectural track-light family for retail, restaurant, hospitality and commercial interiors. Use it when the project needs a refined luminaire appearance, flexible aiming and selectable beam spreads from focused accent to broader display lighting, with final effect confirmed by datasheets and IES/LDT files.
Fashion Retail Lighting
EMMA is suited to fashion retail where the luminaire should look compact and architectural while still providing enough accent punch for garments, mannequins and wall bays. Use the smaller sizes for lower ceilings or tighter visual language, and larger sizes where higher output or longer throw is required.
- Recommended mounting height: about 2.7–4.2 m for typical fashion retail ceilings
- Recommended beam start: 19°/29° for mannequins and hero displays
- 44°/56° for broader wall bays or tables
- Design check: confirm beam size and contrast with IES/LDT files before final aiming
- Selection difference: choose EMMA when a compact architectural look is needed
- choose higher-output track families for very high ceilings or long throws
Restaurant Lighting
In restaurants, EMMA works as a focused accent layer for tables, counters, bar fronts and textured walls. It should support atmosphere without producing harsh glare in seated eye lines, so aiming angle and dimming control are more important than simply using more luminaires.
- Recommended mounting height: about 2.6–3.6 m for dining rooms and hospitality interiors
- Recommended target: tables
- bar counters
- artwork and textured vertical surfaces rather than uniform floor brightness
- Glare strategy: keep beam direction away from seated guests and use dimming for evening scenes
- Control note: TRIAC can suit small restaurant zones
- DALI is preferred for scenes
- private rooms or all-day operation

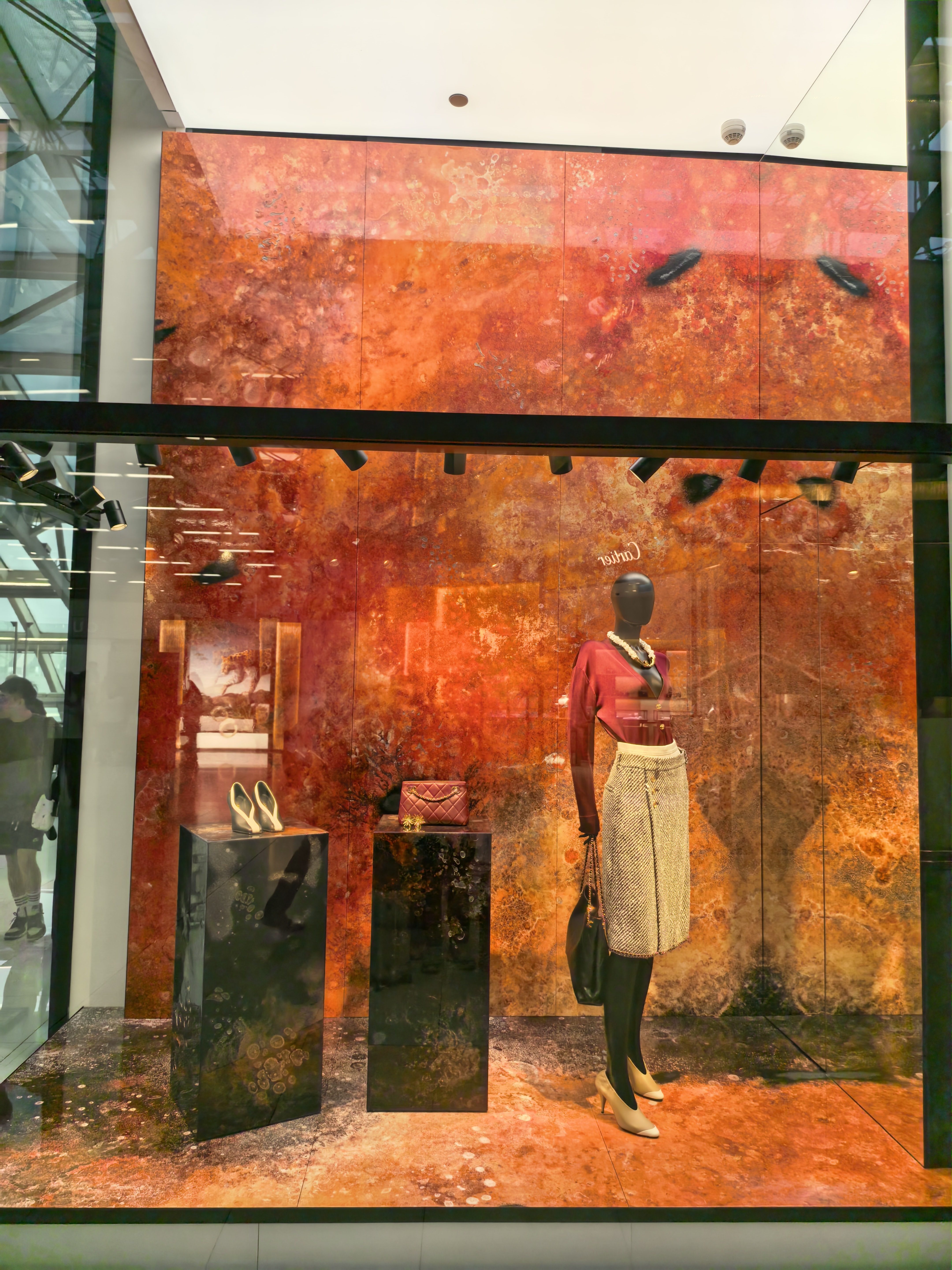

Hospitality Lighting
For hospitality spaces, EMMA is useful where lounges, corridors, reception areas and guest-facing interiors need a consistent track-light family with comfortable accent lighting and flexible scene control.
- Recommended use: reception features
- corridor artwork
- lounge seating groups and hospitality retail corners
- Distribution: use narrower beams for artwork/features and wider beams for soft lounge accents
- verify final effect with photometric files
- Visual comfort: avoid aiming directly into guest circulation paths and keep contrast appropriate for the ambience
- Driver/control coordination: confirm ON/OFF
- TRIAC or DALI early so scenes and dimming behaviour match the project brief
Commercial Interior Lighting
In commercial interiors, EMMA can provide a clean accent layer for reception walls, product corners, meeting-area features and brand displays where the project needs flexible track aiming but not a heavy industrial track-light appearance.
- Recommended size logic: Ø45/Ø62 for compact interiors
- Ø73/Ø90 where more visual presence or output is needed
- Application limit: not a replacement for linear general office lighting when uniform work-plane illumination is required
- Accessory/file check: coordinate track type
- finish
- driver
- dimming and IES/LDT files before approval
- Alternative choice: use wall washers for even vertical illumination
- use EMMA where adjustable focused accents are required
Projects
Projects using EMMA
EMMA is designed for retail / fashion store / restaurant / hospitality projects where professional lighting performance, visual comfort and long-term reliability are essential.
Retail
Calvin Klein Jakarta
Track Lighting installed in IFME Shoe Store in the United Arab Emirates, showing IFME kids shoe retail display wall with white track lights.
Product usedEMMA 45
Beam angle29°
ControlDALI
Retail
Stella McCartney Saudi Arabia

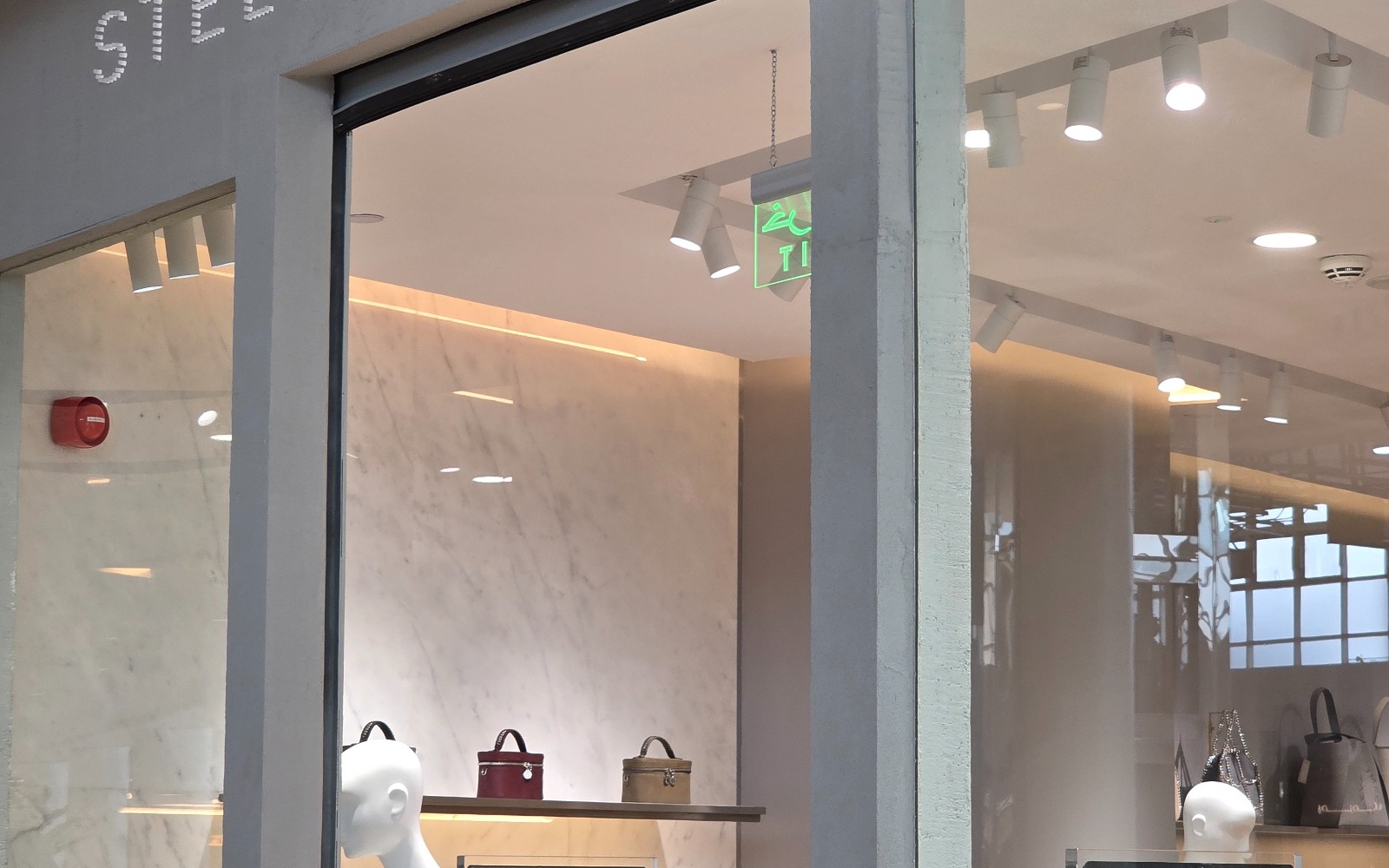

Track Lighting installed in a retail project in the Middle East, showing fashion and lifestyle boutique display area with ceiling track lighting.
Product usedEMMA 62
Beam angle27° / 38°
Control
Restaurant
Cafe Project
Track Lighting installed in a restaurant project in the Middle East, showing cafe seating area with exposed ceiling and white track lighting.
Product usedEMMA 73
Beam angle28°
ControlDALI
System catalogue
Download EMMA system catalogue
Download the latest family catalogue, technical files and specification resources for this product system.
Project support
Request EMMA for your next project
Get quotation support, samples and technical files for this product family.
