Asymmetric Optics
The offset optical design redirects light toward the wall or display surface instead of producing a conventional symmetrical beam.
WASHO Asymmetric Wall Washer Track Light
An asymmetric wall washer designed to create a controlled arc-shaped light pattern for artwork, gallery and display lighting.
WASHO is an asymmetric wall washer designed for precise lighting of artworks, displays and selected wall surfaces.
Its offset optical system creates a distinctive arc-shaped light pattern rather than a conventional symmetrical beam, making it especially suitable for individual use where a single luminaire needs to highlight one artwork, object or display area.
Available in track-mounted and surface-mounted versions, WASHO provides a flexible solution for galleries, art displays and other interiors where controlled wall lighting and precise visual emphasis are required.
Key Specifications
Product Type: Asymmetric Wall Washer
Power: 9W / 15W / 28W
Sizes: Ø55 / Ø73 / Ø90 mm
Luminous Flux: 400–1754 lm
Beam Angle: 48°–72°
Optical Type: Asymmetric / Offset Optics
Light Pattern: Arc-Shaped Light Distribution
Mounting Options: Track / Surface-Mounted
Application Focus: Individual Artwork / Gallery / Art Display
Applications: Gallery / Art Display / Museum / Display Interiors
Its offset optical system creates a distinctive arc-shaped light pattern rather than a conventional symmetrical beam, making it especially suitable for individual use where a single luminaire needs to highlight one artwork, object or display area.
Available in track-mounted and surface-mounted versions, WASHO provides a flexible solution for galleries, art displays and other interiors where controlled wall lighting and precise visual emphasis are required.
Key Specifications
Product Type: Asymmetric Wall Washer
Power: 9W / 15W / 28W
Sizes: Ø55 / Ø73 / Ø90 mm
Luminous Flux: 400–1754 lm
Beam Angle: 48°–72°
Optical Type: Asymmetric / Offset Optics
Light Pattern: Arc-Shaped Light Distribution
Mounting Options: Track / Surface-Mounted
Application Focus: Individual Artwork / Gallery / Art Display
Applications: Gallery / Art Display / Museum / Display Interiors
Available products
Choose the right size

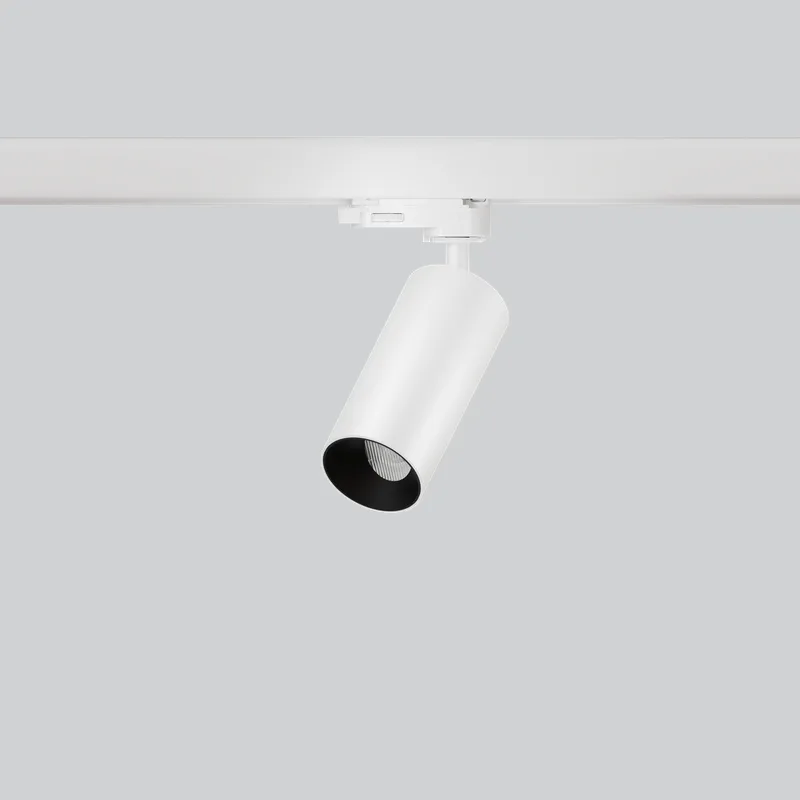

WASHO 55
Wattage: 9W
Size: Ø55
Lumen Output: 400lm at 3000K
Beam Angle: ww Tilted 20° Beam 48°

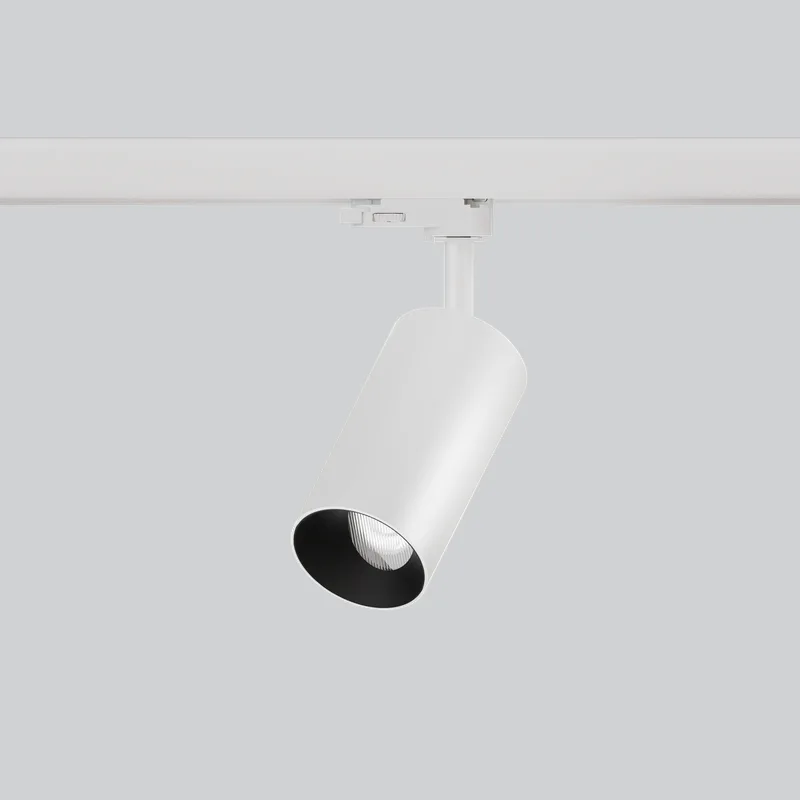

WASHO 73
Wattage: 15W
Size: Ø73
Lumen Output: 1123lm at 3000K
Beam Angle: ww Tilted 20° Beam 72°

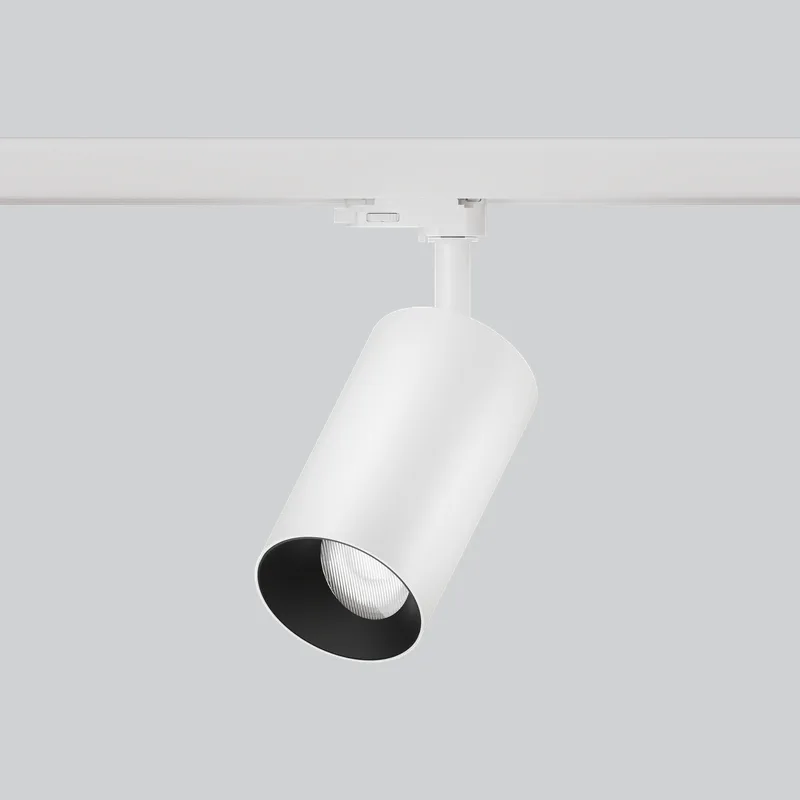

WASHO 90
Wattage: 28W
Size: Ø90
Lumen Output: 1754lm at 3000K
Beam Angle: ww Tilted 22° Beam 52°
Why Choose WASHO
WASHO is designed for applications where a conventional symmetrical spotlight or continuous wall washer does not provide the desired visual effect.
Its asymmetric optical system redirects the light toward the wall and creates a controlled arc-shaped light pattern, making it particularly effective for highlighting individual artworks, framed pieces and display areas.
With both track-mounted and surface-mounted options, WASHO gives designers greater flexibility in projects where precise wall emphasis and clean visual presentation are important.
CHARACTERISTICS
What Defines WASHO
Arc-Shaped Light Pattern
WASHO creates a distinctive arc-shaped light pattern designed for controlled visual emphasis on selected wall areas.
Individual Artwork Lighting
The optical effect is best suited to single-luminaire applications where one artwork, object or display needs to be highlighted independently.
Track + Surface Mounting
Track-mounted and surface-mounted versions allow the same optical concept to be used across different installation conditions.
APPLICATIONS
Where WASHO Performs Best
WASHO is developed for interiors where artworks, displays and selected wall surfaces need controlled asymmetric illumination rather than continuous wall washing.

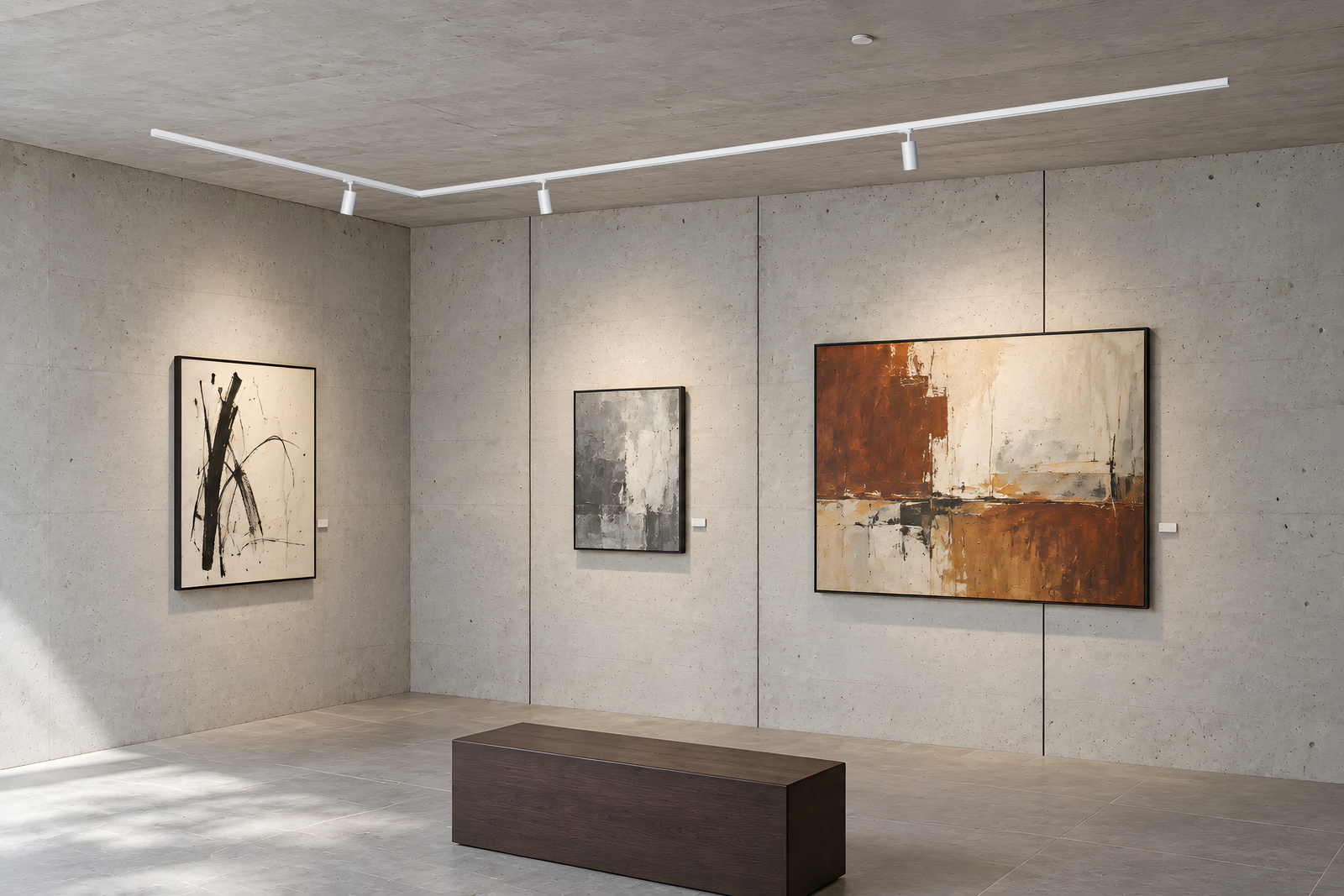

Art Galleries
The arc-shaped asymmetric beam helps highlight individual paintings and framed artworks with a more controlled visual focus.
- Paintings
- Framed Art

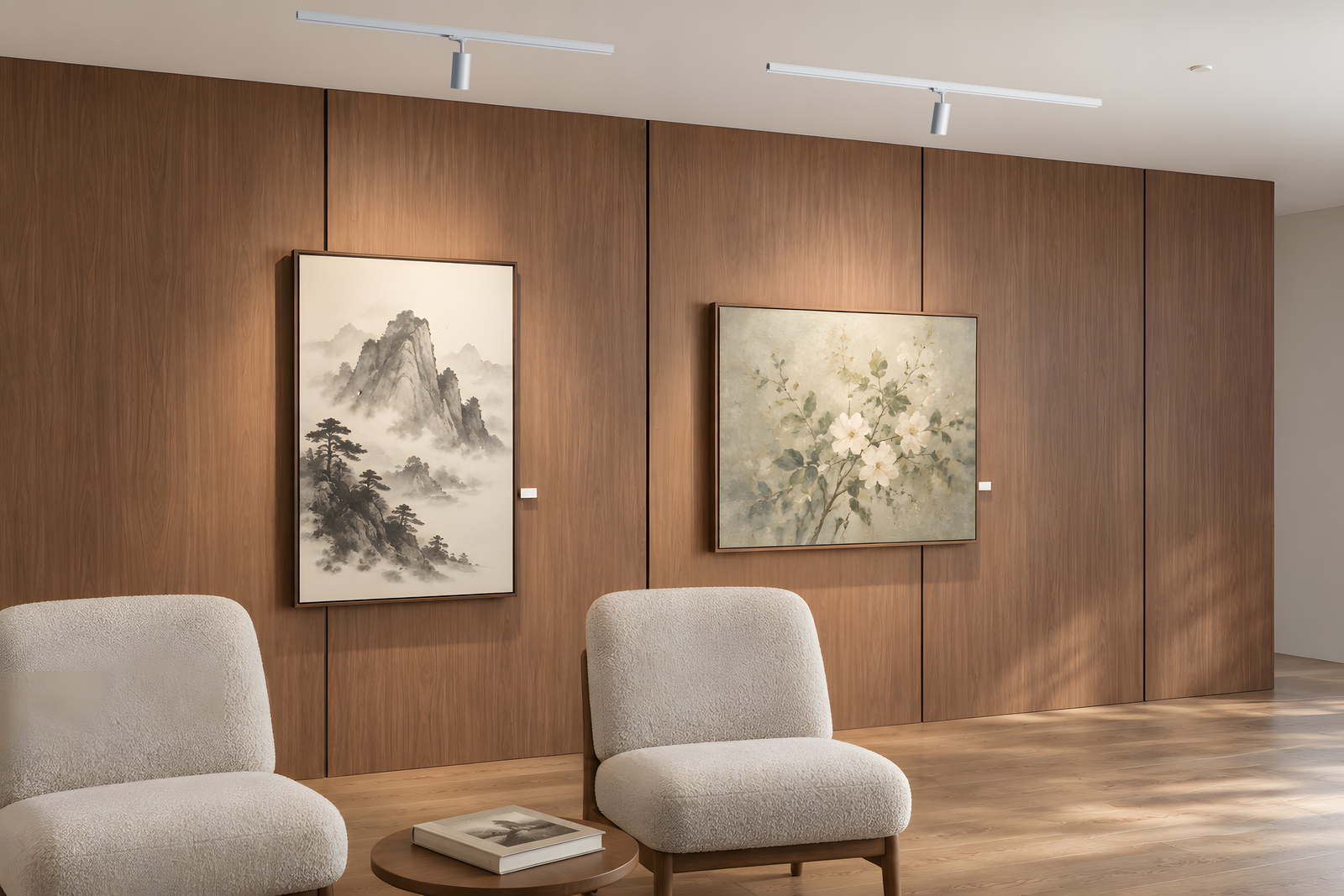

Artwork Lighting
WASHO is especially effective where one fixture is used to emphasize a single artwork or selected wall element.
- Artworks
- Wall Displays

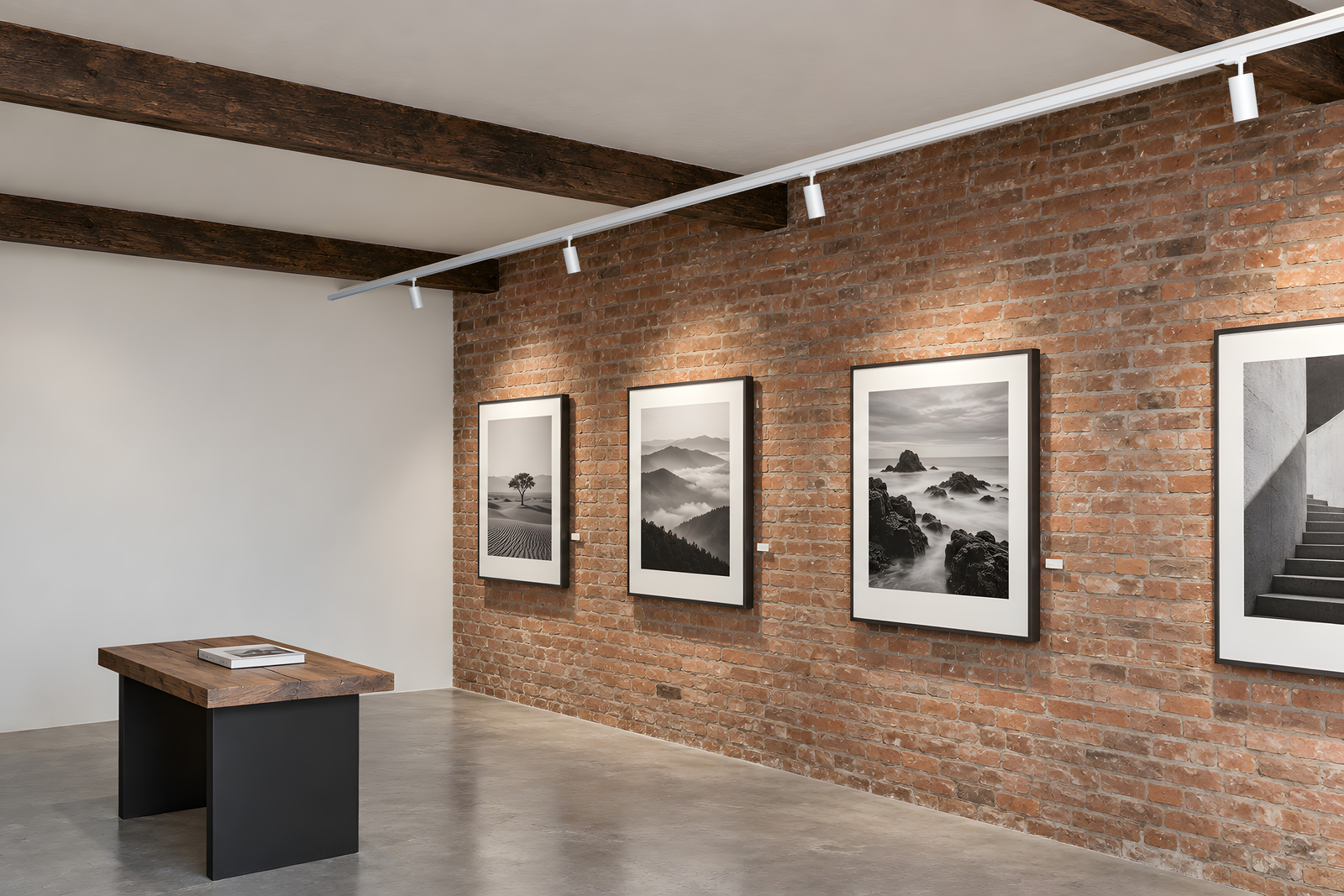

Museum Displays
Controlled asymmetric lighting helps create visual emphasis on selected museum displays without relying on continuous wall-wash layouts.
- Exhibits
- Wall Displays

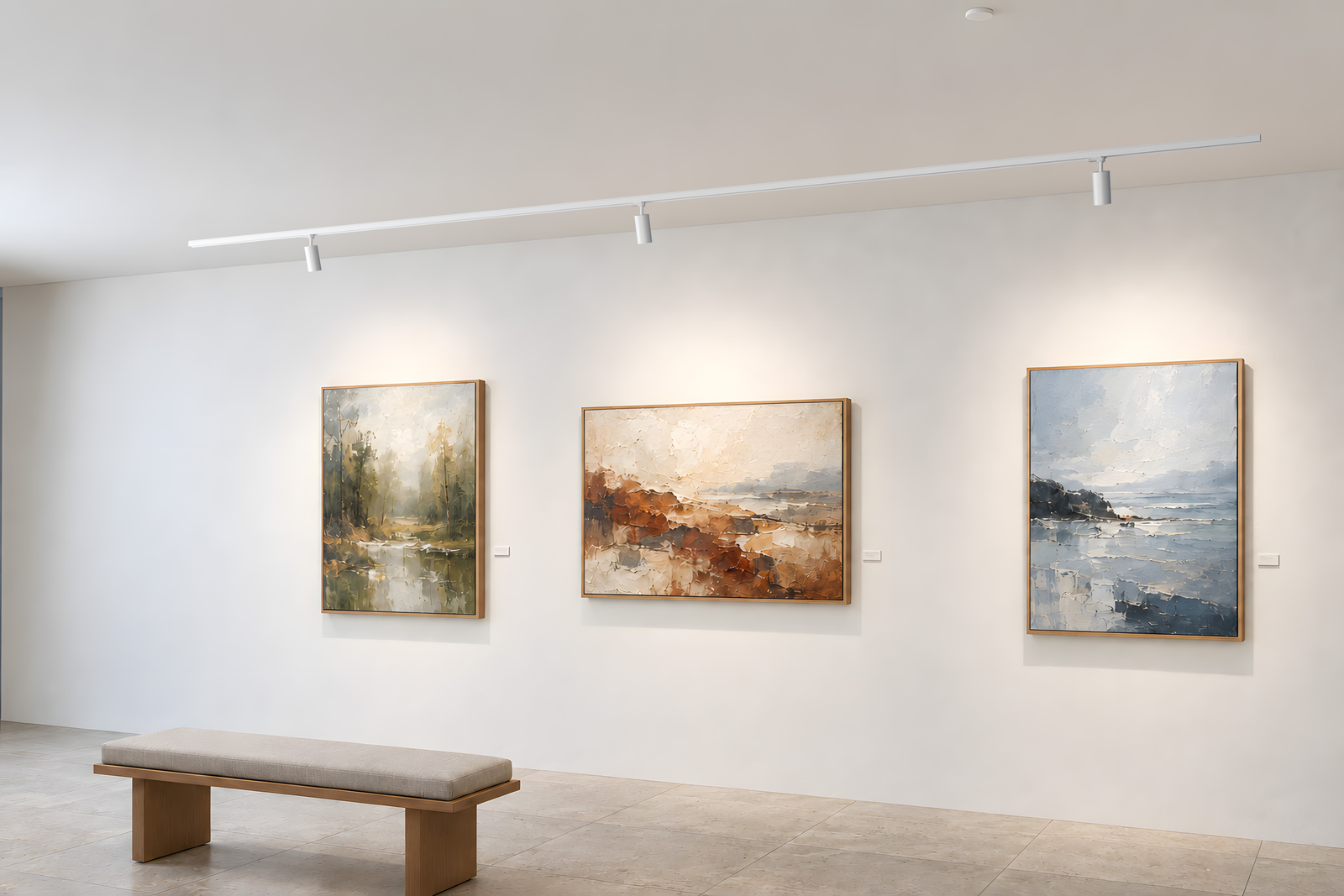

Display Interiors
The directional arc-shaped beam can be used to highlight feature walls, selected display zones and visual focal points.
- Feature Walls
- Display Areas
Projects
Projects using WASHO
See how WASHO delivers precision and performance in real-world projects.
Gallery
Art Display Lighting
WASHO track wall washers provide controlled illumination for sculptures, artwork and textured surfaces, creating clear visual focus with comfortable brightness.
Product usedWASHO 55 / WASHO 75
Beam angle20° / 39°
ControlDALI
Hospitality
Grandview Hotel Reception
Uniform vertical illumination brightens the reception feature wall and signage while supporting a calm, premium hospitality atmosphere.
Product usedWASHO 55 / WASHO 75
Beam angle20° / 39°
ControlDALI
Retail
Luxury Handbag Boutique
WASHO creates smooth, even illumination across handbag display walls, improving merchandise visibility without harsh hot spots.
Product usedWASHO 55 / WASHO 75
Beam angle20° / 39°
ControlDALI
SYSTEM CATALOGUE
Download WASHO Product Catalogue
Download the WASHO catalogue, technical data and mounting options for the complete asymmetric wall washer family.
PROJECT SUPPORT
Specify WASHO for Your Project
Tell us the artwork size, wall distance and mounting condition, and we can help recommend the suitable WASHO size and installation method.
