KEY TAKEAWAYS
- Track lighting allows fixtures to move and adapt
- Spot, linear, wall-washer and pendant modules serve different tasks
- Confirm track, adapter and control compatibility
- Choose beam angle, output, CRI and glare control together
01What Is Track Lighting?
Track lighting uses a continuous track to provide power and mechanical support for movable luminaires. Fixtures can be repositioned, aimed or replaced as displays and layouts change, making the system especially useful for retail, galleries and hospitality spaces.
02Main Types of Track Luminaires
Track spotlights provide adjustable accent light. Linear modules produce broader task or ambient illumination. Wall washers spread light across vertical surfaces, while track-mounted pendants add decorative form and lower the light source over counters or tables.
03Track Systems and Compatibility
Common systems include mains-voltage three-circuit track and low-voltage magnetic track. Adapters, conductors and controls must be compatible; a luminaire designed for one system should not be assumed to fit another. Confirm electrical ratings and mechanical connections before ordering.
Key Design Considerations
01 Track Spotlight
Adjustable accent lighting for products, art and architectural features.
02 Modular System
Flexible optical modules for projects with changing requirements.
03 Wall Washer
Broad controlled distribution for shelves, walls and graphics.

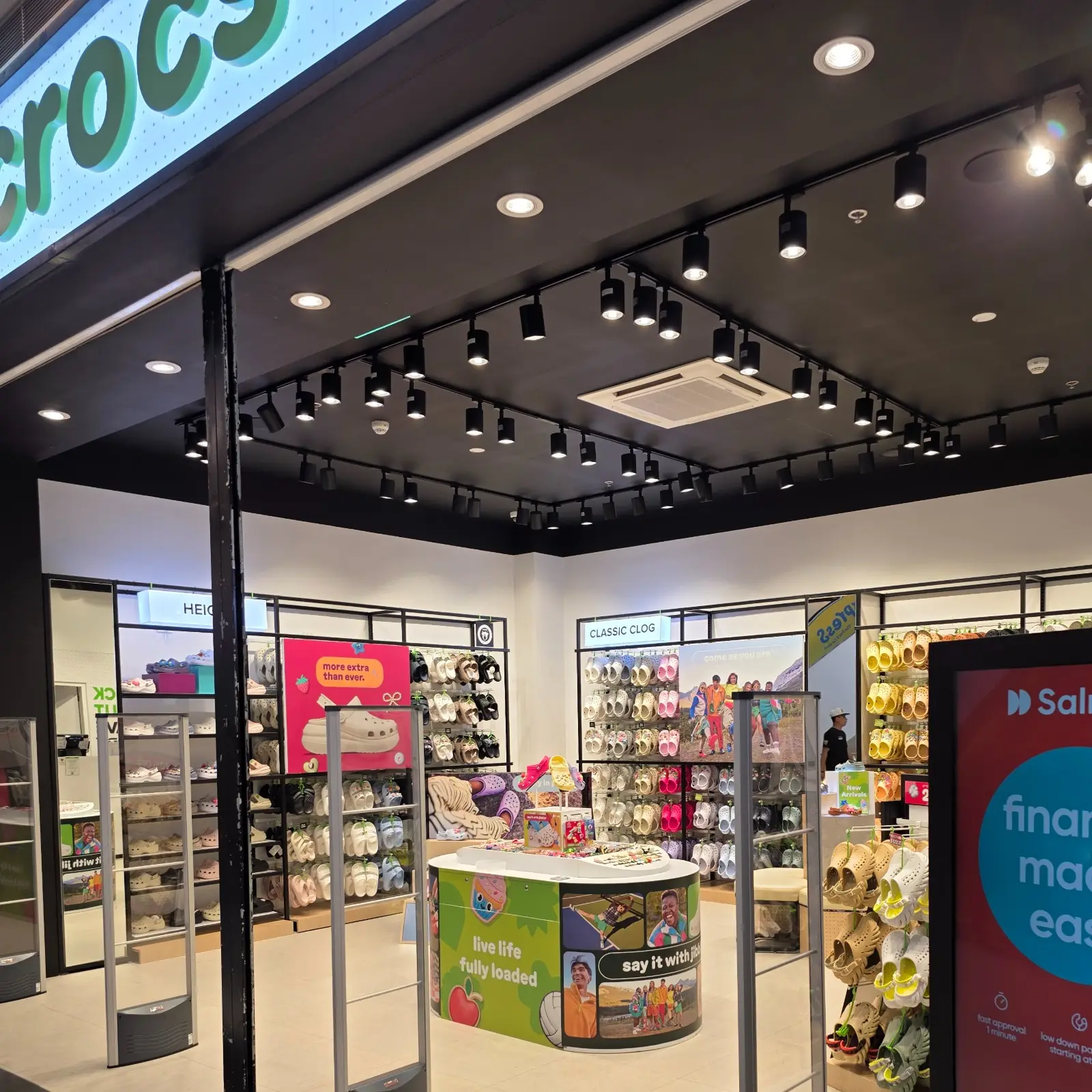

04 Project Flexibility
Track systems support layout changes without rebuilding the ceiling.
04How to Choose Performance
Select beam angle according to target size and distance. Match wattage and lumen output to the required illuminance, then check CRI, CCT, glare control, dimming and optical accessories. Photometric files provide more reliable answers than wattage alone.
Selection Checklist
| Design Factor | What to Check | Why It Matters |
|---|---|---|
| Application | Activities, surfaces and visual priorities | Defines the lighting task |
| Optical Performance | Beam angle, distribution and glare control | Shapes light accurately |
| Light Quality | CRI, CCT and consistency | Supports comfort and appearance |
05Applications and Artdon Products
BEAMX supports precise accents, SPECTRUM offers modular optical flexibility, and WASHO provides controlled wall washing. Combining these functions on a coordinated track system creates adaptable layered lighting for changing projects.
