KEY TAKEAWAYS
- Wall washers create even vertical illumination
- They differ from spotlights and general floodlights
- Spacing and distance from the wall control uniformity
- Choose optics, lumen output, CRI and glare control together
01What Is Wall Washer Lighting?
Wall washer lighting uses a wide, controlled or asymmetric beam to distribute illumination across a vertical surface. The objective is a smooth field of light with limited scalloping, hotspots and dark gaps.
Bright vertical surfaces also make a room feel more open and visually comfortable without relying only on high horizontal illuminance.
02Wall Washer vs Spotlight vs Floodlight
A spotlight concentrates light on a small target and creates contrast. A floodlight spreads light across a broader area but may not control the top-to-bottom distribution. A purpose-designed wall washer shapes the beam to cover a vertical plane more evenly.
03Where Wall Washing Is Used
Retail wall displays benefit from clear merchandise visibility. Museums and galleries use controlled vertical light for artworks. Hotels use wall washing to reveal materials and create a calm sense of brightness, while commercial lobbies use it for feature walls and wayfinding.
Key Design Considerations
01 Asymmetric Optics
Purpose-shaped distributions direct more light onto the vertical surface.
02 Retail Walls
Even illumination improves shelf, graphic and merchandise visibility.

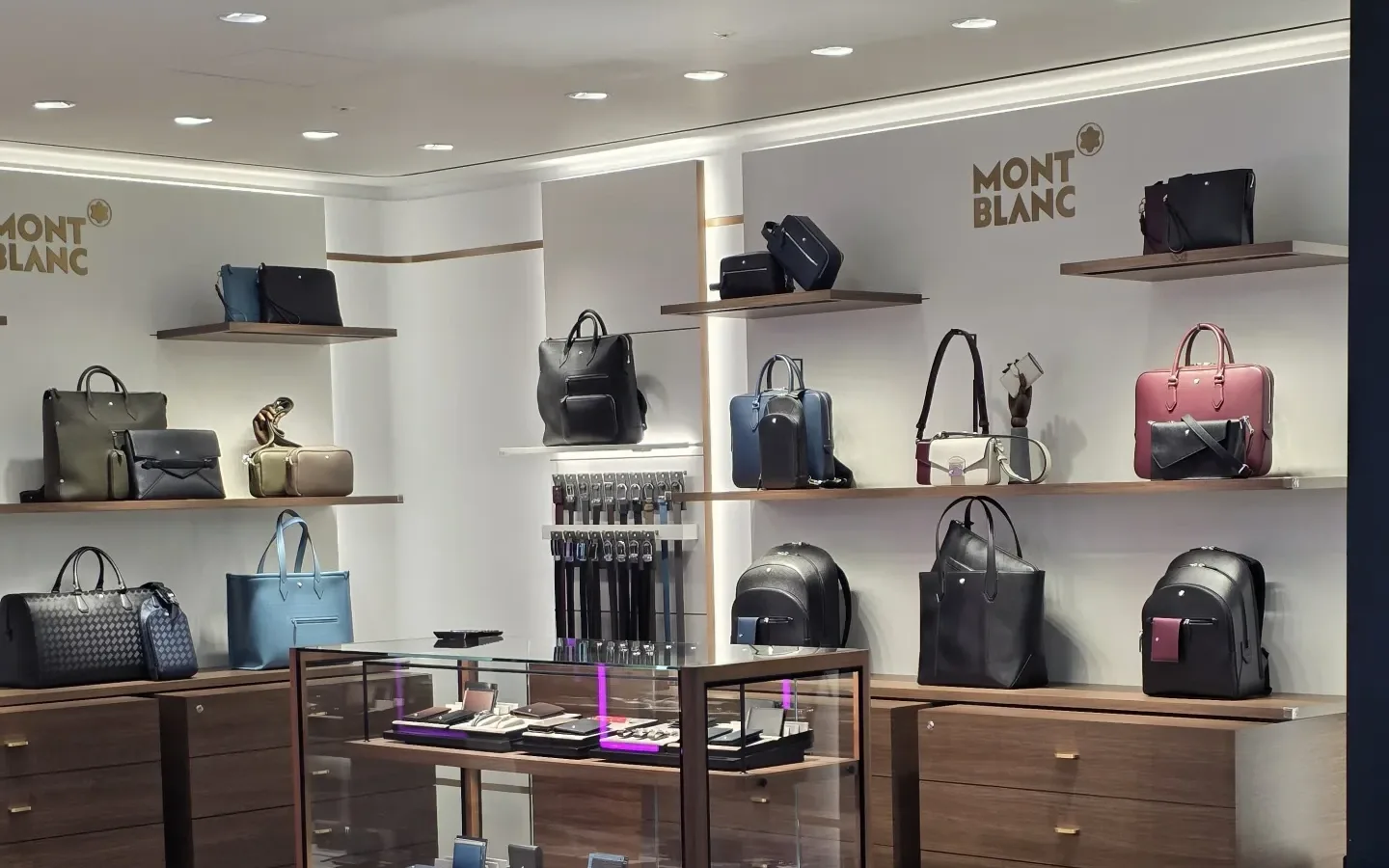

03 Display Details
Compact fixtures such as SHOWLITE support cabinets and close-range displays.
04 Flexible Accents
BEAMX and SPECTRUM add focused highlights where stronger hierarchy is needed.
04Spacing and Aiming Principles
The distance from the wall, luminaire spacing and mounting height determine uniformity. Fixtures placed too close may create bright scallops; fixtures placed too far away can waste light. Photometric files and on-site mock-ups should be used to confirm the layout.
Selection Checklist
| Design Factor | What to Check | Why It Matters |
|---|---|---|
| Application | Activities, surfaces and visual priorities | Defines the lighting task |
| Optical Performance | Beam angle, distribution and glare control | Shapes light accurately |
| Light Quality | CRI, CCT and consistency | Supports comfort and appearance |
05Choosing Wall Washer Products
Select the optical distribution for the wall height and mounting position, then check lumen output, CRI, glare control and aiming flexibility. Artdon solutions such as WASHO, BEAMX, SPECTRUM and SHOWLITE support different wall, shelf and display conditions.
