KEY TAKEAWAYS
- 0–40° adjustable aiming for precise directional lighting.
- A synchronized anti-glare shield moves with the module to help reduce light leak.
- Deep anti-glare optics support better visual comfort.
- Distinctive structure with trimmed and trimless installation options.
01Why REDLINE was developed
In many architectural lighting projects, adjustable recessed downlights are expected to do more than simply illuminate a space. They need to aim precisely, control glare, integrate cleanly into the ceiling, and maintain a refined visual appearance.
However, in real applications, many adjustable downlights still present several common problems. The aiming range may be limited. The anti-glare effect may weaken once the module is tilted. In some cases, light leak becomes more visible during adjustment, affecting both visual comfort and the final lighting effect.
The REDLINE adjustable recessed downlight was developed to address these issues more carefully. It is designed as an adjustable recessed downlight family for projects where precision, visual comfort, and architectural integration all matter.
For us, a good adjustable downlight should not force designers to choose between aiming flexibility and visual comfort. The optical control should remain effective even after the luminaire is adjusted.

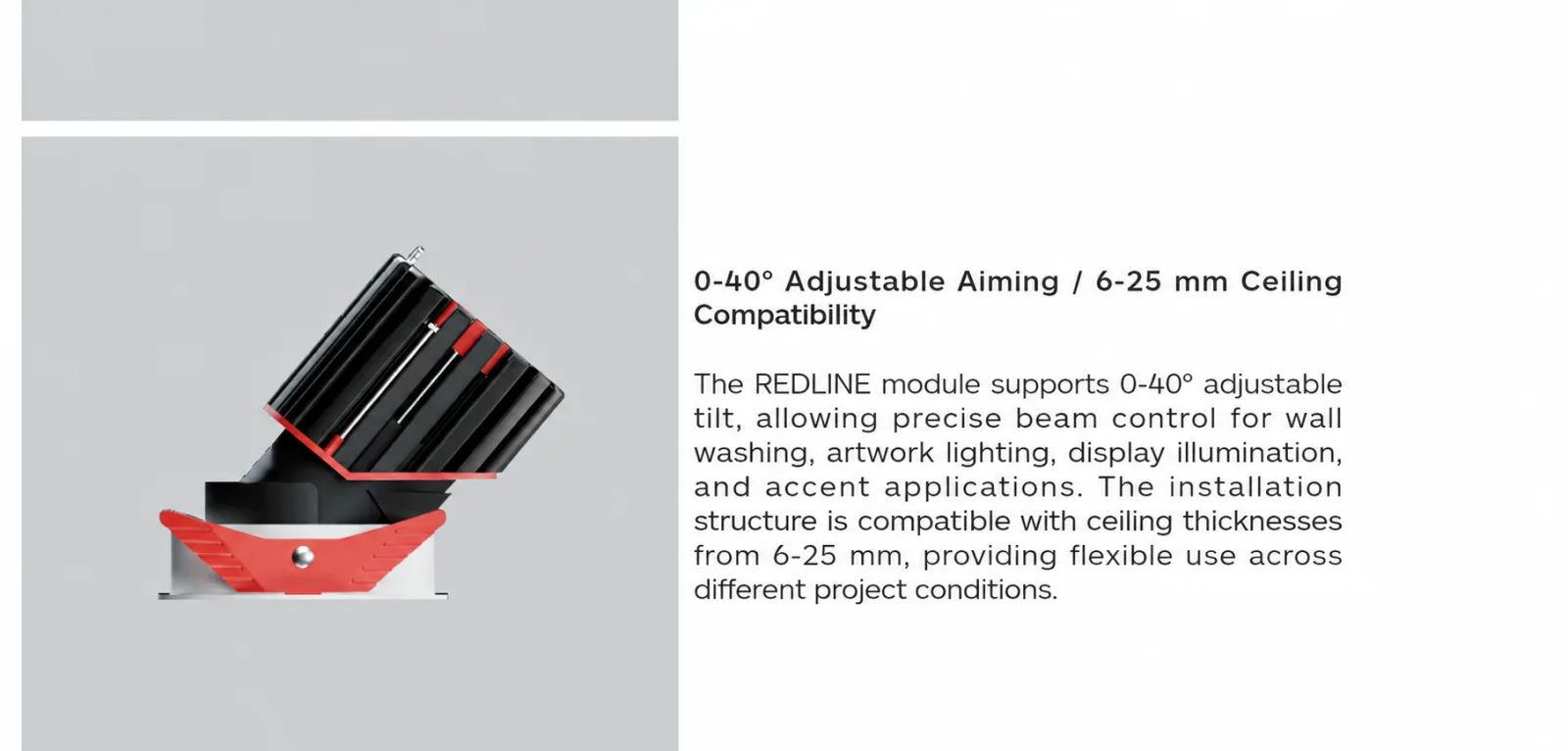

020–40° adjustable aiming for more precise lighting
One of the key features of REDLINE is its 0–40° adjustable aiming capability. This gives lighting designers and installers more flexibility when directing the beam exactly where it is needed.
Whether the goal is to highlight merchandise, illuminate a wall surface, support display lighting, or create more controlled accent lighting in hospitality and residential interiors, a wider and more practical aiming range helps improve beam positioning and application flexibility.
Instead of treating adjustability as a secondary function, REDLINE makes it a core part of the lighting performance.
The value of a 40° tilt is not simply a larger adjustment number. It gives designers more tolerance when the luminaire position cannot be placed exactly above the target, helping compensate for ceiling layout limitations without changing the fixture location.
REDLINE key features
01 0–40° adjustable aiming for more precise lighting
0–40° tilt helps compensate for ceiling layout limitations when the luminaire cannot be positioned directly above the target.
02 A synchronized shield to help reduce light leak
The shield follows the adjustable module through an elastic linkage, helping cover exposed areas and reduce unwanted side or rear light during aiming.
03 Deep anti-glare optics for better visual comfort
A deeper light source reduces direct visibility at normal viewing angles; the shielding structure supports glare control while preserving directional output.
04 Flexible installation options for different ceiling conditions
REDLINE is available in trimmed and trimless versions, giving more freedom across different ceiling designs and project requirements. It also supports different cut-out sizes, making the range practical for different installation conditions.
03A synchronized shield to help reduce light leak
A common challenge with adjustable downlights is maintaining optical shielding when the beam direction changes. REDLINE uses a synchronized anti-glare shielding structure to help reduce light leak during adjustment.

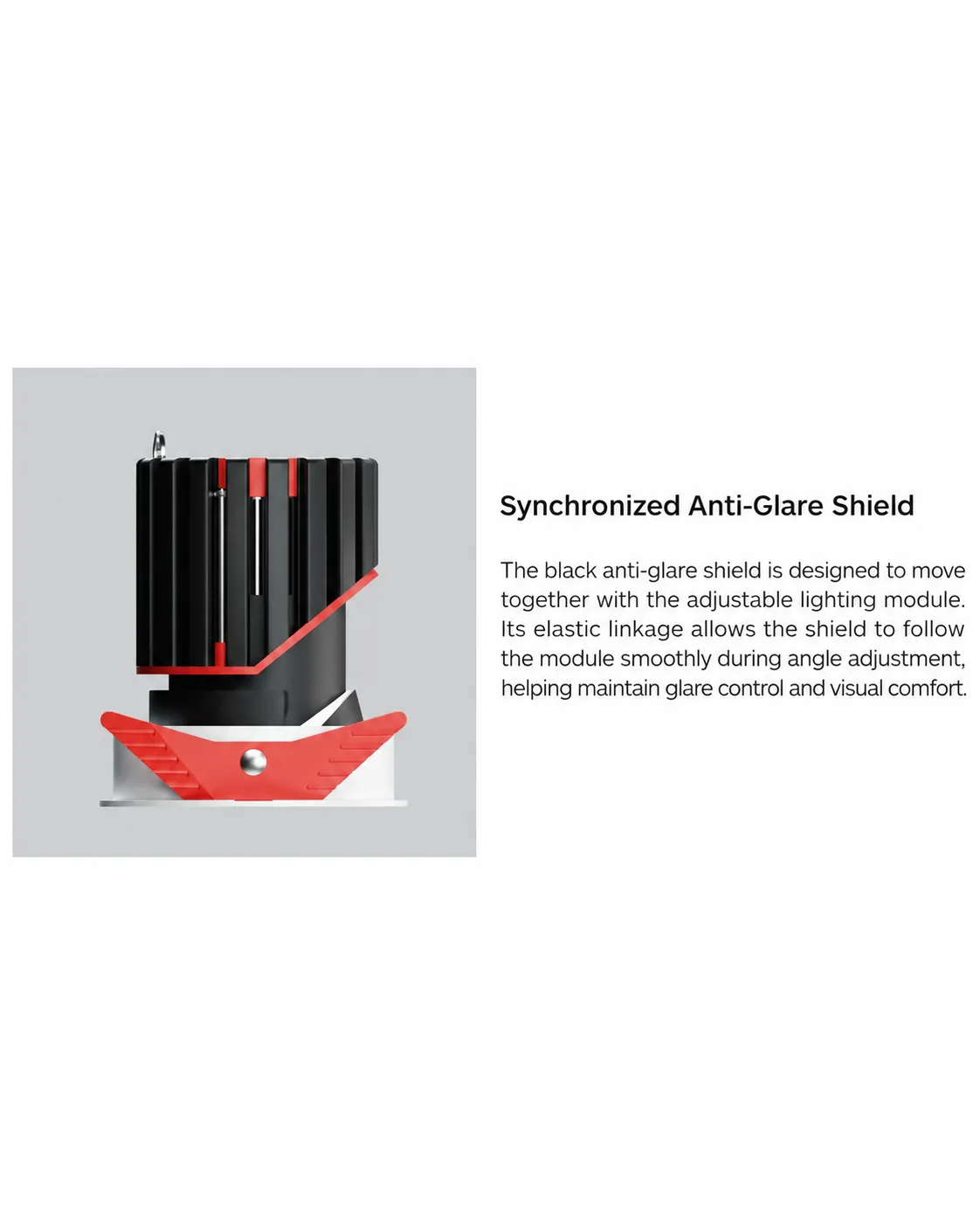

How the synchronized shield works
In a conventional adjustable downlight, the light engine moves away from its original center position when tilted. If the internal shielding remains fixed, part of the optical path can become exposed, allowing unwanted side or rear light to escape.
In REDLINE, the shielding element moves together with the adjustable module. Its elastic linkage allows the black anti-glare shield to follow the module smoothly as it tilts, helping cover the newly exposed area and maintain more consistent light control.
Unlike a fixed shield, which remains in its original position, this moving structure follows the changing position of the light engine. It helps control unwanted light around the tilted module while preserving the intended directional beam.
For designers and installers, this means aiming flexibility and shielding can work together, supporting a cleaner lighting result and visual comfort after adjustment.
In an adjustable downlight, good glare control should not disappear when the light engine is tilted. The shielding system should move with the optical module, rather than remain effective only in the vertical position.
04Deep anti-glare optics for better visual comfort
Visual comfort is a major consideration in retail, hospitality, residential, and other refined interior projects. Excessive brightness and direct views of an exposed light source can reduce the quality of a space.
REDLINE places the light source deeper inside the optical system, reducing direct visibility of the bright source at normal viewing angles. Combined with the shielding structure, this helps control discomfort glare while preserving directional output.
The recessed optical arrangement and synchronized shield serve complementary roles: the deeper source position limits direct visibility, while the moving shield helps maintain light control as the module is aimed.
This makes REDLINE suitable for spaces where people interact closely with the environment and where directional lighting needs to remain visually comfortable.
REDLINE overview
| Feature | Design | Project benefit |
|---|---|---|
| Aiming | 0–40° adjustable aiming | More flexible beam positioning |
| Shielding | Synchronized anti-glare shield | Helps reduce light leak during adjustment |
| Installation | Trimmed and trimless versions | Flexibility across ceiling designs |
05Architectural design, installation options and applications

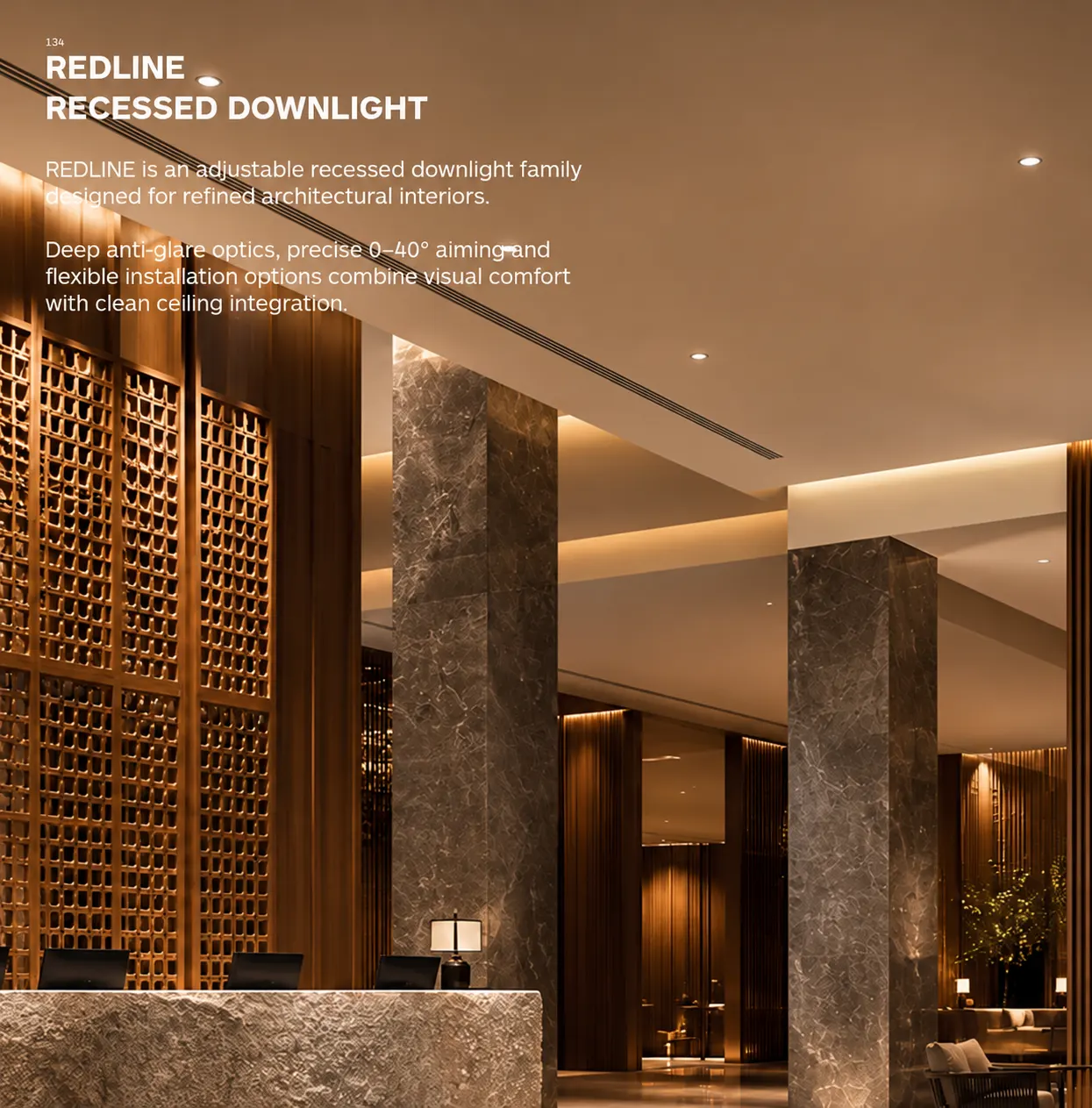

REDLINE also stands out in its structure and appearance. The design combines a clean recessed visual profile with a recognizable mechanical character. The contrast between the module, trim, and structural elements gives the product a more distinctive identity compared with many standard recessed downlights.
This is especially valuable for projects that care about detail. In architectural lighting, the fixture itself may be discreet, but it should still reflect thoughtful design, engineering clarity, and visual refinement.
REDLINE offers this balance between functional structure and a more memorable product language.

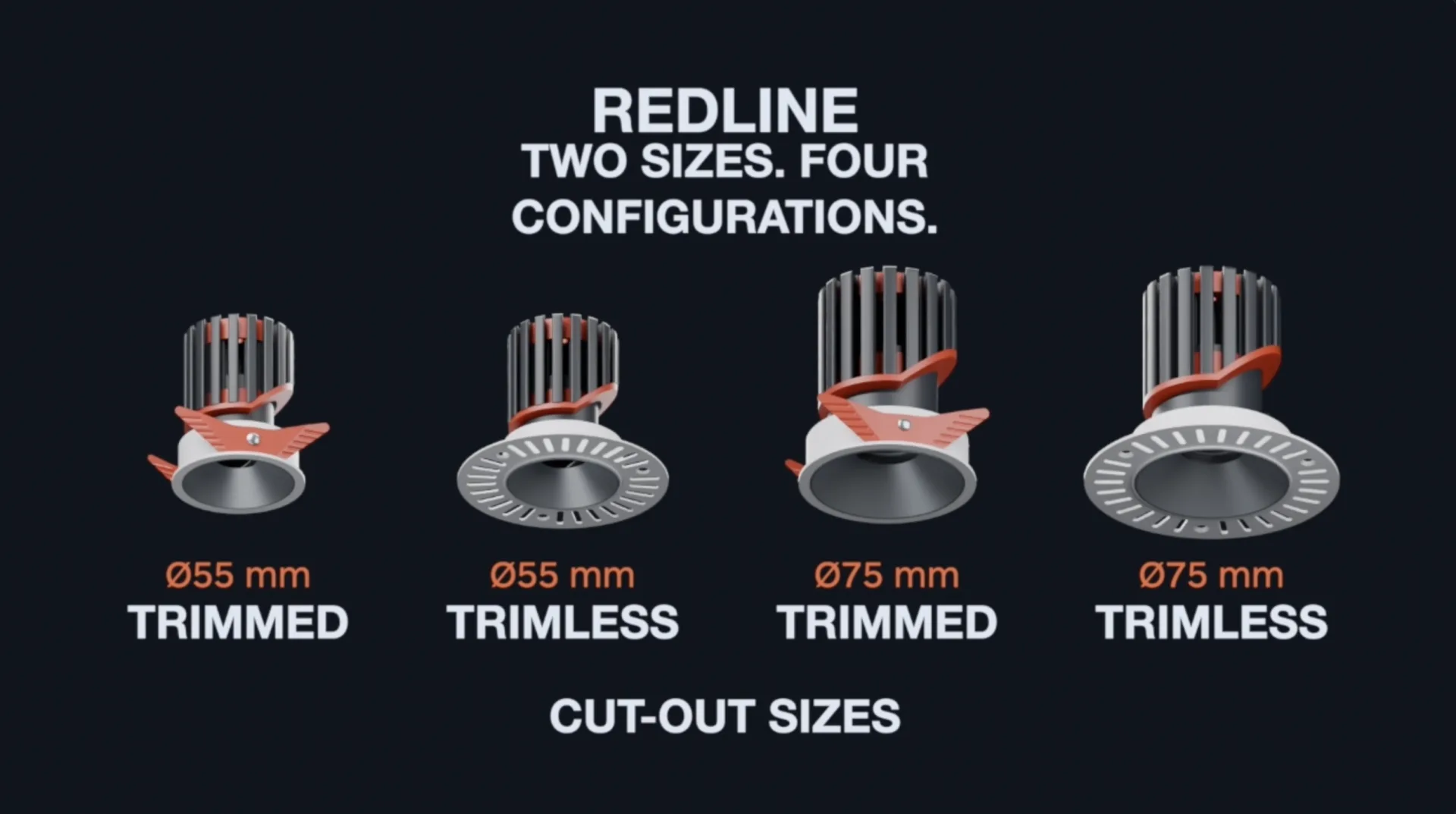

Flexible installation options for different ceiling conditions
REDLINE is available in trimmed and trimless versions, giving more freedom across different ceiling designs and project requirements. It also supports different cut-out sizes, making the range practical for different installation conditions.
This flexibility allows designers and project teams to choose the right visual effect while keeping a consistent product language across the project.
Where REDLINE fits best
REDLINE is well suited for projects where directional control, reduced glare, and clean ceiling integration are important, including:
• Retail stores and display areas
• Hospitality interiors
• Villas and residential projects
• Refined architectural interiors
• Accent and display lighting applications
In these environments, lighting often needs to be both precise and visually quiet. REDLINE is designed for exactly that balance.
Conclusion
REDLINE was developed as more than just another adjustable recessed downlight. It was created to solve practical lighting problems with a more refined approach — combining 0–40° adjustable aiming, a synchronized shielding structure to help reduce light leak, deep anti-glare performance, and a distinctive architectural design.
For designers, installers, and project teams looking for better directional control with cleaner visual comfort, REDLINE offers a more complete recessed downlight solution.
