LITE PRO 50

LITE PRO 50 52.05017 downlights from Artdon Lighting for professional architectural projects.
LITE PRO 50

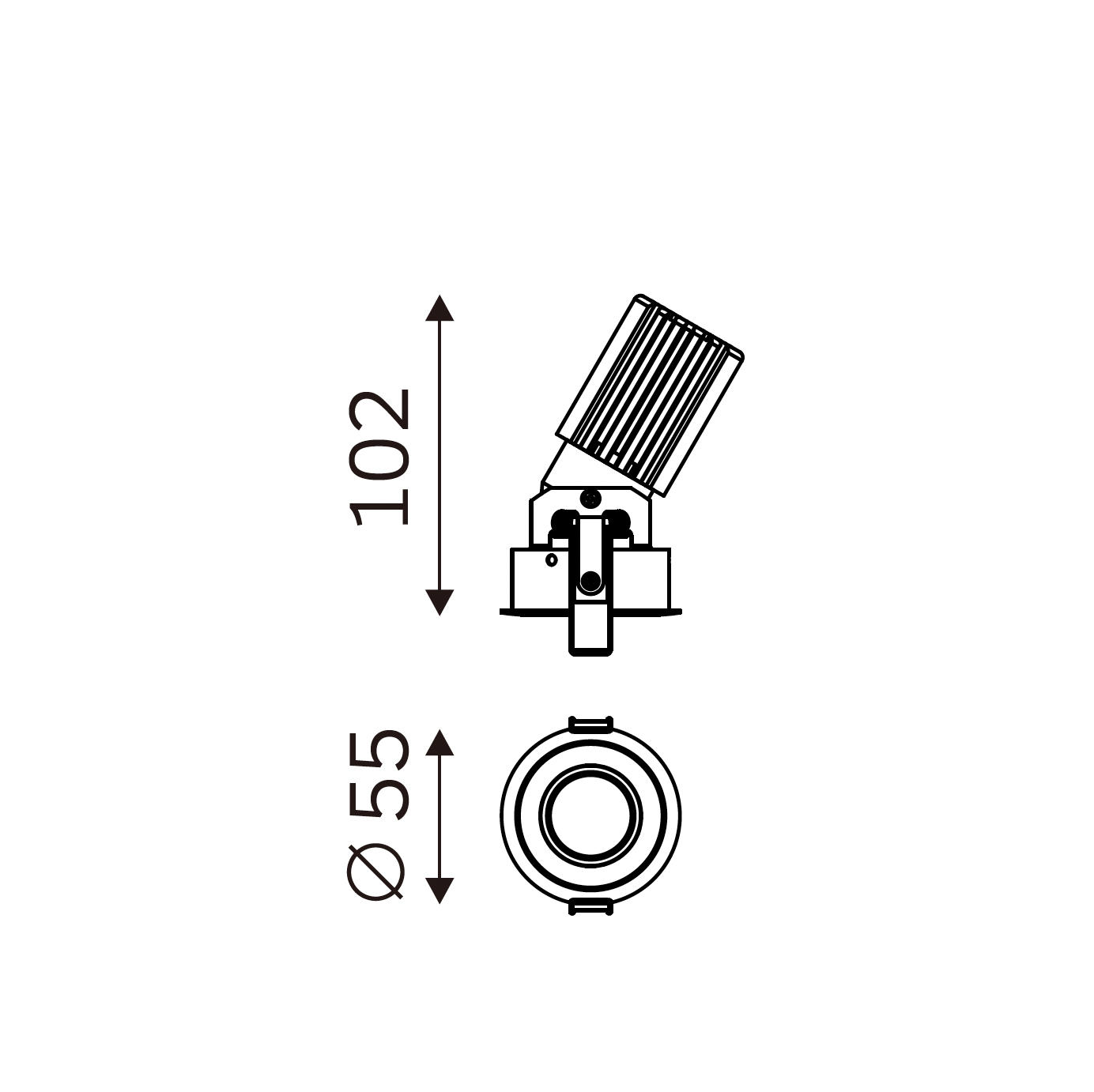

LITE PRO 50 dimension drawing

LITE PRO 50 52.05017 downlights from Artdon Lighting for professional architectural projects.

Product familyLITE PRO
Model52.05017
DimensionsØ55*102mm
Cut-outØ50mm
Power8W
Luminous flux621lm
Efficacy70.7lm/W
Voltage220-240V
CCT2700K / 3000K / 4000K
CRICRI90
Beam angle17° / 23° / 34° / 48°
IP ratingIP20
FinishWhite / Black
MountingRecessed
DimmingOn/Off / Dali / Triac
Get a quoteTechnical filesPDF / Print

Product overview

Technical product information

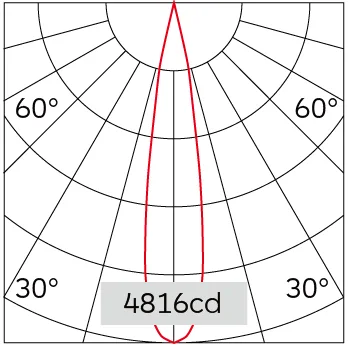

17°
17°

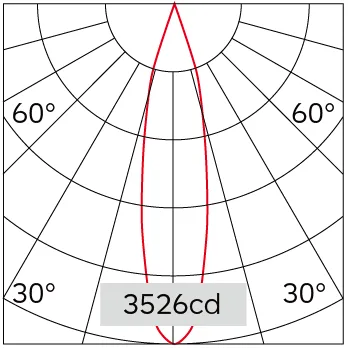

23°
23°

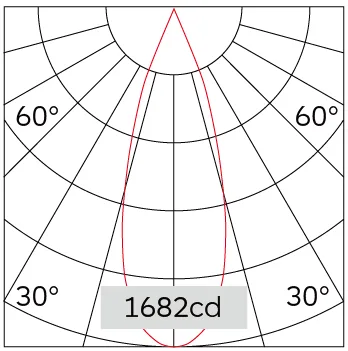

34°
34°

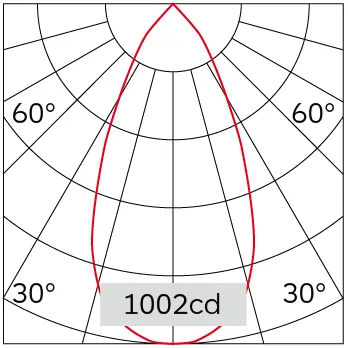

48°
48°

Technical files

Technical Downloads

DatasheetPDF · EN · Generated PDFDownload ↗Product imageWEBP · EN · 7 KBDownload ↗Dimension drawingWEBP · EN · 33 KBDownload ↗

Other sizes

More products in LITE PRO

View family →
LITE PRO 60

LITE PRO 60

Wattage: 10W

Size: Ø66*117mm

Lumen Output: 888lm

Beam Angle: 18° / 20° / 34°
LITE PRO 50

LITE PRO 50

Wattage: 8W

Size: Ø90*102mm

Lumen Output: 621lm

Beam Angle: 17° / 23° / 34° / 48°
LITE PRO 60

LITE PRO 60

Wattage: 10W

Size: Ø104*117mm

Lumen Output: 888lm

Beam Angle: 18° / 20° / 34°
