LITE PRO 60

LITE PRO 60 52.06019 downlights from Artdon Lighting for professional architectural projects.
LITE PRO 60

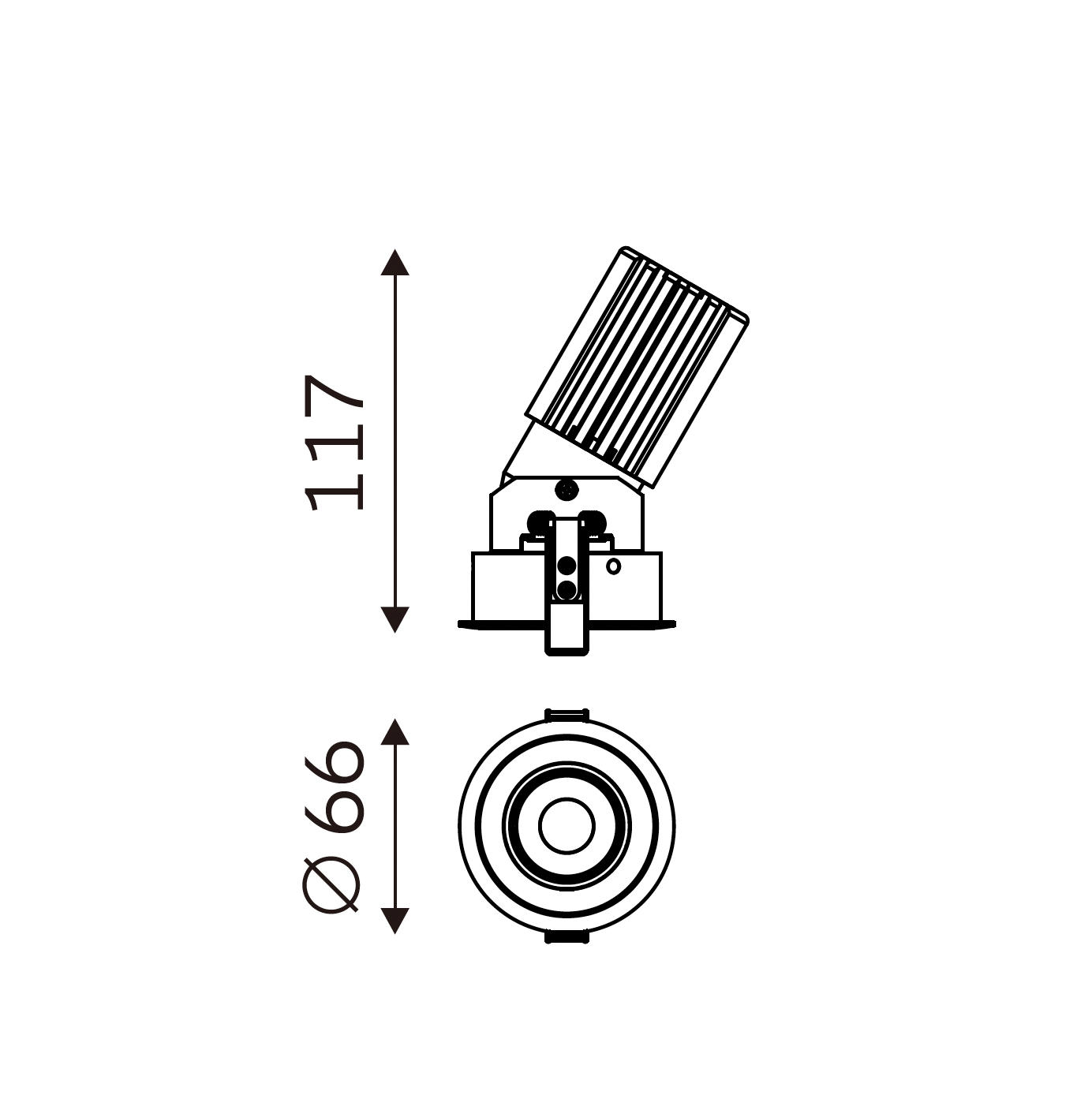

LITE PRO 60 dimension drawing

LITE PRO 60 52.06019 downlights from Artdon Lighting for professional architectural projects.

Product familyLITE PRO
Model52.06019
DimensionsØ66*117mm
Cut-outØ60mm
Power10W
Luminous flux888lm
Efficacy82lm/W
Voltage220-240V
CCT2700K / 3000K / 4000K
CRICRI90
Beam angle18° / 20° / 34°
IP ratingIP20
FinishWhite / Black
MountingRecessed
DimmingOn/Off / Dali / Triac
Get a quoteTechnical filesPDF / Print

Product overview

Technical product information

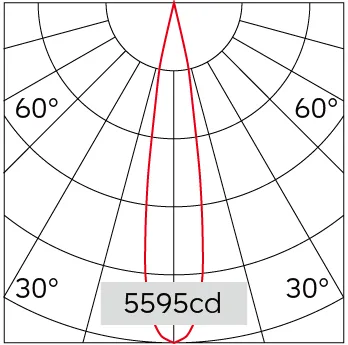

18°
18°

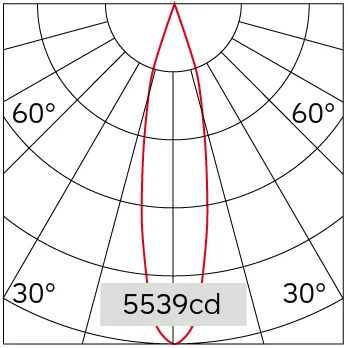

20°
20°

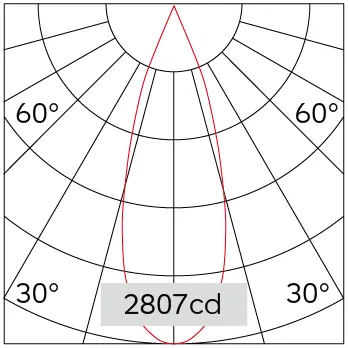

34°
34°

Technical files

Technical Downloads

DatasheetPDF · EN · Generated PDFDownload ↗Product imageWEBP · EN · 8 KBDownload ↗Dimension drawingWEBP · EN · 39 KBDownload ↗
