MINI 30
MINI 30 51.03015 downlights from Artdon Lighting for professional architectural projects.
MINI 30 51.03015 downlights from Artdon Lighting for professional architectural projects.
Product familyMINI
Model51.03015

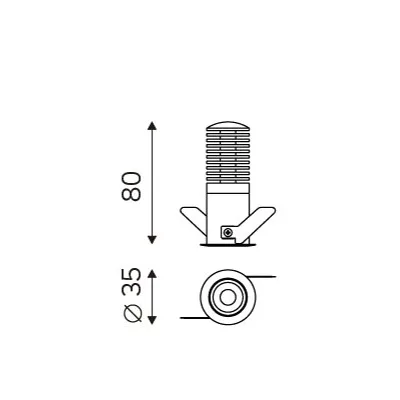

DimensionsØ35*80mm
Cut-outØ30mm
Power6W
Luminous flux353lm
Efficacy58.8lm/W
Voltage220-240V
CCT2700K / 3000K / 4000K
CRICRI90

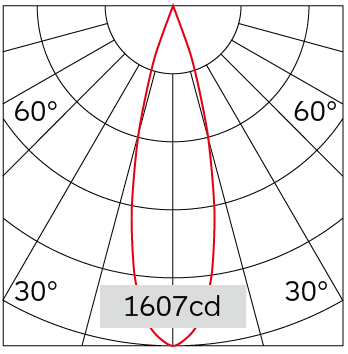

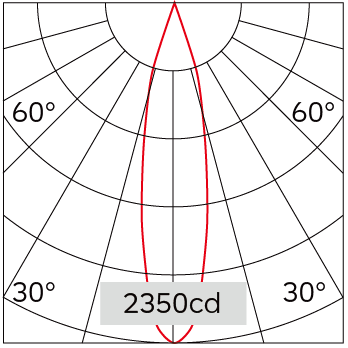

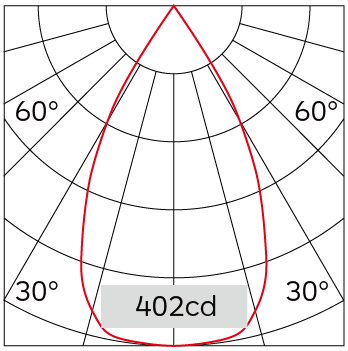

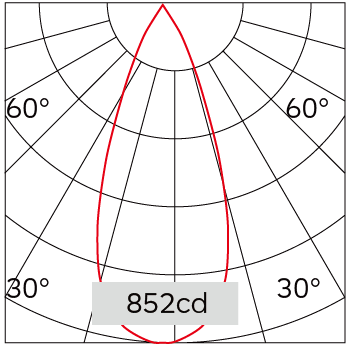

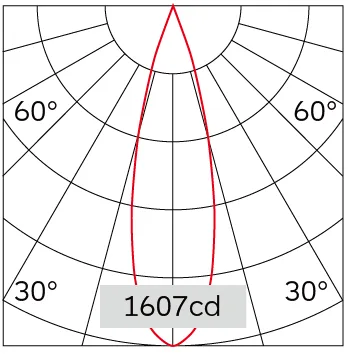

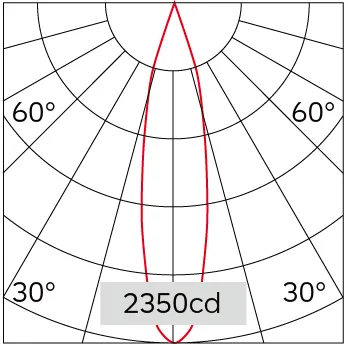

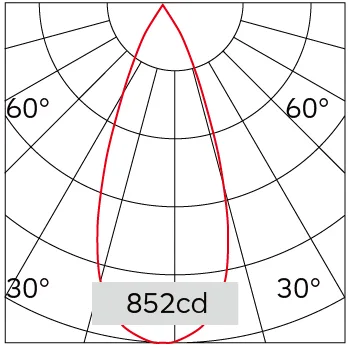

Beam angle21° / 27° / 39° / 57°
IP ratingIP20
FinishWhite / Black
MountingRecessed
DimmingOn/Off / Dali / Triac
Product overview
Technical product information
Technical files
Technical Downloads
