Ultra Compact Size
The small aperture helps create discreet ceilings and refined furniture-integrated lighting effects.
MINI ULTRA COMPACT RECESSED DOWNLIGHT
Small aperture lighting for refined residential, cabinet and boutique projects.
* MINI is an ultra compact recessed downlight family for projects where small size and precise integration are essential.
* Fixed, adjustable and tiltable versions allow the same family to support different display and ambient lighting needs.
* The range is suitable for luxury residences, display cabinets and boutique projects.
Key Specifications
Applications: Luxury Residence / Display Cabinet / Boutique
Diameter Range: Ø30 / Ø40 / Ø45
Power: 6W-8W
Versions: Fixed / adjustable / tiltable
Design: Ultra compact size
Control: ON/OFF / TRIAC / DALI where available
* Fixed, adjustable and tiltable versions allow the same family to support different display and ambient lighting needs.
* The range is suitable for luxury residences, display cabinets and boutique projects.
Key Specifications
Applications: Luxury Residence / Display Cabinet / Boutique
Diameter Range: Ø30 / Ø40 / Ø45
Power: 6W-8W
Versions: Fixed / adjustable / tiltable
Design: Ultra compact size
Control: ON/OFF / TRIAC / DALI where available
Available products
Choose the right size

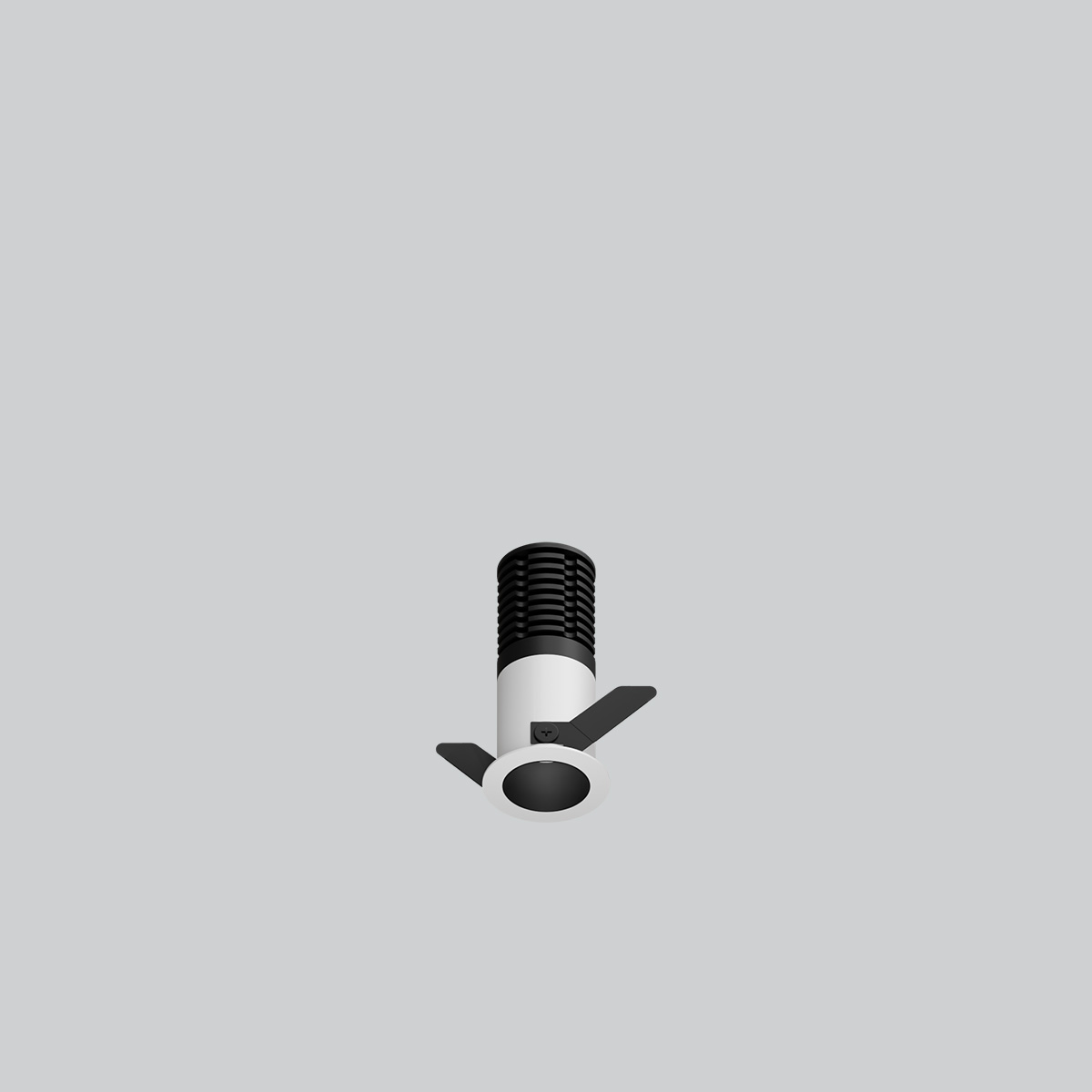

MINI 30
Wattage: 6W
Size: Ø35*80mm
Lumen Output: 353lm
Beam Angle: 21° / 27° / 39° / 57°

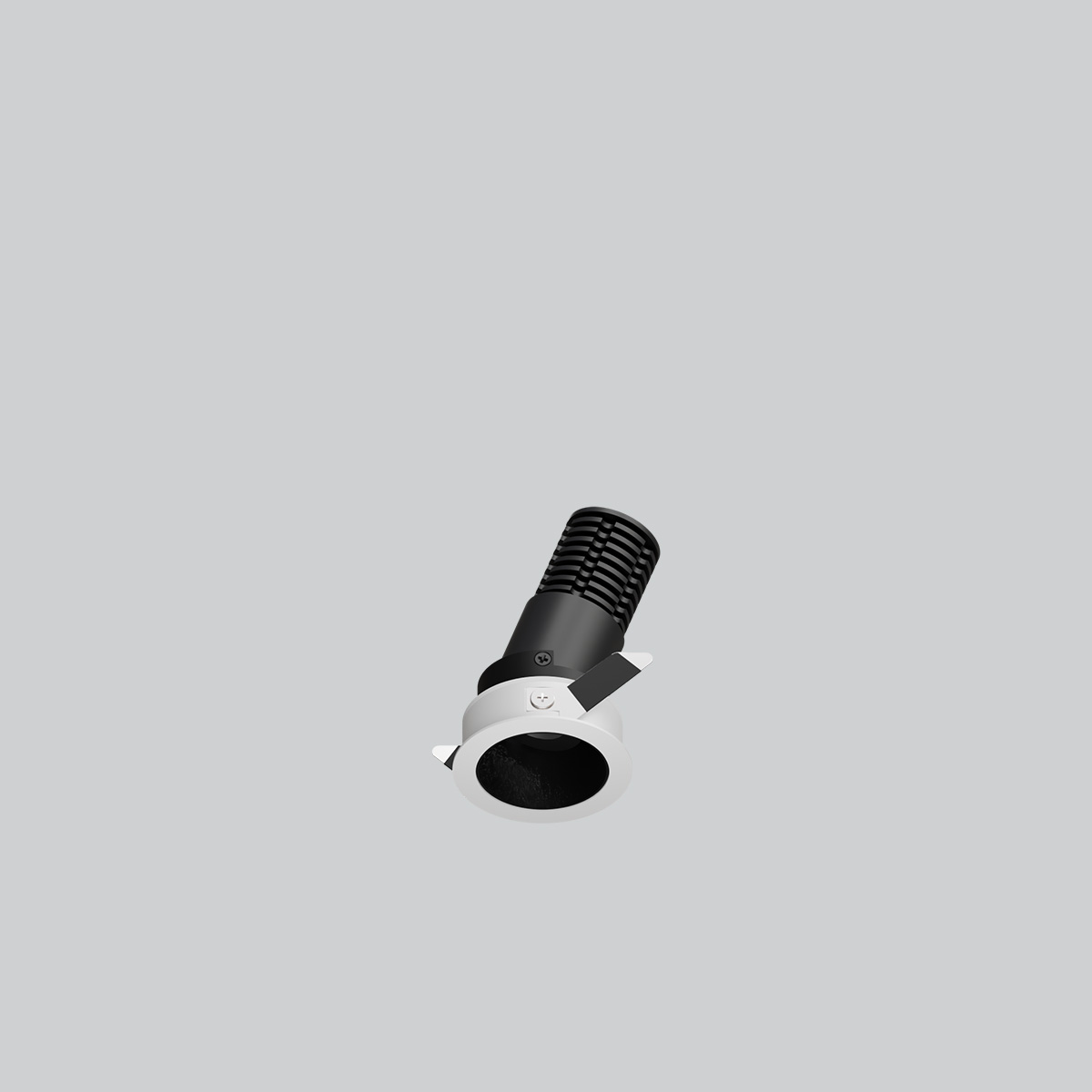

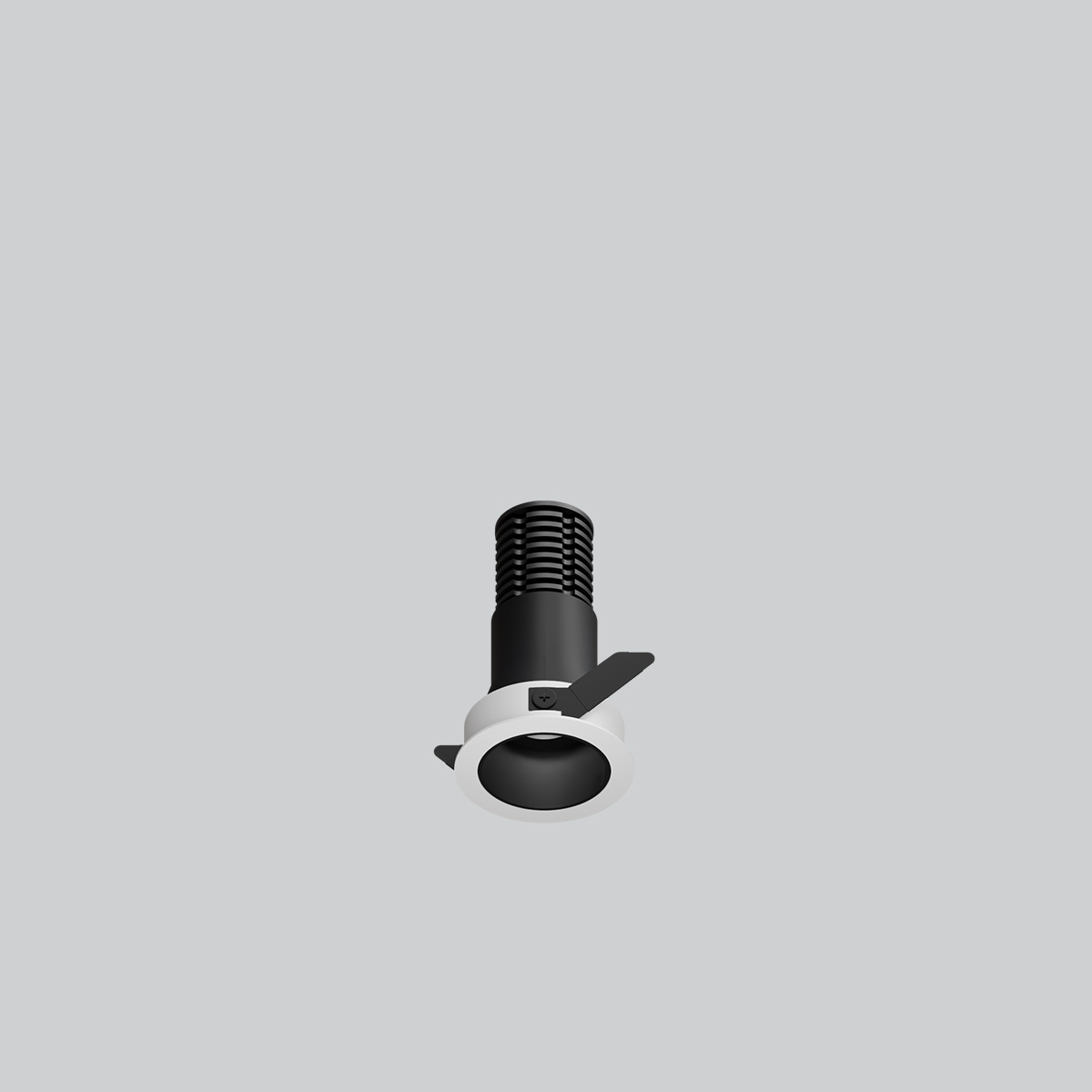

MINI 45
Wattage: 6W
Size: Ø50*81mm
Lumen Output: 368lm
Beam Angle: 19° / 22° / 31° / 46°
MINI 45
Wattage: 6W
Size: Ø50*81mm
Lumen Output: 368lm
Beam Angle: 19° / 22° / 31° / 46°

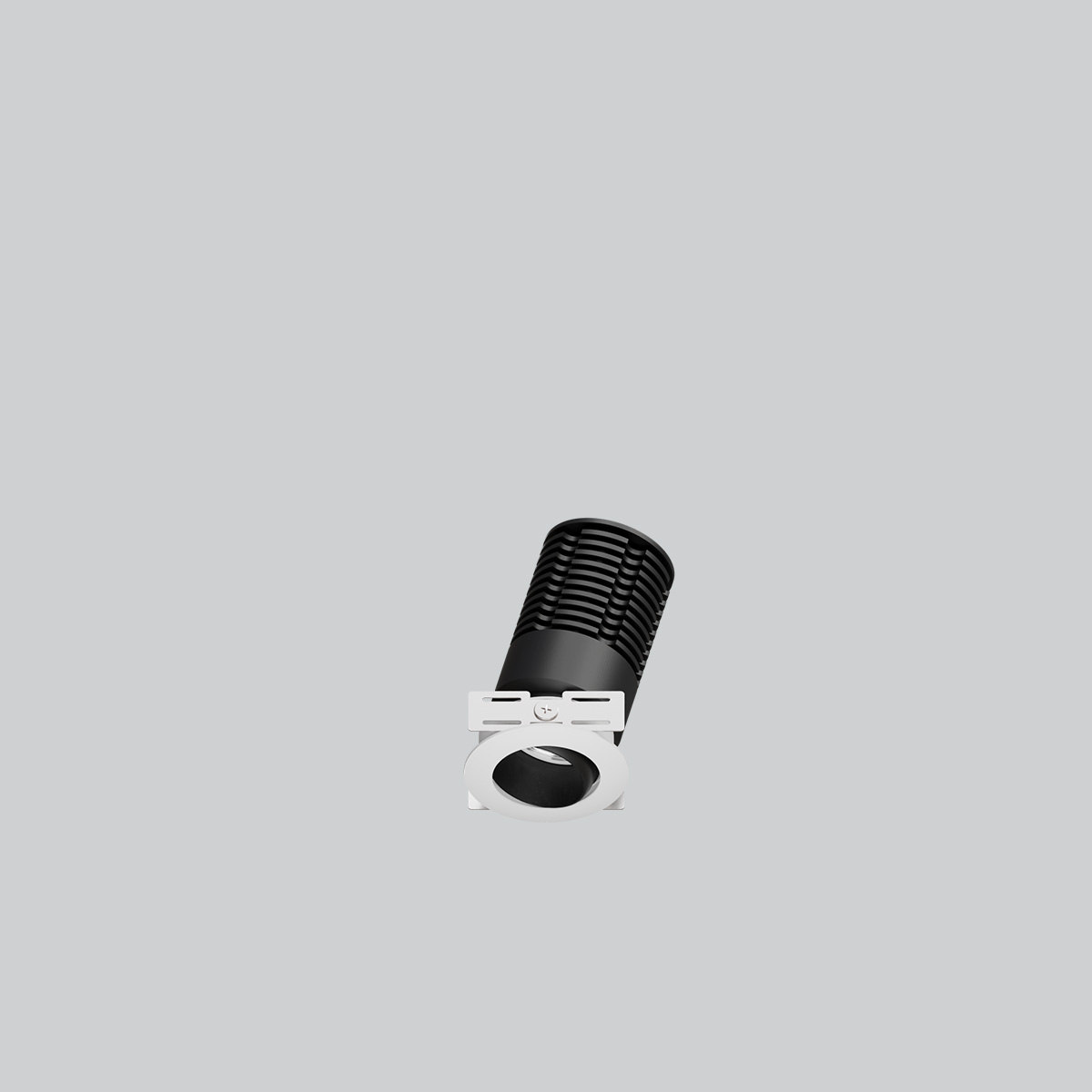

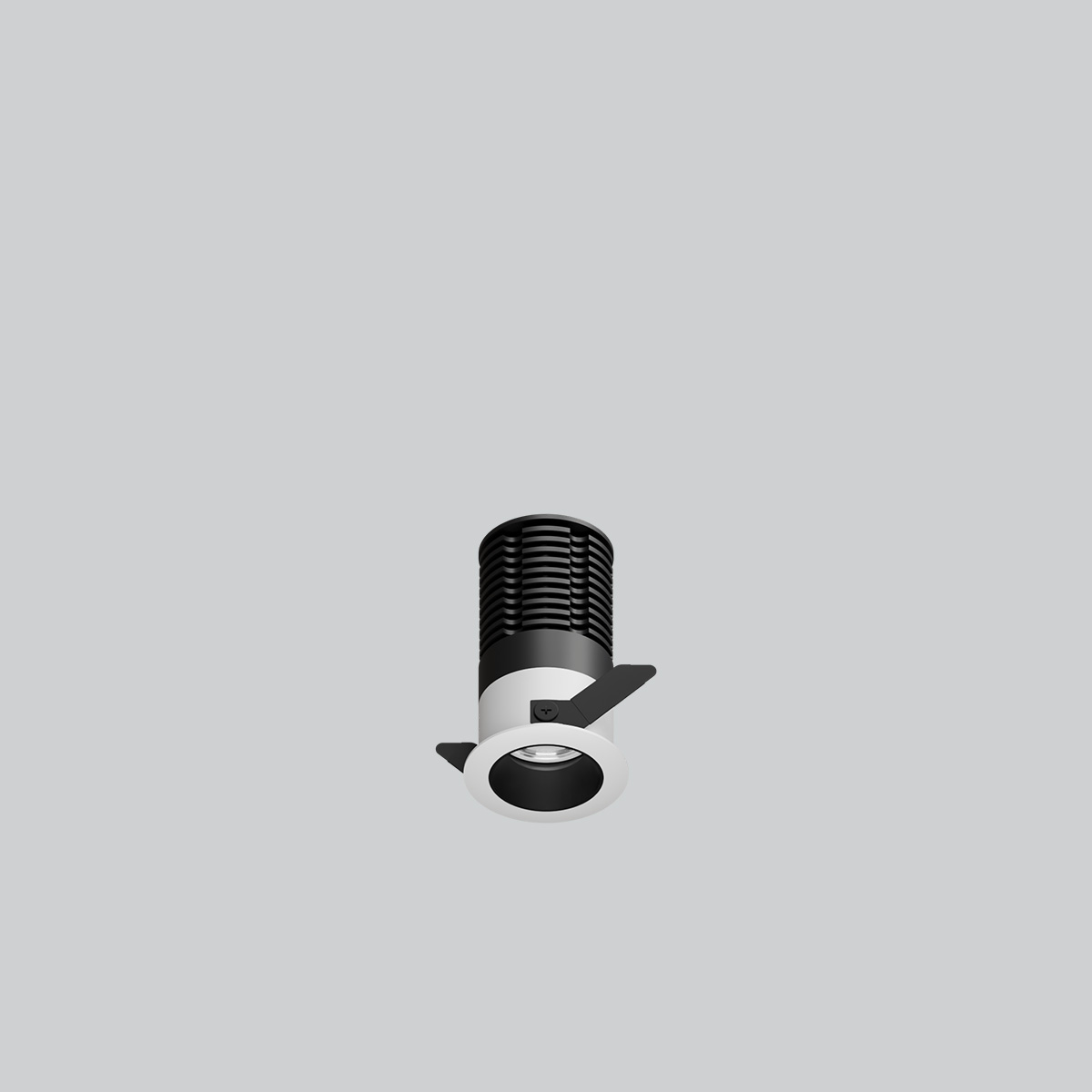

MINI 40
Wattage: 8W
Size: Ø45*81mm
Lumen Output: 471lm
Beam Angle: 18° / 22° / 34° / 46°
MINI 40
Wattage: 8W
Size: Ø45*81mm
Lumen Output: 471lm
Beam Angle: 18° / 22° / 34° / 46°
Why Choose MINI
MINI helps designers create a consistent lighting language while matching the functional needs of real architectural projects.
With its focused product positioning and application-specific features, the system simplifies specification while supporting visual comfort, reliable performance and design flexibility.
Suitable for luxury residence / display cabinet / boutique projects.
Characteristics
What defines MINI
Flexible Light Direction
Fixed, adjustable and tiltable versions support general lighting, accent lighting and display illumination.
Low Power Options
Power options down to 6W make MINI suitable for compact areas and detailed lighting tasks.
Boutique-Scale Precision
Designed for smaller spaces where visual detail and luminaire scale are important.
Applications
Where MINI Performs Best
MINI is a small recessed downlight for luxury residences, display cabinets, boutiques and feature accents where a very quiet ceiling or shelf aperture is needed. Use it for close-range accent and support lighting around 2.3–3.0 m mounting heights or inside furniture details, not for high-output general lighting.
Luxury Residential Lighting
MINI works in premium homes where the lighting detail should almost disappear. Use it for corridors, wardrobes, niches and soft accent points, with larger fixtures handling general room illumination.
- Best for wardrobes
- niches
- corridors and quiet residential accent points
- Small aperture reduces visual clutter in premium interiors
- Use close-range layouts around 2.3–3.0 m ceilings
- Not intended as the main light for large living rooms
Display Cabinet Lighting
For display cabinets and shelves, MINI can create discreet light points close to objects. Check heat, access, beam spread and reflections from glass shelves or glossy products before final installation.
- Suitable for shelves
- cabinets and close-range display details
- Small size helps hide the light source inside furniture
- Check reflections on glass
- metal and polished surfaces
- Coordinate driver location and maintenance access inside furniture
Boutique Lighting
In boutiques, MINI is useful for niche displays, small shelves and low-level feature accents. It should complement track or downlight systems rather than replace the main retail lighting layer.
- Good for niche displays
- small shelves and decorative retail details
- Adds subtle accent without a large visible fixture
- Use high colour quality for products and materials
- Pair with track lighting or wall washing for main merchandise presentation
Feature Accent Lighting
MINI can highlight small architectural details, signage edges and furniture features where a larger fixture would look heavy. Keep target distance short so the limited output is used effectively.
- Useful for signage details
- niches
- shelves and furniture accents
- Short target distances make the small beam more effective
- Avoid using MINI for high ceilings or wide-area lighting
- Test beam size and brightness on the actual material finish
Projects
Projects using MINI
See how MINI delivers precision and performance in real-world projects.
Retail
Xi'an Shoe Store
Downlight installed in a luxury retail project in the Middle East, showing luxury handbag retail room with recessed downlights and wall displays.
Product usedMINI 30
Beam angle30°
ControlDALI
Retail
Loewe Store
Downlight installed in Loewe Store in an unidentified location, showing Loewe boutique interior with recessed downlights and warm linear ceiling details.
Product usedMINI 45
Beam angle31°
ControlTRIAC
Luxury Retail
BARRIE Boutique
Downlight installed in BARRIE Boutique in an unidentified location, showing BARRIE fashion boutique storefront with warm recessed downlights.
Product usedMINI 45
Beam angle22°
ControlDALI
