Trimmed Recessed Installation
The conventional trim structure provides a straightforward recessed installation method that is practical for a wide range of ceiling conditions and project types.
A modular trim recessed downlight system with fixed, adjustable, snoot, shallow-cup and deep-cup configurations.
Available products

Wattage: 12W
Size: Ø50 adjustable
Lumen Output: 758lm at 3000K
Beam Angle: 8°/18°/23°/30°/46°
TEXTURED GLASS
HONEYCOMB LOUVER
CCT Selector Switch
LINEAR SPREAD LENS

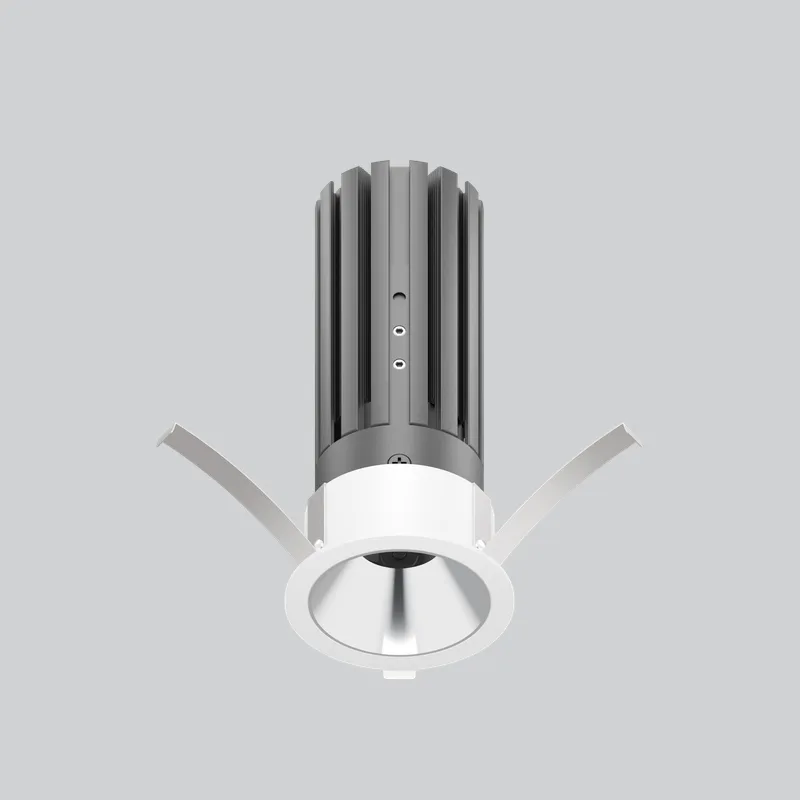

Wattage: 12W
Size: Ø50 fixed
Lumen Output: 758lm at 3000K
Beam Angle: 18°/23°/30°/46°
TEXTURED GLASS
HONEYCOMB LOUVER
CCT Selector Switch
LINEAR SPREAD LENS

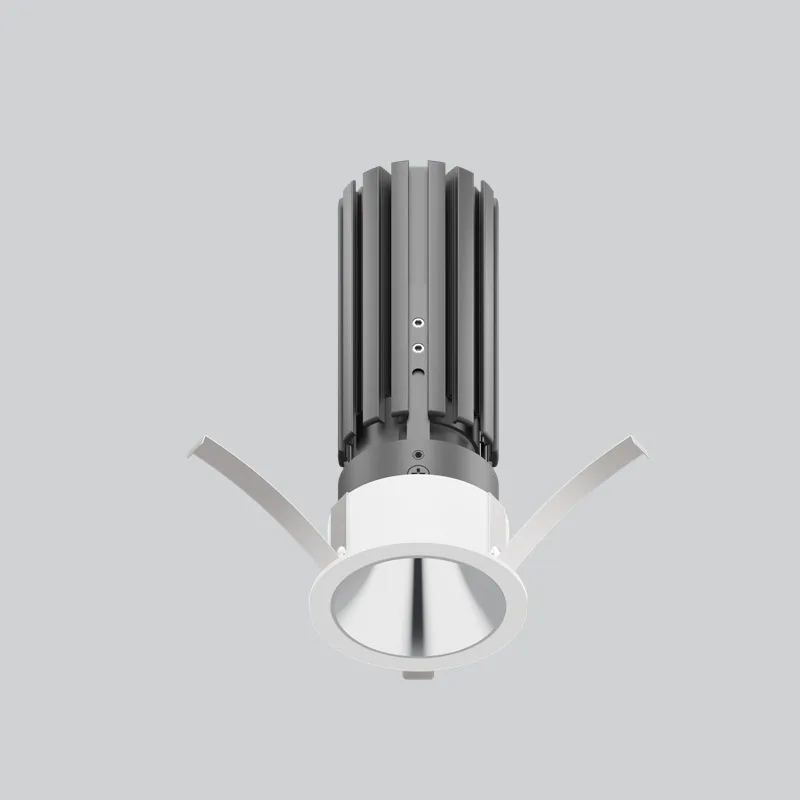

Wattage: 12W
Size: Ø50 deep anti glare
Lumen Output: 736lm at 3000K
Beam Angle: 18°/22°/30°/42°
TEXTURED GLASS
HONEYCOMB LOUVER
CCT Selector Switch
LINEAR SPREAD LENS

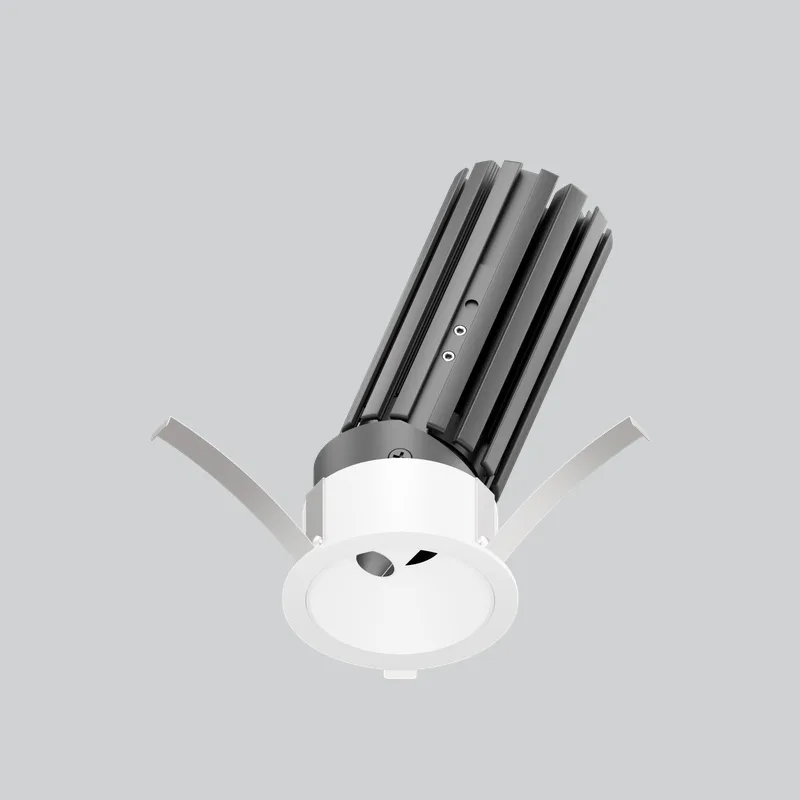

Wattage: 12W
Size: Ø50 snoot
Lumen Output: 600lm at 3000K
Beam Angle: 20°/23°/30°/42°
TEXTURED GLASS
HONEYCOMB LOUVER
CCT Selector Switch
LINEAR SPREAD LENS

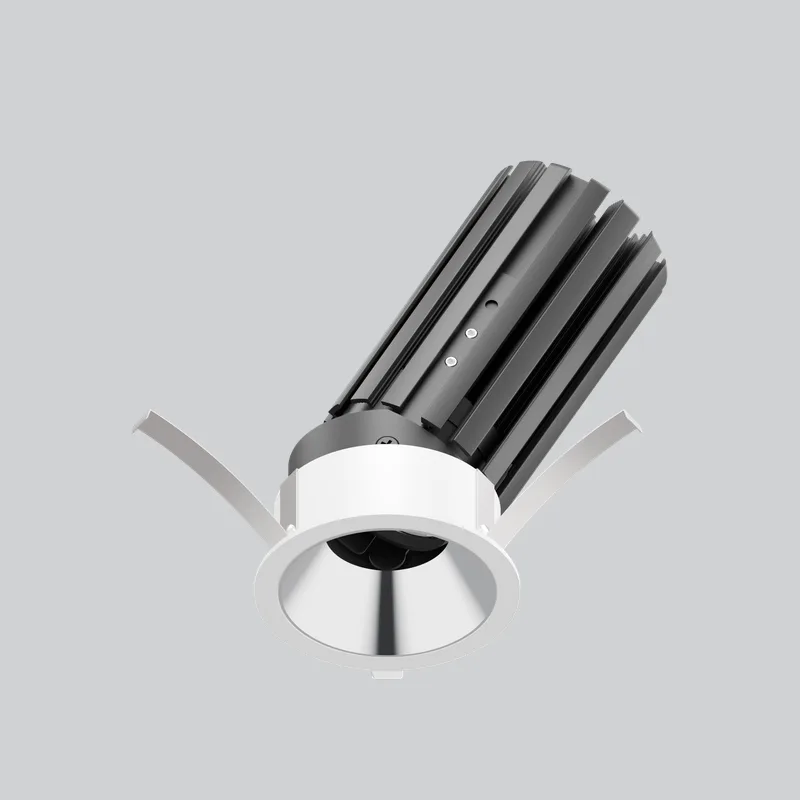

Wattage: 14W
Size: Ø60 adjustable
Lumen Output: 1107lm at 3000K
Beam Angle: 9°/21°/25°/36°/45°
TEXTURED GLASS
HONEYCOMB LOUVER
CCT Selector Switch
LINEAR SPREAD LENS

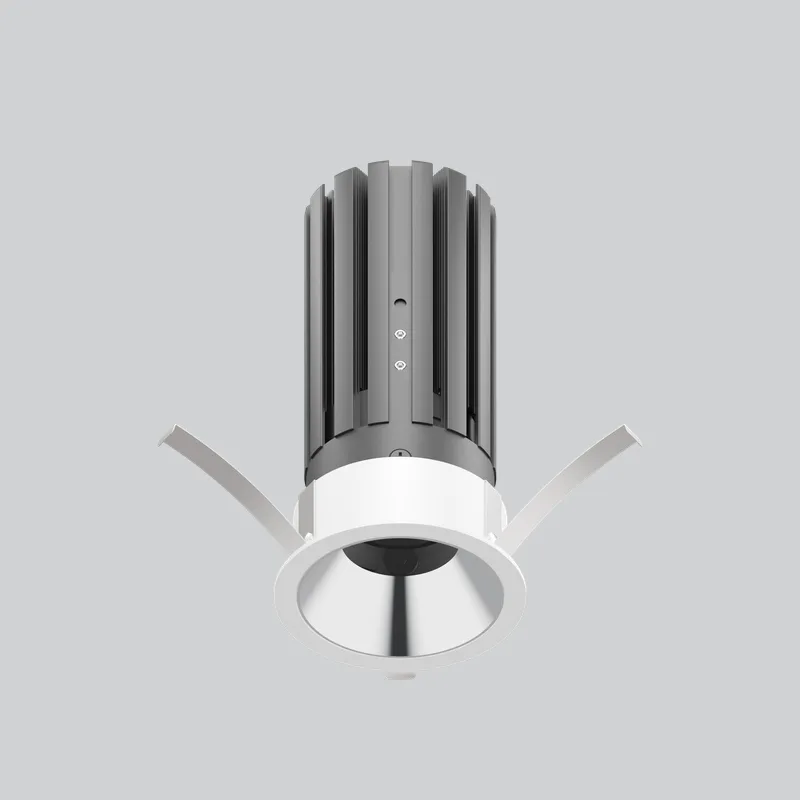

Wattage: 14W
Size: Ø60 fixed
Lumen Output: 1107lm at 3000K
Beam Angle: 21°/25°/36°/45°
TEXTURED GLASS
HONEYCOMB LOUVER
CCT Selector Switch
LINEAR SPREAD LENS

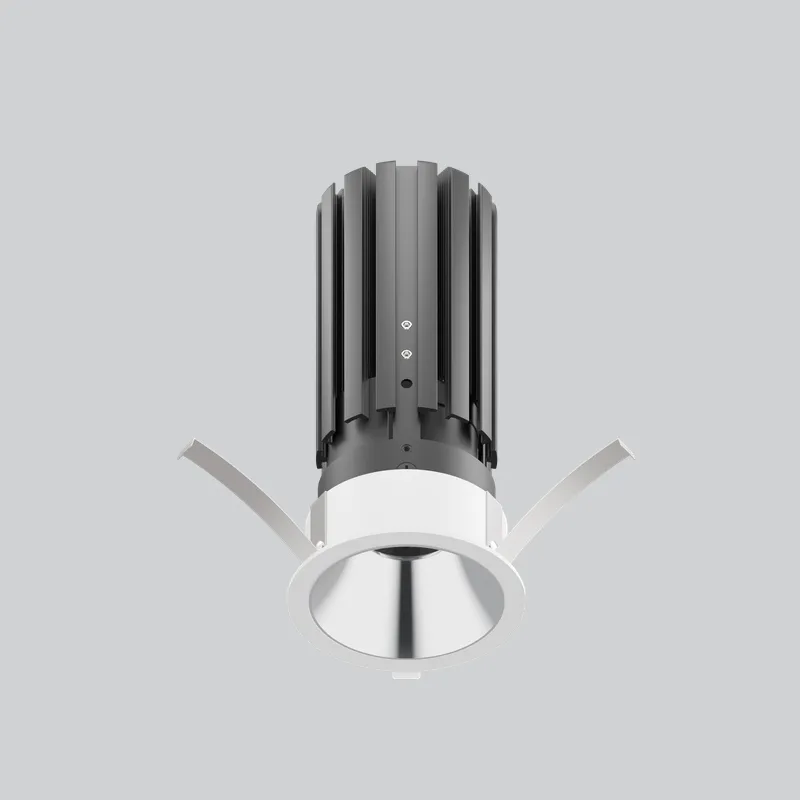

Wattage: 14W
Size: Ø60 deep anti glare
Lumen Output: 1115lm at 3000K
Beam Angle: 22°/26°/39°/48°
TEXTURED GLASS
HONEYCOMB LOUVER
CCT Selector Switch
LINEAR SPREAD LENS

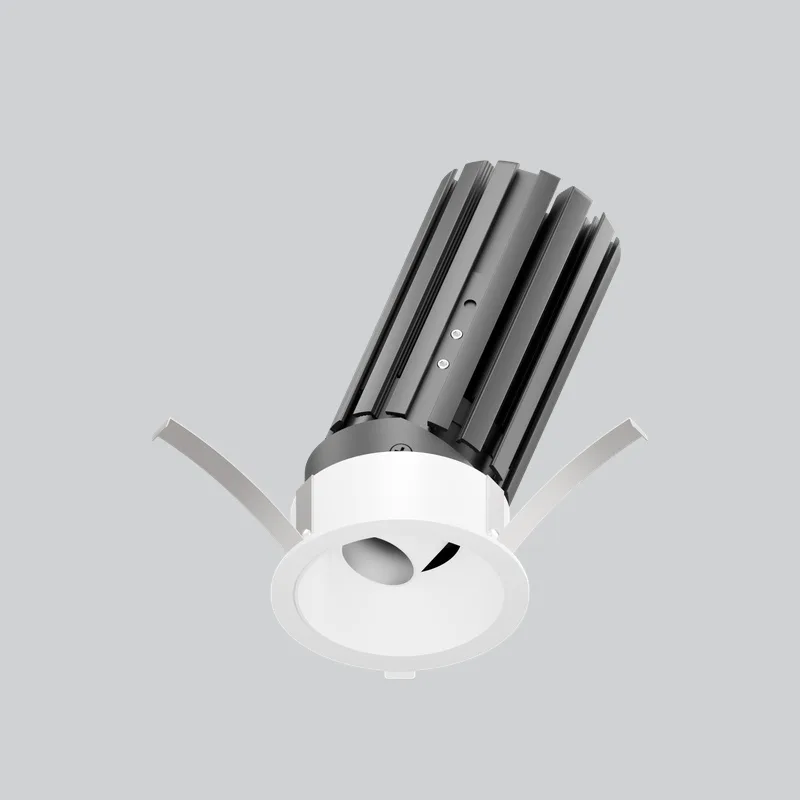

Wattage: 14W
Size: Ø60 snoot
Lumen Output: 1055lm at 3000K
Beam Angle: 25°/28°/41°/47°
TEXTURED GLASS
HONEYCOMB LOUVER
CCT Selector Switch
LINEAR SPREAD LENS

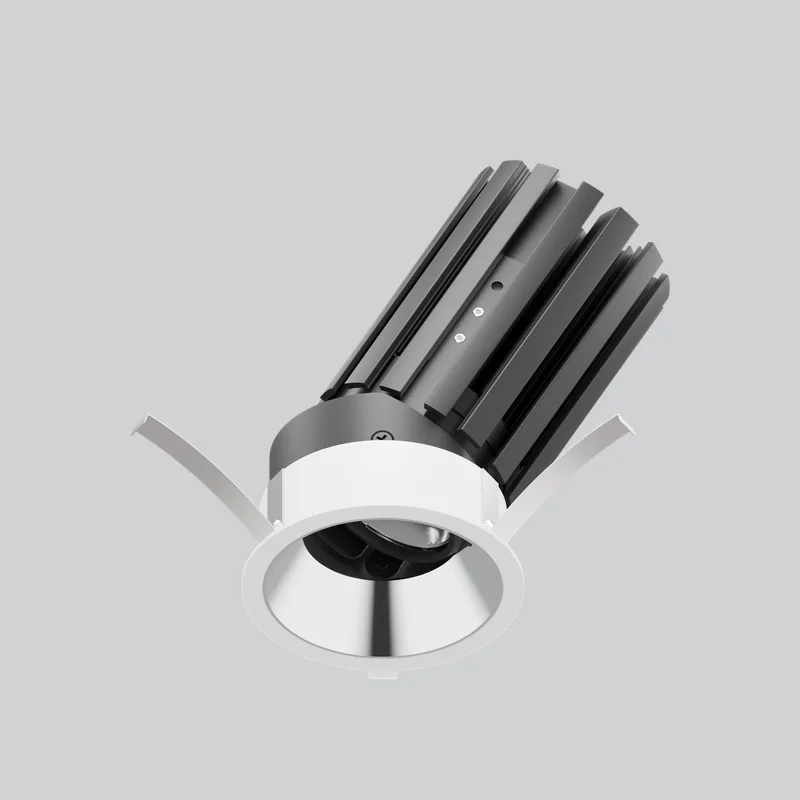

Wattage: 24W
Size: Ø70 adjustable
Lumen Output: 2322lm at 3000K
Beam Angle: 9°/20°/32°/40°/48°
TEXTURED GLASS
HONEYCOMB LOUVER
CCT Selector Switch
LINEAR SPREAD LENS

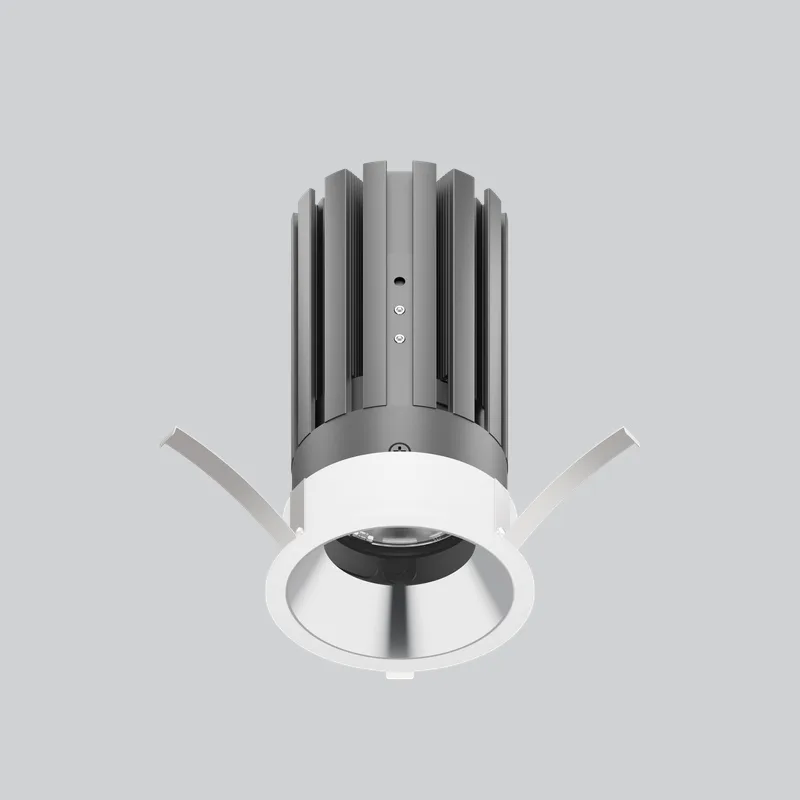

Wattage: 24W
Size: Ø70 fixed
Lumen Output: 2322lm at 3000K
Beam Angle: 20°/32°/40°/48°
TEXTURED GLASS
HONEYCOMB LOUVER
CCT Selector Switch
LINEAR SPREAD LENS

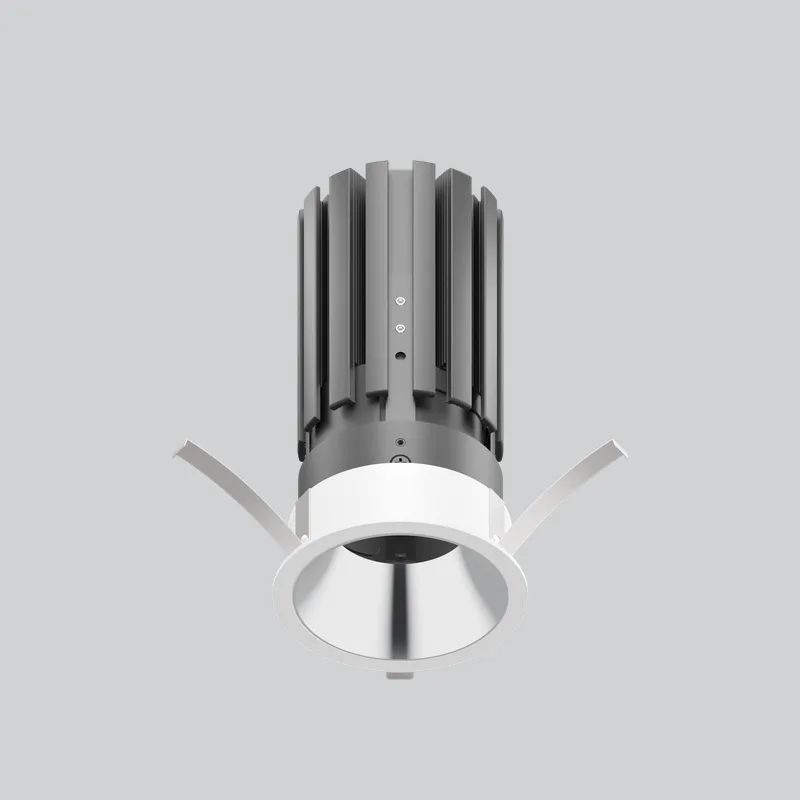

Wattage: 24W
Size: Ø70 deep anti glare
Lumen Output: 2310lm at 3000K
Beam Angle: 21°/32°/40°/48°
TEXTURED GLASS
HONEYCOMB LOUVER
CCT Selector Switch
LINEAR SPREAD LENS

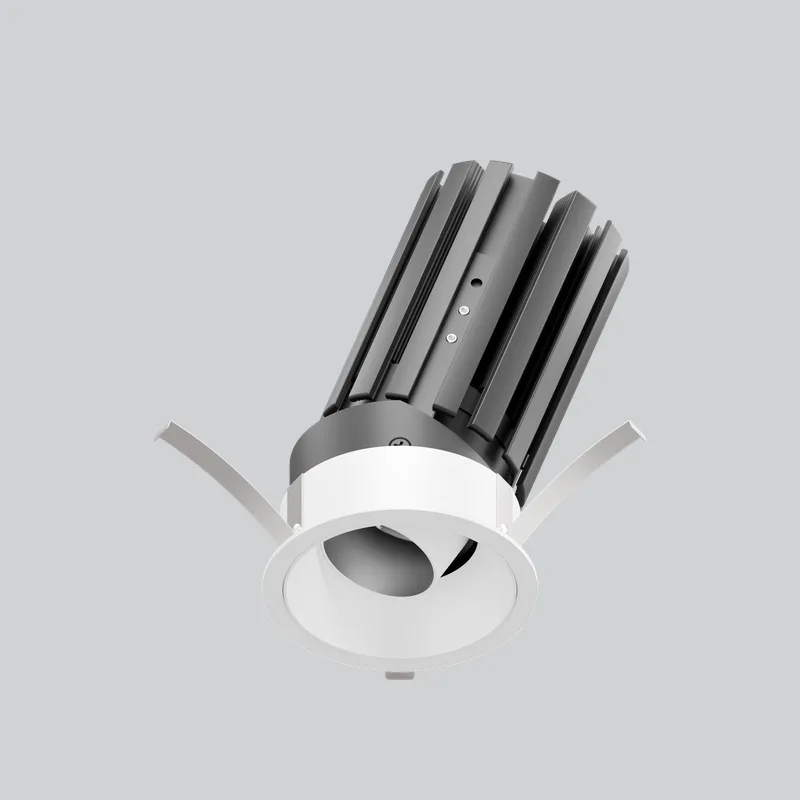

Wattage: 24W
Size: Ø70 snoot
Lumen Output: 2299lm at 3000K
Beam Angle: 21°/32°/40°/52°
TEXTURED GLASS
HONEYCOMB LOUVER
CCT Selector Switch
LINEAR SPREAD LENS

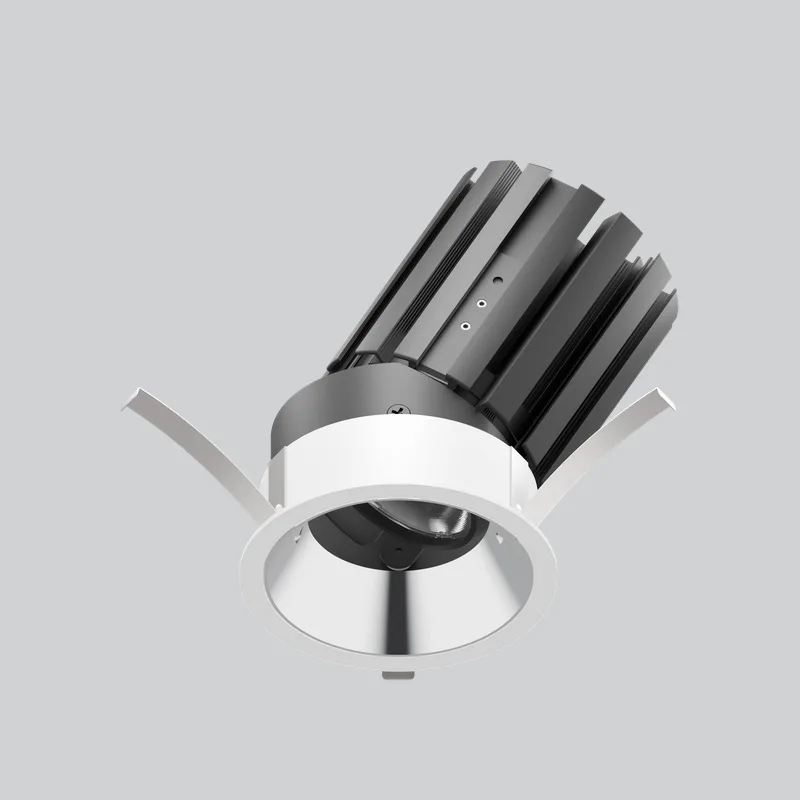

Wattage: 40W
Size: Ø90 adjustable
Lumen Output: 4300lm at 3000K
Beam Angle: 8°/25°/32°/43°/52°
TEXTURED GLASS
HONEYCOMB LOUVER
CCT Selector Switch
LINEAR SPREAD LENS

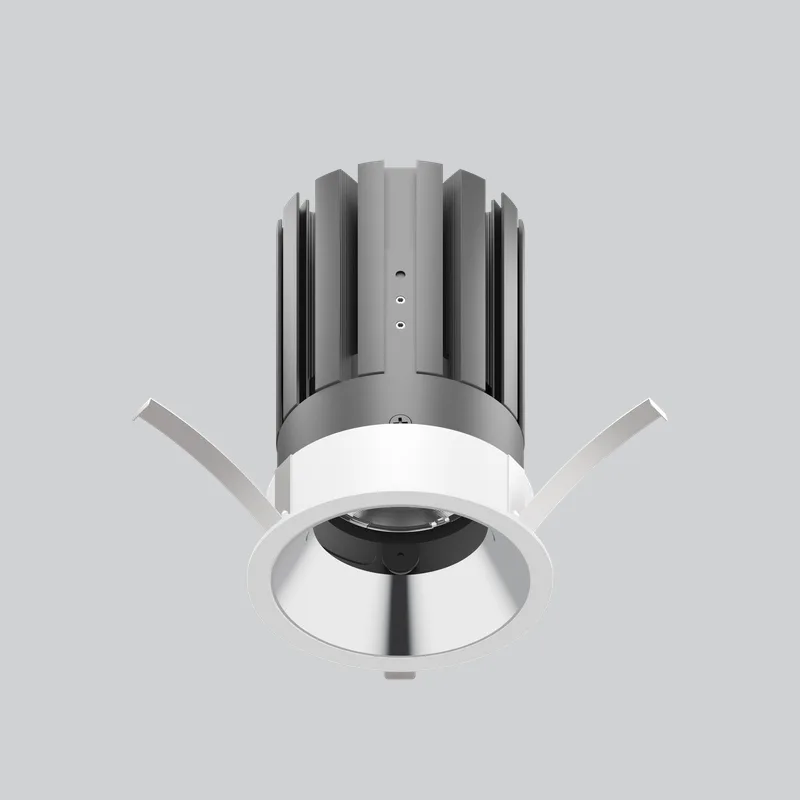

Wattage: 40W
Size: Ø90 fixed
Lumen Output: 4300lm at 3000K
Beam Angle: 25°/32°/43°/52°
TEXTURED GLASS
HONEYCOMB LOUVER
CCT Selector Switch
LINEAR SPREAD LENS

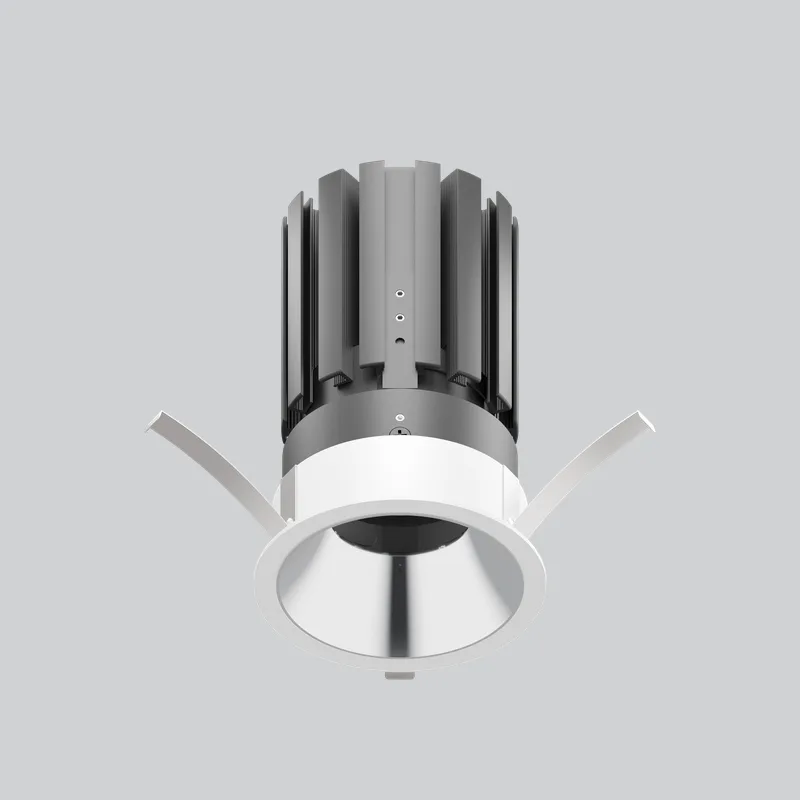

Wattage: 40W
Size: Ø90 deep anti glare
Lumen Output: 4278lm at 3000K
Beam Angle: 25°/32°/43°/49°
TEXTURED GLASS
HONEYCOMB LOUVER
CCT Selector Switch
LINEAR SPREAD LENS

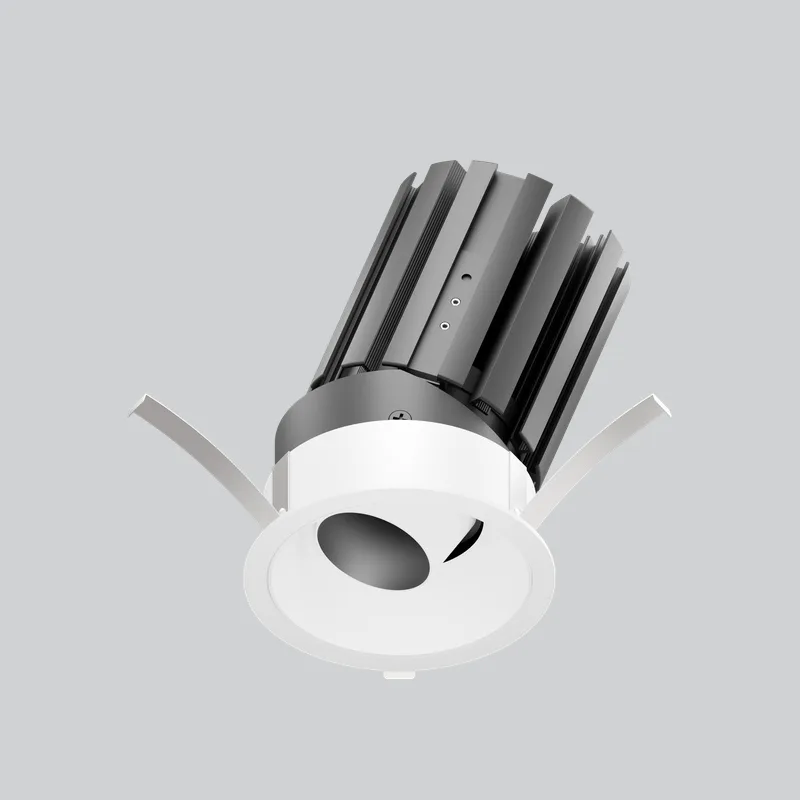

Wattage: 41W
Size: Ø90 snoot
Lumen Output: 4048lm at 3000K
Beam Angle: 25°/35°/40°/51°
TEXTURED GLASS
HONEYCOMB LOUVER
CCT Selector Switch
LINEAR SPREAD LENSMOVA TRIM is designed for projects that need the practicality of a conventional trim installation without limiting lighting flexibility.
Within one coordinated family, designers can choose fixed or adjustable versions and combine them with snoot, shallow-cup or deep-cup front structures according to the required lighting effect and visual comfort.
This multi-configuration approach makes it easier to use different lighting functions across the same project while maintaining a consistent product appearance.
CHARACTERISTICS
The conventional trim structure provides a straightforward recessed installation method that is practical for a wide range of ceiling conditions and project types.
Fixed versions support straightforward downlighting, while adjustable versions provide directional control for accent lighting and changing interior layouts.
Different front configurations allow the same product family to support different visual effects, shielding depths and glare-control requirements.
Multiple sizes and configurations share one coordinated design language, helping different areas of a project maintain a consistent ceiling appearance.
APPLICATIONS
MOVA TRIM offers fixed and adjustable recessed configurations for retail, hospitality, residential and gallery interiors. The images below are AI-generated application concepts.

Adjustable MOVA TRIM downlights illustrate focused illumination for fragrance displays and product islands, with white trims and recessed silver reflector cups. AI-generated application concept.

Fixed MOVA TRIM downlights illustrate warm general lighting for guest-room circulation, luggage and reading areas, with a restrained ceiling appearance. AI-generated application concept.

Fixed MOVA TRIM downlights illustrate comfortable overhead illumination for a private dining table and surrounding circulation, with recessed reflector cups and coordinated white trims. AI-generated application concept.

Adjustable MOVA TRIM downlights illustrate directional accents on paintings and sculpture, with the light aimed toward the displayed artwork. AI-generated application concept.
PROJECT CONCEPTS
AI-generated application visualizations exploring MOVA TRIM recessed downlighting in residential, hospitality and retail interiors. These are design concepts, not photographs of completed projects.

A residential concept pairing white-trimmed MOVA TRIM recessed downlights with a warm living room interior. The reflector cups are recessed into the plaster ceiling. AI-generated application concept; not a completed installation.

A hospitality concept pairing MOVA TRIM recessed downlights with a stone reception desk, timber wall panels and adjoining lounge seating. AI-generated application concept; not a completed installation.

A boutique retail concept pairing MOVA TRIM recessed downlights with clothing displays and central merchandise tables. AI-generated application concept; not a completed installation.
SYSTEM CATALOGUE
Download the MOVA TRIM technical datasheet for sizes, power options, beam angles, fixed and adjustable versions, and available front configurations.
PROJECT SUPPORT
Tell us the required cut-out size, power, aiming requirement and preferred front configuration, and we can help recommend the suitable MOVA TRIM setup.
