Winged Trimless Installation
The plaster-in winged structure is integrated into the ceiling finish, allowing the visible trim to disappear and creating a cleaner architectural ceiling appearance.
MOVA Winged Trimless Recessed Downlight System
A plaster-in trimless recessed downlight system with fixed, adjustable, snoot, shallow-cup and deep-cup configurations.
MOVA WINGED TRIMLESS is a modular recessed downlight system designed for projects that require a seamless trimless ceiling appearance together with greater lighting flexibility.
Its winged plaster-in structure allows the trim to be integrated into the ceiling finish, leaving a clean and minimal visible opening after installation.
The family includes fixed and adjustable versions, together with snoot, shallow-cup and deep-cup front configurations for different lighting effects, glare-control requirements and interior applications.
With multiple sizes and lighting configurations built around one consistent design language, MOVA WINGED TRIMLESS is suitable for hospitality, residential, retail, gallery and other premium architectural interiors.
Product Type: Modular Trimless Recessed Downlight System
Power Range: 8W–40W
Cut-Out Sizes: 50 / 60 / 70 / 90 mm
Luminous Flux: 430–4300 lm
Beam Angle: 18°–52°
Installation: Winged Plaster-In Trimless
Versions: Fixed / Adjustable
Front Configurations: Snoot / Shallow Cup / Deep Cup
Applications: Hospitality / Residential / Retail / Gallery
Its winged plaster-in structure allows the trim to be integrated into the ceiling finish, leaving a clean and minimal visible opening after installation.
The family includes fixed and adjustable versions, together with snoot, shallow-cup and deep-cup front configurations for different lighting effects, glare-control requirements and interior applications.
With multiple sizes and lighting configurations built around one consistent design language, MOVA WINGED TRIMLESS is suitable for hospitality, residential, retail, gallery and other premium architectural interiors.
Product Type: Modular Trimless Recessed Downlight System
Power Range: 8W–40W
Cut-Out Sizes: 50 / 60 / 70 / 90 mm
Luminous Flux: 430–4300 lm
Beam Angle: 18°–52°
Installation: Winged Plaster-In Trimless
Versions: Fixed / Adjustable
Front Configurations: Snoot / Shallow Cup / Deep Cup
Applications: Hospitality / Residential / Retail / Gallery
Available products
Choose the right size

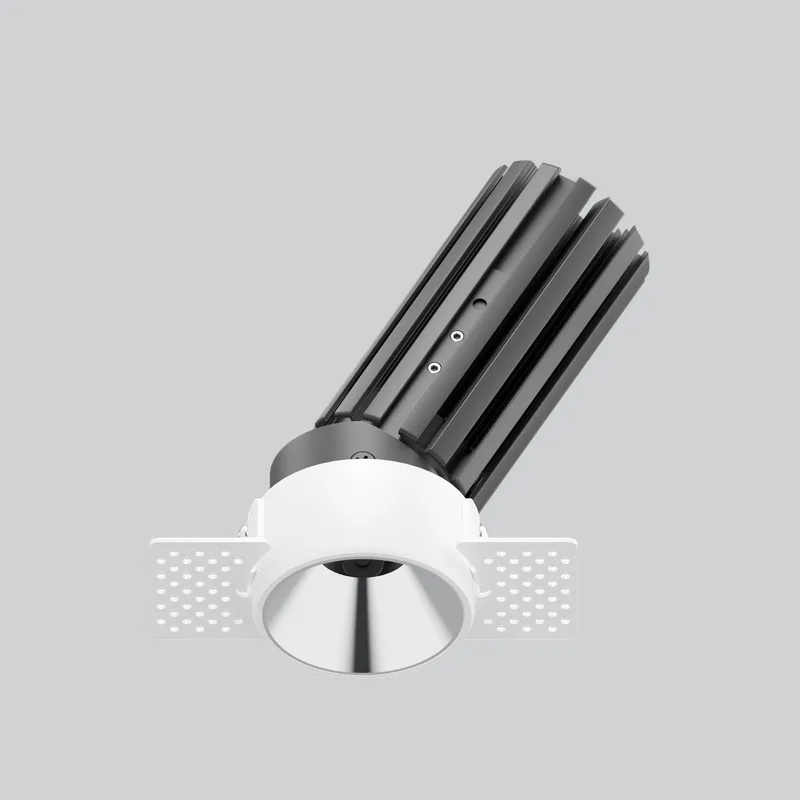

MOVA WINGED TRIMLESS 50 Adjustable
Wattage: 12W
Size: Ø50 adjustable
Lumen Output: 758lm at 3000K
Beam Angle: 8°/18°/23°/30°/46°
Accessories
TEXTURED GLASS
HONEYCOMB LOUVER
CCT Selector Switch
LINEAR SPREAD LENS+3 more accessories
View details →TEXTURED GLASSHONEYCOMB LOUVERCCT Selector SwitchLINEAR SPREAD LENS

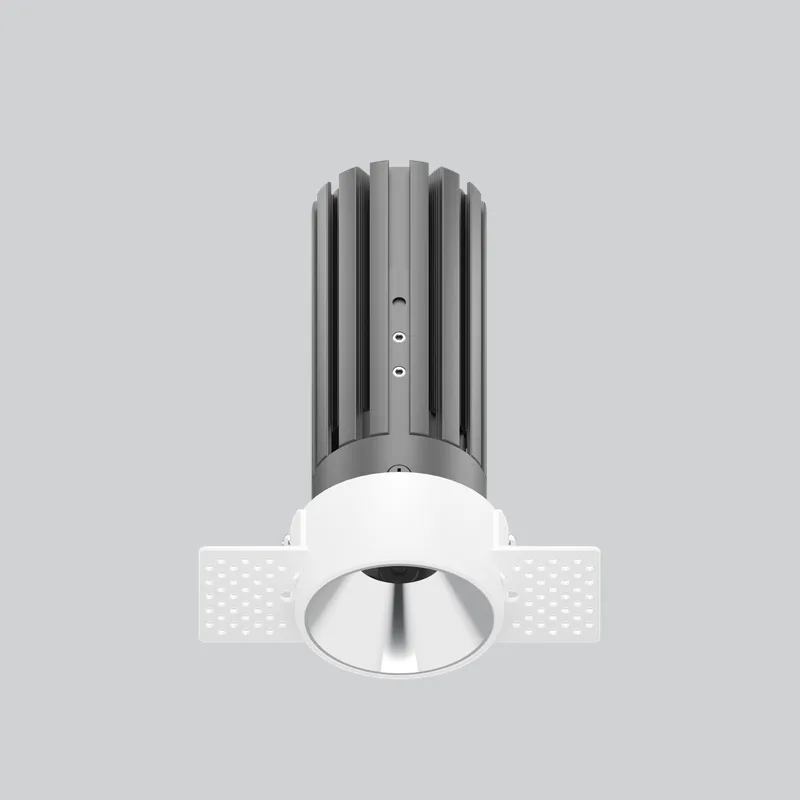

MOVA WINGED TRIMLESS 50 Fixed
Wattage: 12W
Size: Ø50 fixed
Lumen Output: 758lm at 3000K
Beam Angle: 18°/23°/30°/46°
AccessoriesTEXTURED GLASSHONEYCOMB LOUVERCCT Selector SwitchLINEAR SPREAD LENS+3 more accessories
View details →TEXTURED GLASSHONEYCOMB LOUVERCCT Selector SwitchLINEAR SPREAD LENS
MOVA WINGED TRIMLESS 50 Deep Anti Glare
Wattage: 12W
Size: Ø50 deep anti glare
Lumen Output: 736lm at 3000K
Beam Angle: 18°/22°/30°/42°
AccessoriesTEXTURED GLASSHONEYCOMB LOUVERCCT Selector SwitchLINEAR SPREAD LENS+3 more accessories
View details →TEXTURED GLASSHONEYCOMB LOUVERCCT Selector SwitchLINEAR SPREAD LENS

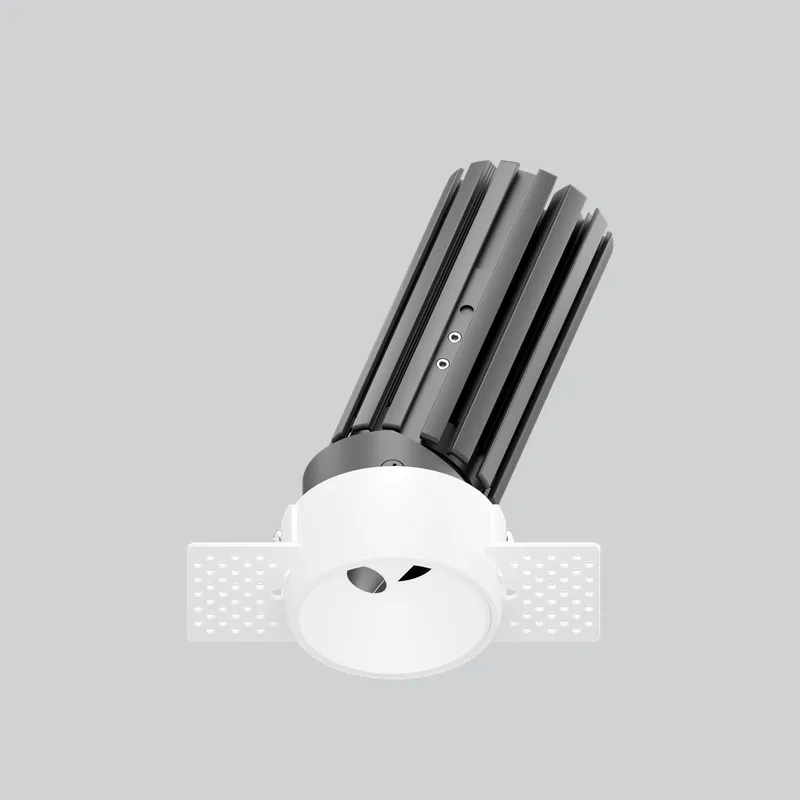

MOVA WINGED TRIMLESS 50 Snoot
Wattage: 12W
Size: Ø50 snoot
Lumen Output: 600lm at 3000K
Beam Angle: 20°/23°/30°/42°
AccessoriesTEXTURED GLASSHONEYCOMB LOUVERCCT Selector SwitchLINEAR SPREAD LENS+3 more accessories
View details →TEXTURED GLASSHONEYCOMB LOUVERCCT Selector SwitchLINEAR SPREAD LENS

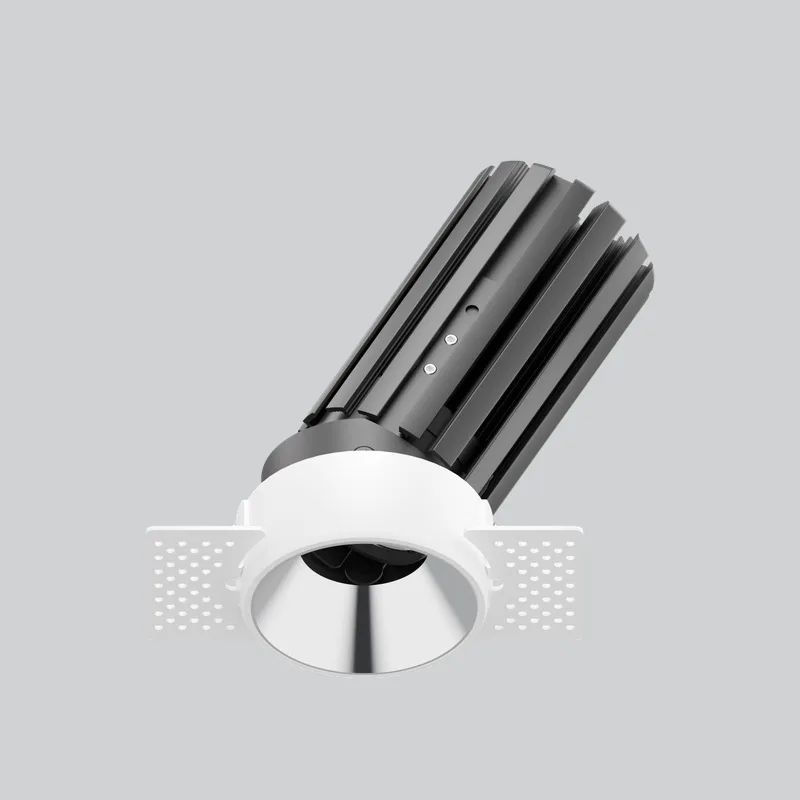

MOVA WINGED TRIMLESS 60 Adjustable
Wattage: 14W
Size: Ø60 adjustable
Lumen Output: 1107lm at 3000K
Beam Angle: 9°/21°/25°/36°/45°
AccessoriesTEXTURED GLASSHONEYCOMB LOUVERCCT Selector SwitchLINEAR SPREAD LENS+3 more accessories
View details →TEXTURED GLASSHONEYCOMB LOUVERCCT Selector SwitchLINEAR SPREAD LENS

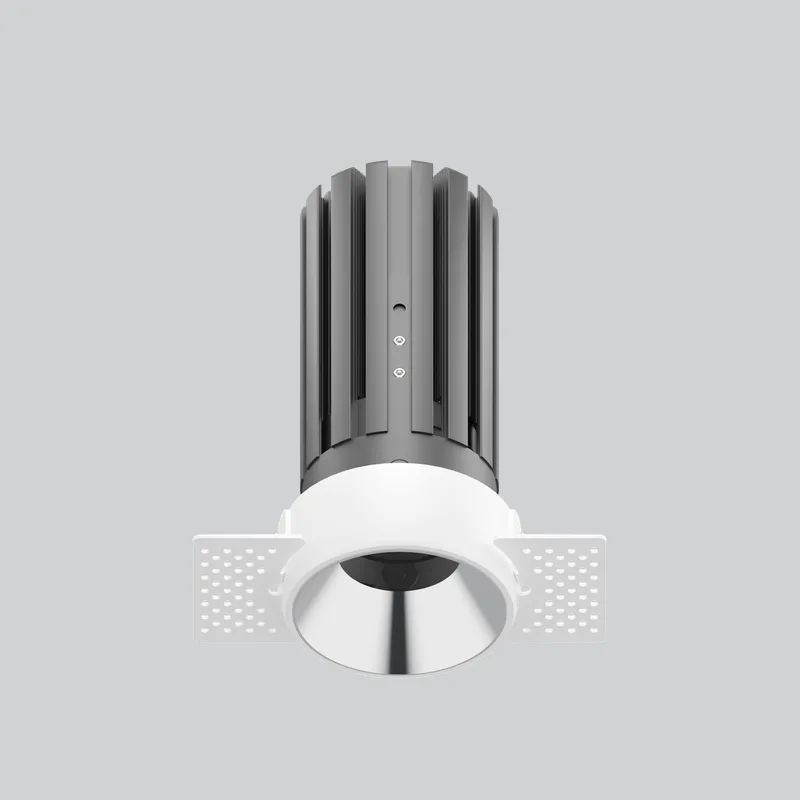

MOVA WINGED TRIMLESS 60 Fixed
Wattage: 14W
Size: Ø60 fixed
Lumen Output: 1107lm at 3000K
Beam Angle: 21°/25°/36°/45°
AccessoriesTEXTURED GLASSHONEYCOMB LOUVERCCT Selector SwitchLINEAR SPREAD LENS+3 more accessories
View details →TEXTURED GLASSHONEYCOMB LOUVERCCT Selector SwitchLINEAR SPREAD LENS

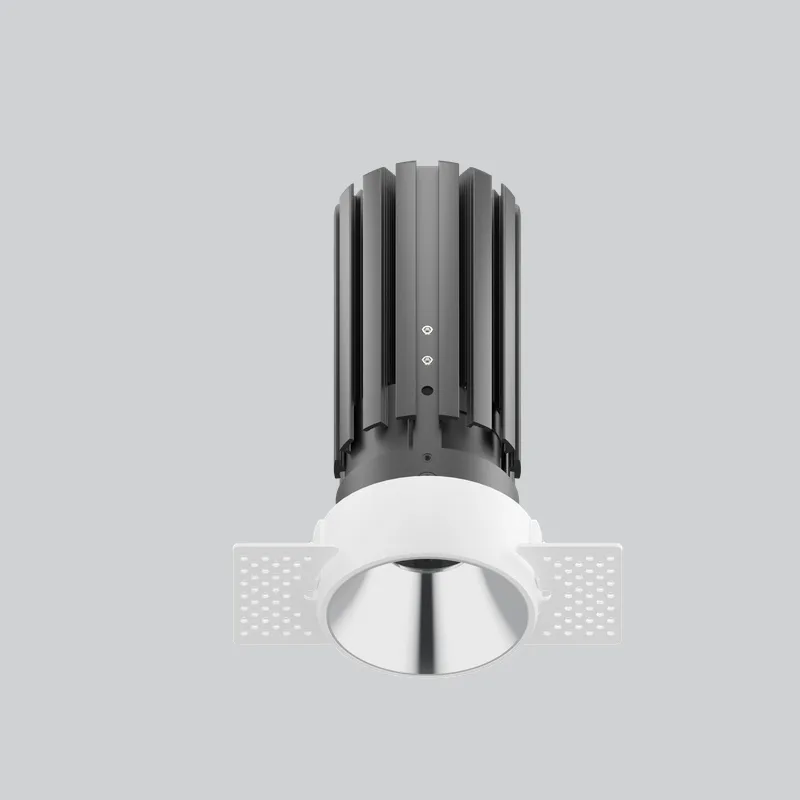

MOVA WINGED TRIMLESS 60 Deep Anti Glare
Wattage: 14W
Size: Ø60 deep anti glare
Lumen Output: 1115lm at 3000K
Beam Angle: 22°/26°/39°/48°
AccessoriesTEXTURED GLASSHONEYCOMB LOUVERCCT Selector SwitchLINEAR SPREAD LENS+3 more accessories
View details →TEXTURED GLASSHONEYCOMB LOUVERCCT Selector SwitchLINEAR SPREAD LENS

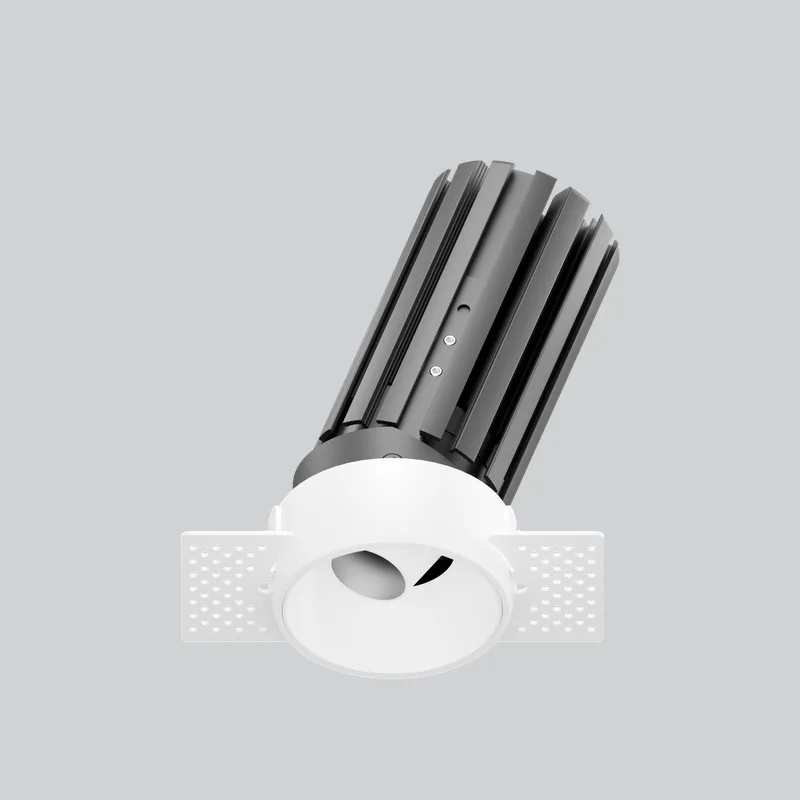

MOVA WINGED TRIMLESS 60 Snoot
Wattage: 14W
Size: Ø60 snoot
Lumen Output: 1055lm at 3000K
Beam Angle: 25°/28°/41°/47°
AccessoriesTEXTURED GLASSHONEYCOMB LOUVERCCT Selector SwitchLINEAR SPREAD LENS+3 more accessories
View details →TEXTURED GLASSHONEYCOMB LOUVERCCT Selector SwitchLINEAR SPREAD LENS

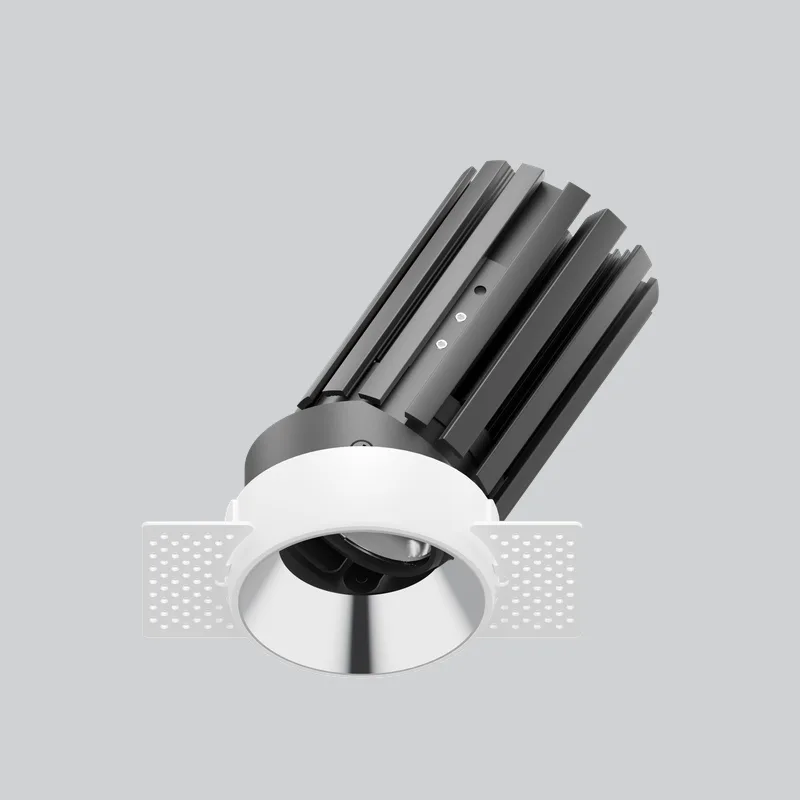

MOVA WINGED TRIMLESS 70 Adjustable
Wattage: 24W
Size: Ø70 adjustable
Lumen Output: 2322lm at 3000K
Beam Angle: 9°/20°/32°/40°/48°
AccessoriesTEXTURED GLASSHONEYCOMB LOUVERCCT Selector SwitchLINEAR SPREAD LENS+3 more accessories
View details →TEXTURED GLASSHONEYCOMB LOUVERCCT Selector SwitchLINEAR SPREAD LENS

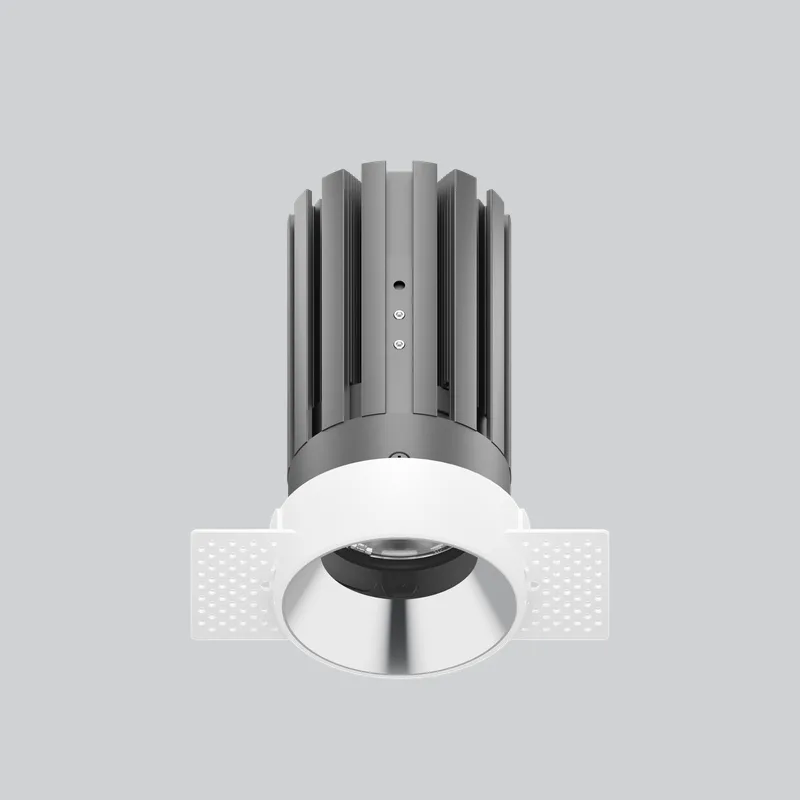

MOVA WINGED TRIMLESS 70 Fixed
Wattage: 24W
Size: Ø70 fixed
Lumen Output: 2322lm at 3000K
Beam Angle: 20°/32°/40°/48°
AccessoriesTEXTURED GLASSHONEYCOMB LOUVERCCT Selector SwitchLINEAR SPREAD LENS+3 more accessories
View details →TEXTURED GLASSHONEYCOMB LOUVERCCT Selector SwitchLINEAR SPREAD LENS

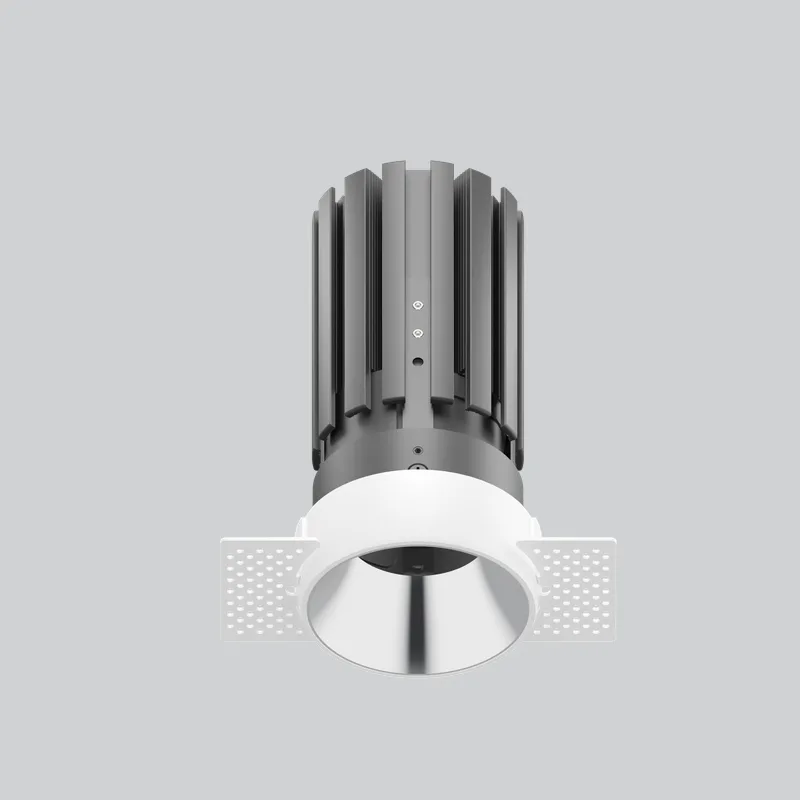

MOVA WINGED TRIMLESS 70 Deep Anti Glare
Wattage: 24W
Size: Ø70 deep anti glare
Lumen Output: 2310lm at 3000K
Beam Angle: 21°/32°/40°/48°
AccessoriesTEXTURED GLASSHONEYCOMB LOUVERCCT Selector SwitchLINEAR SPREAD LENS+3 more accessories
View details →TEXTURED GLASSHONEYCOMB LOUVERCCT Selector SwitchLINEAR SPREAD LENS

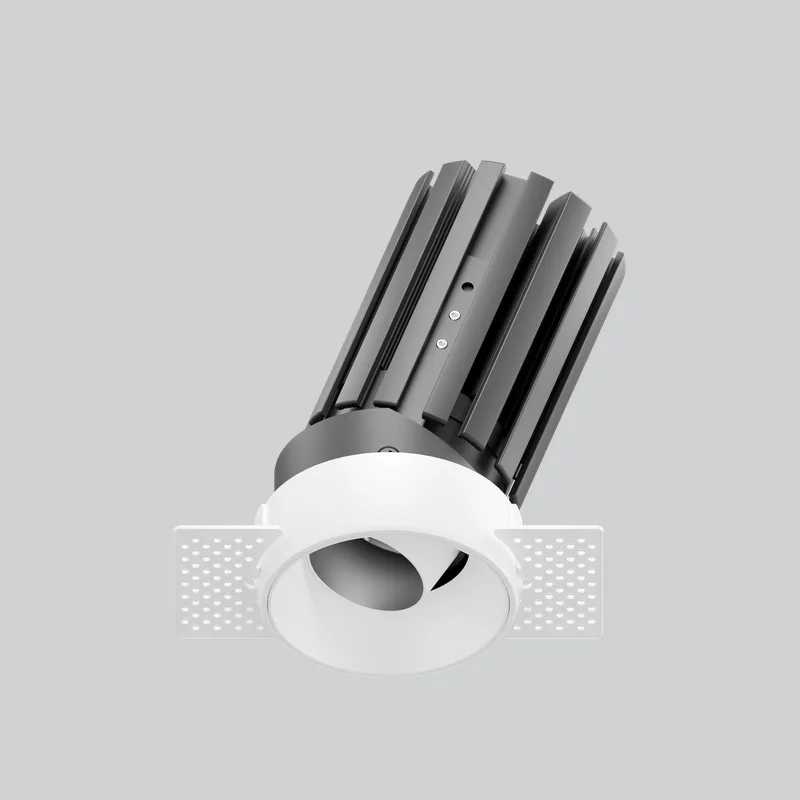

MOVA WINGED TRIMLESS 70 Snoot
Wattage: 24W
Size: Ø70 snoot
Lumen Output: 2299lm at 3000K
Beam Angle: 21°/32°/40°/52°
AccessoriesTEXTURED GLASSHONEYCOMB LOUVERCCT Selector SwitchLINEAR SPREAD LENS+3 more accessories
View details →TEXTURED GLASSHONEYCOMB LOUVERCCT Selector SwitchLINEAR SPREAD LENS

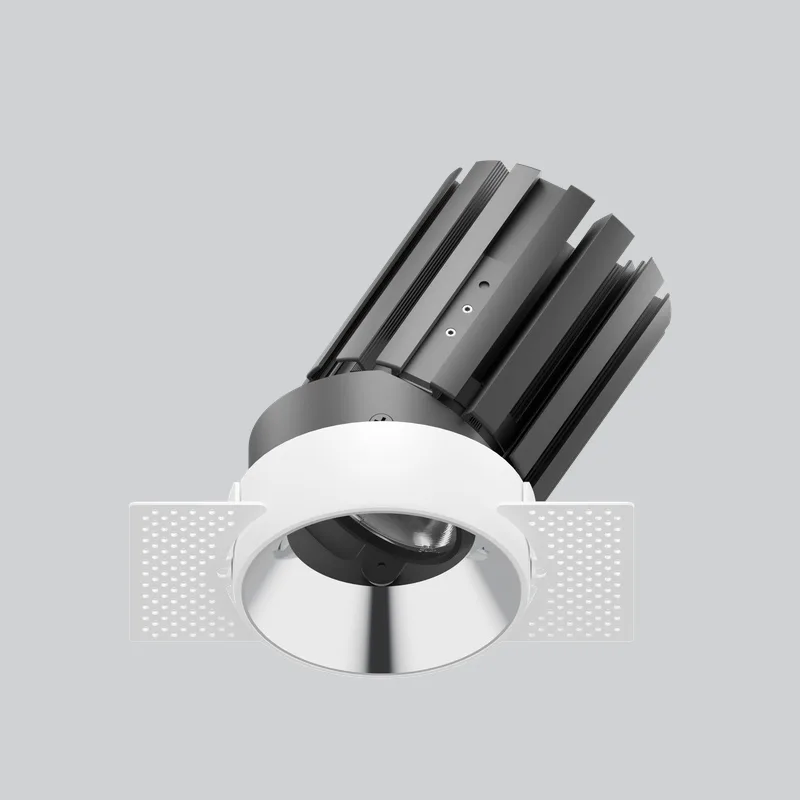

MOVA WINGED TRIMLESS 90 Adjustable
Wattage: 40W
Size: Ø90 adjustable
Lumen Output: 4300lm at 3000K
Beam Angle: 8°/25°/32°/43°/52°
AccessoriesTEXTURED GLASSHONEYCOMB LOUVERCCT Selector SwitchLINEAR SPREAD LENS+3 more accessories
View details →TEXTURED GLASSHONEYCOMB LOUVERCCT Selector SwitchLINEAR SPREAD LENS

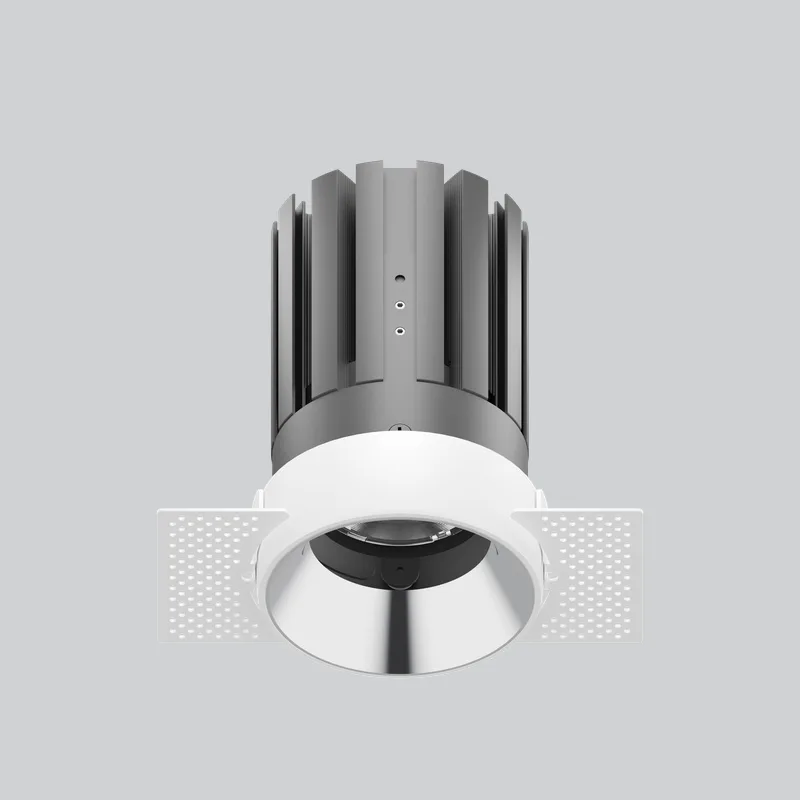

MOVA WINGED TRIMLESS 90 Fixed
Wattage: 40W
Size: Ø90 fixed
Lumen Output: 4300lm at 3000K
Beam Angle: 25°/32°/43°/52°
AccessoriesTEXTURED GLASSHONEYCOMB LOUVERCCT Selector SwitchLINEAR SPREAD LENS+3 more accessories
View details →TEXTURED GLASSHONEYCOMB LOUVERCCT Selector SwitchLINEAR SPREAD LENS

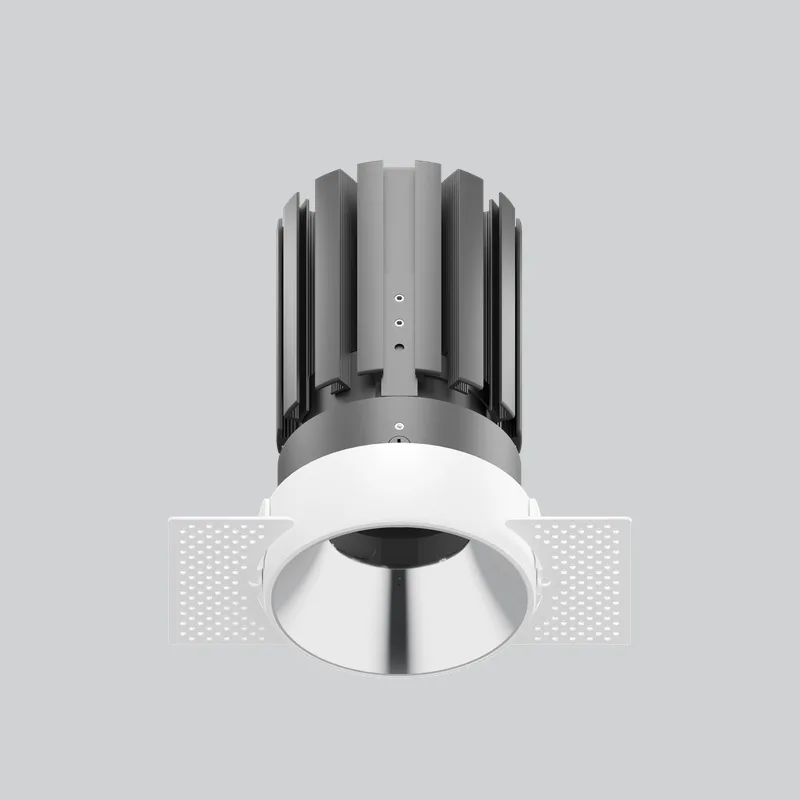

MOVA WINGED TRIMLESS 90 Deep Anti Glare
Wattage: 40W
Size: Ø90 deep anti glare
Lumen Output: 4278lm at 3000K
Beam Angle: 25°/32°/43°/51°
AccessoriesTEXTURED GLASSHONEYCOMB LOUVERCCT Selector SwitchLINEAR SPREAD LENS+3 more accessories
View details →TEXTURED GLASSHONEYCOMB LOUVERCCT Selector SwitchLINEAR SPREAD LENS

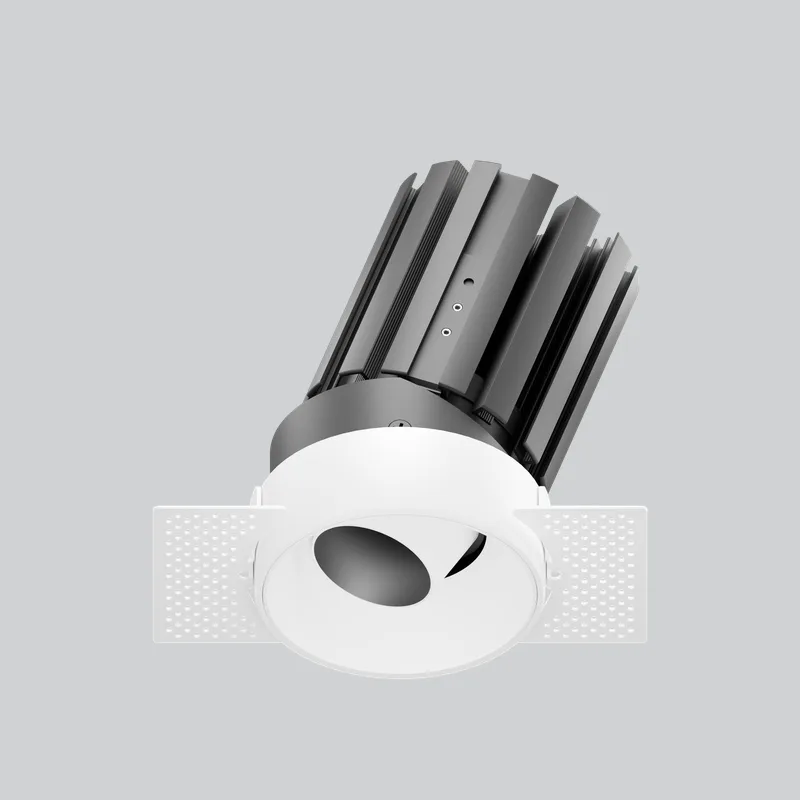

MOVA WINGED TRIMLESS 90 Snoot
Wattage: 41W
Size: Ø90 snoot
Lumen Output: 4048lm at 3000K
Beam Angle: 25°/35°/40°/51°
AccessoriesTEXTURED GLASSHONEYCOMB LOUVERCCT Selector SwitchLINEAR SPREAD LENS+3 more accessories
View details →TEXTURED GLASSHONEYCOMB LOUVERCCT Selector SwitchLINEAR SPREAD LENSWhy Choose MOVA WINGED TRIMLESS
MOVA WINGED TRIMLESS is designed for projects where ceiling integration is just as important as lighting performance.
The winged plaster-in structure allows the trim to be concealed within the ceiling finish, creating a clean and seamless architectural appearance.
Within the same family, designers can select fixed or adjustable versions and combine them with snoot, shallow-cup or deep-cup configurations according to the required lighting effect and visual comfort.
This makes MOVA WINGED TRIMLESS especially suitable for premium interiors that require multiple lighting functions without compromising ceiling consistency.
CHARACTERISTICS
What Defines MOVA WINGED TRIMLESS
Fixed + Adjustable Options
Fixed versions support general downlighting, while adjustable versions provide directional lighting for displays, artwork and architectural features.
Snoot / Shallow Cup / Deep Cup
Different front configurations allow the same trimless family to support different shielding depths, glare-control requirements and visual effects.
One Consistent Trimless Family
Multiple sizes and configurations share one coordinated trimless design language, helping different lighting functions remain visually consistent across the project.
APPLICATIONS
Where MOVA WINGED TRIMLESS Performs Best
MOVA WINGED TRIMLESS is developed for interiors where clean ceiling integration, multiple lighting functions and refined architectural detailing are all required.
Hospitality
The seamless trimless appearance and multiple front configurations make MOVA suitable for hospitality spaces where both visual comfort and ceiling refinement are important.
- Hotels
- Lounges / Guest Rooms
High-End Residential
Trimless integration creates a clean ceiling appearance while fixed and adjustable versions support layered residential lighting.
- Villas
- Living Areas
Premium Retail
Adjustable configurations provide precise accent lighting for products and displays while maintaining a minimal ceiling finish.
- Boutiques
- Product Displays

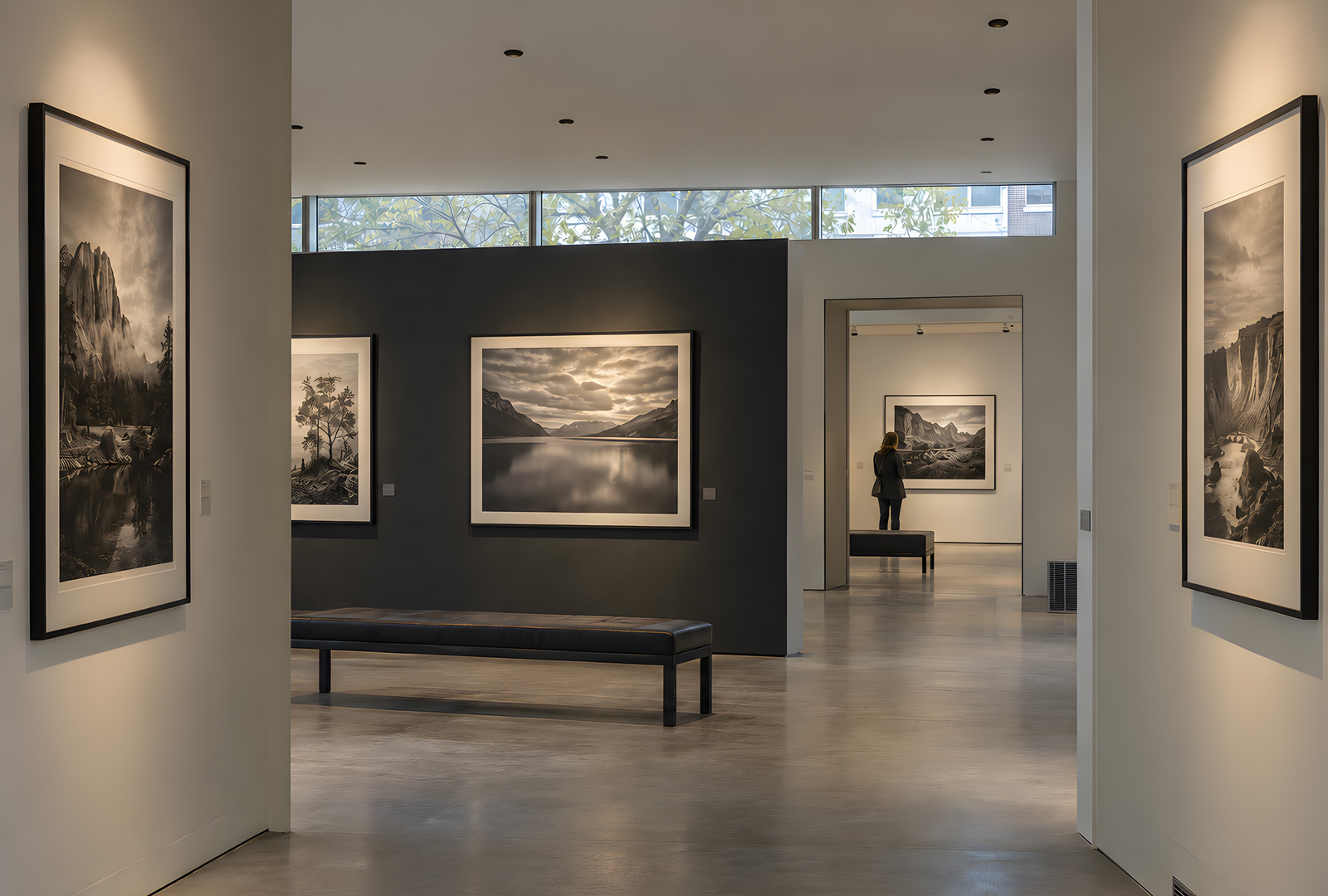

Gallery & Art Spaces
Directional versions support artwork and display lighting while the trimless structure keeps attention on the illuminated subject rather than the fixture.
- Artwork
- Feature Walls
Projects
Projects using MOVA WINGED TRIMLESS
See how MOVA WINGED TRIMLESS delivers precision and performance in real-world projects.
Retail
LOTTE Mall Korea
MOVA WINGED TRIMLESS track lights were selected for precise beam control and high visual comfort, enhancing the shopping experience and product presentation.
Product usedMOVA WINGED TRIMLESS 55\nMOVA WINGED TRIMLESS 75
Beam angle20° / 39°
ControlDALI
Retail
Luxury Fashion Boutique
Custom beam angles and high CRI lighting bring out the true texture and colour of fabrics and materials, creating an elegant and inviting atmosphere.
Product usedMOVA WINGED TRIMLESS 45\nMOVA WINGED TRIMLESS 55
Beam angle15° / 25° / 51°
ControlTRIAC
Commercial
Commercial Office Project
MOVA WINGED TRIMLESS provides uniform and comfortable lighting, supporting productivity while maintaining a clean architectural aesthetic.
Product usedMOVA WINGED TRIMLESS 75\nMOVA WINGED TRIMLESS 100
Beam angle25° / 39°
ControlDALI
SYSTEM CATALOGUE
Download MOVA WINGED TRIMLESS Product Datasheet
Download the MOVA WINGED TRIMLESS technical datasheet for sizes, power options, beam angles, installation structure and available fixed, adjustable and front configurations.
PROJECT SUPPORT
Configure MOVA WINGED TRIMLESS for Your Project
Tell us the ceiling structure, required cut-out size, power, aiming requirement and preferred front configuration, and we can help recommend the suitable MOVA WINGED TRIMLESS setup.
