Optimized Adjustable Structure
The adjustable mechanism is developed around a more efficient internal structure for smoother configuration and practical project use.

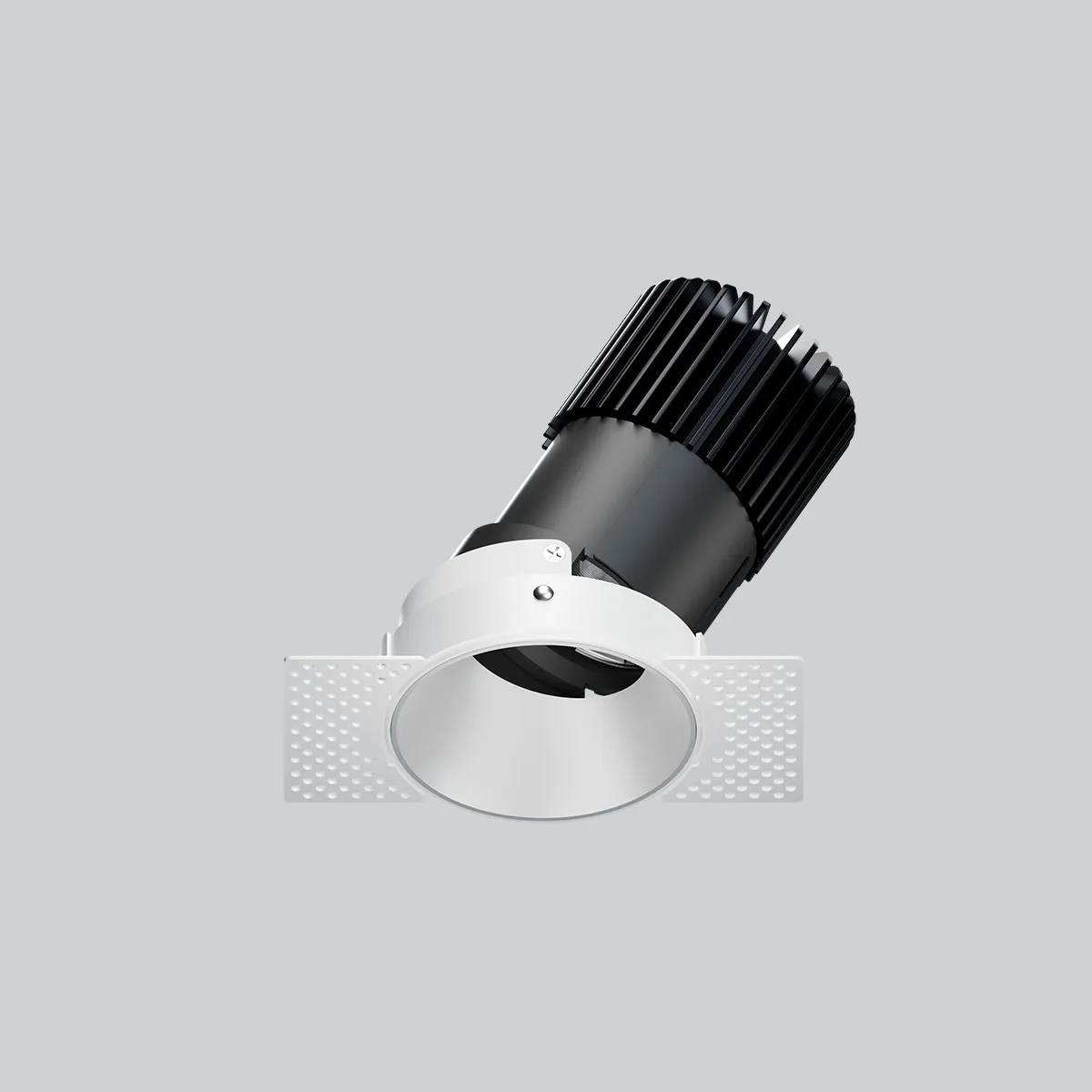

An optimized adjustable recessed downlight with modular trim options, interchangeable lower cups and integrated light-leak control.
Available products

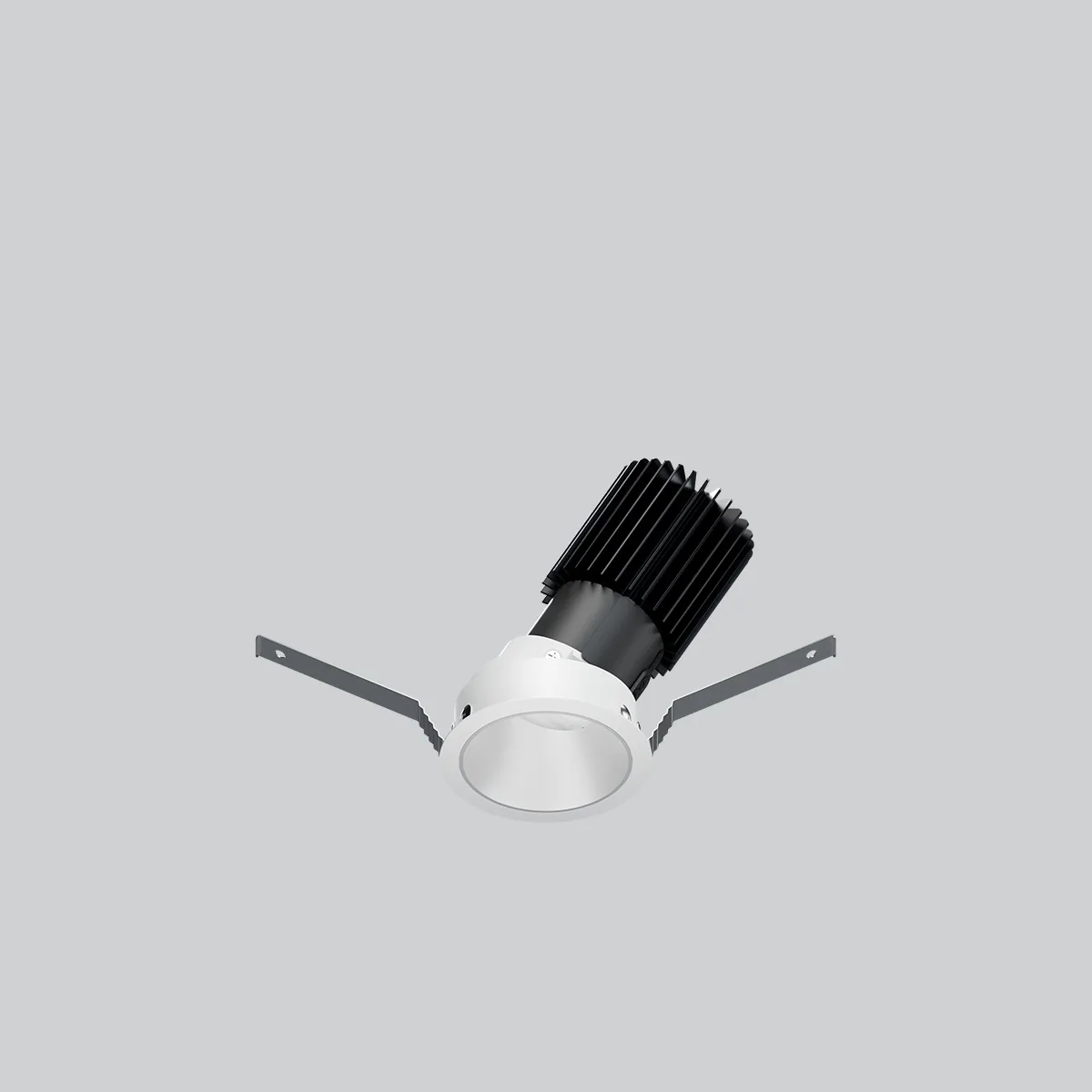

Wattage: 10W
Size: Ø61*107mm
Lumen Output: 938lm
Beam Angle: 22° / 31° / 44° / 55°
TEXTURED GLASS
HONEYCOMB LOUVER
CCT Selector Switch
LINEAR SPREAD LENS

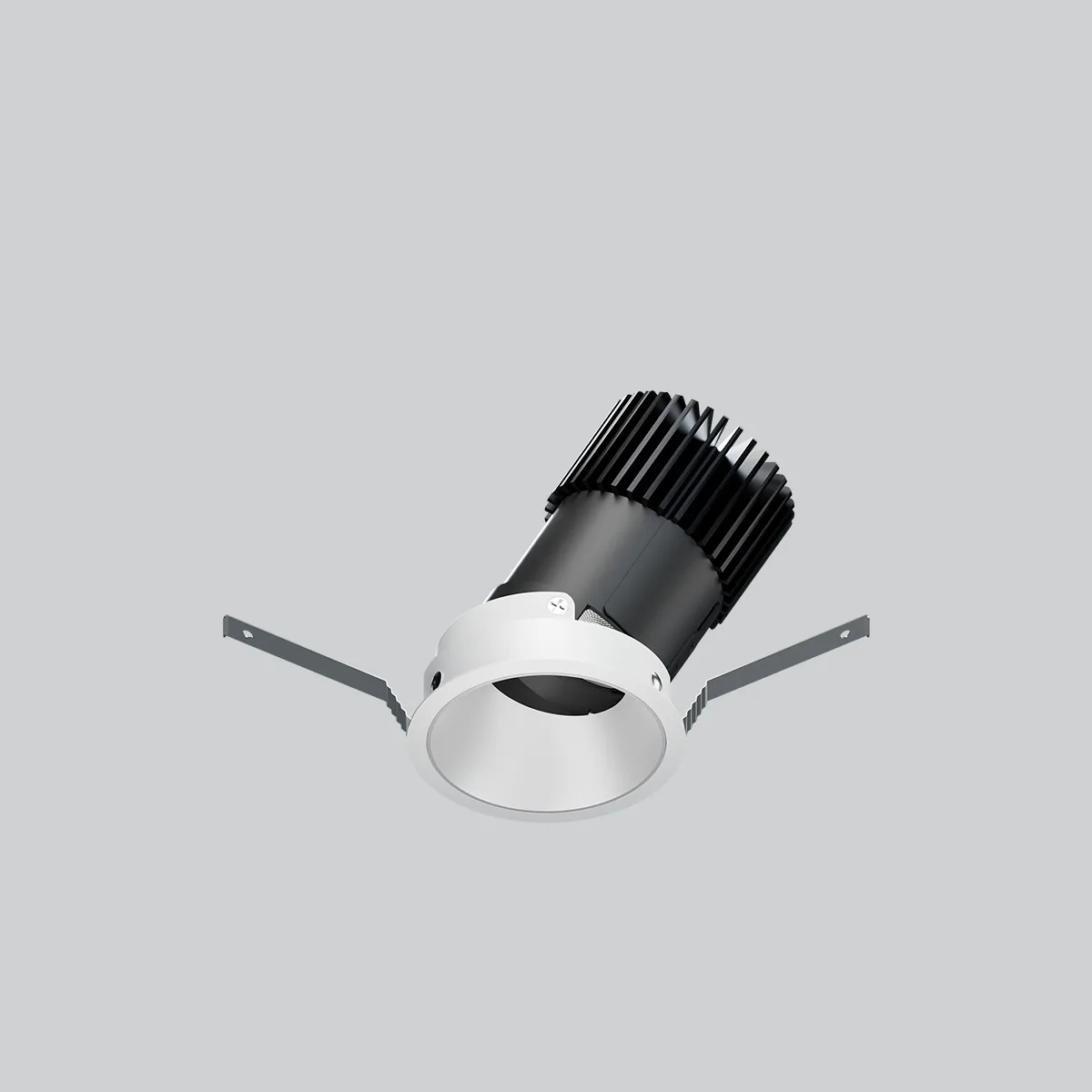

Wattage: 15W
Size: Ø81*118mm
Lumen Output: 1555lm
Beam Angle: 20° / 26° / 39° / 53°
TEXTURED GLASS
HONEYCOMB LOUVER
CCT Selector Switch
LINEAR SPREAD LENS

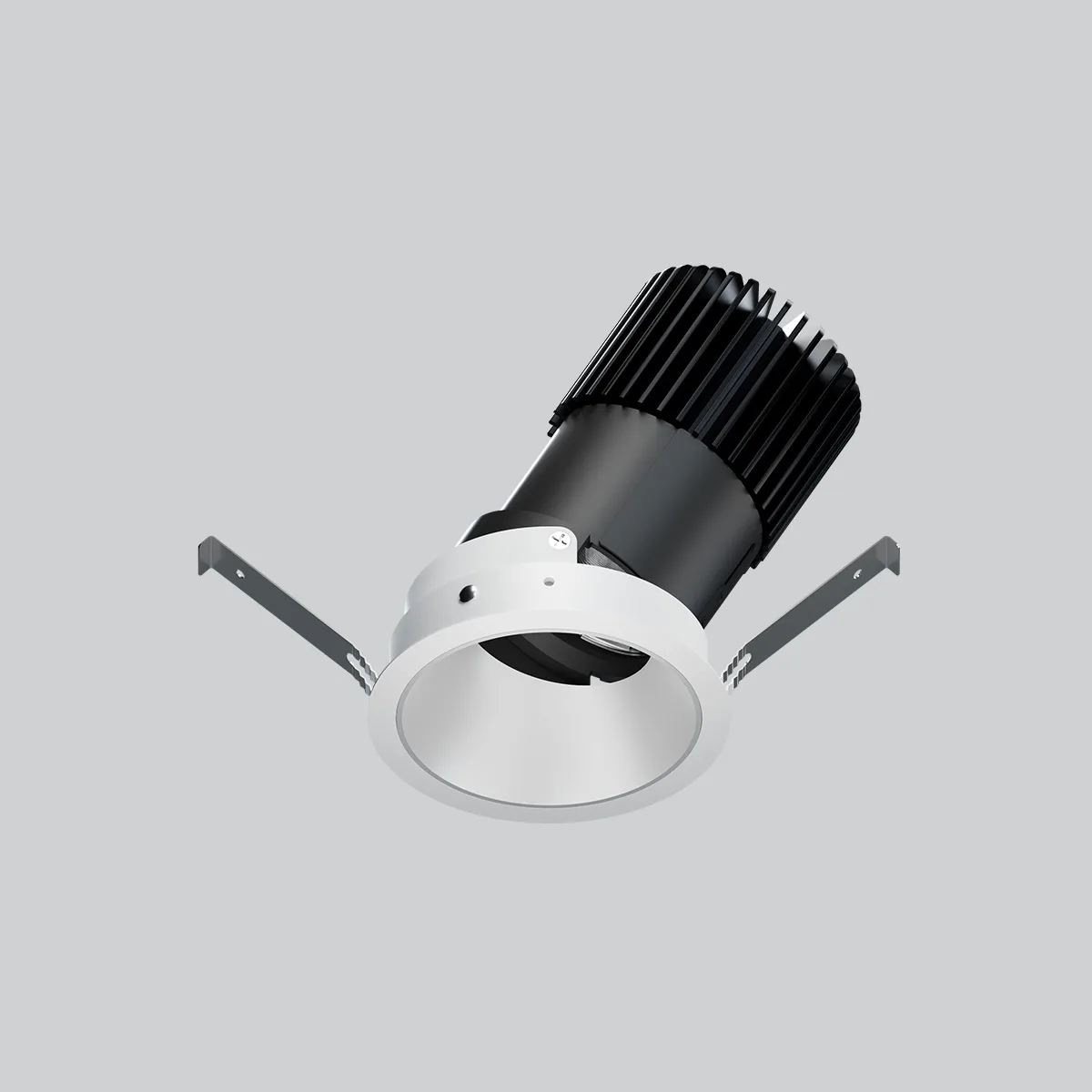

Wattage: 27W
Size: Ø105*155mm
Lumen Output: 2951lm
Beam Angle: 22° / 32° / 43° / 53°
TEXTURED GLASS
HONEYCOMB LOUVER
CCT Selector Switch
LINEAR SPREAD LENS

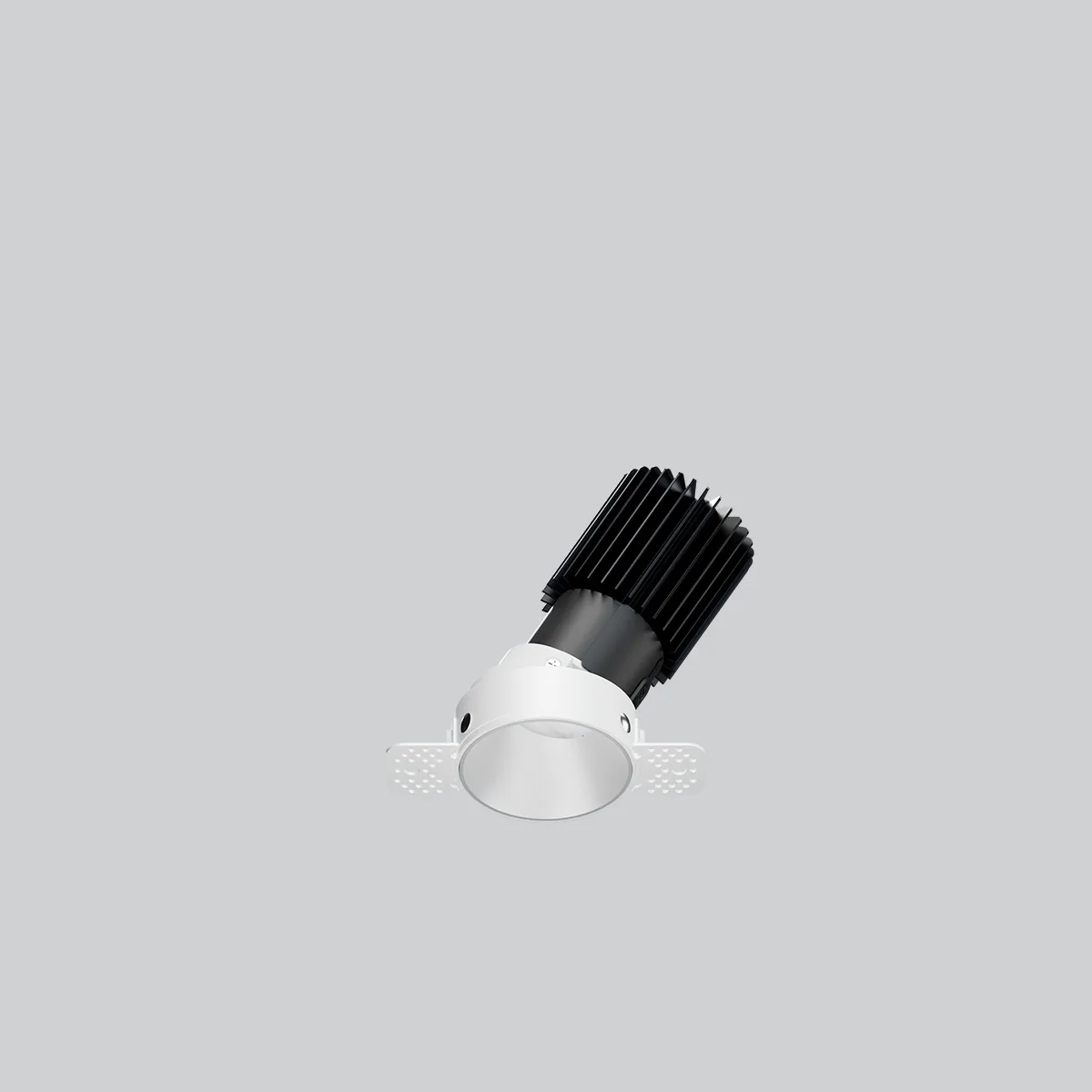

Wattage: 10W
Size: Ø52*107mm
Lumen Output: 938lm
Beam Angle: 22° / 31° / 44° / 55°
TEXTURED GLASS
HONEYCOMB LOUVER
CCT Selector Switch
LINEAR SPREAD LENS

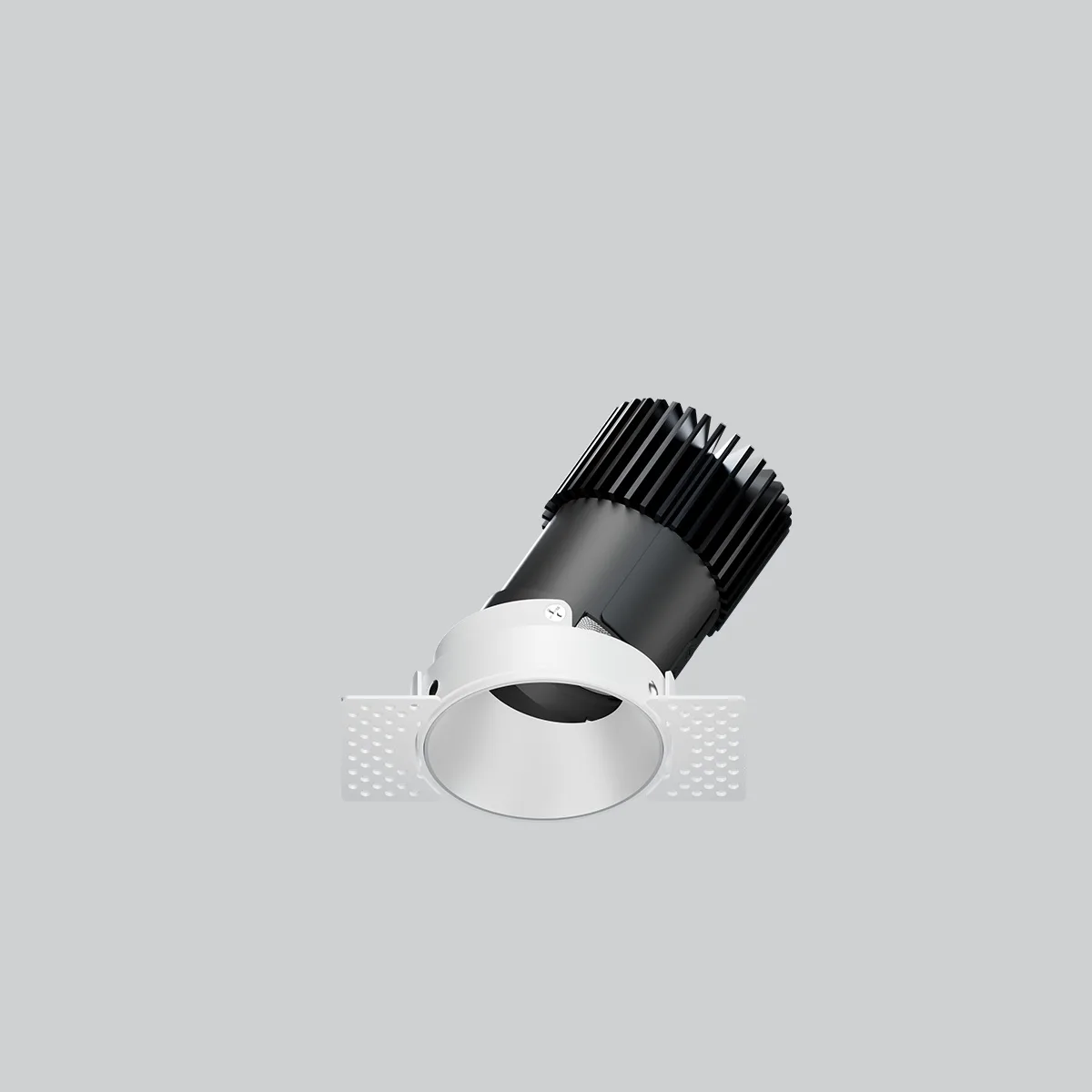

Wattage: 15W
Size: Ø73*118mm
Lumen Output: 1555lm
Beam Angle: 20° / 26° / 39° / 53°
TEXTURED GLASS
HONEYCOMB LOUVER
CCT Selector Switch
LINEAR SPREAD LENS
Wattage: 27W
Size: Ø91*155mm
Lumen Output: 2951lm
Beam Angle: 22° / 32° / 43° / 53°
TEXTURED GLASS
HONEYCOMB LOUVER
CCT Selector Switch
LINEAR SPREAD LENSNEXA is designed as a more optimized adjustable downlight platform for projects that need flexibility without adding unnecessary structural complexity.
Its integrated shielding plate helps reduce unwanted light leakage during aiming, while trim and trimless options allow the same family to adapt to different ceiling details.
The interchangeable lower recessed cup adds another layer of flexibility, making NEXA easier to configure for different project requirements while maintaining a consistent luminaire platform and better overall project value.
CHARACTERISTICS
The adjustable mechanism is developed around a more efficient internal structure for smoother configuration and practical project use.
An integrated shielding plate helps reduce unwanted side and rear light leakage when the luminaire is aimed away from the vertical position.
Trim and trimless versions allow NEXA to adapt to different ceiling details while keeping one consistent product platform.
The lower recessed cup can be removed and replaced independently, giving the same luminaire body greater flexibility for different finishes and project configurations.
APPLICATIONS
NEXA is suited to interiors where adjustable accent lighting, flexible ceiling integration and efficient project configuration are all required.

Adjustable aiming and flexible trim options make NEXA suitable for retail environments where merchandise positions and ceiling details may vary.

The combination of controlled light, trim flexibility and clean recessed integration supports refined hospitality interiors.

Interchangeable components and adjustable aiming make NEXA practical for showroom projects with changing display requirements.

The optimized modular structure provides a flexible recessed solution for commercial projects that need both lighting performance and better project value.
PROJECT CONCEPTS
AI-generated application visualizations exploring NEXA adjustable recessed downlighting in retail, hospitality and art display interiors. These are design concepts, not photographs of completed projects.

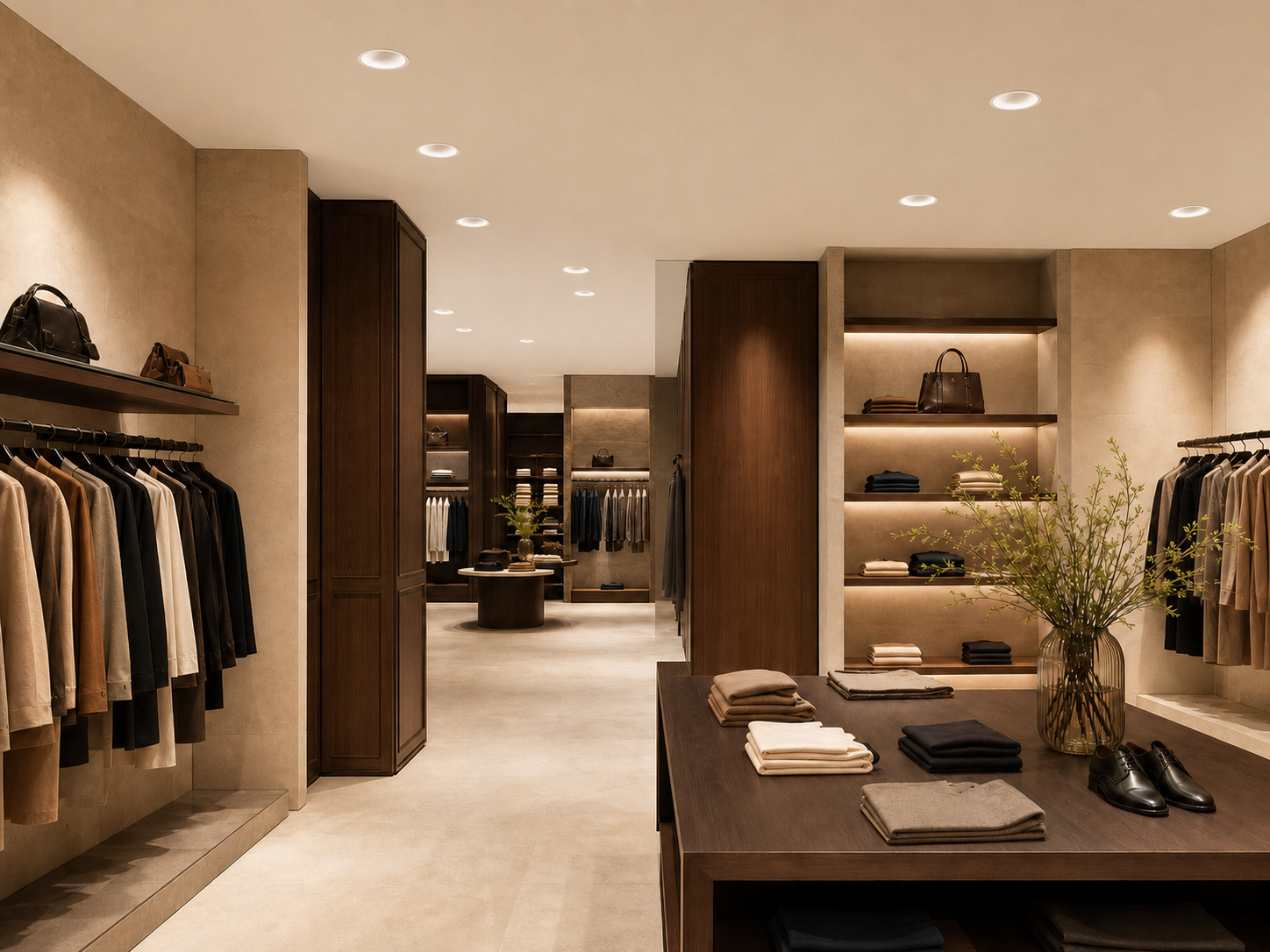

Adjustable recessed lighting directs attention toward leather goods and shelving, while the white recessed cups maintain a discreet ceiling appearance. AI-generated application concept; not a completed installation.

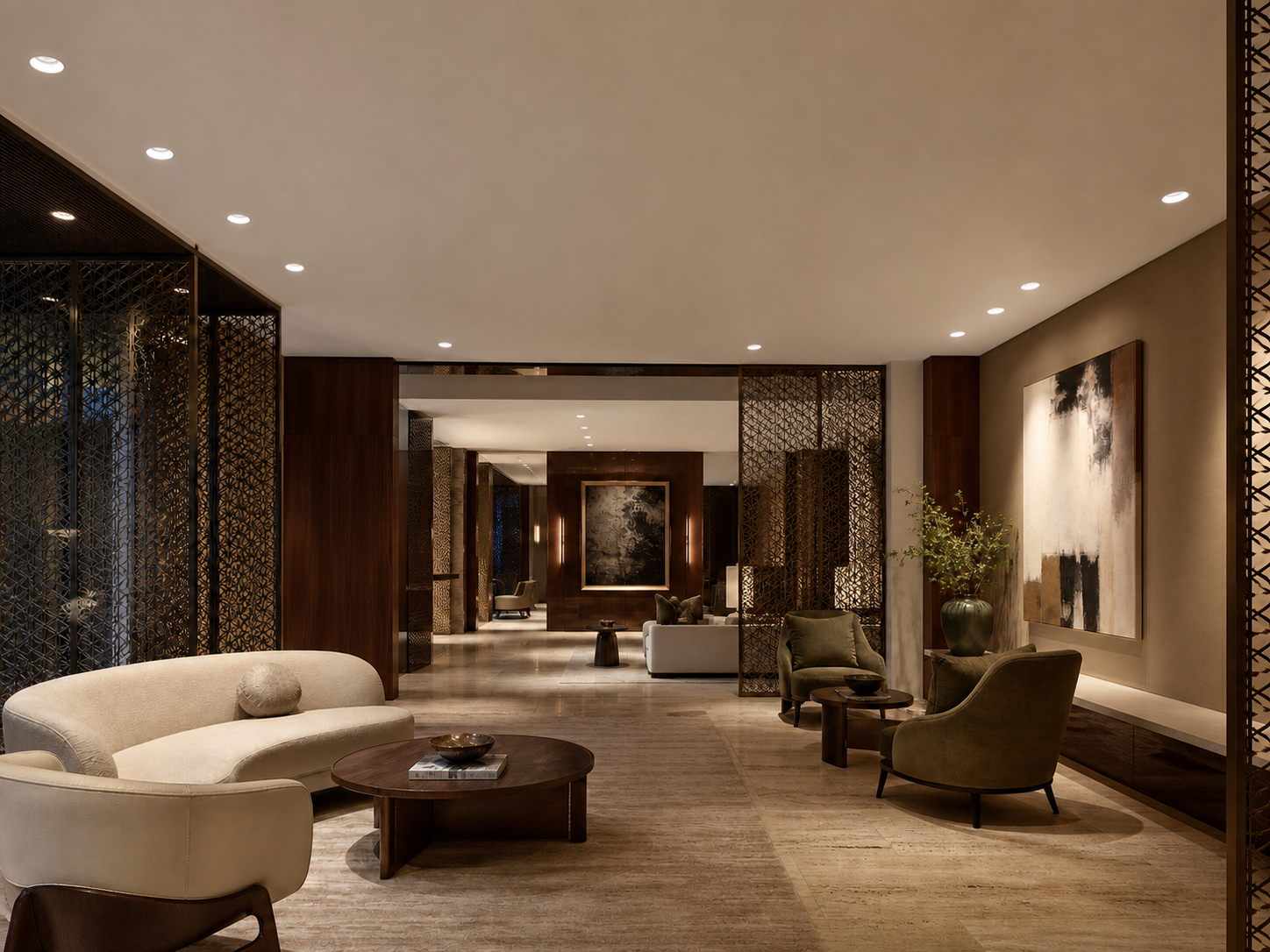

Directional recessed lighting highlights the textured wall and lounge setting, creating a calm, layered hospitality atmosphere. AI-generated application concept; not a completed installation.

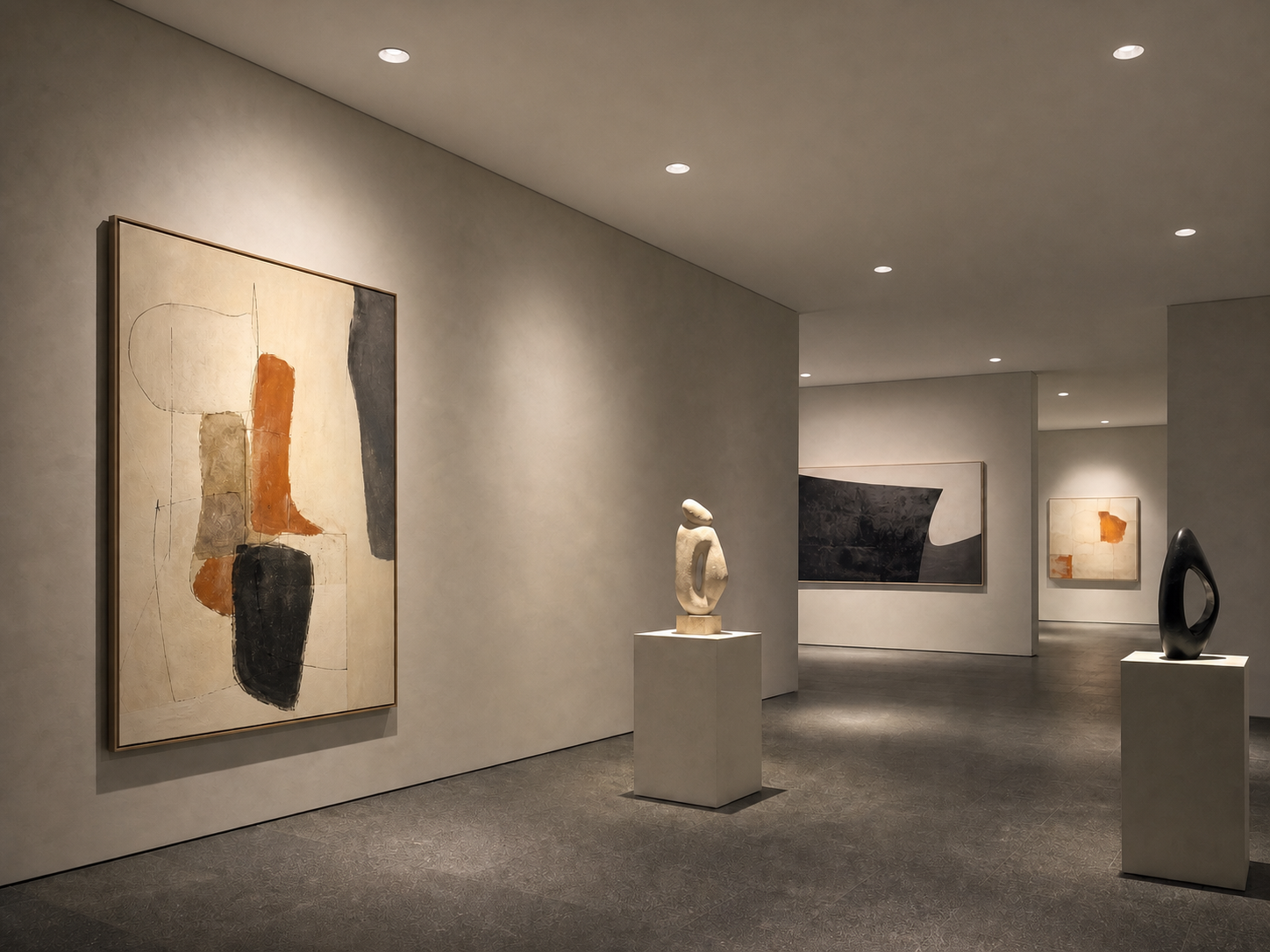

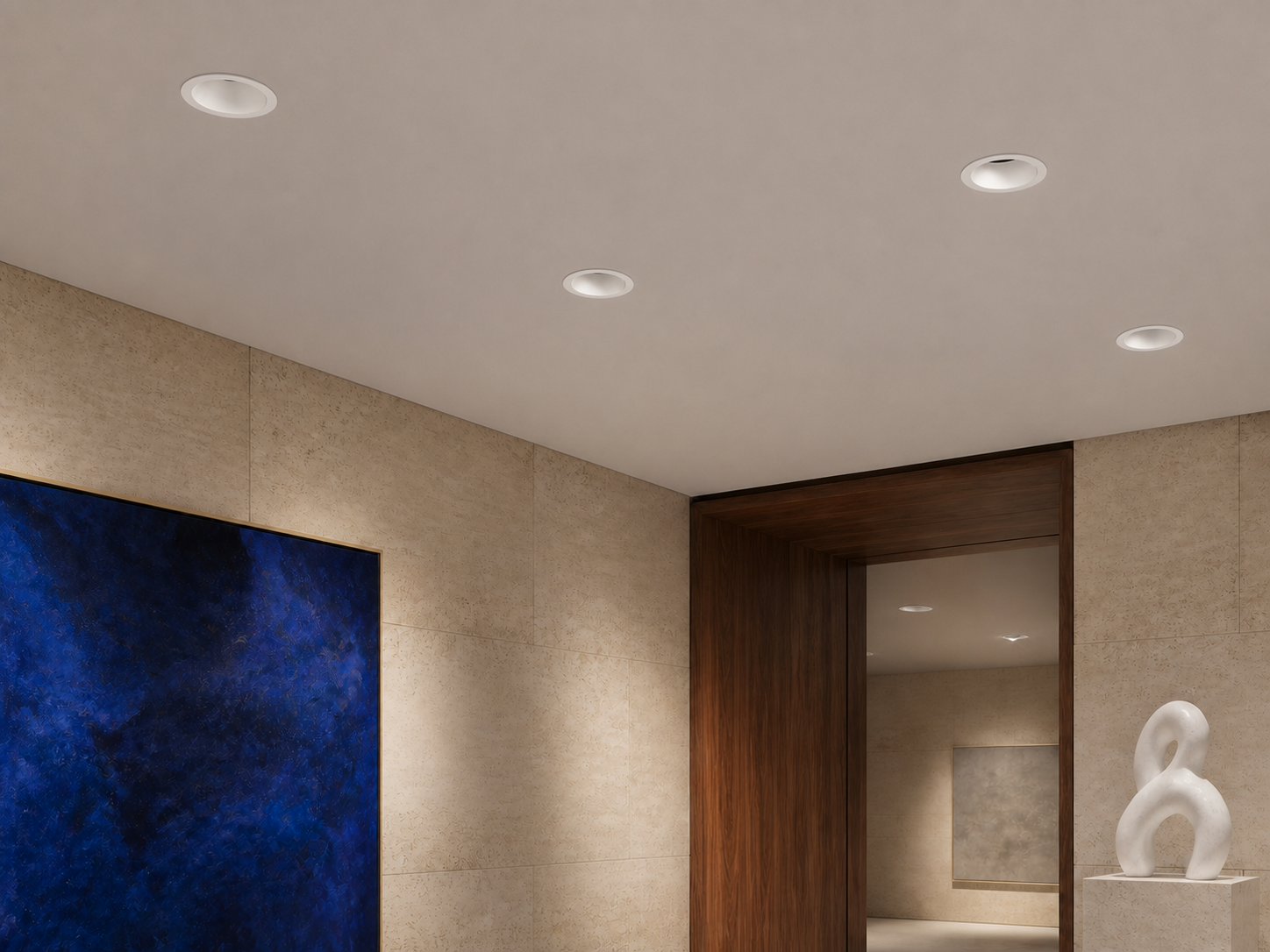

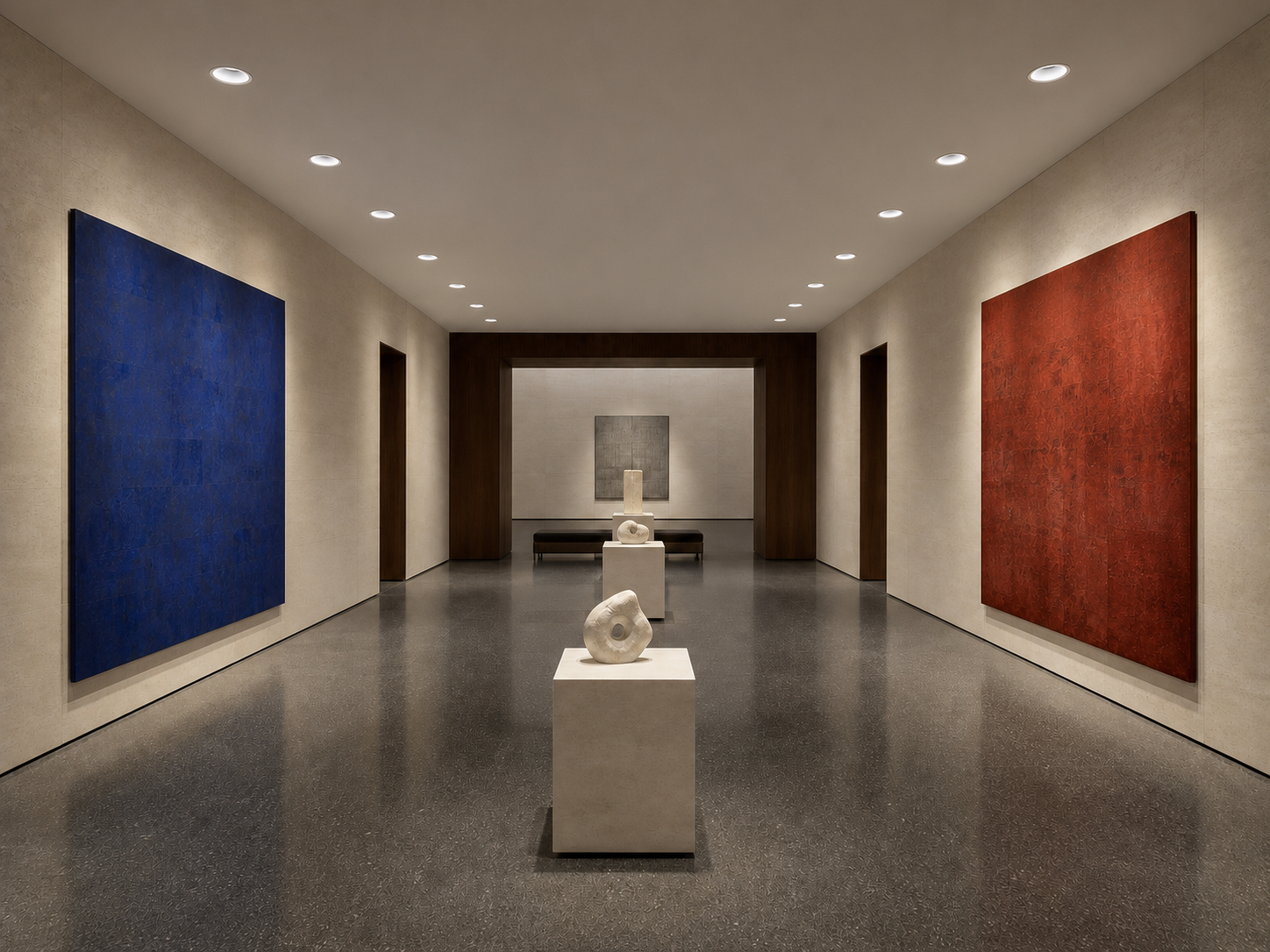

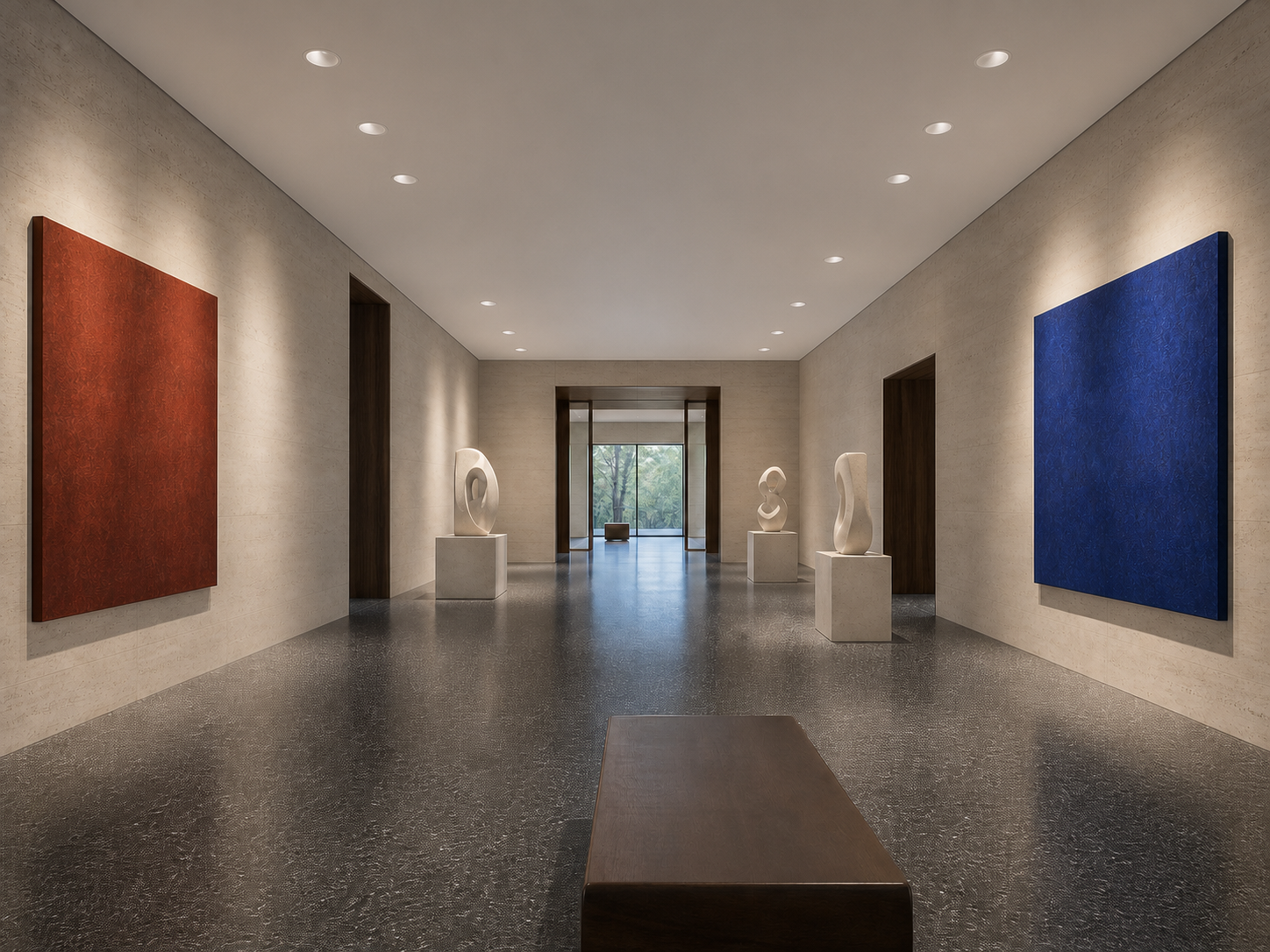

Focused recessed lighting brings out the form and texture of ceramic sculptures and wall art. AI-generated application concept; not a completed installation.
SYSTEM CATALOGUE
Download the NEXA technical datasheet for sizes, power options, beam configurations, trim types and modular component details.
PROJECT SUPPORT
Tell us the required size, trim type, beam angle and lower-cup configuration, and we can help recommend the suitable NEXA setup for your project.
