MOVA WINGED TRIMLESS 70 Adjustable
MOVA Winged Trimless Adjustable Downlight combines flexible directional lighting with a clean trimless ceiling appearance. Its winged plaster-in frame provides secure trimless installation, while the adjustable light engine allows precise aiming for different lighting needs. Designed for refined retail, gallery and residential interiors, it delivers flexible accent lighting with minimal visual presence.
MOVA WINGED TRIMLESS 70 Adjustable, Ø70mm cut-out, 24W, 2322lm at 3000K.
Product familyMOVA WINGED TRIMLESS
Model57.07017

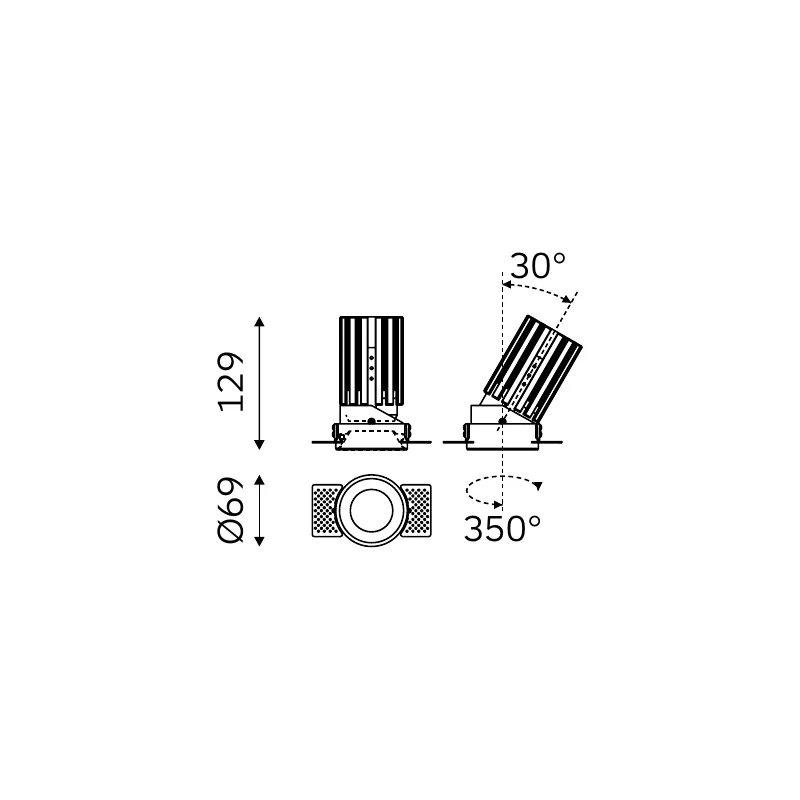

DimensionsØ69 × 129mm
Cut-outØ70mm
Power24W 36V 600mA
Luminous flux2322lm at 3000K
UGR<19
AdjustabilityTilt 30° Rotation 350°
CCT2700K / 3000K / 3500K / 4000K
CRICRI90
Beam angle9°/20°/32°/40°/48°
IP ratingIP20
FinishWhite / Black / Silver / Gold / Rose Gold / Black Chrome
MountingRecessed
DimmingTRIAC / DALI / 0-10V
Product overview
Technical product information
MOVA WINGED TRIMLESS 70 Adjustable, Ø70mm cut-out, 24W, 2322lm at 3000K.
Accessories
Compatible accessories
HONEYCOMB LOUVER
CCT Selector Switch
LINEAR SPREAD LENS
PROTECTIVE GLASS
GLASS WITH WATERPROOF RING
COLOR FILTER
Technical files
Technical Downloads
Other sizes
More products in MOVA WINGED TRIMLESS
MOVA WINGED TRIMLESS 50 Adjustable
Wattage: 12W
Size: Ø50 adjustable
Lumen Output: 758lm at 3000K
Beam Angle: 8°/18°/23°/30°/46°
AccessoriesTEXTURED GLASSHONEYCOMB LOUVERCCT Selector SwitchLINEAR SPREAD LENS+3 more accessories
TEXTURED GLASSHONEYCOMB LOUVERCCT Selector SwitchLINEAR SPREAD LENS
MOVA WINGED TRIMLESS 50 Fixed
Wattage: 12W
Size: Ø50 fixed
Lumen Output: 758lm at 3000K
Beam Angle: 18°/23°/30°/46°
AccessoriesTEXTURED GLASSHONEYCOMB LOUVERCCT Selector SwitchLINEAR SPREAD LENS+3 more accessories
TEXTURED GLASSHONEYCOMB LOUVERCCT Selector SwitchLINEAR SPREAD LENS
MOVA WINGED TRIMLESS 50 Deep Anti Glare
Wattage: 12W
Size: Ø50 deep anti glare
Lumen Output: 736lm at 3000K
Beam Angle: 18°/22°/30°/42°
AccessoriesTEXTURED GLASSHONEYCOMB LOUVERCCT Selector SwitchLINEAR SPREAD LENS+3 more accessories
TEXTURED GLASSHONEYCOMB LOUVERCCT Selector SwitchLINEAR SPREAD LENS
MOVA WINGED TRIMLESS 50 Snoot
Wattage: 12W
Size: Ø50 snoot
Lumen Output: 600lm at 3000K
Beam Angle: 20°/23°/30°/42°
AccessoriesTEXTURED GLASSHONEYCOMB LOUVERCCT Selector SwitchLINEAR SPREAD LENS+3 more accessories
TEXTURED GLASSHONEYCOMB LOUVERCCT Selector SwitchLINEAR SPREAD LENS
