MOVA TRIM 70 Snoot
MOVA Snoot combines directional lighting with an extended anti-glare structure for more controlled accent illumination. The forward snoot helps shield the light source from view, reducing side glare and unwanted spill while keeping the beam focused on the display. With adjustable aiming and a clean recessed appearance, it is ideal for galleries, retail displays and other spaces where precise light and visual comfort are equally important.


MOVA TRIM 70 Snoot, Ø70mm cut-out, 24W, 2299lm at 3000K.
Product familyMOVA TRIM
Model52.07013

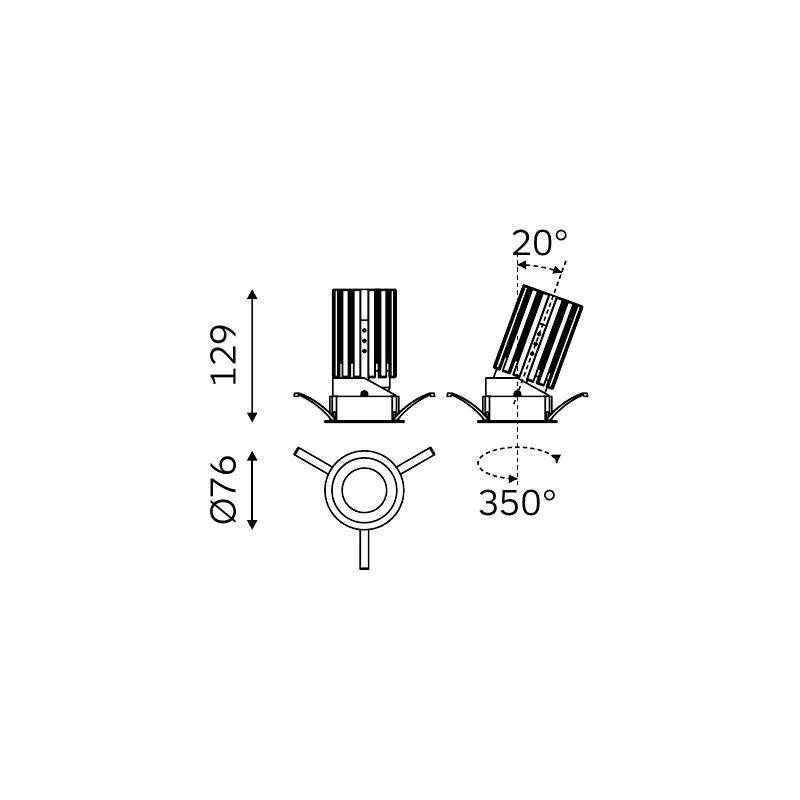

DimensionsØ76 × 129mm
Cut-outØ70mm
Power24W 36V 600mA
Luminous flux2299lm at 3000K
UGR<19
AdjustabilityTilt 20° Rotation 350°
CCT2700K / 3000K / 3500K / 4000K
CRICRI90
Beam angle21°/32°/40°/52°
IP ratingIP20
FinishWhite / Black / Silver / Gold / Rose Gold / Black Chrome
MountingRecessed
DimmingTRIAC / DALI / 0-10V
Product overview
Technical product information
Accessories
Compatible accessories


HONEYCOMB LOUVER

CCT Selector Switch

LINEAR SPREAD LENS

PROTECTIVE GLASS

GLASS WITH WATERPROOF RING

COLOR FILTER
Technical files
Technical Downloads
