REDLINE 55

REDLINE 55

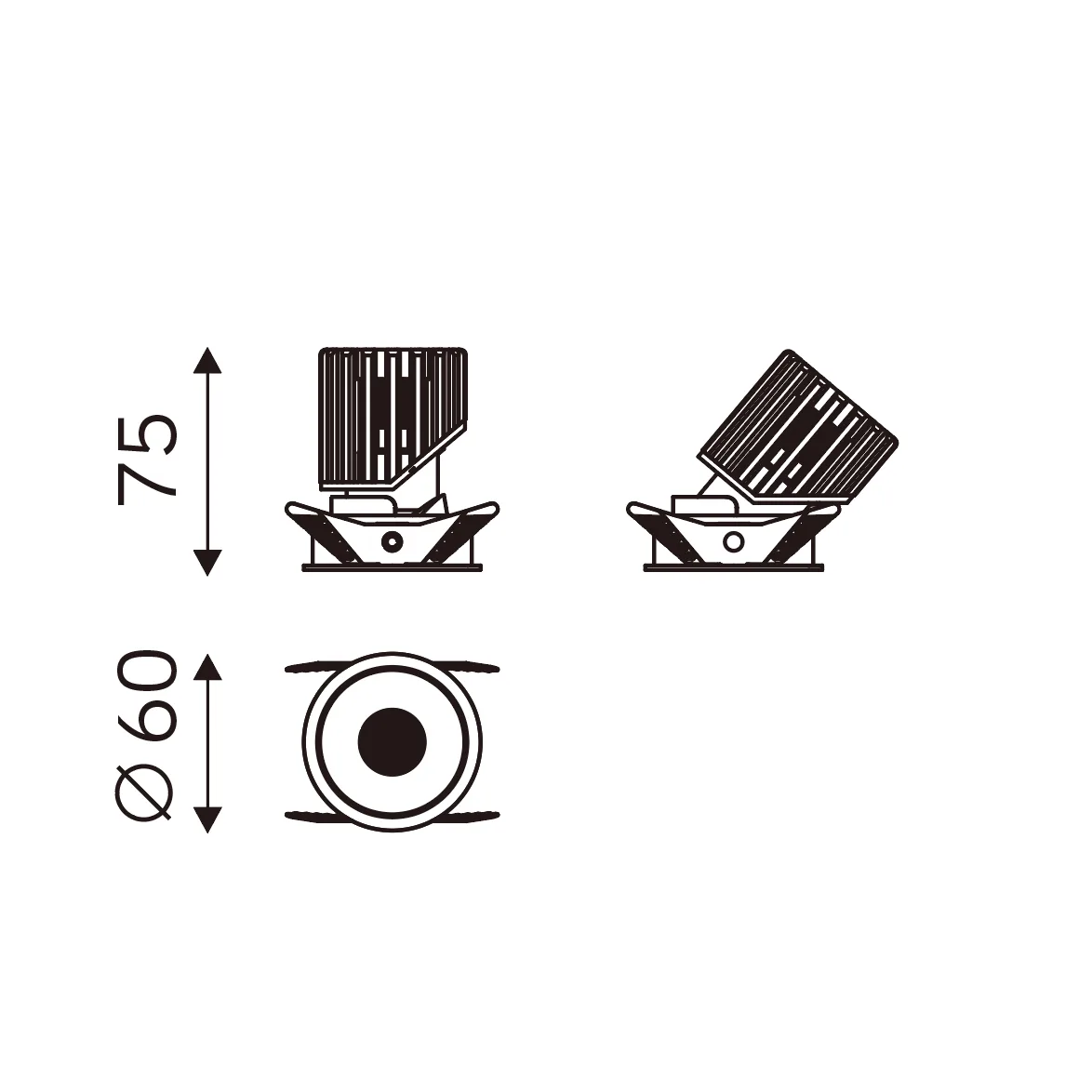

REDLINE 55 dimension drawing
Product familyREDLINE
Model52.05549
DimensionsØ60*73mm
Cut-outØ55mm
Power10W
Luminous flux862lm
Efficacy86.2lm/W
Voltage220-240V
CCT2700K / 3000K / 4000K
CRICRI90
Beam angle20° / 25° / 38° / 53°
IP ratingIP20
FinishWhite / Black
MountingRecessed
DimmingOn/Off / Dali / Triac
Get a quoteTechnical filesPDF / Print

Product overview

Technical product information

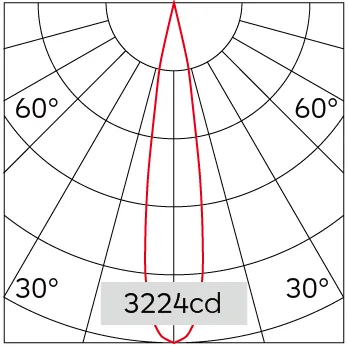

20°
20°

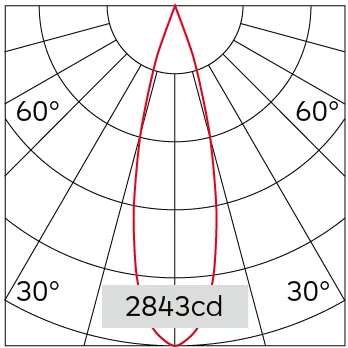

25°
25°

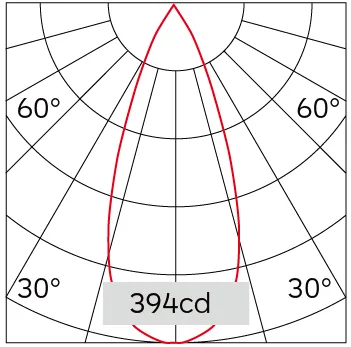

38°
38°

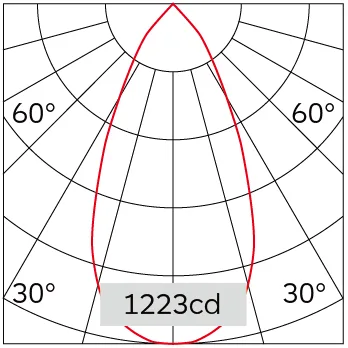

53°
53°

Technical files

Technical Downloads

DatasheetPDF · EN · Generated PDFDownload ↗IES / LDTZIP · EN · 1.5 MBDownload ↗Product imageWEBP · EN · 13 KBDownload ↗Dimension drawingWEBP · EN · 28 KBDownload ↗
