VERO 70

VERO 70 52.07012 downlights from Artdon Lighting for professional architectural projects.
VERO 70
VERO 70 dimension drawing

VERO 70 52.07012 downlights from Artdon Lighting for professional architectural projects.

Product familyVERO
Model52.07012
DimensionsØ82*66mm
Cut-outØ70mm
Power8W
Luminous flux446lm
Efficacy55.7lm/W
Voltage220-240V
CCT2700K / 3000K / 4000K
CRICRI90
Beam angle27° / 44°
IP ratingIP20
FinishWhite / Black
MountingRecessed
DimmingOn/Off / Dali / Triac
Get a quoteTechnical filesPDF / Print

Product overview

Technical product information

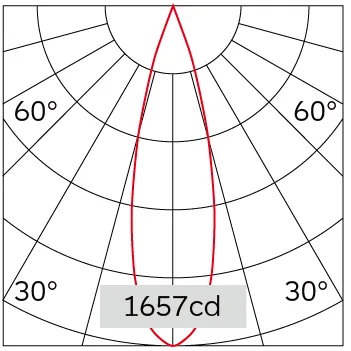

27°
27°

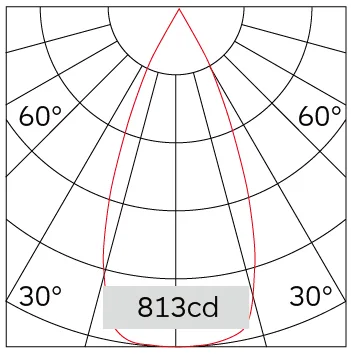

44°
44°
27°
27°
44°
44°

Technical files

Technical Downloads

DatasheetPDF · EN · Generated PDFDownload ↗IES / LDTZIP · EN · 376 KBDownload ↗Product imageWEBP · EN · 12 KBDownload ↗Dimension drawingWEBP · EN · 6 KBDownload ↗
