CNC Aluminium Housing
Precision-machined aluminium delivers exceptional quality and long-term durability.
CLA CNC PRECISION SURFACE DOWNLIGHT
Machined aluminium. Deep anti-glare optics. Premium architectural finish.
* CLA is a premium surface-mounted downlight manufactured from precision CNC-machined aluminium, delivering exceptional craftsmanship and long-term durability.
* Its deep recessed optical chamber significantly reduces glare while providing comfortable, high-quality illumination for demanding architectural environments.
* Designed for premium retail, hospitality, offices and residential interiors where refined aesthetics and visual comfort are equally important.
Key Specifications
Applications: Retail / Hospitality / Office / Residential
Diameter Range: Ø60 / Ø80 / Ø100
Power Range: 6W–13W
Beam Angle: 17°–55°
Features: Deep Anti-glare Optics / CNC Aluminium Housing
Control: ON/OFF / TRAIC where available
* Its deep recessed optical chamber significantly reduces glare while providing comfortable, high-quality illumination for demanding architectural environments.
* Designed for premium retail, hospitality, offices and residential interiors where refined aesthetics and visual comfort are equally important.
Key Specifications
Applications: Retail / Hospitality / Office / Residential
Diameter Range: Ø60 / Ø80 / Ø100
Power Range: 6W–13W
Beam Angle: 17°–55°
Features: Deep Anti-glare Optics / CNC Aluminium Housing
Control: ON/OFF / TRAIC where available
Available products
Choose the right size
CLA 60
Wattage: 6W
Size: Ø60*60mm
Lumen Output: 635lm
Beam Angle: 21° / 24° / 35° / 53°
CLA 80
Wattage: 10W
Size: Ø80*80mm
Lumen Output: 1063lml
Beam Angle: 17° / 23° / 32° / 55°
CLA 100
Wattage: 13W
Size: Ø100*100mm
Lumen Output: 1407lm
Beam Angle: 18° / 26° / 37° / 54°
Why Choose CLA
CLA is designed for projects where craftsmanship and visual comfort are key priorities.
Its CNC-machined aluminium housing provides a premium finish that stands apart from conventional surface-mounted downlights.
The deep recessed optical chamber significantly reduces glare while maintaining precise beam control for architectural lighting.
Ideal for luxury retail, hospitality, offices and residential interiors where refined detailing is essential.
Characteristics
What defines CLA
Deep Anti-Glare Design
The recessed optical chamber effectively reduces glare while improving visual comfort.
Architectural Appearance
Minimalist cylindrical form integrates naturally into contemporary interiors.
Reliable Thermal Performance
Solid aluminium construction ensures stable heat dissipation and long service life.
Applications
Where CLA Performs Best
CLA is a refined surface-mounted downlight for hospitality, restaurant, residential and meeting-room interiors where the ceiling detail must remain clean without recessed installation. It is best suited to 2.6–3.6 m spaces that need controlled pools of light and a premium cylinder appearance.

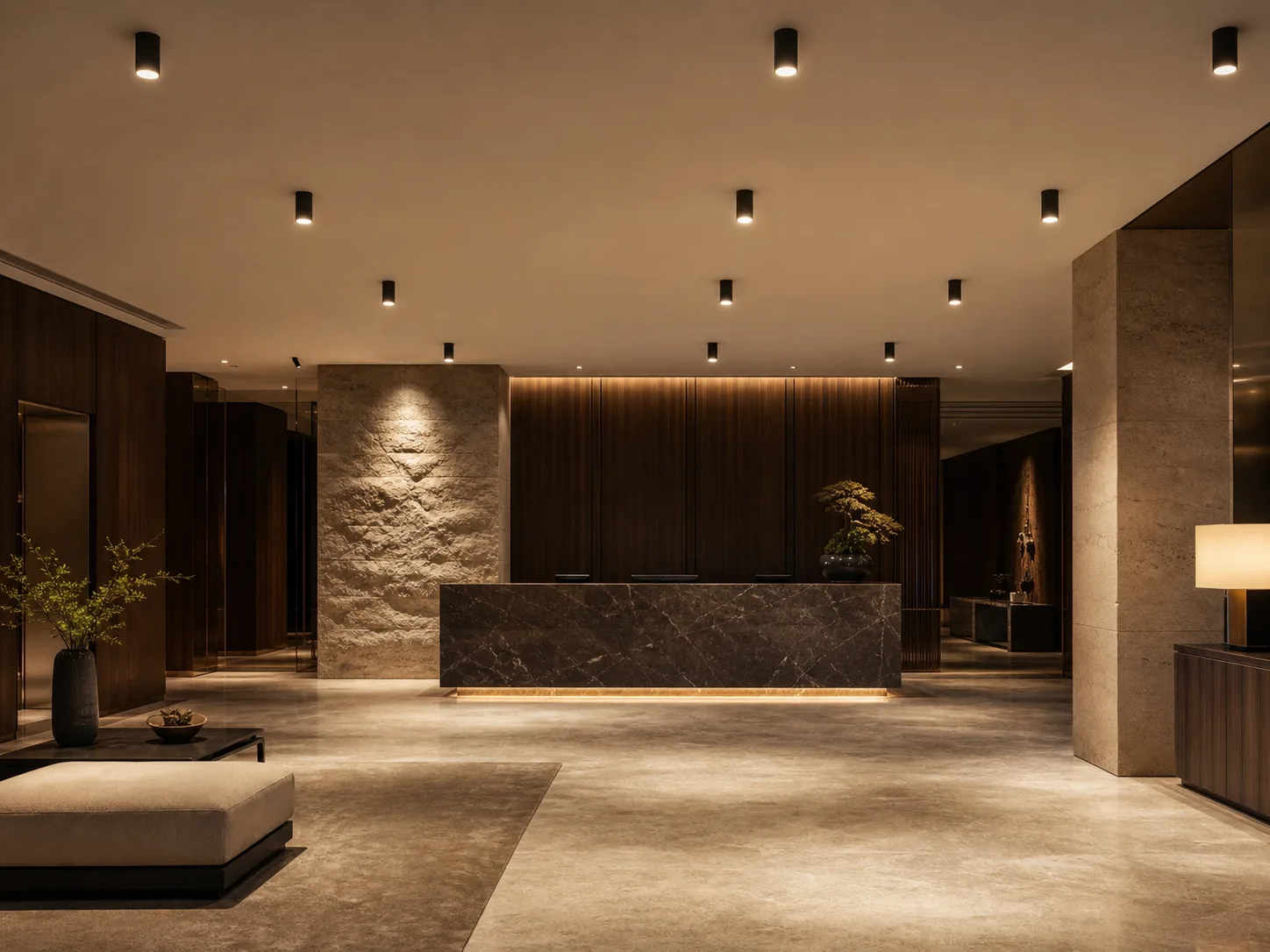

Hotel Lobby Lighting
Use CLA in hotel lobby edges, lift halls and reception-adjacent zones where a surface cylinder can become part of the ceiling rhythm. It should complement decorative and wall lighting rather than carry the whole lobby alone.
- Suitable for lobby edges
- lift halls and boutique reception areas
- Surface cylinder works when recessed ceiling depth is restricted
- Use around 2.8–3.6 m mounting height for most hospitality interiors
- Combine with wall washing or decorative light for vertical brightness

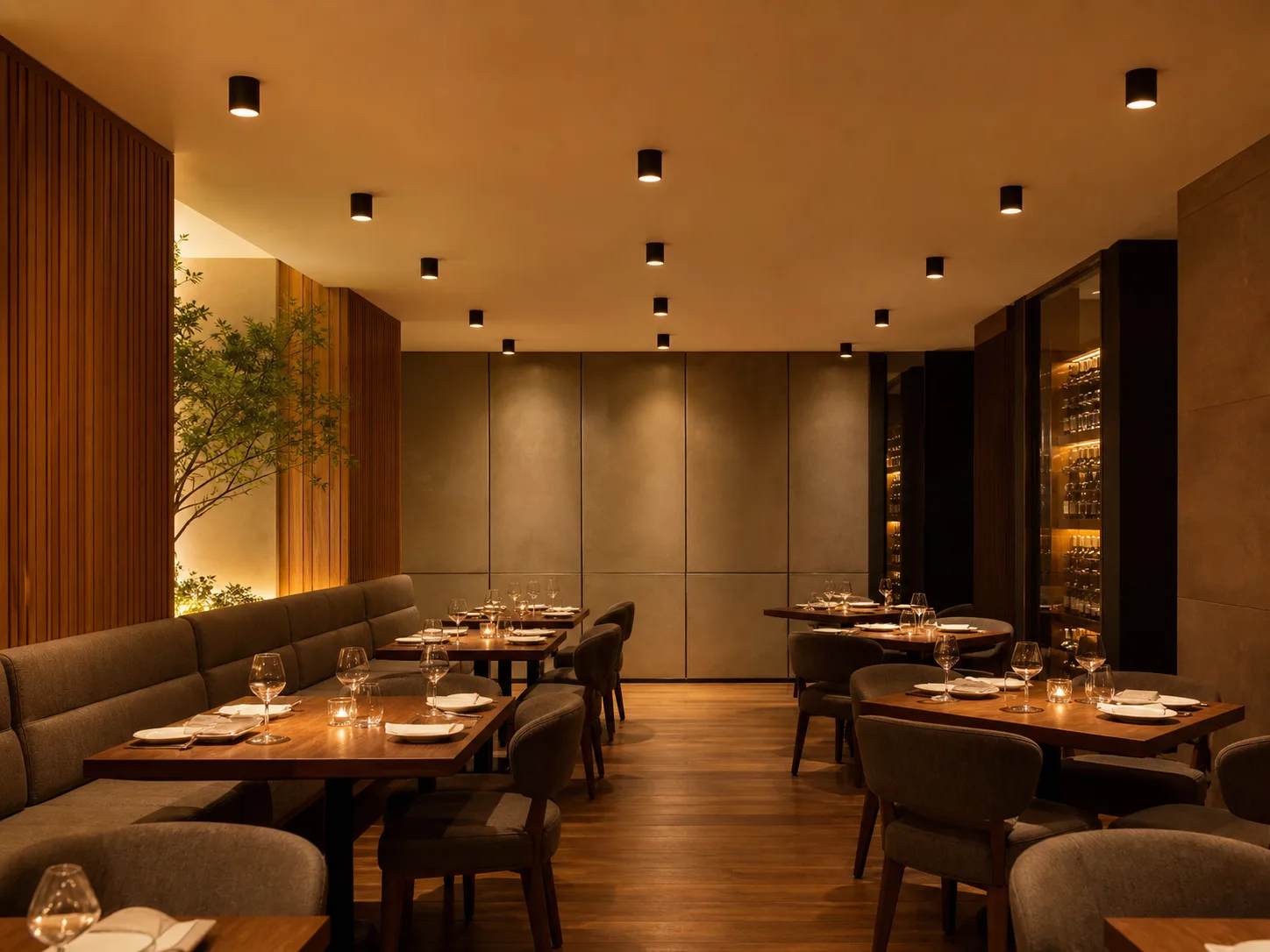

Restaurant Lighting
CLA can create controlled pools of light over dining tables, bars and banquette areas while keeping the ceiling visually tidy. Aim for comfortable contrast and avoid narrow high-intensity beams directly in seated guest sightlines.
- Good for dining tables
- bar counters and banquette edges
- Controlled beam helps separate table zones from circulation
- Warm CCT and dimming scenes are important for evening mood
- Check glare from seated positions and glossy tabletops

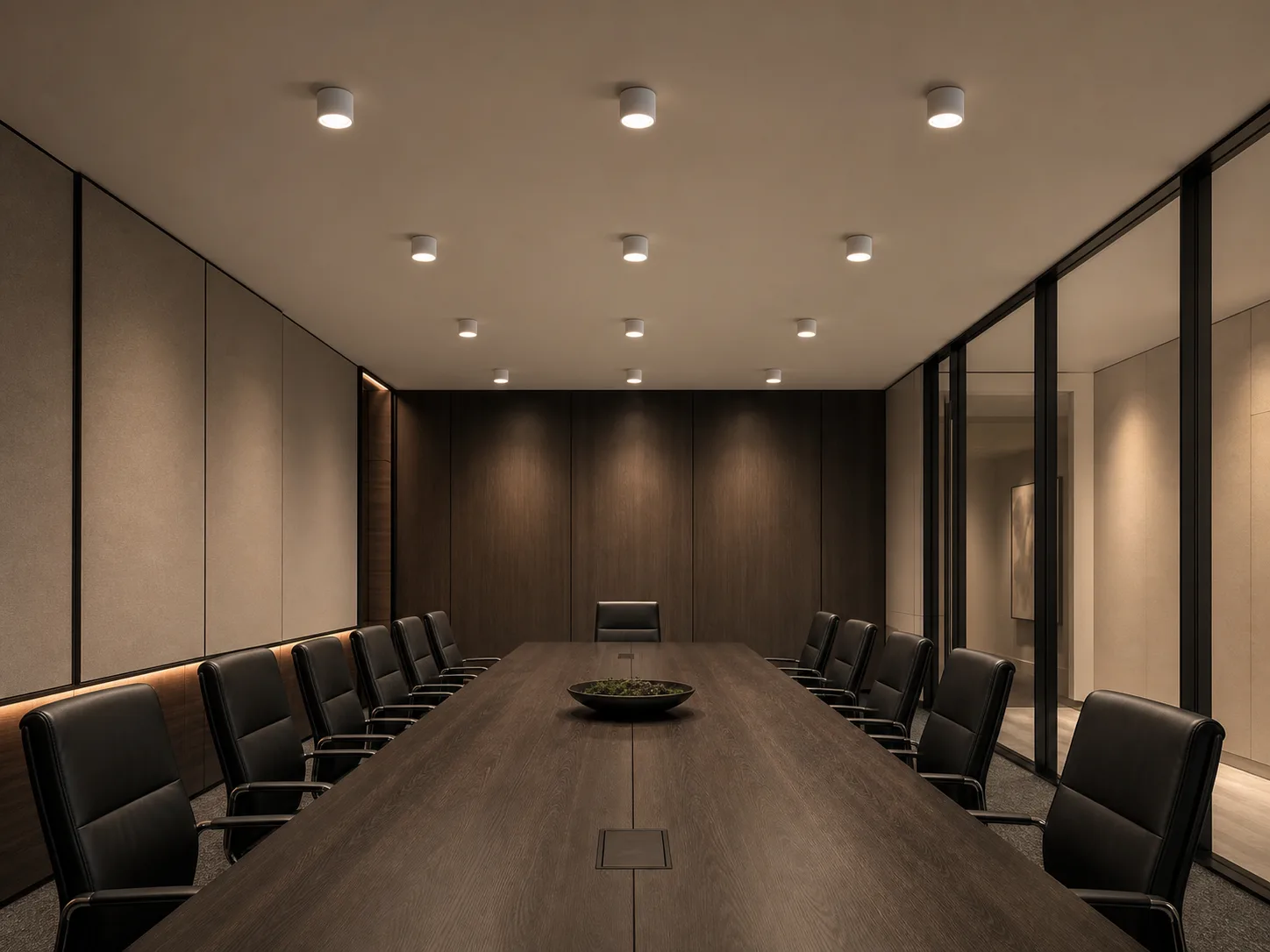

Meeting Room Lighting
For meeting rooms, CLA gives a more architectural surface-mounted alternative to basic downlights. Plan the layout around table position, camera direction and screen placement so the room works for meetings and video calls.
- Useful for boardrooms
- small meeting rooms and executive offices
- Keeps a premium ceiling rhythm without recessed cut-outs
- Coordinate with screens
- cameras and table reflections
- Use dimming and separate switching where presentation scenes are required

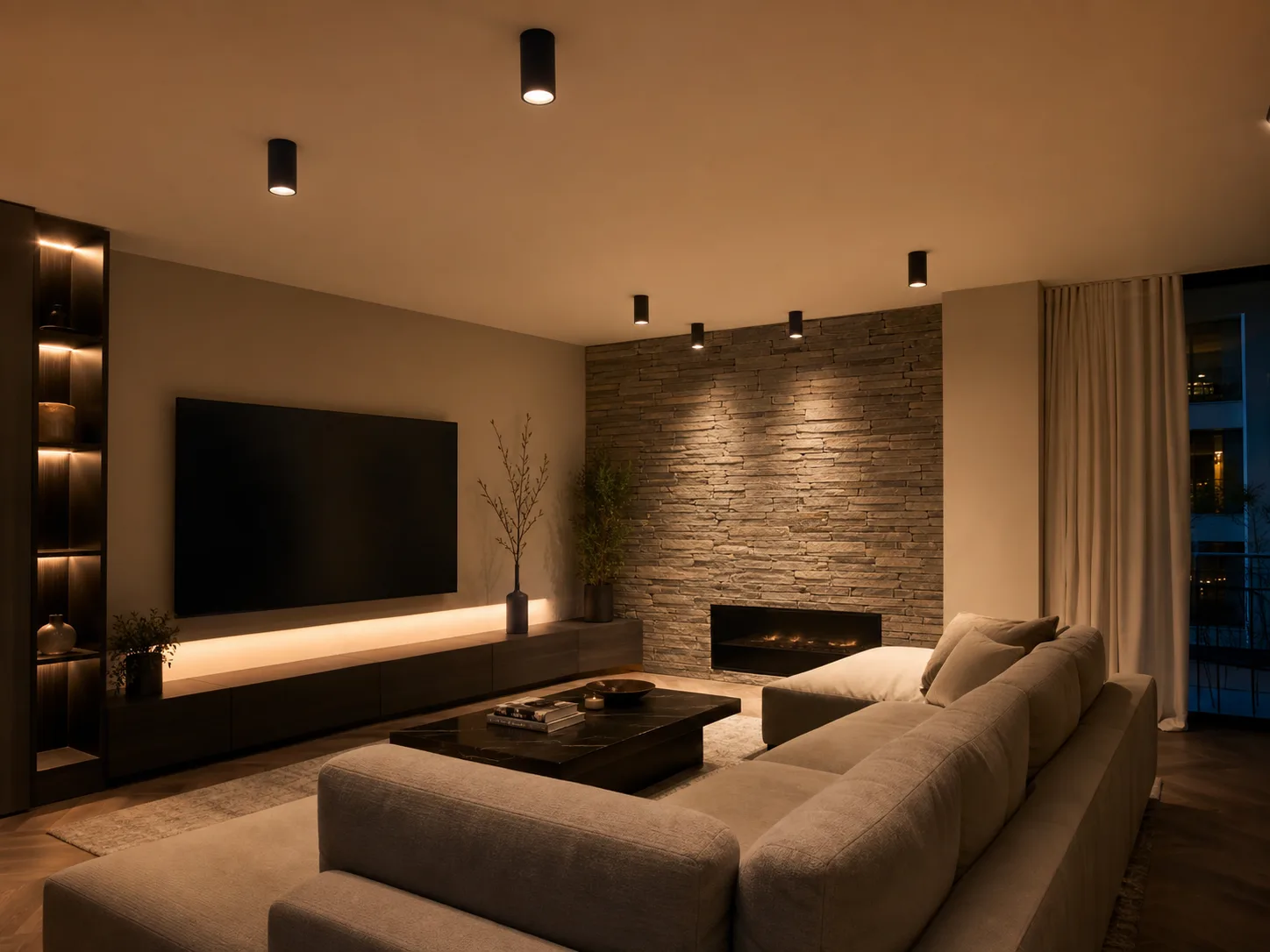

Residential Accent Lighting
In residential projects, CLA is useful for entry areas, corridors and living-room edges where a more decorative surface cylinder is acceptable. Use it as a controlled downlight layer and add adjustable accent products for artwork or deep display shelves.
- Best for entries
- corridors
- dining edges and living-room circulation
- Avoids recessed installation in concrete or limited-depth ceilings
- Works well with warm interior palettes and dimming
- Not a substitute for adjustable accent lighting on artwork
Projects
Projects using CLA
See how CLA delivers precision and performance in real-world projects.
Hospitality
Upscale Restaurant Lighting
Representative application showing CLA premium finish and controlled lighting for dining spaces.
Product usedCLA 84
Beam angle24° / 36°
ControlTRAIC
Hospitality
Luxury Hotel Lobby
Representative hotel application combining low glare, premium materials and comfortable illumination.
Product usedCLA 84
Beam angle23° / 35°
ControlTRAIC
Commercial
Executive Meeting Room
Representative commercial application with evenly arranged CLA round surface downlights.
Product usedCLA 105
Beam angle34°
ControlON/OFF
System catalogue
Download CLA system catalogue
Download the latest family catalogue, technical files and specification resources for this product system.
Project support
Request CLA for your next project
Get quotation support, samples and technical files for this product family.
