Hidden Recessed Installation
The system keeps track infrastructure integrated into the ceiling for a cleaner architectural result.
ARMI RECESSED ARTICULATED TRACK LIGHT SYSTEM
Hidden ceiling installation with flexible multi-direction aiming.
* ARMI is a recessed track system with an articulated arm, designed for premium interiors that require flexible aiming with a cleaner ceiling appearance.
* The hidden installation keeps the ceiling visually refined while allowing luminaires to adjust toward merchandise, display walls and feature zones.
* The range is suitable for luxury retail, flagship stores and premium commercial interiors.
Key Specifications
Applications: Luxury Retail / Flagship Store / Premium Commercial Interior
Diameter Range: Ø45 / Ø65 / Ø73
Power Range: 11W-25W
Installation: Recessed track system
Structure: Articulated arm with hidden ceiling installation
Aiming: Flexible multi-direction aiming
Control: ON/OFF / TRIAC / DALI where available
* The hidden installation keeps the ceiling visually refined while allowing luminaires to adjust toward merchandise, display walls and feature zones.
* The range is suitable for luxury retail, flagship stores and premium commercial interiors.
Key Specifications
Applications: Luxury Retail / Flagship Store / Premium Commercial Interior
Diameter Range: Ø45 / Ø65 / Ø73
Power Range: 11W-25W
Installation: Recessed track system
Structure: Articulated arm with hidden ceiling installation
Aiming: Flexible multi-direction aiming
Control: ON/OFF / TRIAC / DALI where available
Available products
Choose the right size
ARMI 45
Wattage: 11W
Size: Ø45*80mm
Lumen Output: 935lm
Beam Angle: 19°/29°/44°/56°
Accessories
Honeycomb
View details →Honeycomb
ARMI 65
Wattage: 14W
Size: Ø65*120mm
Lumen Output: 1627lm
Beam Angle: 18°/27°/38°/54°
AccessoriesHoneycomb
View details →Honeycomb
ARMI 73
Wattage: 25W
Size: Ø73*125mm
Lumen Output: 2963lm
Beam Angle: 14°/28°/40°/50°
AccessoriesHoneycomb
View details →HoneycombWhy Choose ARMI
ARMI helps designers create a consistent lighting language while matching the functional needs of real architectural projects.
With its focused product positioning and application-specific features, the system simplifies specification while supporting visual comfort, reliable performance and design flexibility.
Suitable for luxury retail / flagship store / premium commercial interior projects.
Characteristics
What defines ARMI
Articulated Aiming Flexibility
The arm structure supports multi-direction adjustment for changing retail displays and focal points.
Premium Interior Appearance
Designed for flagship stores and high-end commercial spaces where ceiling details matter.
Flexible Display Support
ARMI helps adapt lighting to seasonal merchandising, product launches and changing layouts.
Applications
Where ARMI Performs Best
ARMI should be specified as a concealed accent-lighting system, not a generic track spotlight. It is best for premium retail and commercial interiors that need a clean ceiling, adjustable focus and project-stage coordination of recessed track, driver/control type and photometric files.

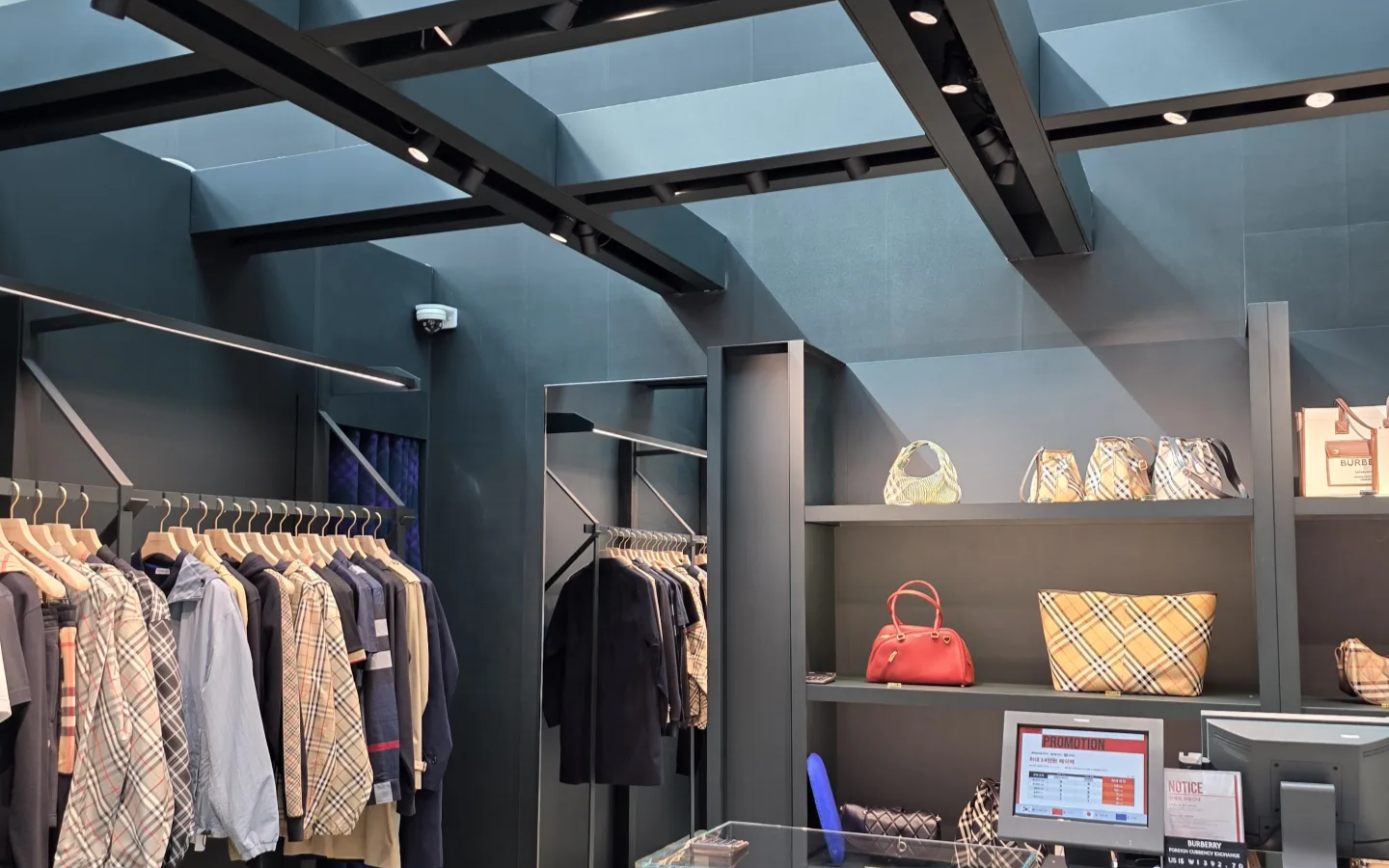

Luxury Retail Lighting
ARMI is most useful in luxury retail areas where designers want a recessed, quiet ceiling but still need the head to reach out and aim at merchandise. Use it for wall bays, mannequins, jewellery counters and hero tables where the target position changes but the ceiling detail should stay refined.
- Recommended mounting height: about 2.7–4.0 m for boutique and flagship interiors
- Recommended aiming distance: use close-to-medium throws for wall bays
- mannequins and display tables
- confirm beam size with IES/LDT files
- Optical intent: focused accent light with controlled spill
- typical target is higher contrast on merchandise rather than flat ambient brightness
- Design limit: not intended as the only general lighting layer
- combine with ambient or wall-wash lighting where uniform brightness is required

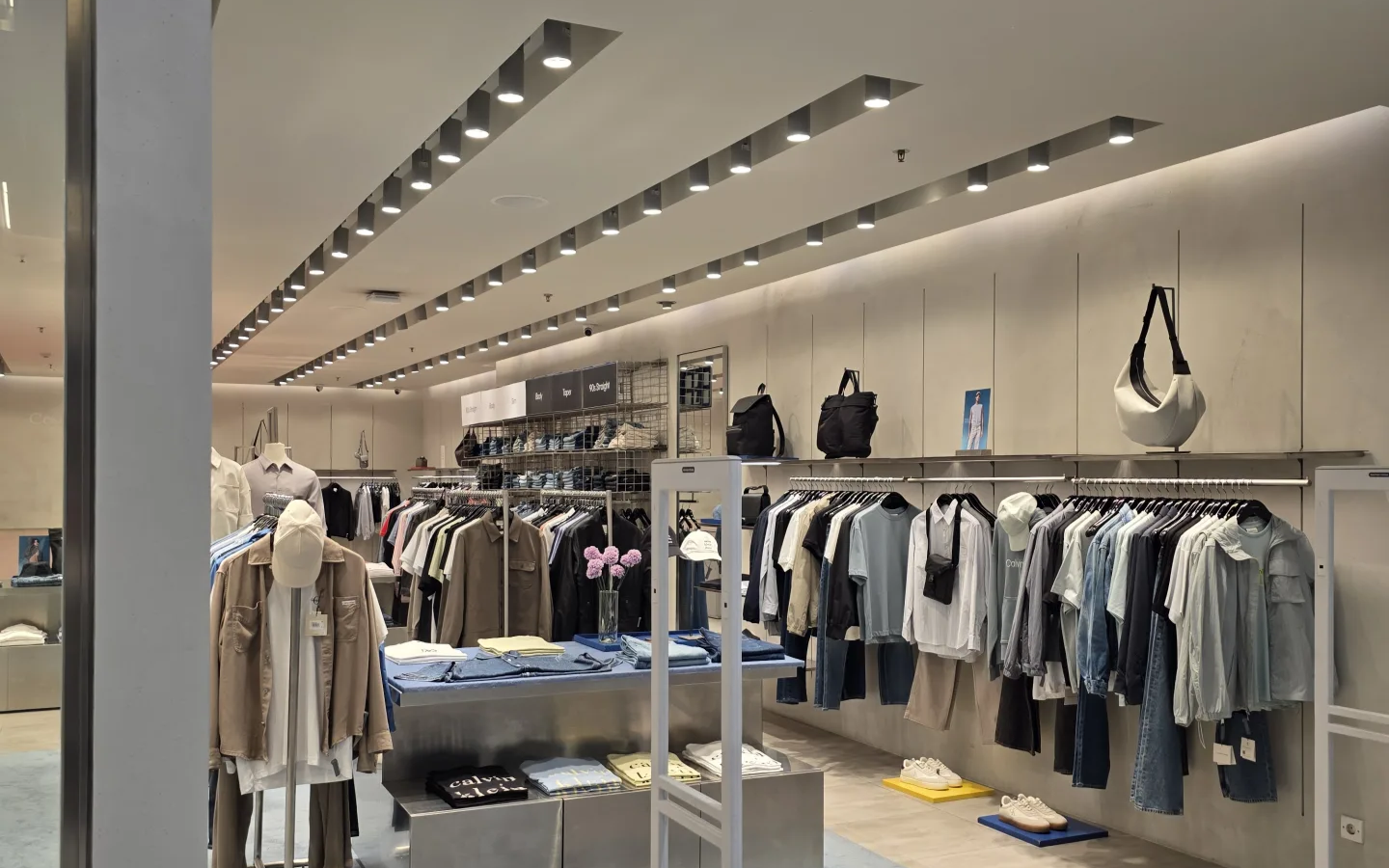

Flagship Store Lighting
For flagship stores, ARMI helps keep the ceiling language consistent across large retail zones while the articulated arm allows each spotlight to be adjusted for seasonal displays, window focus, feature walls and promotional islands.
- Why ARMI fits: concealed track plus articulated aiming gives flexibility without exposing a full surface track
- Recommended layout: specify by merchandise zone
- not only by ceiling grid
- adjust aiming after visual merchandising is installed
- Control options: ON/OFF
- TRIAC or DALI where available
- use DALI when scenes or floor-zone control are required
- Different from standard track: cleaner ceiling appearance
- but less suitable where the client wants frequent tool-free track relocation
Premium Commercial Lighting
In premium commercial interiors, ARMI works as a focused accent layer for reception walls, product corners, corridor features and hospitality-style lounge areas. It is strongest when the project needs visual focus from a concealed architectural slot rather than visible track hardware.
- Recommended use: accent layer for feature surfaces
- artwork
- brand walls and display niches
- Glare strategy: position fittings outside direct main sightlines and use darker reflector/trim options where possible
- Typical specification check: confirm Ø45 / Ø65 / Ø73 size against ceiling depth
- target distance and required visual prominence
- Driver/control note: coordinate dimming type early
- DALI suits commercial scenes
- TRIAC may suit smaller retrofit zones
Boutique Display Lighting
For boutique displays, ARMI can place light precisely onto bags, shoes, accessories and vertical niches while keeping technical hardware visually quiet. The articulated arm is valuable when shelves and display tables move but the recessed track line remains fixed.
- Recommended target distance: best for close display tables
- shelves
- niches and wall-mounted merchandise rather than long-throw atrium lighting
- Light effect: use narrower beams for small objects and medium beams for display groups
- verify final spot size with photometric files
- Installation limit: requires planned recessed track/ceiling coordination before site closure
- not a last-minute surface-track substitute
- Accessory coordination: confirm track circuit
- finish
- driver and dimming before ordering
- pair with datasheet and IES/LDT files for approval
Projects
Projects using ARMI
See how ARMI delivers precision and performance in real-world projects.

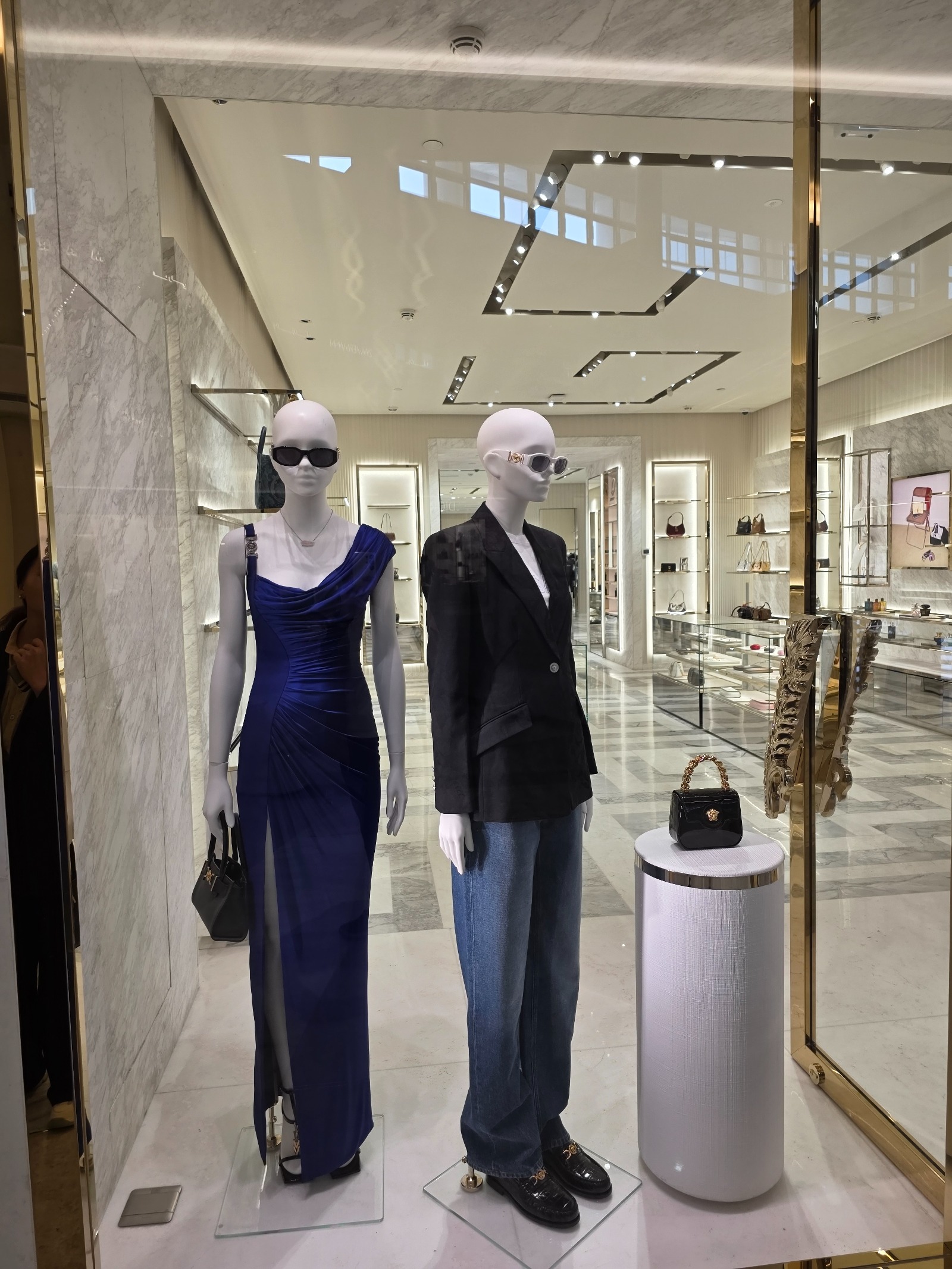

Retail
Luxury Retail
ARMI track lights were selected for precise beam control and high visual comfort, enhancing the shopping experience and product presentation.
Product usedARMI 45/ARMI 65
Beam angle29° / 38°
ControlDALI

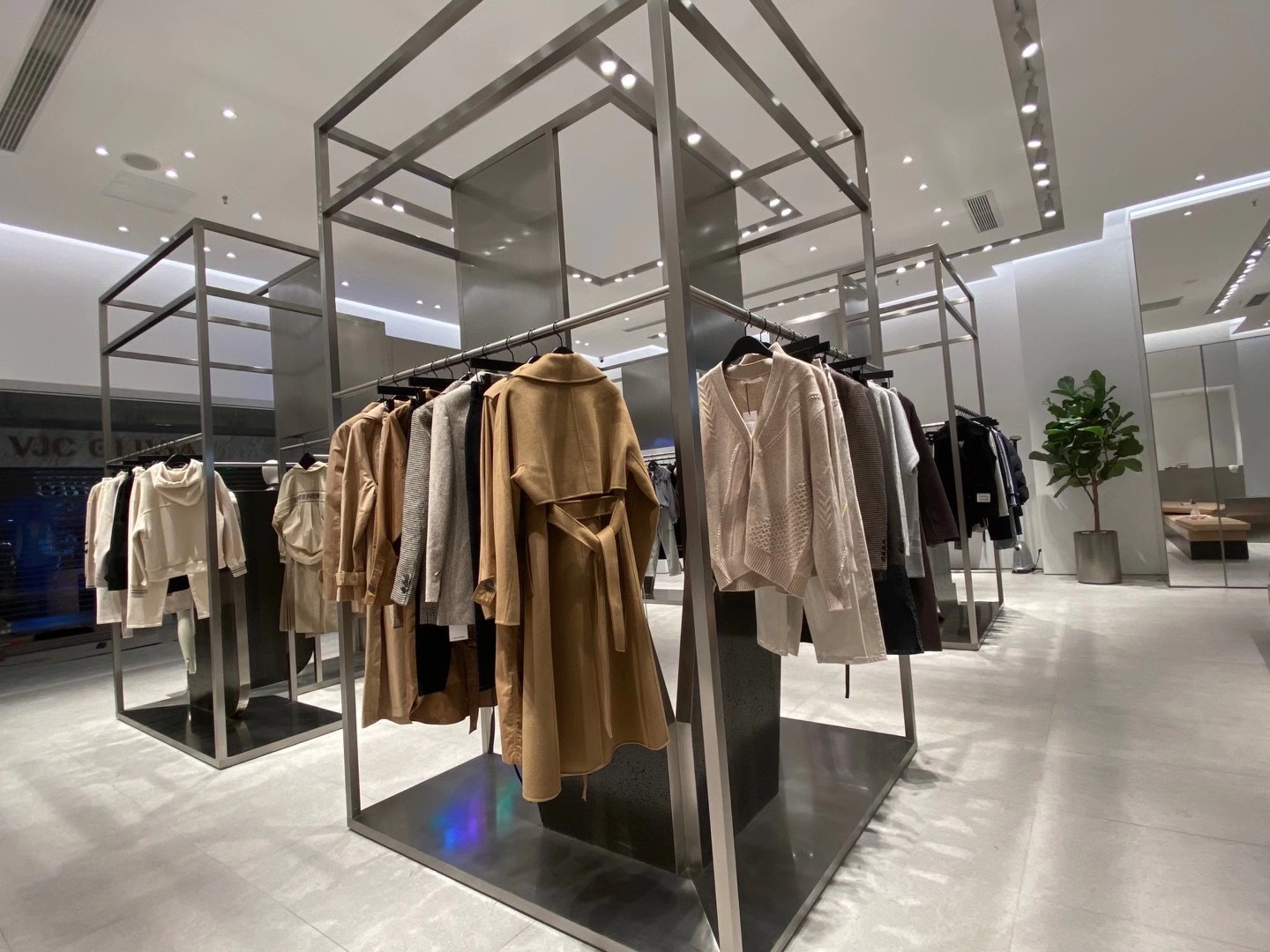

Retail
VOV Store
Custom beam angles and high CRI lighting bring out the true texture and colour of fabrics and materials, creating an elegant and inviting atmosphere.
Product usedARMI 65
Beam angle27°
ControlTRIAC

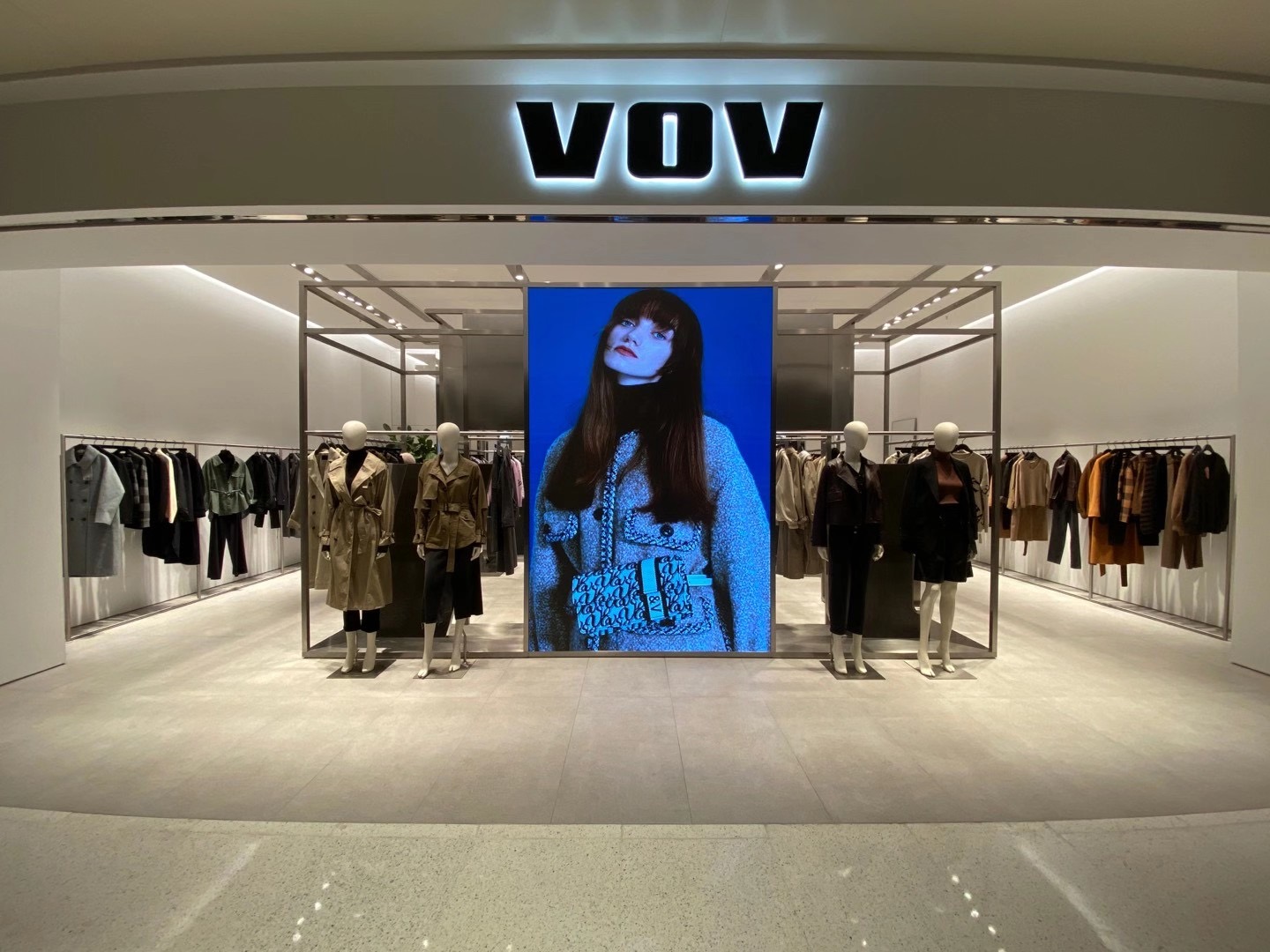

Retail
VOV Store
ARMI provides uniform and comfortable lighting, supporting productivity while maintaining a clean architectural aesthetic.
Product usedARMI 65
Beam angle27°
ControlDALI
System catalogue
Download ARMI system catalogue
Download the latest family catalogue, technical files and specification resources for this product system.
Project support
Request ARMI for your next project
Get quotation support, samples and technical files for this product family.
