ARMI 73

ARMI 73 32.07326 track lights from Artdon Lighting for professional architectural projects.
ARMI 73

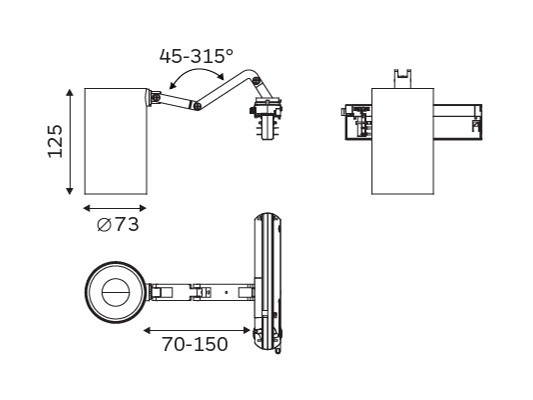

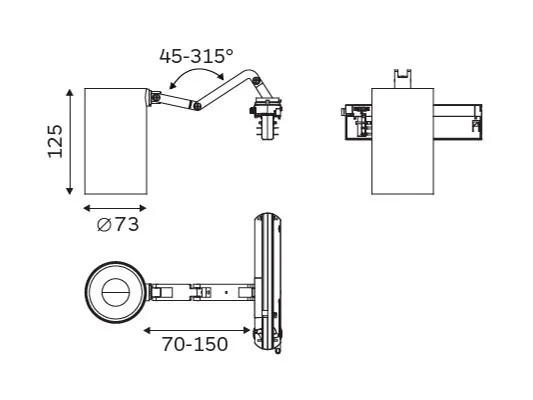

ARMI 73 dimension drawing

ARMI 73 32.07326 track lights from Artdon Lighting for professional architectural projects.

Product familyARMI
Model32.07326
DimensionsØ73*125mm
Power25W
Luminous flux2963lm
Efficacy118.5lm/W
Voltage220-240V
CCT2700K/3000K/4000K
CRI90
Beam angle14°/28°/40°/50°
IP ratingIP20
FinishWhite/Black
Mounting1 Circuit/ 3 Circuit
DimmingOn/Off / Dali / Triac
Get a quoteTechnical filesPDF / Print

Product overview

Technical product information

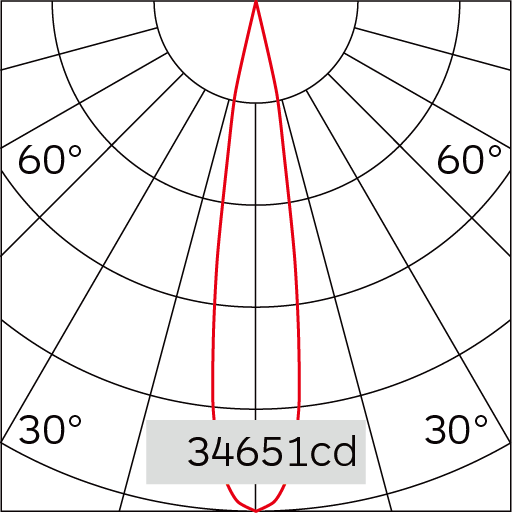

14°
14°

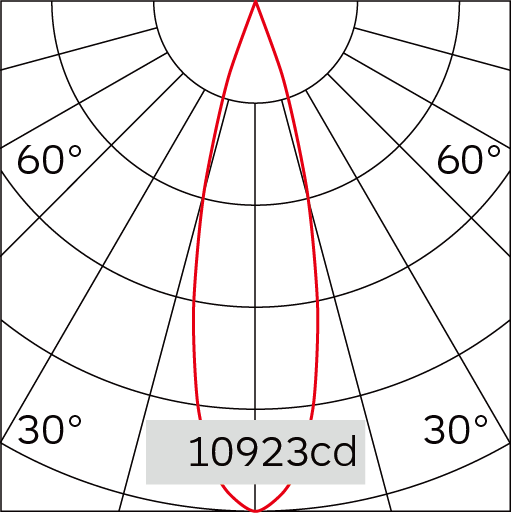

28°
28°

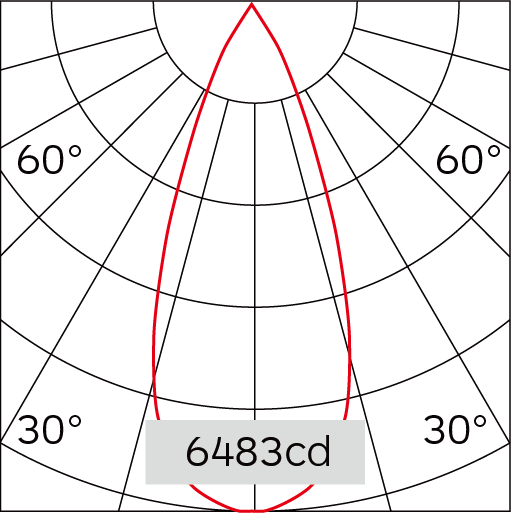

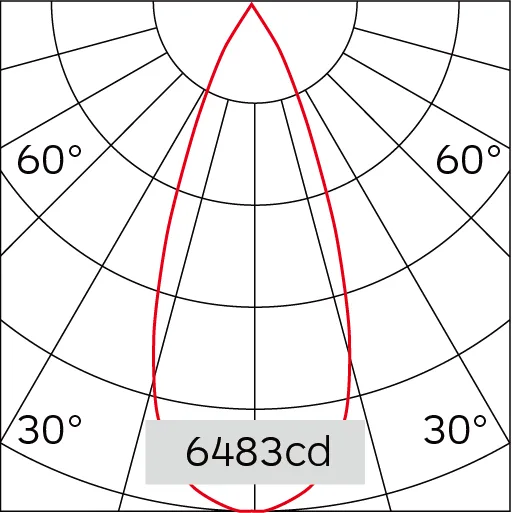

40°
40°

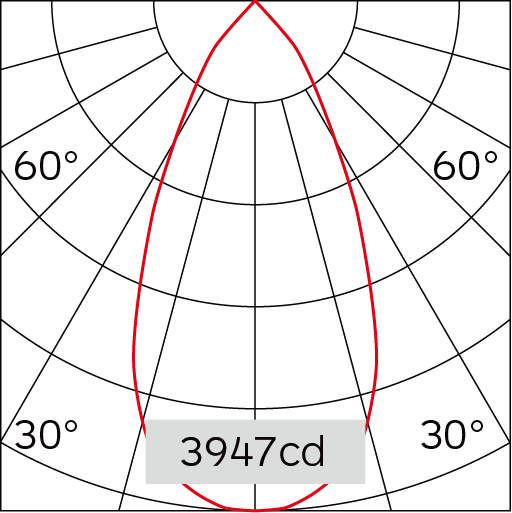

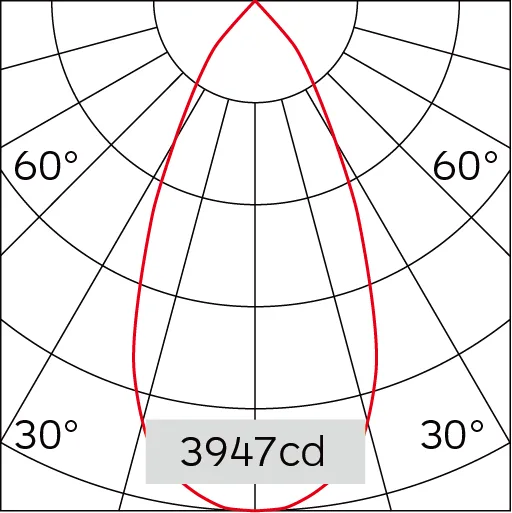

50°
50°

Accessories

Compatible accessories

Honeycomb

Technical files

Technical Downloads

DatasheetPDF · EN · Generated PDFDownload ↗IES / LDTZIP · EN · 771 KBDownload ↗Product imageWEBP · EN · 9 KBDownload ↗Dimension drawingWEBP · EN · 8 KBDownload ↗

Other sizes

More products in ARMI

View family →
ARMI 45

ARMI 45

Wattage: 11W

Size: Ø45*80mm

Lumen Output: 935lm

Beam Angle: 19°/29°/44°/56°

Accessories
HoneycombHoneycomb
ARMI 65

ARMI 65

Wattage: 14W

Size: Ø65*120mm

Lumen Output: 1627lm

Beam Angle: 18°/27°/38°/54°

Accessories
HoneycombHoneycomb
