One Modular Platform
One consistent luminaire body supports different optics, controls and power levels, helping maintain a unified design language across the project.
MODU Modular Track Light System
A modular track light platform with interchangeable controls, optics and power configurations.
MODU is a modular track light platform designed to adapt to different lighting and control requirements while keeping one consistent luminaire body.
Interchangeable rear modules allow the same fixture to support ON/OFF, CCT switching, 0–100% dimming, CCT + dimming and tunable white + dimming options.
At the front, interchangeable optical modules allow designers to switch between standard lenses, zoom lenses and aluminium reflectors according to different beam requirements.
Different heatsink sizes also allow the same design language to support multiple power levels, making MODU a flexible lighting platform for retail, galleries, museums and display-focused projects.
Key Specifications
Product Type: Modular Track Light System
Power: 14W / 29W / 36W
CCT: 2700K / 3000K / 3500K / 4000K
Tunable White: 2700K–6500K where available
CRI: CRI 90
Adjustability: 90° Tilt / 350° Rotation
Beam Angle: 7°–61° depending on optical module and model
Track Adaptor: 1-Circuit / 3-Circuit / Intrack
Control Options: ON/OFF / CCT Switch / 0–100% Dimming / CCT + Dimming / Tunable White + Dimming
Optical Options: Standard Lens / Zoom Lens / Aluminum Reflector
Zoom Range: 15°–45°
Dimming: TRIAC / DALI / 0-10V
IP Rating: IP20
Applications: Retail / Display / Gallery / Museum
Interchangeable rear modules allow the same fixture to support ON/OFF, CCT switching, 0–100% dimming, CCT + dimming and tunable white + dimming options.
At the front, interchangeable optical modules allow designers to switch between standard lenses, zoom lenses and aluminium reflectors according to different beam requirements.
Different heatsink sizes also allow the same design language to support multiple power levels, making MODU a flexible lighting platform for retail, galleries, museums and display-focused projects.
Key Specifications
Product Type: Modular Track Light System
Power: 14W / 29W / 36W
CCT: 2700K / 3000K / 3500K / 4000K
Tunable White: 2700K–6500K where available
CRI: CRI 90
Adjustability: 90° Tilt / 350° Rotation
Beam Angle: 7°–61° depending on optical module and model
Track Adaptor: 1-Circuit / 3-Circuit / Intrack
Control Options: ON/OFF / CCT Switch / 0–100% Dimming / CCT + Dimming / Tunable White + Dimming
Optical Options: Standard Lens / Zoom Lens / Aluminum Reflector
Zoom Range: 15°–45°
Dimming: TRIAC / DALI / 0-10V
IP Rating: IP20
Applications: Retail / Display / Gallery / Museum
Available products
Choose the right size

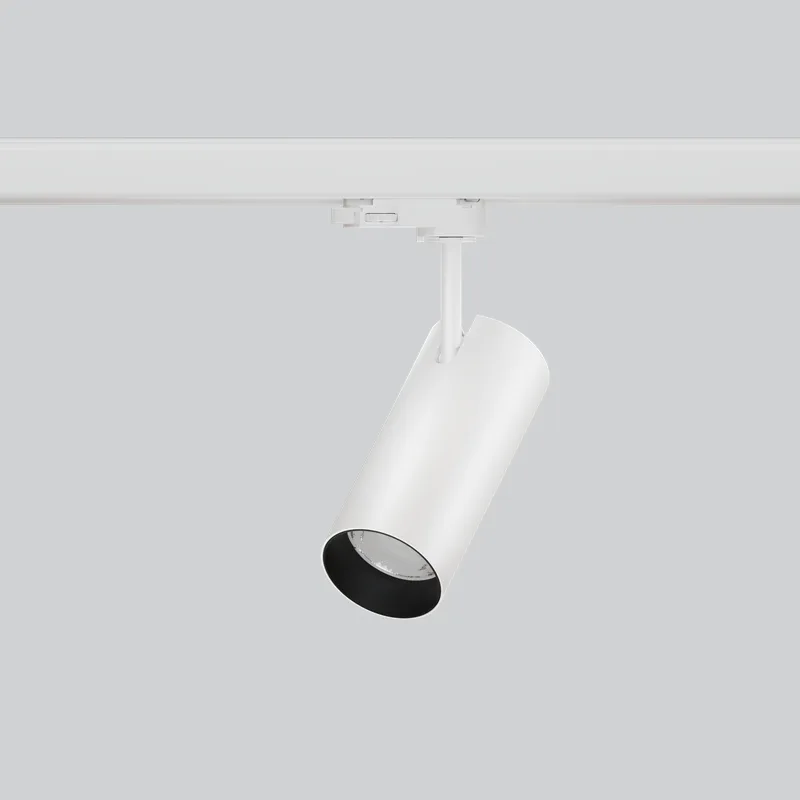

MODU 65
Wattage: 14W
Size: Ø65
Lumen Output: 905lm at 3000K
Beam Angle: 8°/17°/23°/35°/54°
Accessories

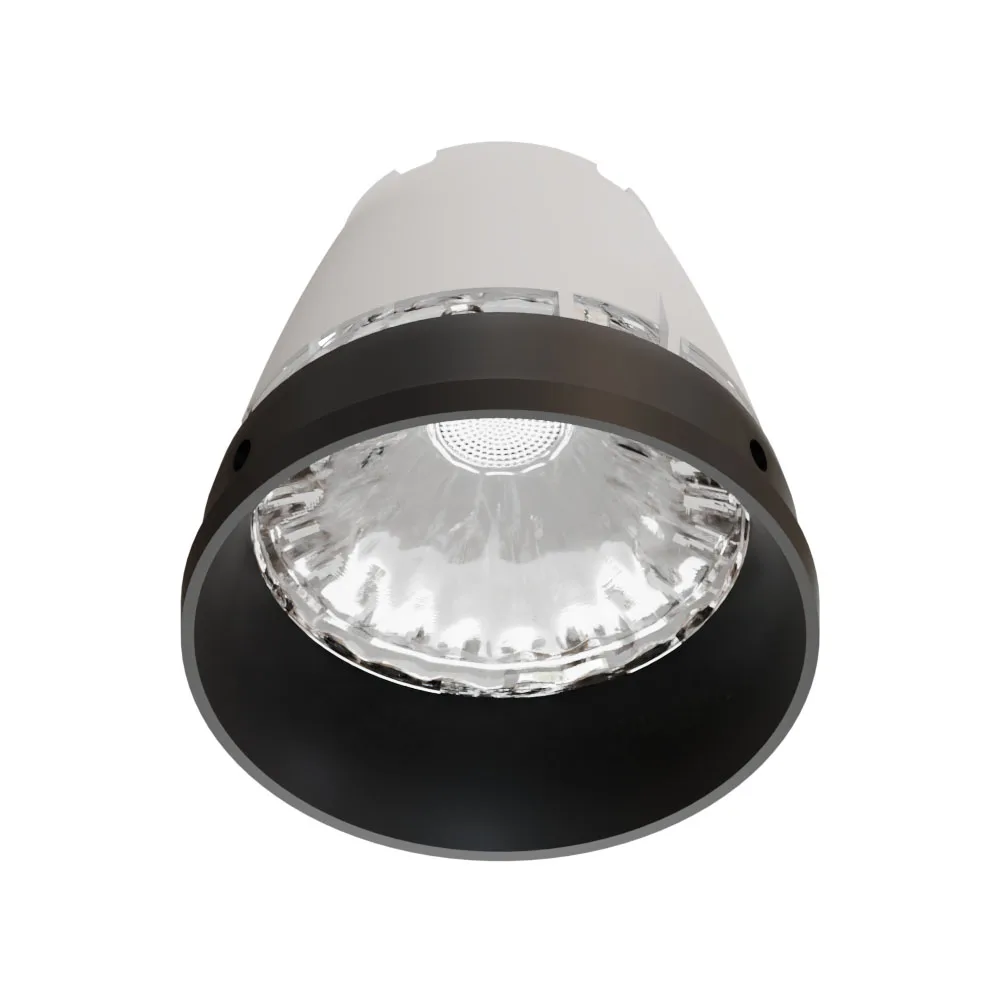

Zoom Lens

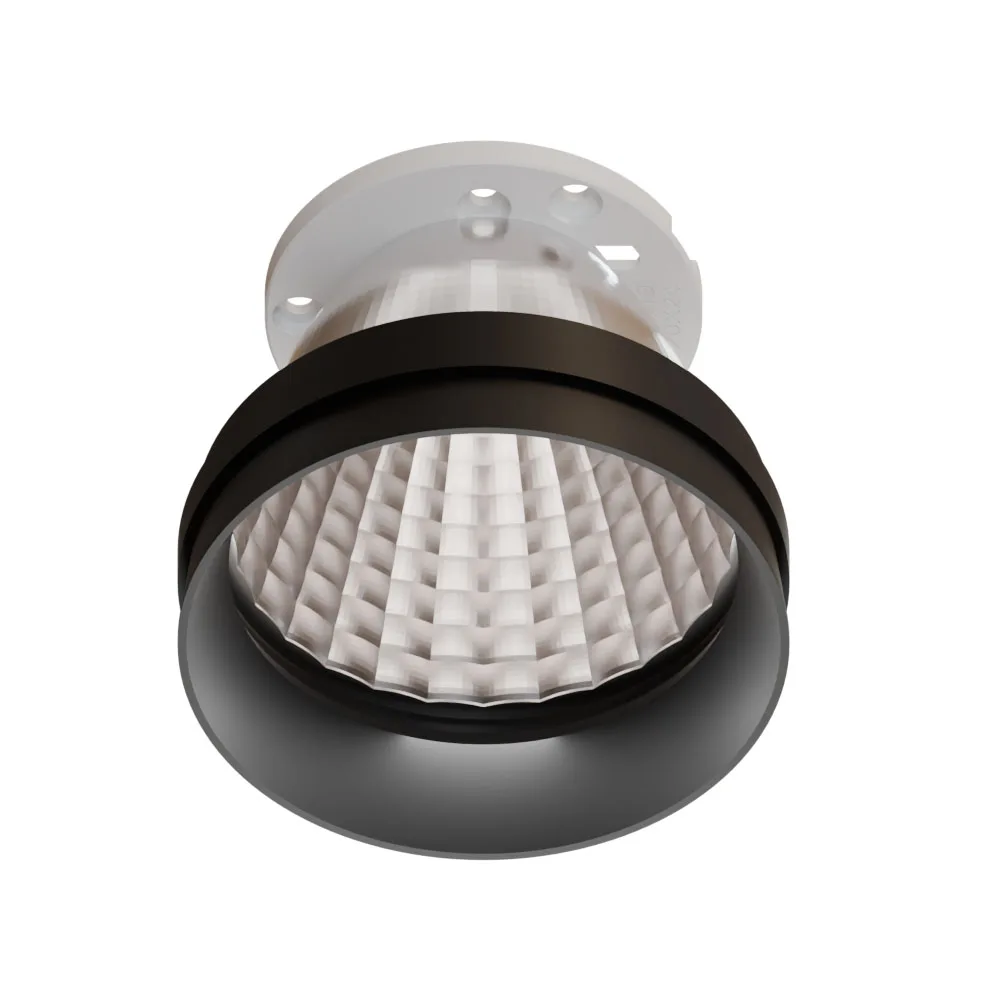

Aluminum Reflector

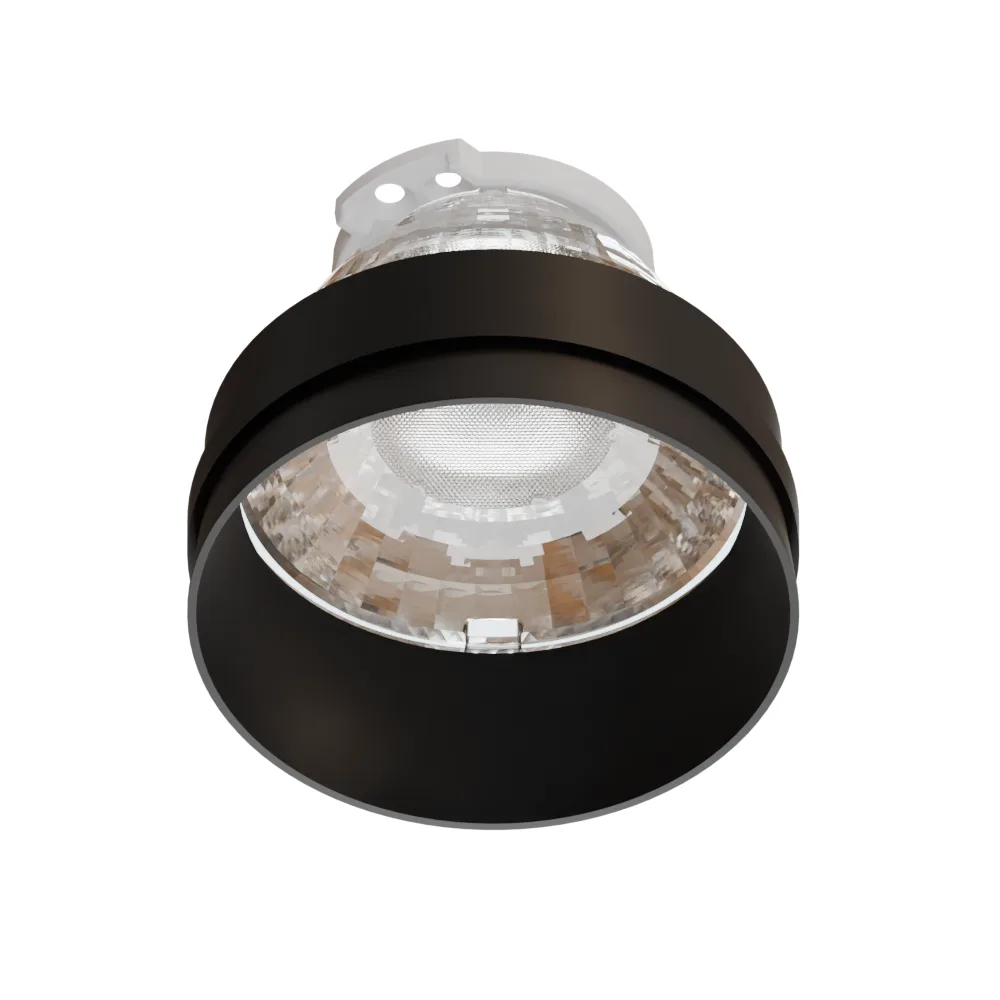

Standard Lens
CCT Switch+7 more accessories
View details →Zoom LensAluminum ReflectorStandard LensCCT Switch

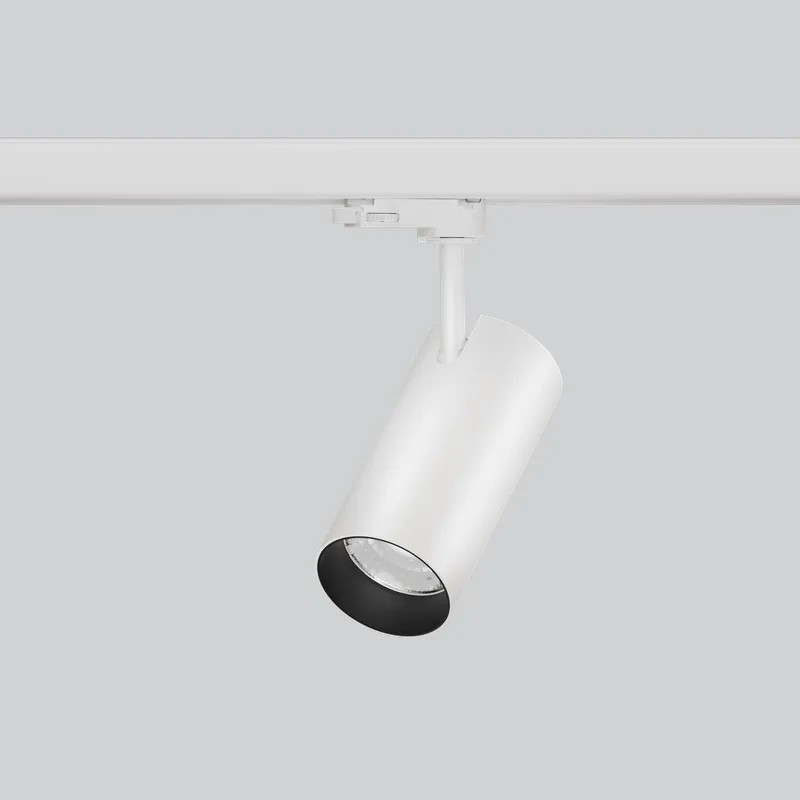

MODU 73
Wattage: 29W
Size: Ø73
Lumen Output: 3099lm at 3000K
Beam Angle: 7°/15°/22°/33°/61°
AccessoriesZoom LensAluminum ReflectorStandard LensCCT Switch+7 more accessories
View details →Zoom LensAluminum ReflectorStandard LensCCT Switch

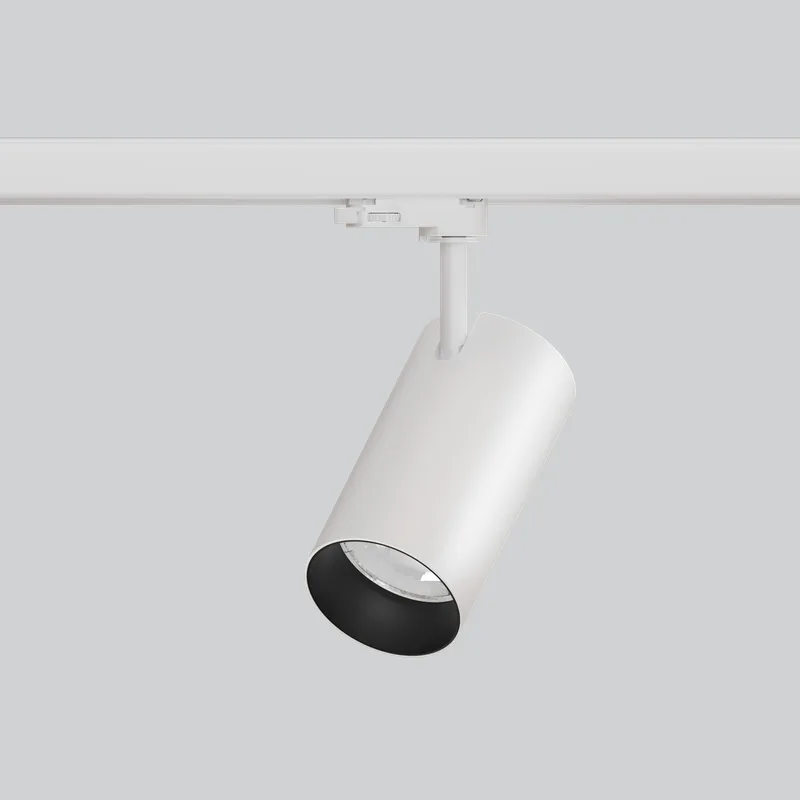

MODU 84
Wattage: 36W
Size: Ø84
Lumen Output: 4277lm at 3000K
Beam Angle: 8°/18°/23°/34°/58°
AccessoriesZoom LensAluminum ReflectorStandard LensCCT Switch+7 more accessories
View details →Zoom LensAluminum ReflectorStandard LensCCT SwitchWhy Choose MODU
MODU is designed around one simple idea: different project requirements should not always require completely different luminaires.
Its modular structure allows designers to change the rear control module, optical system and power configuration while keeping one consistent fixture body and visual language.
This gives greater flexibility during specification, reduces the need for multiple fixture families and makes MODU easier to adapt across different areas of the same project.
CHARACTERISTICS
What Defines MODU
Change the Optics
Choose between standard lenses, 15°–45° zoom optics and aluminum reflectors according to different beam and lighting requirements.
Change the Control
Interchangeable rear modules support ON/OFF, CCT switching, 0–100% dimming, combined CCT and dimming, and tunable white with dimming.
Different Power. Same Design.
Different heatsink configurations allow the same luminaire design to support 14W, 29W and 36W power levels while keeping a consistent appearance.
APPLICATIONS
Where MODU Performs Best
MODU is designed for projects that require different beam angles, power levels and control functions while maintaining one consistent luminaire family.

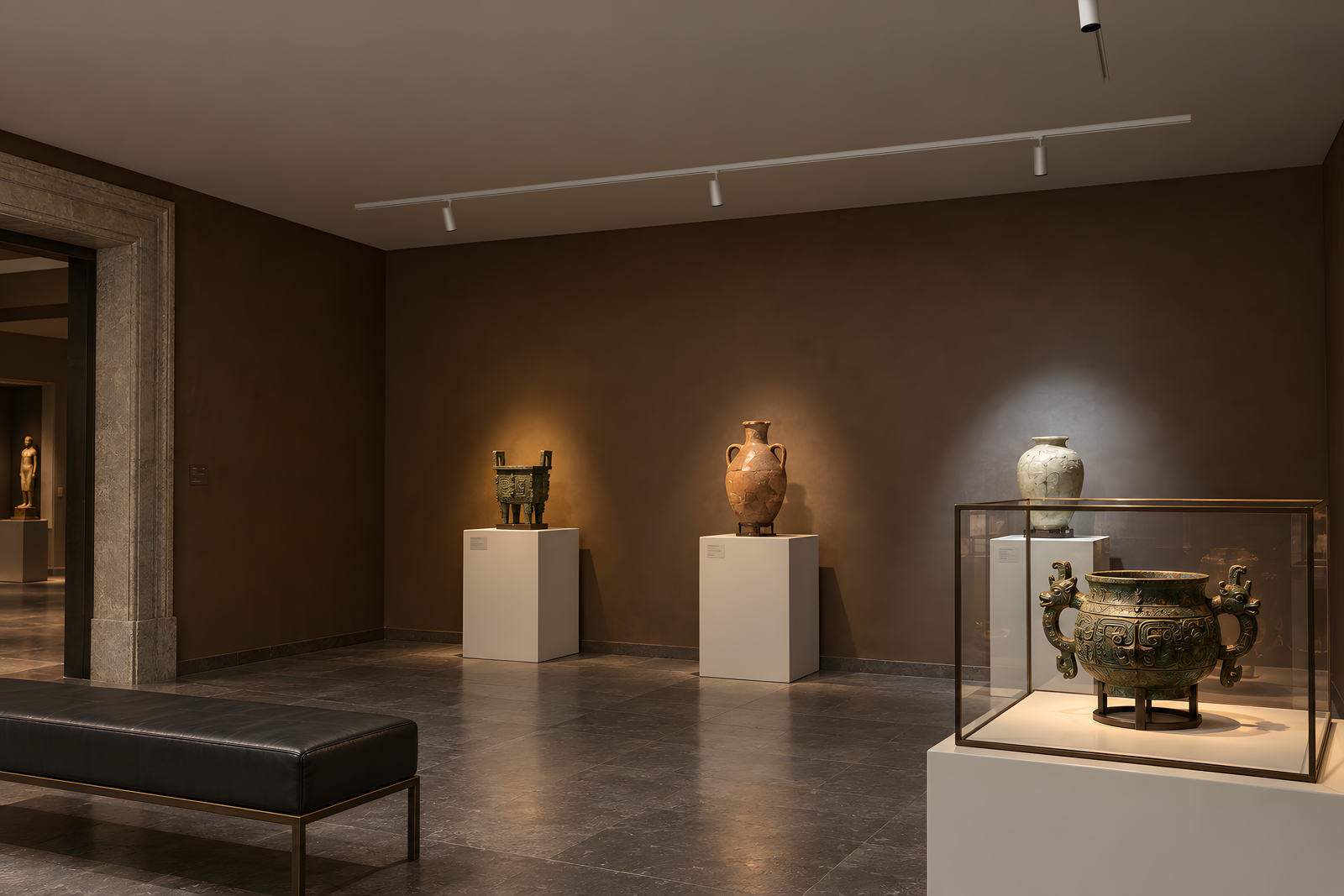

Museum Exhibits
Flexible optics and control options allow MODU to adapt to different artifacts, display cases and changing exhibition requirements.
- Artifacts
- Display Cases
Sculpture Galleries
Multiple beam options and flexible aiming provide controlled accent lighting for sculptures and three-dimensional displays.
- Sculptures
- Feature Displays

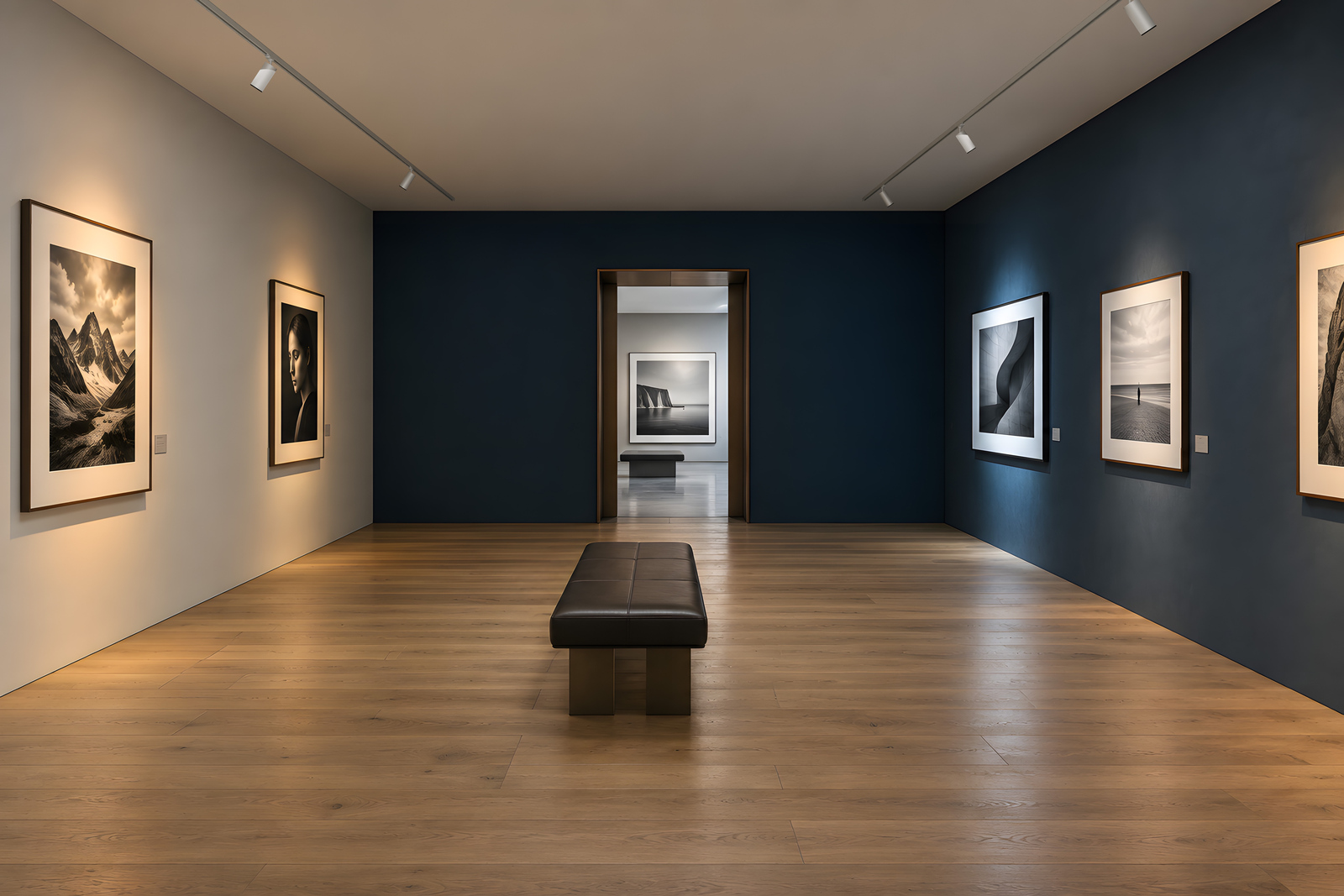

Art Galleries
MODU supports different exhibition layouts with interchangeable optics, dimming options and adjustable beam control.
- Paintings
- Exhibitions

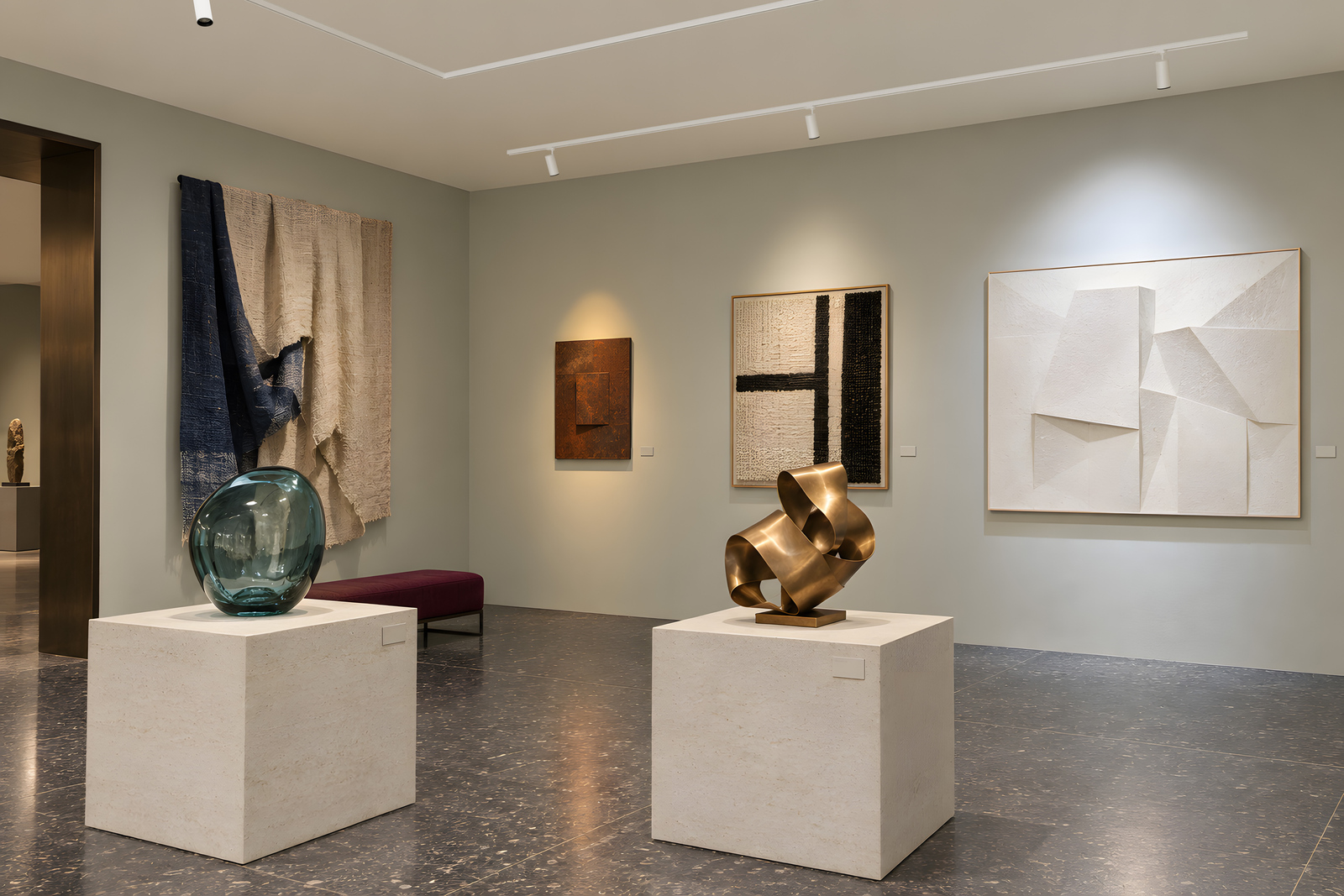

Private Collections
A consistent fixture design with flexible optical and control options makes MODU suitable for changing private collections and display environments.
- Artworks
- Collectibles
Projects
Projects using MODU
See how MODU delivers precision and performance in real-world projects.
Retail
LOTTE Mall Korea
MODU track lights were selected for precise beam control and high visual comfort, enhancing the shopping experience and product presentation.
Product usedMODU 55\nMODU 75
Beam angle20° / 39°
ControlDALI
Retail
Luxury Fashion Boutique
Custom beam angles and high CRI lighting bring out the true texture and colour of fabrics and materials, creating an elegant and inviting atmosphere.
Product usedMODU 45\nMODU 55
Beam angle15° / 25° / 51°
ControlTRIAC
Commercial
Commercial Office Project
MODU provides uniform and comfortable lighting, supporting productivity while maintaining a clean architectural aesthetic.
Product usedMODU 75\nMODU 100
Beam angle25° / 39°
ControlDALI
SYSTEM CATALOGUE
Download MODU Product Catalogue
Download the MODU catalogue, technical data and configuration options for the complete modular track light system.
PROJECT SUPPORT
Configure MODU for Your Project
Tell us your required power, beam angle, optical system and control method, and we can help configure the suitable MODU solution for your project.
