MODU 84
MODU is a modular track lighting Platform built around one consistent luminaire body Interchangeable optical modules allow the same fixture to adapt to different beam requirements, from fixed beam optics to zoom and reflector options. Combined with modular rear control options, MODU gives designers greater flexibility without introducing multiple fixture families.

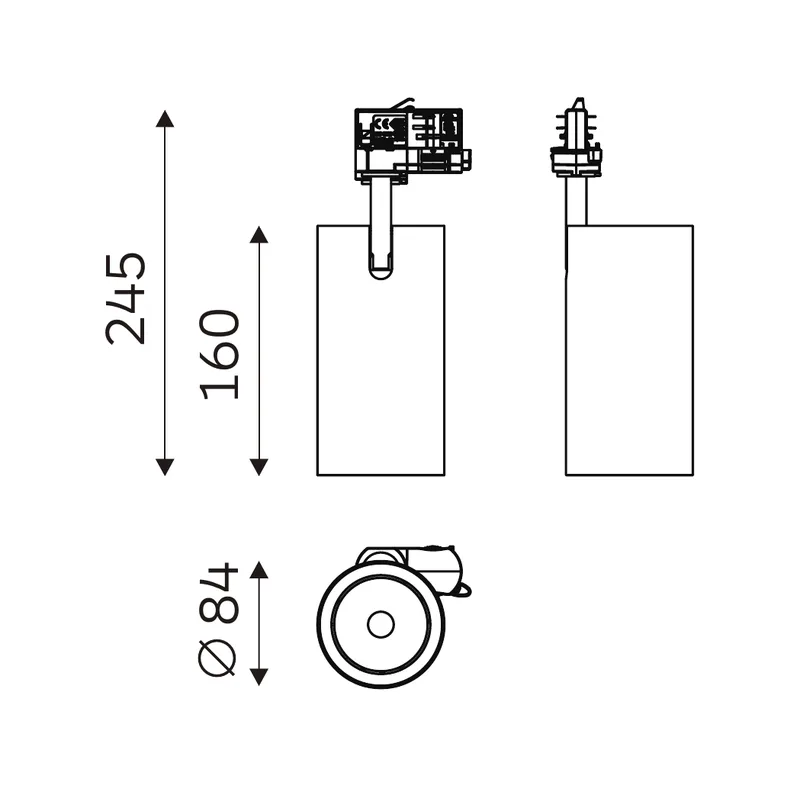

MODU 84 track light, Ø84 × 160mm, 36W, 4277lm at 3000K.
Product familyMODU
Model32.08433
DimensionsØ84 × 160mm
AdjustabilityTilt 90° Rotation 350°
Power36W 36V 900mA
Luminous flux4277lm at 3000K
CCT2700K / 3000K / 3500K / 4000K
CRICRI90
Beam angle8°/18°/23°/34°/58°
IP ratingIP20
Adaptor1-Circuit / 3-Circuit / Intrack
DimmingTRIAC / DALI / 0-10V
Product overview
Technical product information
Accessories
Compatible accessories
Aluminum Reflector
Standard Lens
CCT Switch
CCT Switch
TUNABLE WHITE
Dimming · 0–100%
TEXTURED GLASS
HONEYCOMB LOUVER
LINEAR SPREAD LENS
PROTECTIVE GLASS
Technical files
Technical Downloads
Other sizes
More products in MODU
MODU 65
Wattage: 14W
Size: Ø65
Lumen Output: 905lm at 3000K
Beam Angle: 8°/17°/23°/35°/54°
AccessoriesZoom LensAluminum ReflectorStandard LensCCT Switch+7 more accessories
Zoom LensAluminum ReflectorStandard LensCCT Switch
MODU 73
Wattage: 29W
Size: Ø73
Lumen Output: 3099lm at 3000K
Beam Angle: 7°/15°/22°/33°/61°
AccessoriesZoom LensAluminum ReflectorStandard LensCCT Switch+7 more accessories
Zoom LensAluminum ReflectorStandard LensCCT Switch
