High Power for High Ceilings
With 40W, 60W and 80W power options and lumen output up to 9578 lm, HICORE is developed for spaces where high mounting heights demand stronger illumination.
HICORE High-Power Downlight for High Ceilings
A full-aluminium high-output downlight engineered for airports, atriums, lobbies and other high-ceiling commercial spaces.
HICORE is a high-power recessed downlight family developed for large commercial spaces with high ceiling heights and demanding illumination requirements.
Available in 40W, 60W and 80W versions with lumen output up to 9578 lm, HICORE provides the strong downward illumination required for airports, atriums, hotel lobbies and other high-level applications.
The luminaire uses a full-aluminium construction with no plastic structural parts, helping improve heat management and long-term reliability. A high-reflectance aluminium reflector provides efficient optical
control, while the specially designed ceiling-locking structure helps secure the luminaire firmly in place for safer high-level installation.
Product Type: High-Power Recessed Downlight
Power: 40W / 60W / 80W
Sizes: Ø123 / Ø150 / Ø176 mm
Luminous Flux: 4769–9578 lm
Beam Angle: 21°–70°
Construction: Full Aluminium
Structural Parts: No Plastic Parts
Optics: High-Reflectance Aluminium Reflector
Installation Safety: Reinforced Ceiling-Locking Structure
Application Focus: High-Ceiling Commercial Lighting
Applications: Airport / Atrium / Hotel Lobby / Large Commercial Space
Available in 40W, 60W and 80W versions with lumen output up to 9578 lm, HICORE provides the strong downward illumination required for airports, atriums, hotel lobbies and other high-level applications.
The luminaire uses a full-aluminium construction with no plastic structural parts, helping improve heat management and long-term reliability. A high-reflectance aluminium reflector provides efficient optical
control, while the specially designed ceiling-locking structure helps secure the luminaire firmly in place for safer high-level installation.
Product Type: High-Power Recessed Downlight
Power: 40W / 60W / 80W
Sizes: Ø123 / Ø150 / Ø176 mm
Luminous Flux: 4769–9578 lm
Beam Angle: 21°–70°
Construction: Full Aluminium
Structural Parts: No Plastic Parts
Optics: High-Reflectance Aluminium Reflector
Installation Safety: Reinforced Ceiling-Locking Structure
Application Focus: High-Ceiling Commercial Lighting
Applications: Airport / Atrium / Hotel Lobby / Large Commercial Space
Available products
Choose the right size

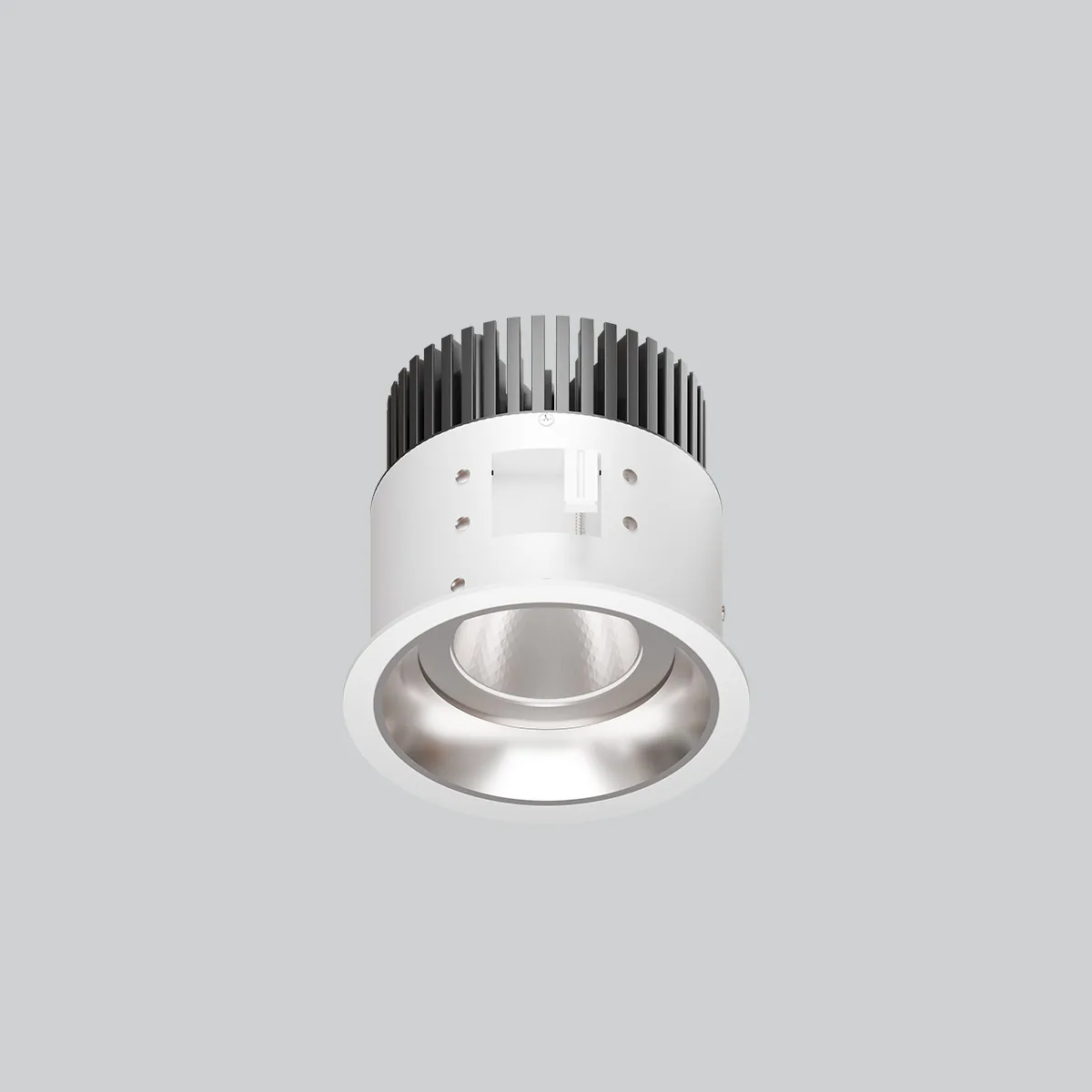

HICORE 110
Wattage: 40W
Size: Ø123*110mm
Lumen Output: 4769lm
Beam Angle: 22° / 42° / 60°
Accessories
TEXTURED GLASS
HONEYCOMB LOUVER
CCT Selector Switch
LINEAR SPREAD LENS+1 more accessories
View details →TEXTURED GLASSHONEYCOMB LOUVERCCT Selector SwitchLINEAR SPREAD LENS

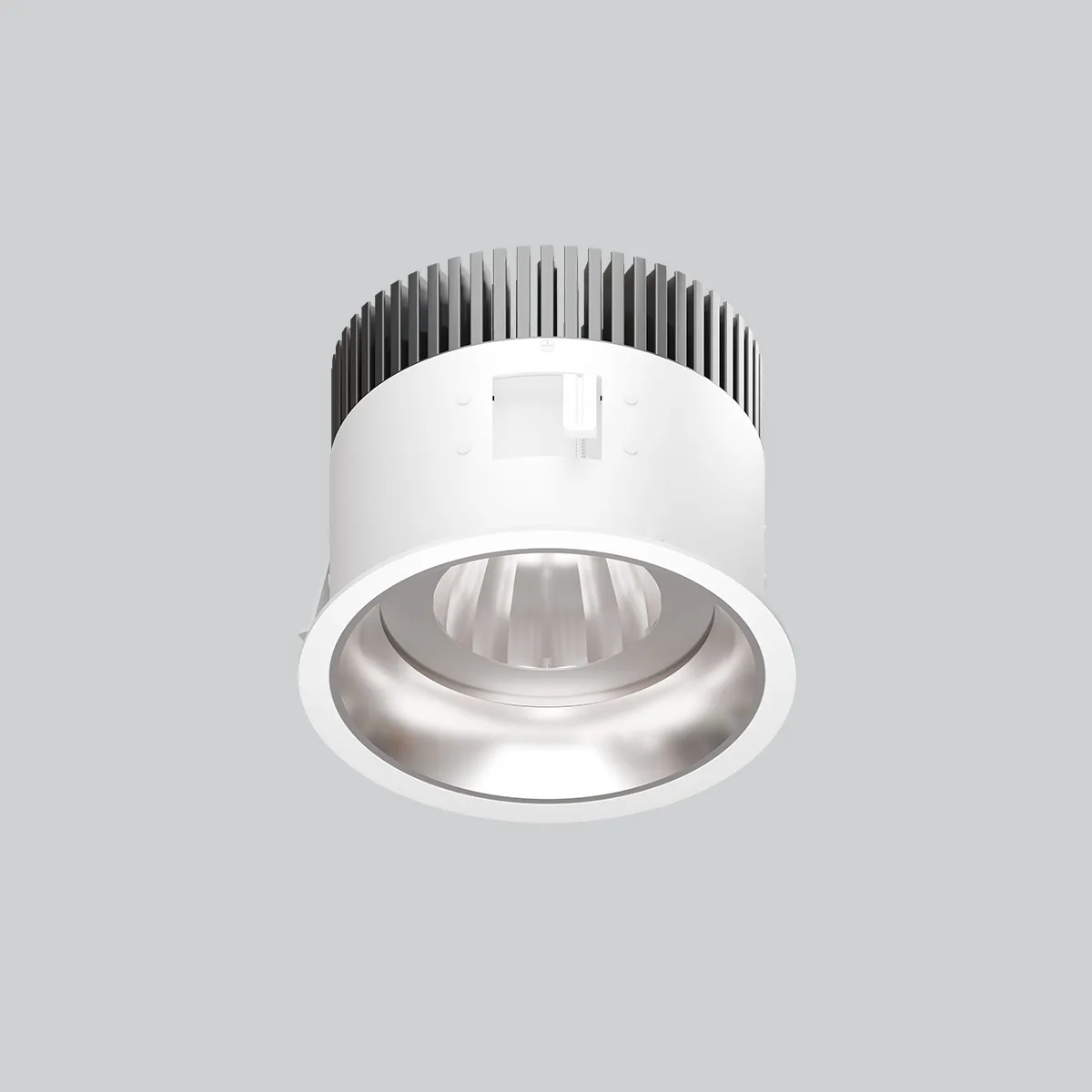

HICORE 135
Wattage: 60W
Size: Ø150*124mm
Lumen Output: 7546lm
Beam Angle: 21° / 38° / 56° / 66°
AccessoriesTEXTURED GLASSHONEYCOMB LOUVERCCT Selector SwitchLINEAR SPREAD LENS+1 more accessories
View details →TEXTURED GLASSHONEYCOMB LOUVERCCT Selector SwitchLINEAR SPREAD LENS

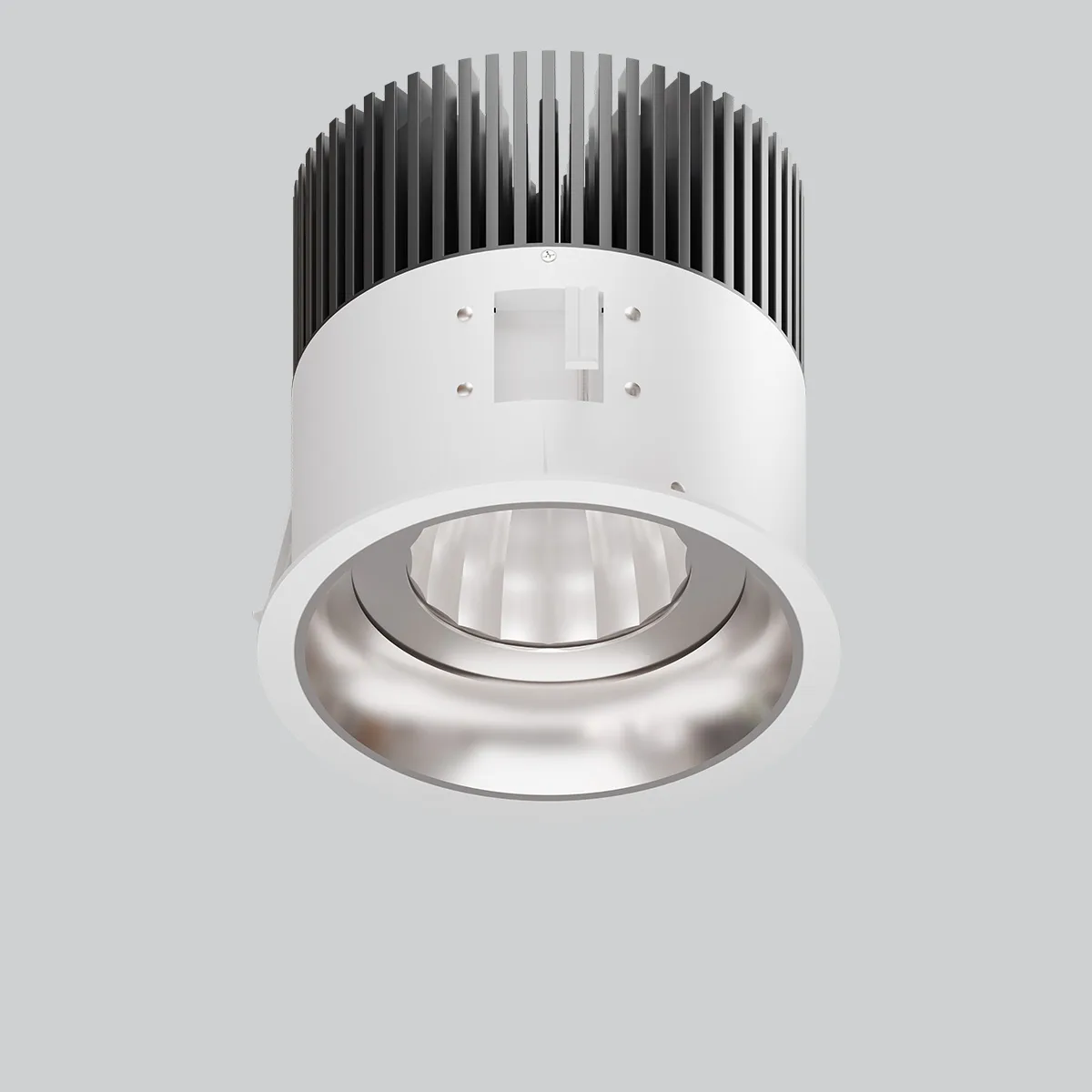

HICORE 160
Wattage: 80W
Size: Ø176*168mm
Lumen Output: 9122lm
Beam Angle: 26° / 36° / 46° / 70°
AccessoriesTEXTURED GLASSHONEYCOMB LOUVERCCT Selector SwitchLINEAR SPREAD LENS+1 more accessories
View details →TEXTURED GLASSHONEYCOMB LOUVERCCT Selector SwitchLINEAR SPREAD LENSWhy Choose HICORE
HICORE is designed for projects where standard commercial downlights do not provide enough output or where high installation heights require stronger and more reliable illumination.
Its 40W, 60W and 80W configurations provide up to 9578 lm for large-volume spaces such as airports, atriums and high-ceiling lobbies.
The full-aluminium construction supports better thermal performance, while the high-reflectance aluminium reflector helps control and direct the light efficiently.
For high-level installation, HICORE also uses a specially designed ceiling-locking structure to hold the luminaire firmly in place and improve long-term installation security.
CHARACTERISTICS
What Defines HICORE
Full-Aluminium Construction
The luminaire is built with aluminium structural components and no plastic structural parts, supporting better heat management and long-term reliability.
High-Reflectance Aluminium Reflector
The aluminium reflector is designed to provide efficient light control and support strong optical performance in demanding high-output applications.
Secure Ceiling-Locking Structure
A specially engineered locking structure helps hold the luminaire firmly against the ceiling, supporting safer and more secure installation in high-level applications.
APPLICATIONS
Where HICORE Performs Best
HICORE is developed for large commercial interiors where high ceilings, strong lumen output and installation security are key project requirements.
Airports
High lumen output and robust construction make HICORE suitable for airport interiors with large spaces and high ceiling heights.
- Terminals
- Departure Halls
Atriums
The high-power configurations support strong downward illumination in large atriums where mounting heights are significantly above standard commercial interiors.
- Shopping Malls
- Commercial Atriums
Hotel Lobbies
HICORE provides the output required for tall hotel lobby spaces while maintaining a clean recessed ceiling appearance.
- Grand Lobbies
- Public Areas
Large Commercial Spaces
The combination of high output, full-aluminium construction and secure installation makes HICORE suitable for large-volume commercial spaces.
- Convention Areas
- Public Interiors
Projects
Projects using HICORE
See how HICORE delivers precision and performance in real-world projects.

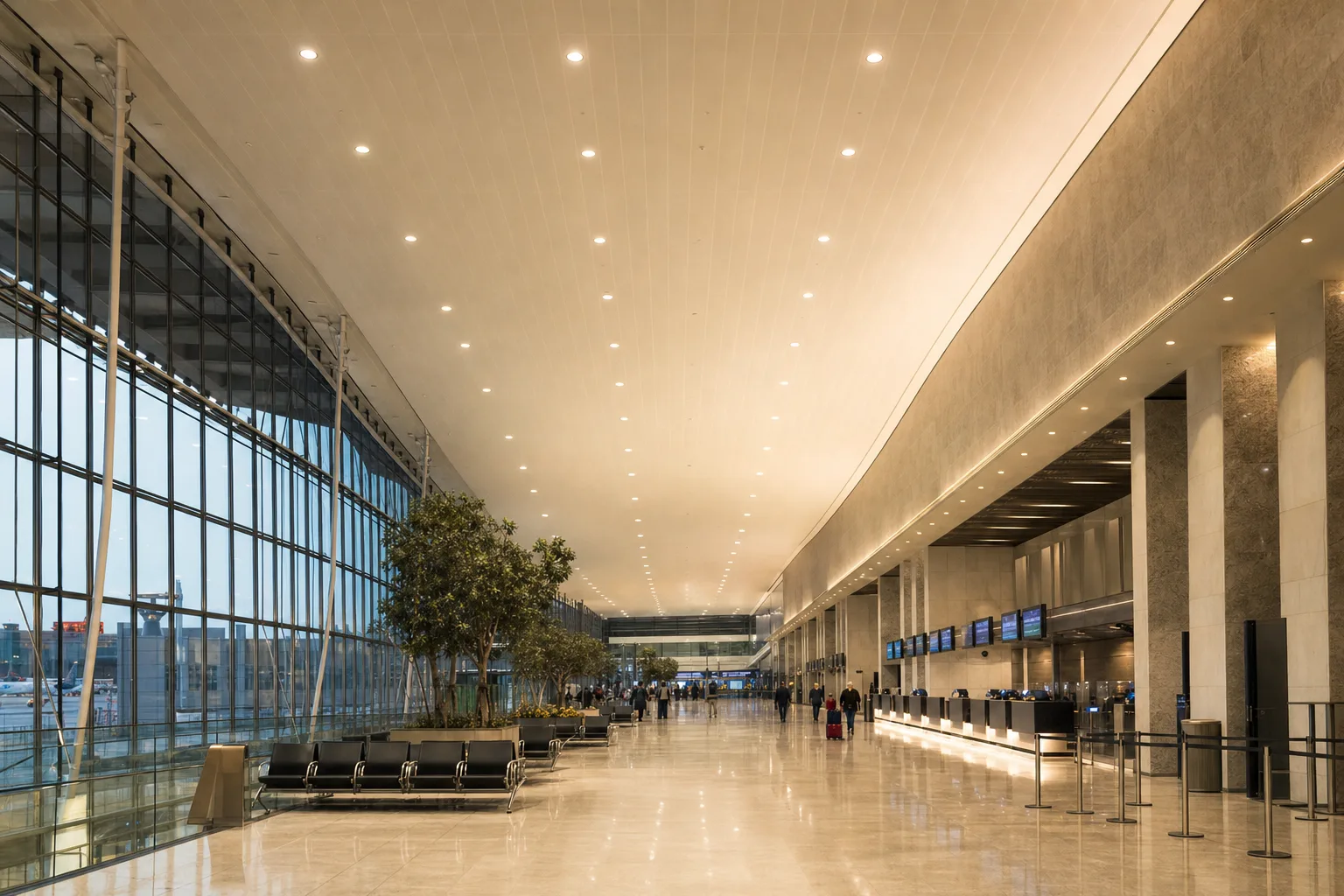

Airport
International Airport Terminal
HICORE high-power recessed downlights deliver strong, uniform illumination from the terminal’s high ceiling, supporting clear wayfinding, visual comfort and reliable long-hour operation.
Product usedHICORE 110 / HICORE 135
Beam angle22° / 38°
ControlDALI

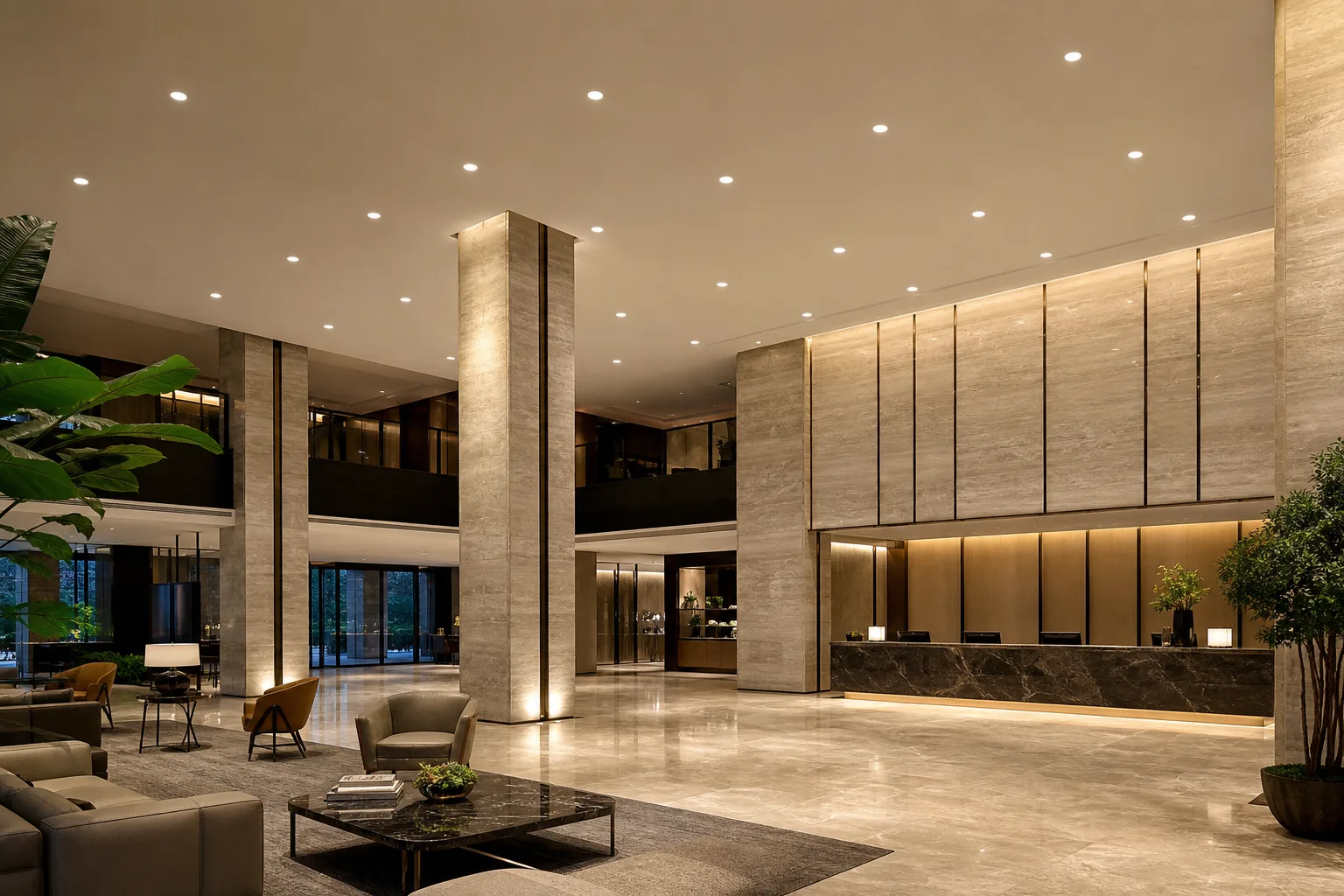

Hotel
Grand Hotel Lobby
HICORE recessed downlights provide controlled high-output illumination from the double-height ceiling, creating a welcoming, low-glare atmosphere across the reception and lounge areas.
Product usedHICORE 135 / HICORE 160
Beam angle22° / 38°
ControlDALI

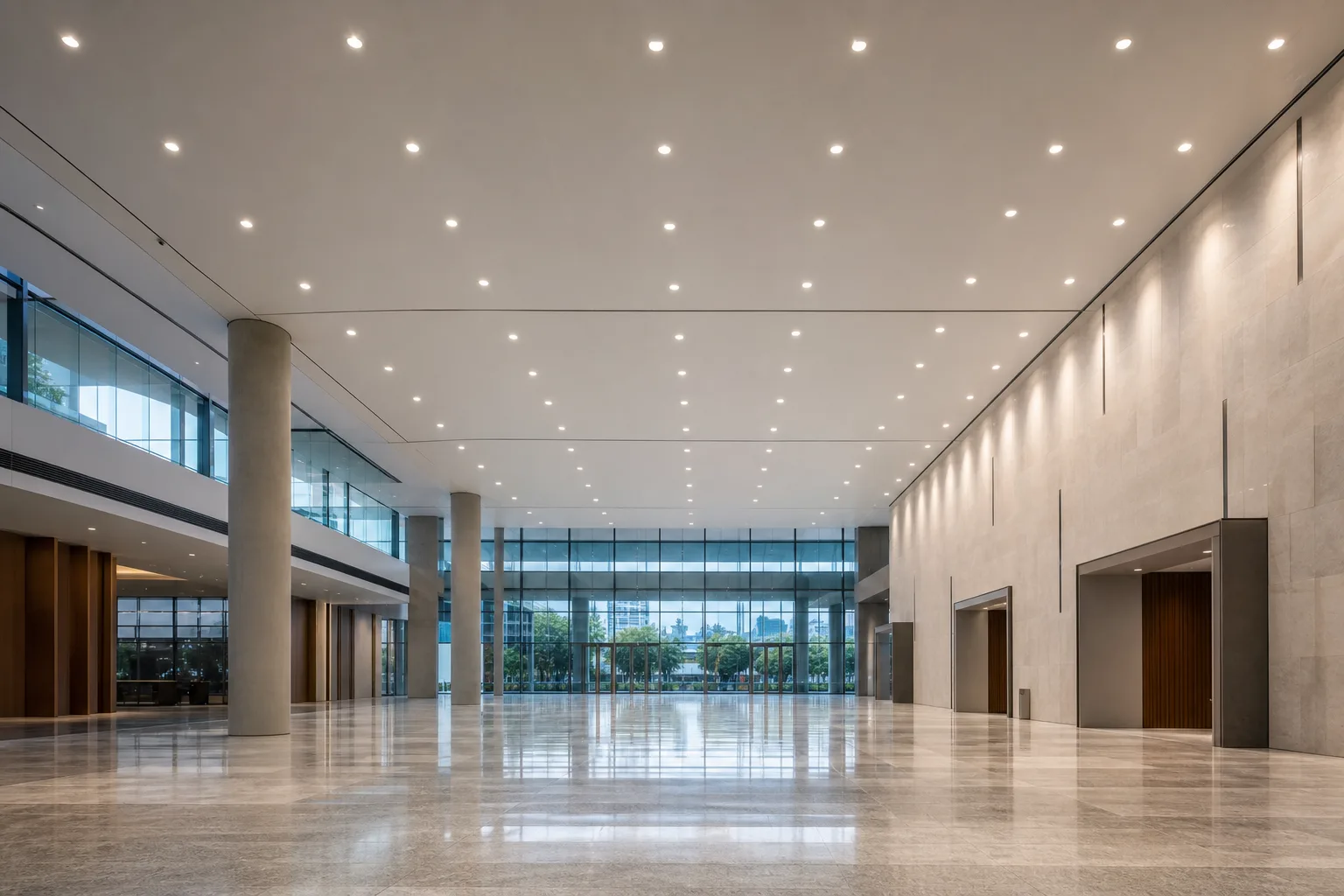

Exhibition
International Exhibition Center
HICORE high-power recessed downlights provide strong, uniform illumination across the exhibition center’s expansive high-ceiling concourse, supporting comfortable circulation, flexible events and reliable long-hour operation.
Product usedHICORE 135 / HICORE 160
Beam angle22° / 38°
ControlDALI
SYSTEM CATALOGUE
Download HICORE Product Datasheet
Download the HICORE technical datasheet for dimensions, power options, lumen output, beam angles, reflector details and installation information.
PROJECT SUPPORT
Specify HICORE for Your High-Ceiling Project
Tell us the ceiling height, target lux level, required beam angle and installation condition, and we can help recommend the suitable HICORE configuration.
