Center-point Adjustment
The beam remains centered during aiming, supporting cleaner ceilings and more accurate light direction.
NOVAL CENTER-POINT ADJUSTABLE RECESSED DOWNLIGHT
Semi-recessed adjustment that keeps the beam centered during aiming.
* NOVAL is a semi-recessed adjustable downlight family designed around center-point aiming.
* The beam stays visually centered during adjustment, helping maintain a cleaner ceiling appearance while allowing directional lighting control.
* The range is suitable for hotels, offices and residential projects.
Key Specifications
Applications: Hotel / Office / Residential
Diameter Range: Ø23 / Ø37
Power Range: 4W-6W
Adjustment: Center-point adjustment
Installation: Semi-recessed installation
Shapes: Multiple shapes available
Control: ON/OFF / TRIAC / DALI where available
* The beam stays visually centered during adjustment, helping maintain a cleaner ceiling appearance while allowing directional lighting control.
* The range is suitable for hotels, offices and residential projects.
Key Specifications
Applications: Hotel / Office / Residential
Diameter Range: Ø23 / Ø37
Power Range: 4W-6W
Adjustment: Center-point adjustment
Installation: Semi-recessed installation
Shapes: Multiple shapes available
Control: ON/OFF / TRIAC / DALI where available
Why Choose NOVAL
NOVAL helps designers create a consistent lighting language while matching the functional needs of real architectural projects.
With its focused product positioning and application-specific features, the system simplifies specification while supporting visual comfort, reliable performance and design flexibility.
Suitable for hotel / office / residential projects.
Characteristics
What defines NOVAL
Semi-recessed Installation
NOVAL provides adjustable lighting while maintaining a refined architectural appearance.
Multiple Shape Options
The family supports different design languages for varied interior styles.
Balanced Comfort and Flexibility
Suitable for projects that need directional control without a visually busy ceiling.
Applications
Where NOVAL Performs Best
NOVAL is a compact adjustable recessed downlight for retail displays, fashion stores, shoe boutiques and dining spaces that need directional accent from a cleaner ceiling aperture. Use it in 2.5–3.6 m interiors where target positions are known but track lighting is not desired.

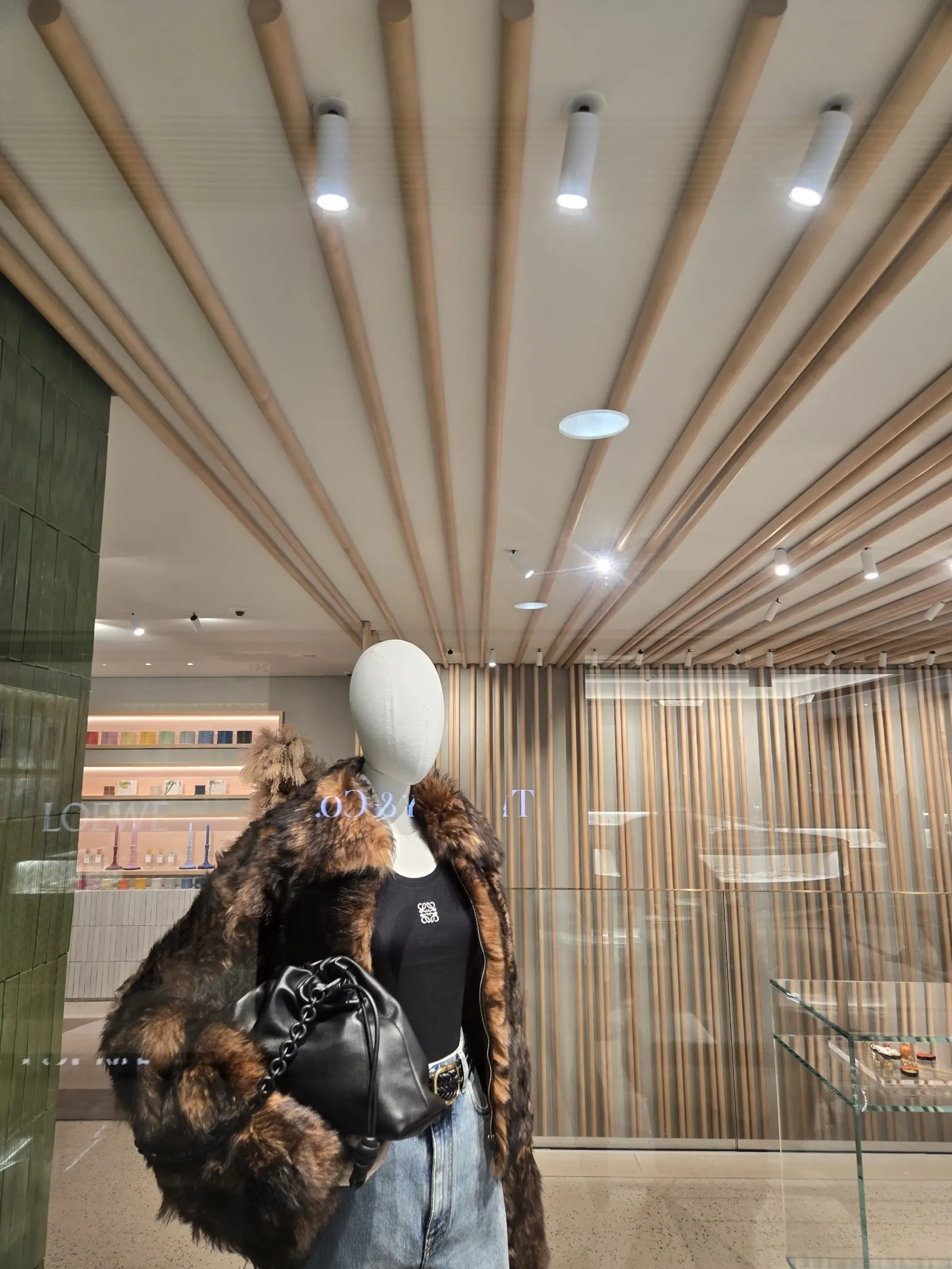

Retail Display Lighting
NOVAL works for product tables, shelf edges and small display zones where the beam needs to aim but the ceiling must remain recessed. Confirm target distance and beam size before cutting the ceiling.
- Best for product tables, shelf edges and compact display zones
- Adjustable recessed module provides aiming without visible track
- Use around 2.6–3.5 m retail ceilings as a practical range
- Check beam size with IES/LDT before final cut-out positions

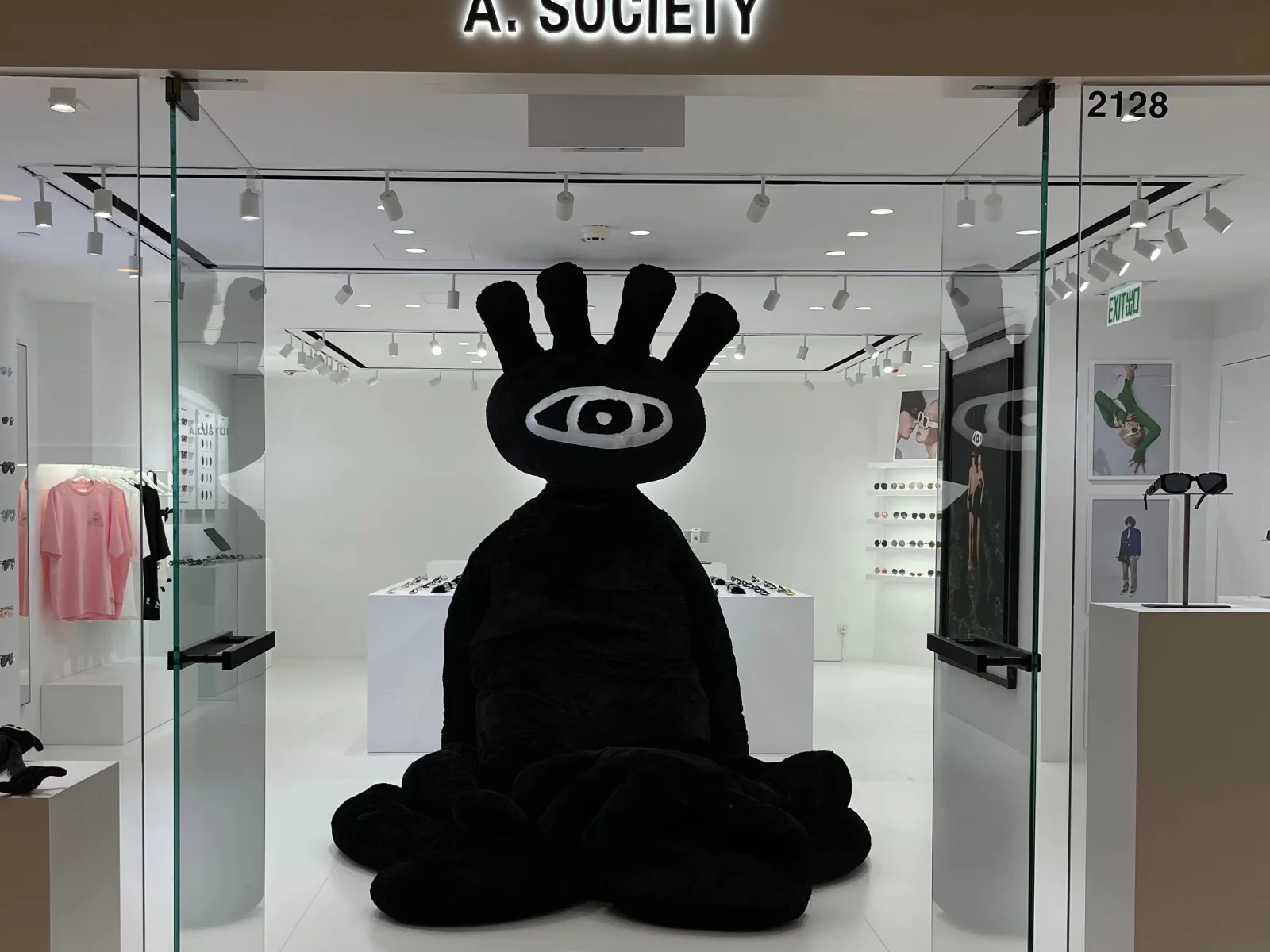

Fashion Store Lighting
For fashion stores, NOVAL can highlight mannequins, folded displays and changing-room entries while keeping a cleaner ceiling than exposed track. Use wall washing separately for large vertical merchandise walls.
- Good for mannequins, folded displays and fitting-zone entrances
- Cleaner recessed look suits premium fashion interiors
- Use high colour quality for fabric and skin-tone accuracy
- Add wall washers for broad vertical merchandise brightness

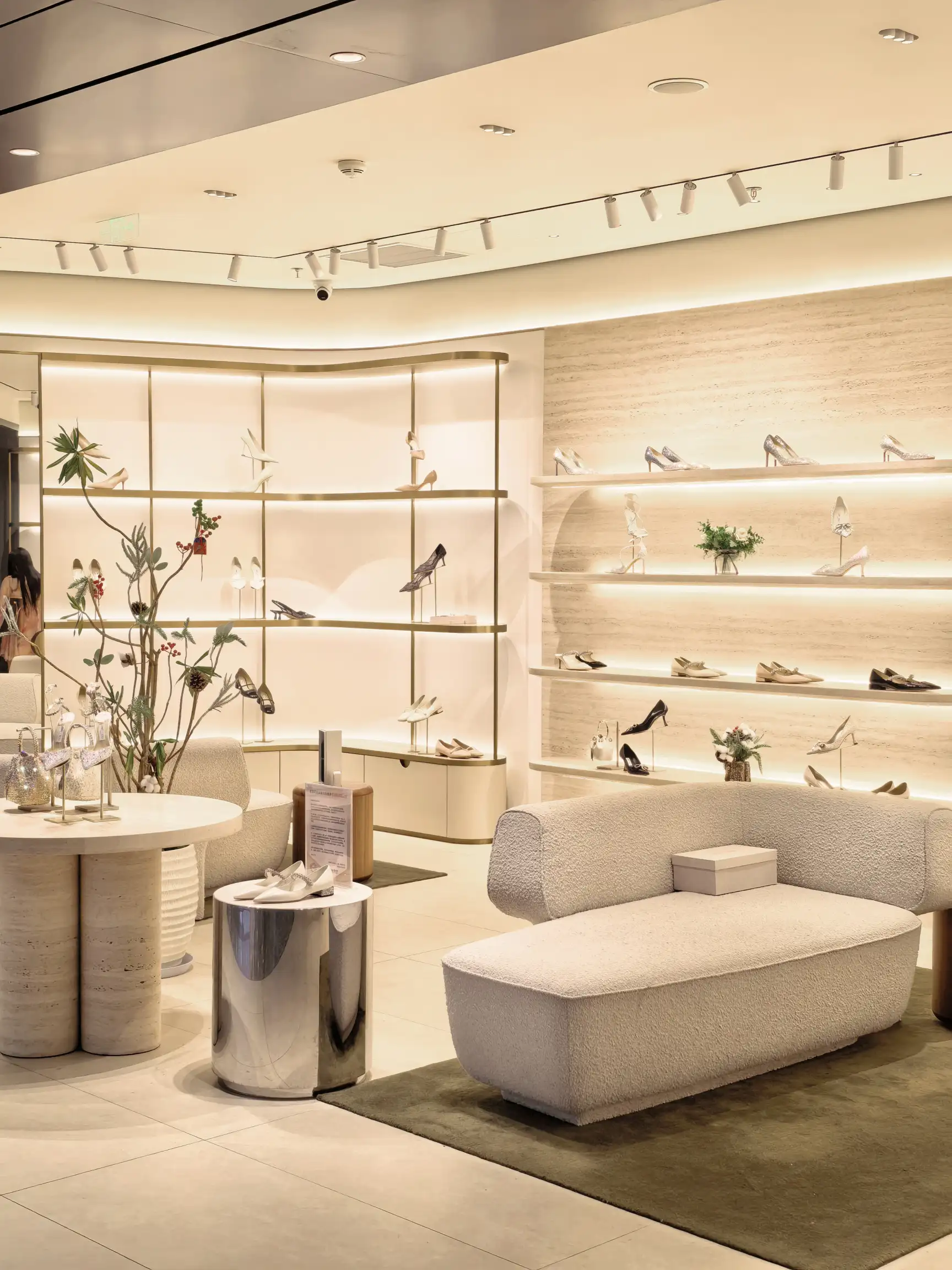

Luxury Shoe Boutique Lighting
NOVAL is suitable for shoe walls, pedestal displays and low showcase areas where precise aiming helps shape product details. Avoid strong beams into customer eye level across low displays.
- Useful for shoe displays, pedestal zones and premium accessory walls
- Directional beam can emphasize texture, form and material finish
- Check customer sightlines and glare across low displays
- Document final aiming after merchandising is installed

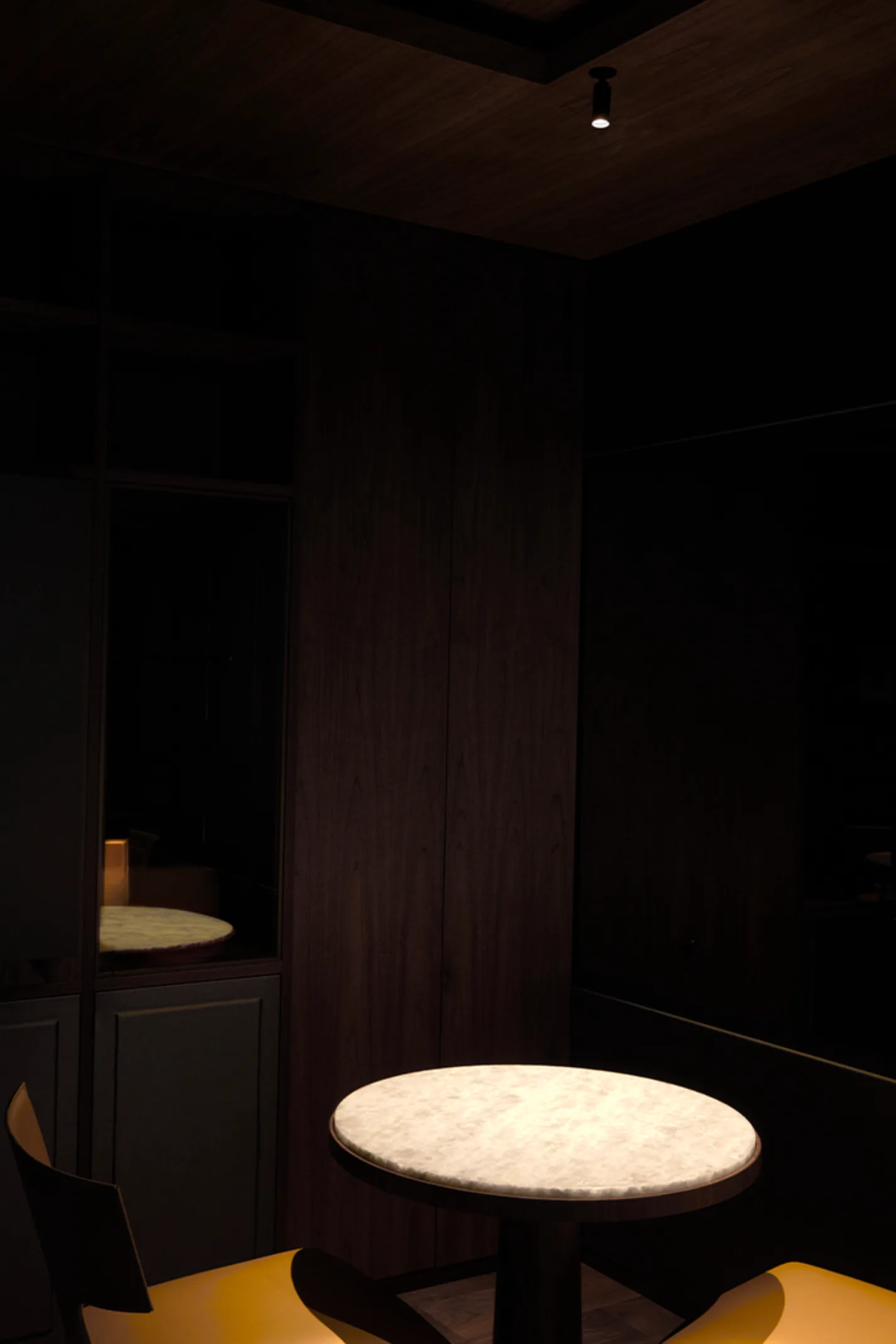

Dining Space Lighting
In restaurants and dining rooms, NOVAL can aim light onto tables, artwork or feature surfaces from a recessed position. Use dimming and comfortable aiming angles so the fixture supports atmosphere without glare.
- Suitable for dining tables, art accents and feature walls
- Adjustable recessed source keeps the ceiling clean
- Use warm CCT and dimming for evening scenes
- Avoid beams directly into seated guest viewpoints
Projects
Projects using NOVAL
See how NOVAL delivers precision and performance in real-world projects.

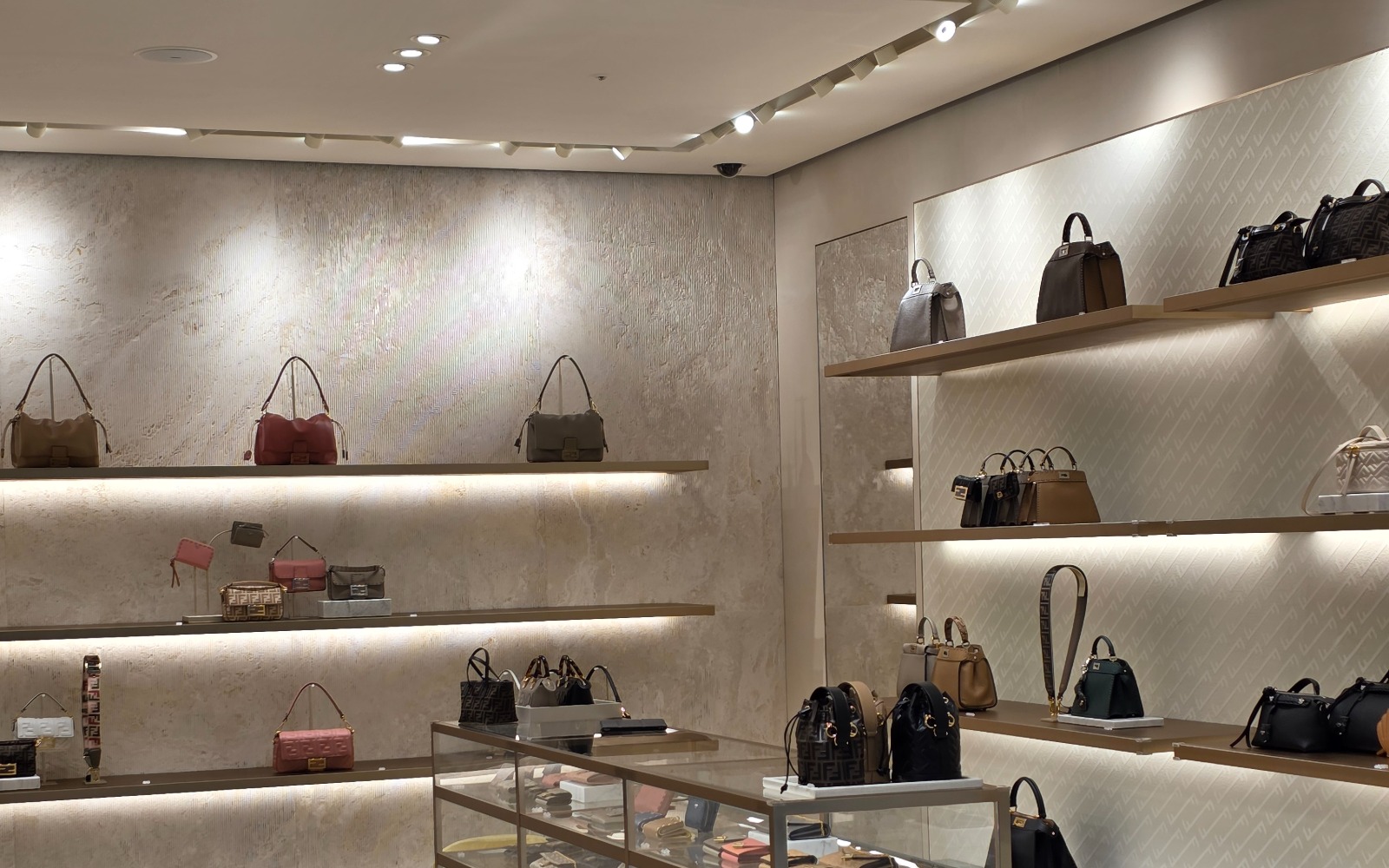

Retail
Luxury Bag Store
NOVAL semi-recessed downlights were selected for precise beam control and high visual comfort, enhancing the shopping experience and product presentation.
Product usedNOVAL 37
Beam angle23°
ControlDALI

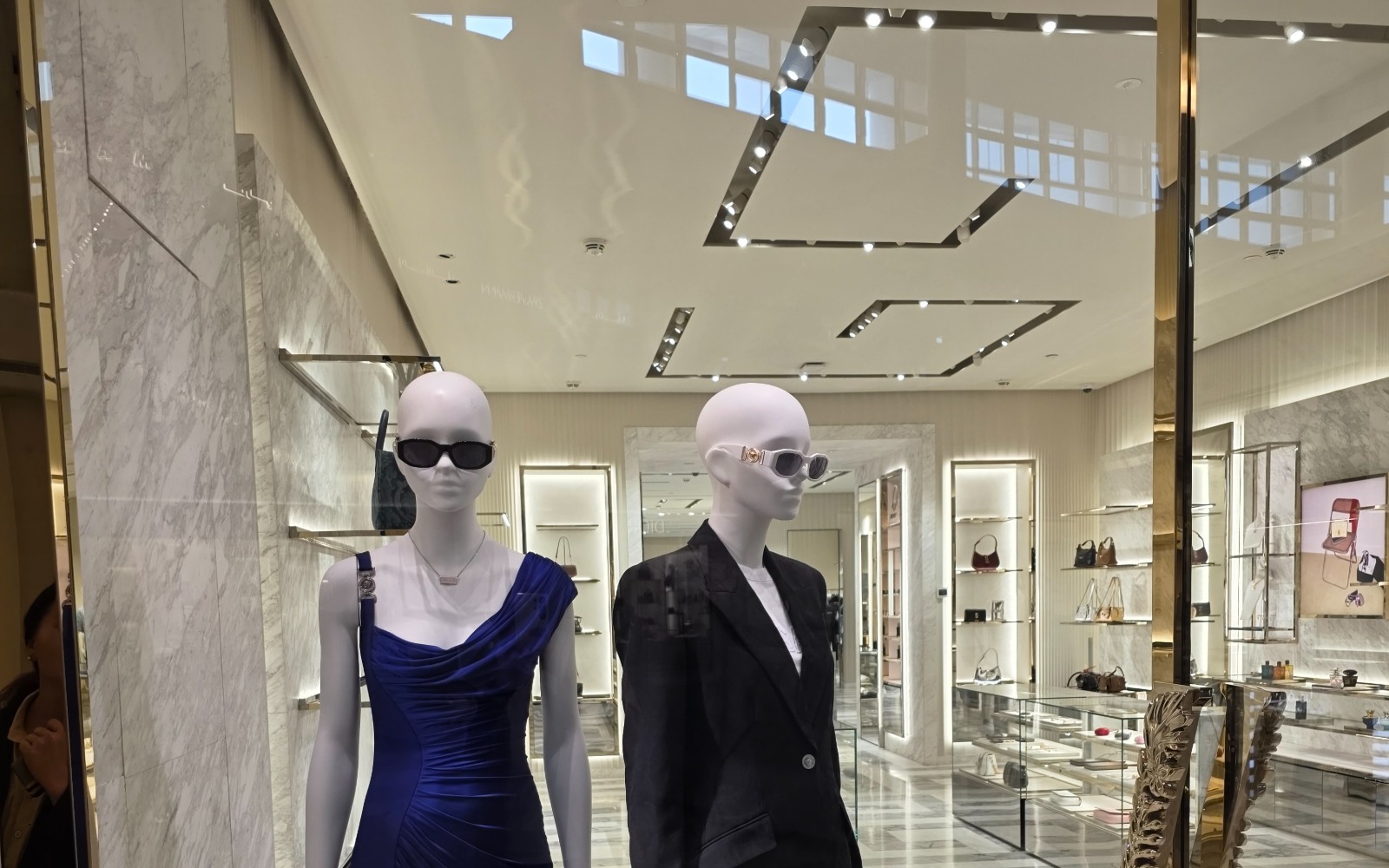

Retail
Luxury Fashion Store
Custom beam angles and high CRI lighting bring out the true texture and colour of fabrics and materials, creating an elegant and inviting atmosphere.
Product usedNOVAL 23
Beam angle26°
ControlTRIAC

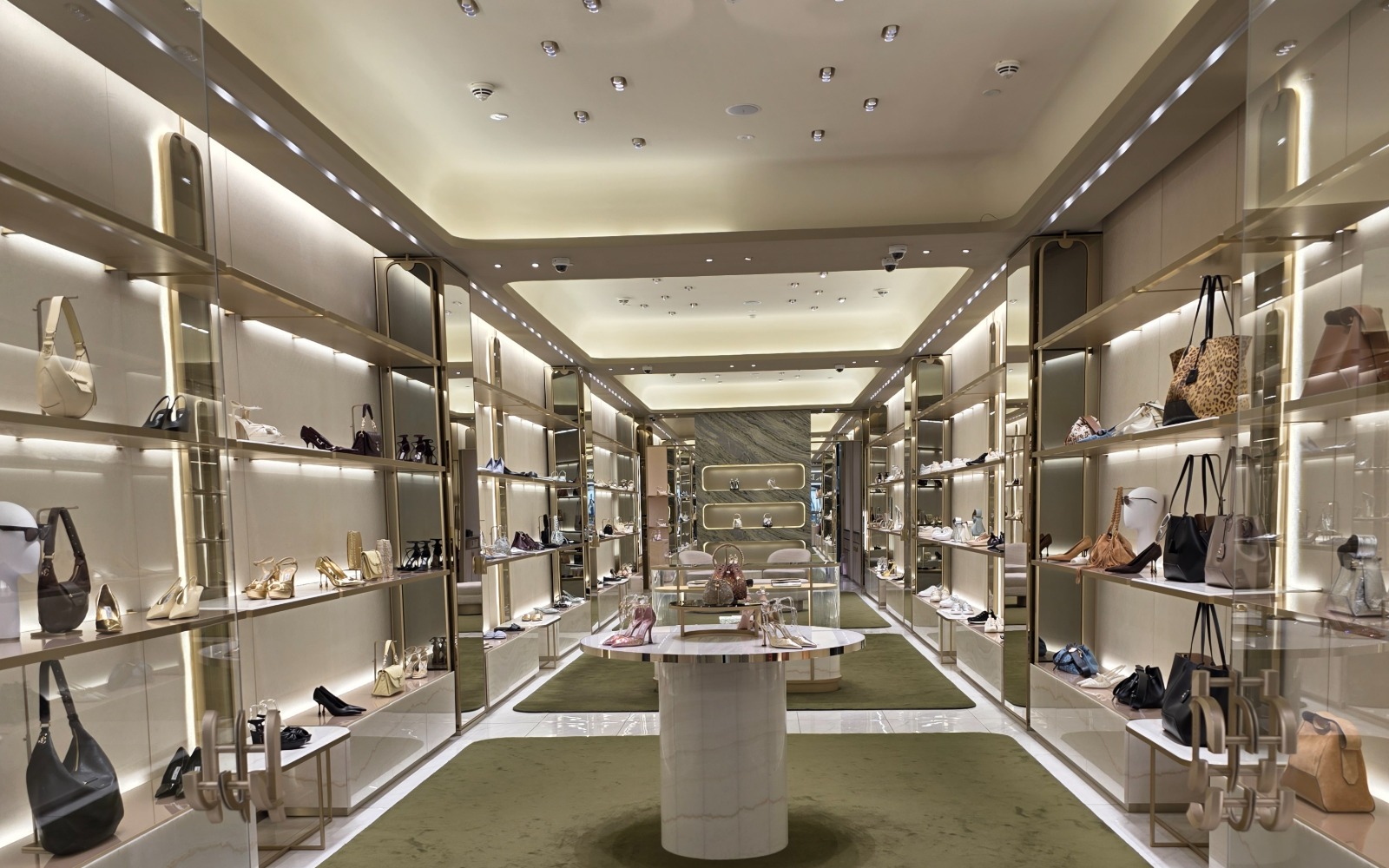

Retail
Luxury Accessories Store
NOVAL provides uniform and comfortable lighting, supporting productivity while maintaining a clean architectural aesthetic.
Product usedNOVAL 37
Beam angle33°
ControlDALI
Available products
Choose the right size
NOVAL 23
Wattage: 4W
Size: Ø26*45mm
Lumen Output: 197lm
Beam Angle: 17° / 26° / 31° / 53°
NOVAL 23
Wattage: 4W
Size: Ø26*45mm
Lumen Output: 197lm
Beam Angle: 17° / 26° / 31° / 53°
NOVAL 37
Wattage: 6W
Size: Ø40*70mm
Lumen Output: 478lm
Beam Angle: 18° / 23° / 33° / 42°
NOVAL 37
Wattage: 6W
Size: Ø40*70mm
Lumen Output: 478lm
Beam Angle: 18° / 23° / 33° / 42°
System catalogue
Download NOVAL system catalogue
Download the latest family catalogue, technical files and specification resources for this product system.
Project support
Request NOVAL for your next project
Get quotation support, samples and technical files for this product family.
