OPTIMAX COMMERCIAL RECESSED DOWNLIGHT
Full aluminum construction with strong thermal management for commercial projects.
* OPTIMAX is a commercial recessed downlight family built with full aluminum construction and strong thermal management.
* Available in Ø50 and Ø65 cut-outs, it provides a practical specification option for offices, retail stores and commercial buildings.
* The range is suitable for projects that need reliable commercial downlighting with efficient heat dissipation.
Key Specifications
Applications: Commercial Building / Office / Retail
Diameter Range: Ø50 / Ø65
Power Range: 8W-14W
Construction: Full aluminum construction
Thermal: Superior thermal management
Control: ON/OFF / TRIAC / DALI where available
* Available in Ø50 and Ø65 cut-outs, it provides a practical specification option for offices, retail stores and commercial buildings.
* The range is suitable for projects that need reliable commercial downlighting with efficient heat dissipation.
Key Specifications
Applications: Commercial Building / Office / Retail
Diameter Range: Ø50 / Ø65
Power Range: 8W-14W
Construction: Full aluminum construction
Thermal: Superior thermal management
Control: ON/OFF / TRIAC / DALI where available
Available products
Choose the right size

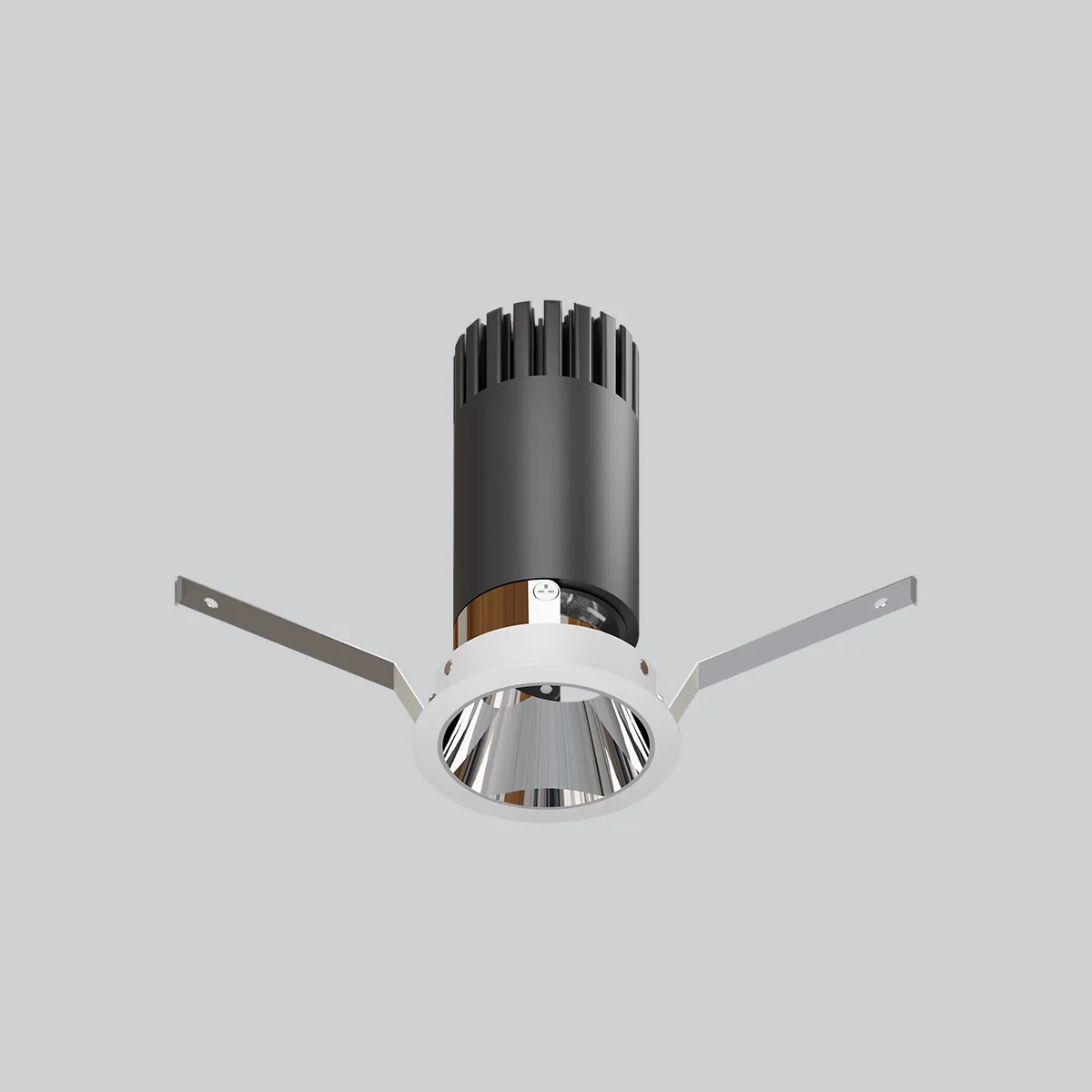

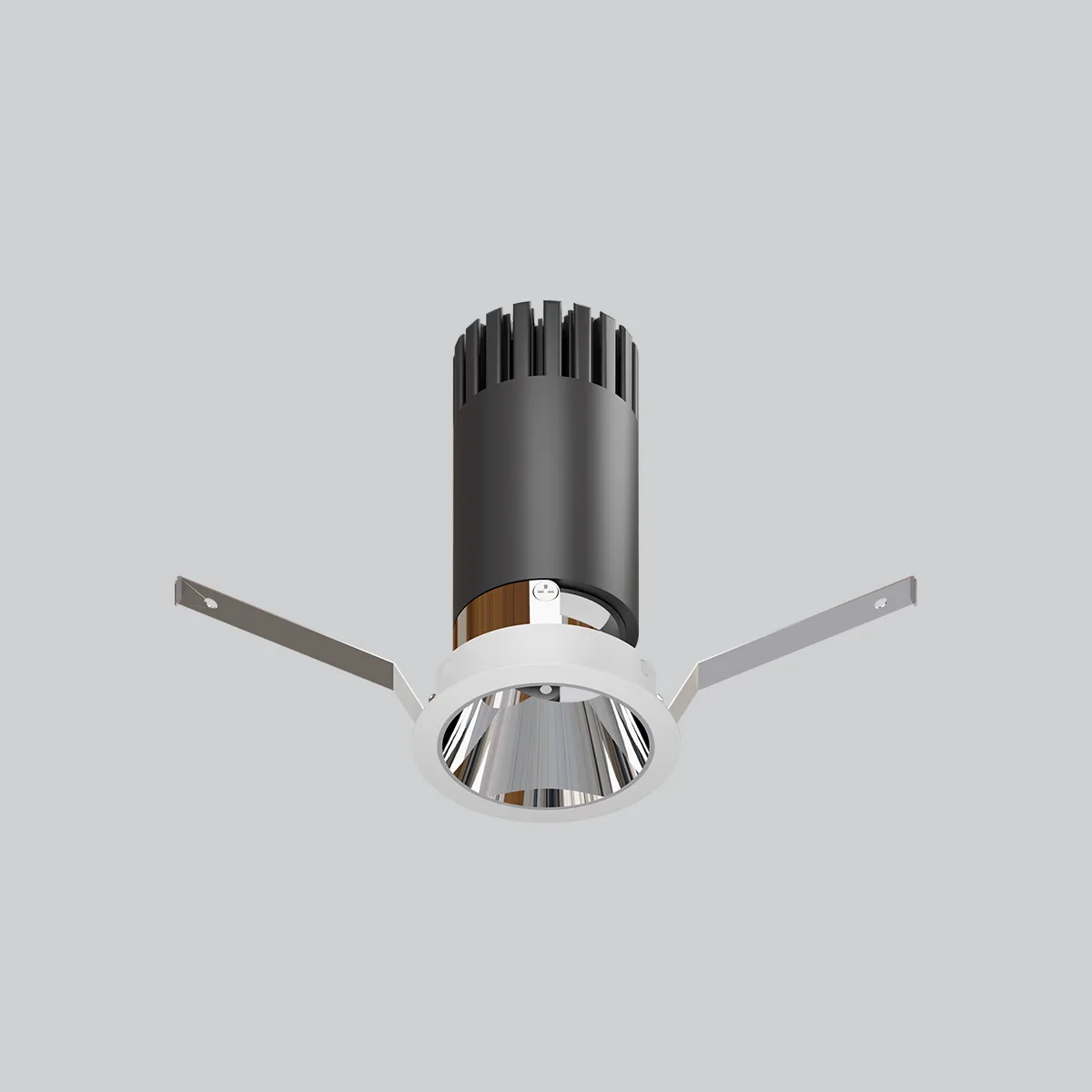

OPTIMAX 50
Wattage: 8W
Size: Ø58*98mm
Lumen Output: 589lm
Beam Angle: 19° / 28° / 40° / 52°
OPTIMAX 50
Wattage: 8W
Size: Ø58*105mm
Lumen Output: 601lm
Beam Angle: 19° / 28° / 41° / 51°

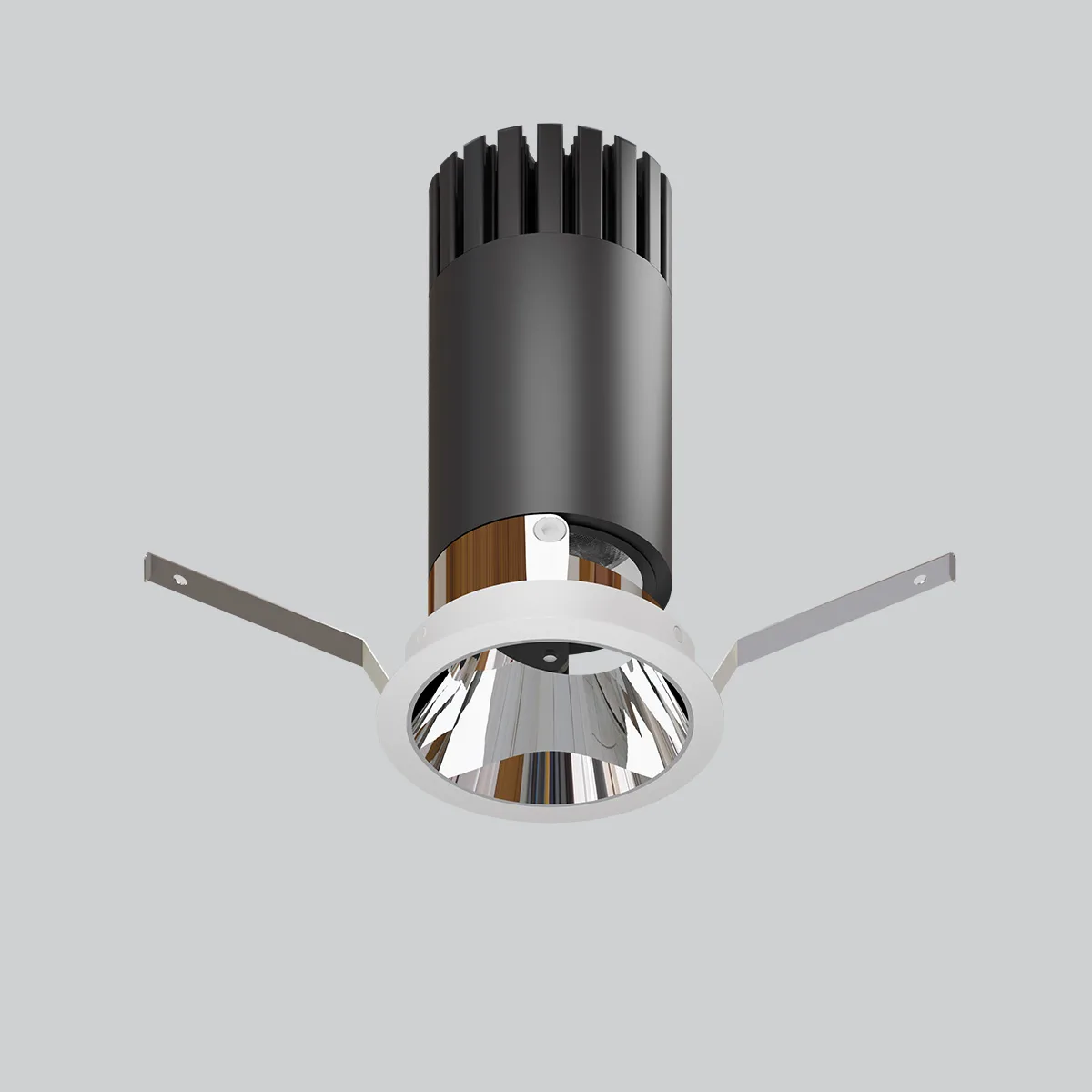

OPTIMAX 65
Wattage: 14W
Size: Ø75*136mm
Lumen Output: 1147lm
Beam Angle: 21° / 31° / 42° / 51°
OPTIMAX 65
Wattage: 14W
Size: Ø75*142mm
Lumen Output: 1175lm
Beam Angle: 20° / 30° / 42° / 51°
Why Choose OPTIMAX
OPTIMAX helps designers create a consistent lighting language while matching the functional needs of real architectural projects.
With its focused product positioning and application-specific features, the system simplifies specification while supporting visual comfort, reliable performance and design flexibility.
Suitable for commercial building / office / retail projects.
Characteristics
What defines OPTIMAX
Strong Thermal Management
Improved heat dissipation helps support long-term lumen performance and reliability.
Commercial Cut-out Options
Ø50 and Ø65 cut-outs give designers practical choices for different ceiling conditions.
Reliable Project Specification
OPTIMAX is designed for repeat commercial use across offices, retail stores and building interiors.
Applications
Where OPTIMAX Performs Best
OPTIMAX should be specified as a practical commercial recessed downlight for offices, retail stores and commercial buildings where full aluminium construction, thermal management and compact cut-outs are important. Use it for reliable general/project lighting rather than complex accent effects.

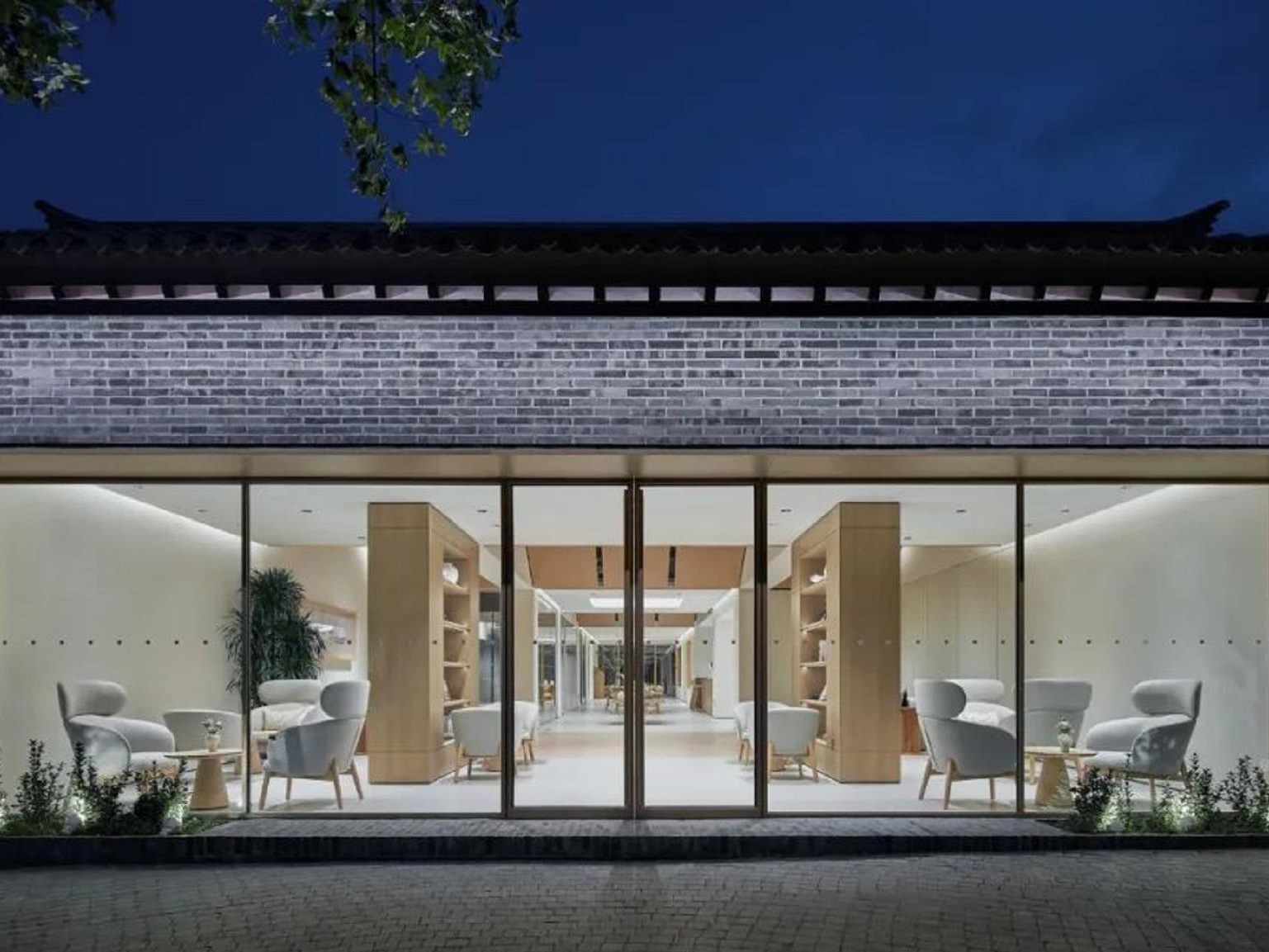

Office Lighting
OPTIMAX suits offices and commercial workspaces that need reliable recessed downlighting with good thermal management and compact ceiling integration.
- Recommended mounting height: about 2.7–3.6 m for offices, corridors and meeting areas
- Use for general/circulation lighting; check work-plane uniformity with IES/LDT files
- Thermal note: full aluminium construction supports stable operation in long working hours
- Control note: DALI is useful for office zones; ON/OFF or TRIAC may suit small rooms
Retail Lighting
For retail, OPTIMAX can provide clean recessed lighting for store circulation, service zones, fitting rooms and simple display areas where practical reliability matters more than adjustable accent flexibility.
- Recommended use: retail circulation, changing rooms, counters and stable display areas
- Choose track or adjustable downlights when merchandising changes frequently
- Confirm Ø50 / Ø65 cut-out, ceiling depth and driver access before installation
- Use photometric files to check spacing and avoid uneven brightness on aisles
Commercial Building Lighting
In commercial buildings, OPTIMAX provides a compact downlight option for lobbies, corridors, amenities and support spaces where repeatable specification and thermal reliability are important.
- Recommended mounting height: about 2.7–3.8 m for common commercial interiors
- Best for repeated ceiling layouts and practical maintenance planning
- Coordinate control type, emergency requirements and driver accessibility with the electrical plan
- Limit: not intended for high-ceiling long-throw or museum-grade accent lighting
General Interior Lighting
OPTIMAX works best as a practical general interior downlight. It should be selected by cut-out, ceiling depth, spacing and thermal requirements rather than as a decorative feature product.
- Use Ø50 / Ø65 according to ceiling scale and desired visual presence
- Confirm spacing through lighting calculation instead of relying only on visual layout
- Pair with accent or wall-wash luminaires where vertical brightness or display focus is required
- Suitable for value-conscious commercial projects needing reliable recessed lighting
Projects
Projects using OPTIMAX
See how OPTIMAX delivers precision and performance in real-world projects.
Retail

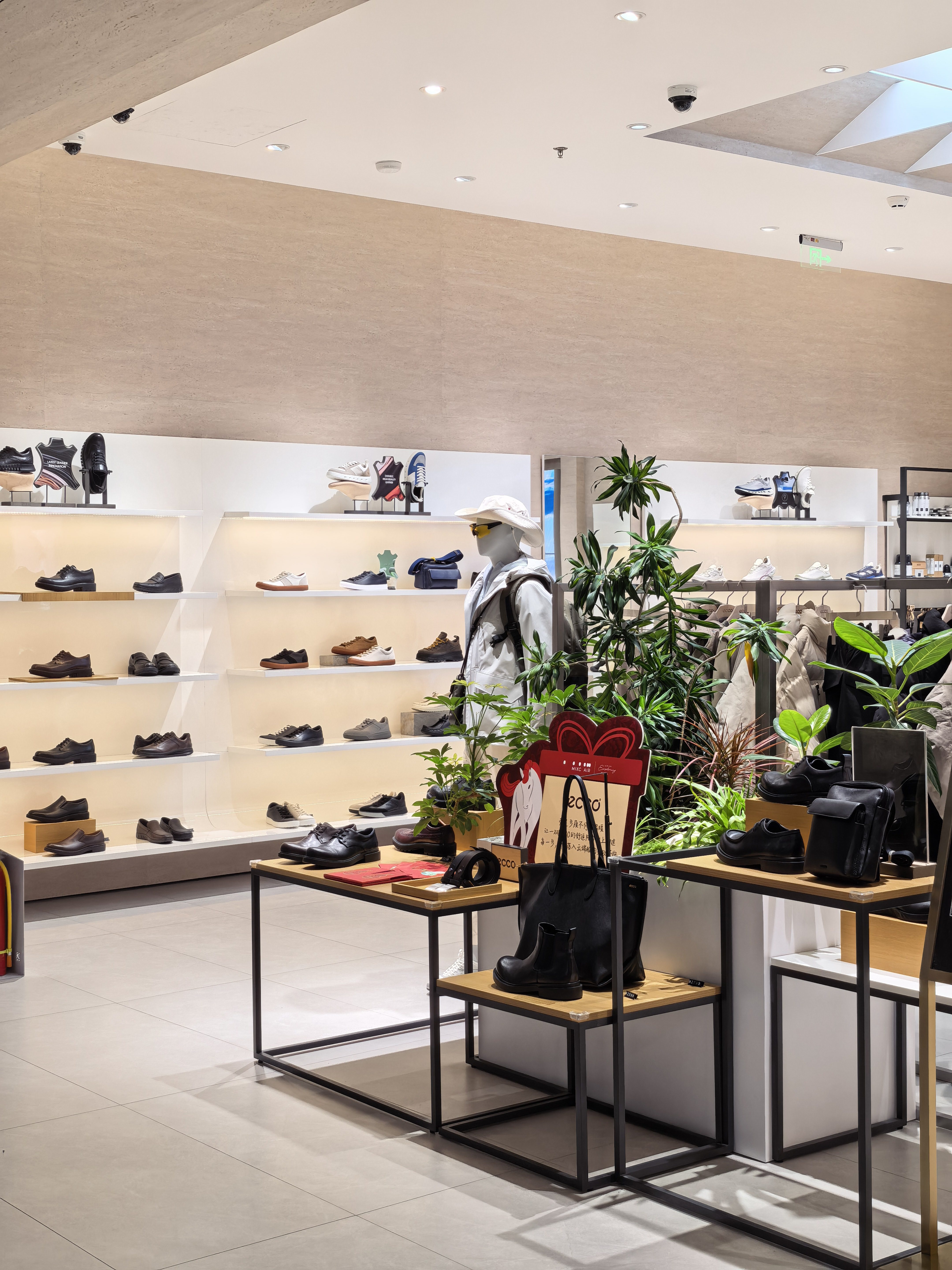

Xi'an Shoe Store
OPTIMAX track lights were selected for precise beam control and high visual comfort, enhancing the shopping experience and product presentation.
Product usedOPTIMAX 65
Beam angle31°
ControlDALI
Commercial

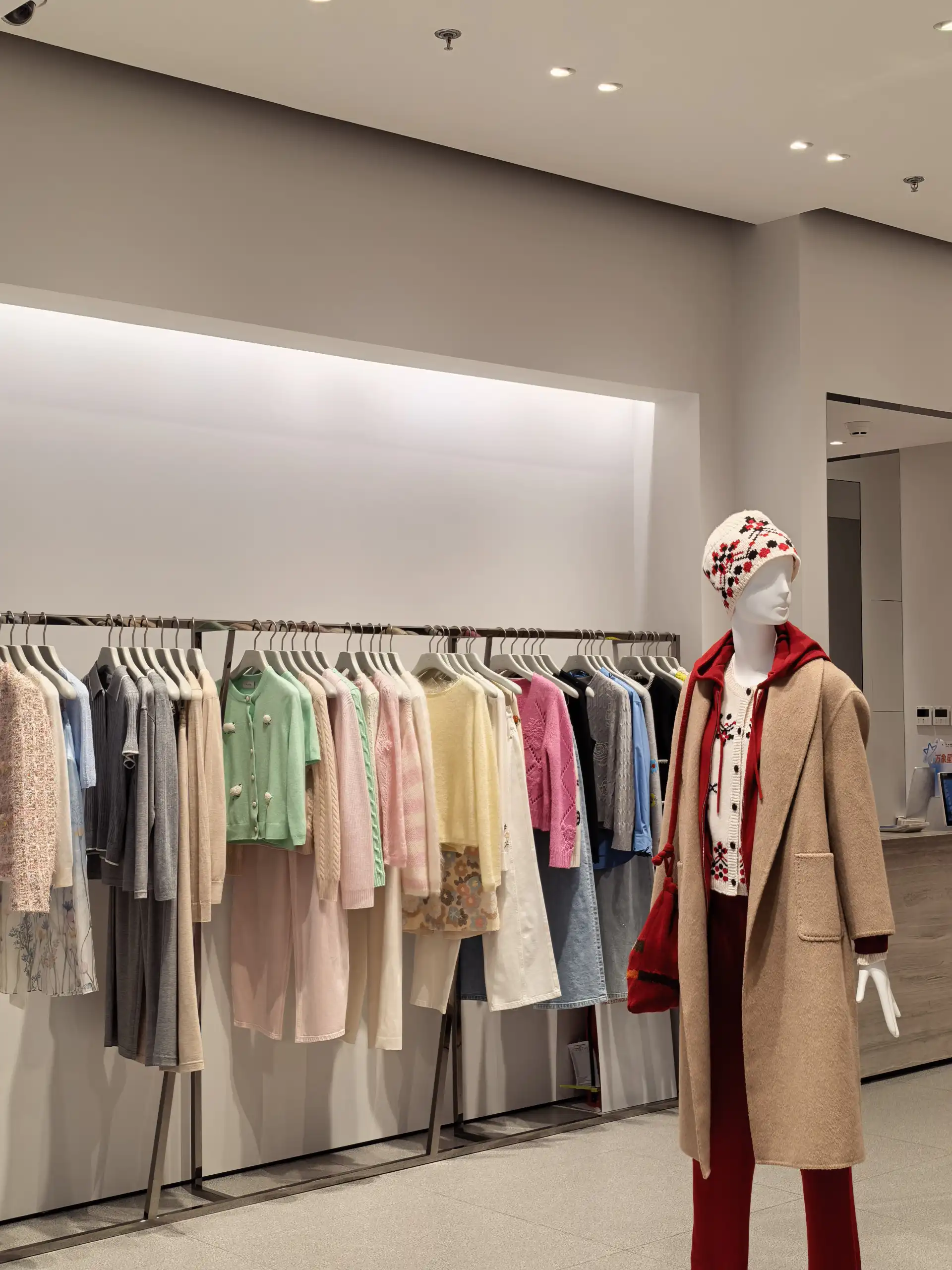

Xi'an Fashion Store
Custom beam angles and high CRI lighting bring out the true texture and colour of fabrics and materials, creating an elegant and inviting atmosphere.
Product usedOPTIMAX 50
Beam angle40°
ControlTRIAC
Retail

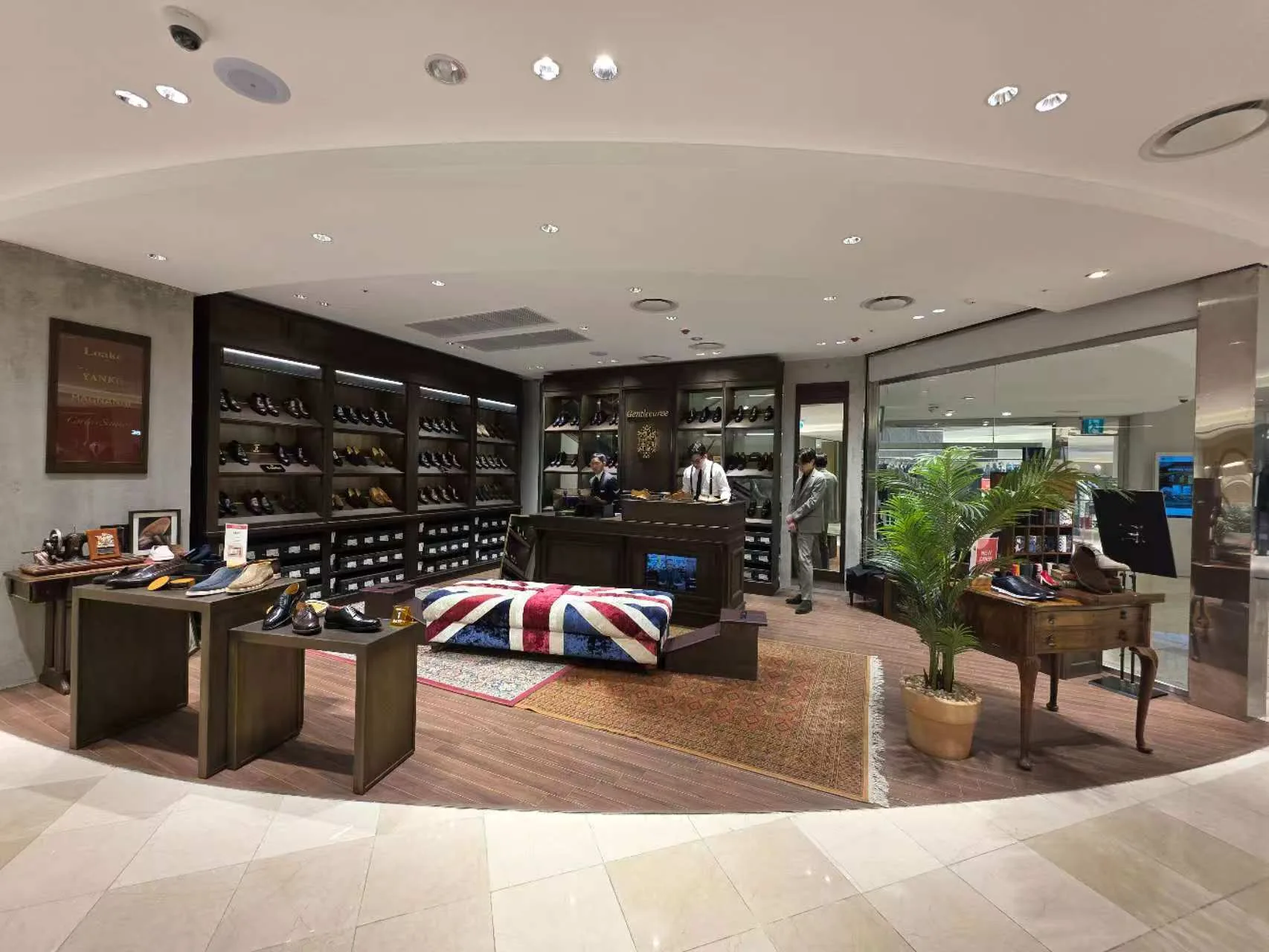

LOTTE Department Store
OPTIMAX provides uniform and comfortable lighting, supporting productivity while maintaining a clean architectural aesthetic.
Product usedOPTIMAX 50/OPTIMAX 65
Beam angle28° / 31°
ControlDALI
System catalogue
Download OPTIMAX system catalogue
Download the latest family catalogue, technical files and specification resources for this product system.
