Multi-Head Configuration
One-, two- and four-head configurations allow different numbers of accent lights to be integrated into one recessed ceiling platform.
ORBI Modular Multi-Head Recessed Downlight
A modular multi-head recessed spotlight with independent removable and adjustable light modules for flexible one-, two- and four-head configurations.
ORBI is a modular multi-head recessed downlight family designed for accent lighting applications that require multiple lighting directions from one ceiling opening.
Available in one-, two- and four-head configurations, each light module can be adjusted independently to direct light toward different products, artworks or display targets.
The modules are also independently removable, allowing individual replacement and servicing without changing the complete luminaire.
ORBI is especially suitable for museums, galleries, premium retail and display areas where flexible accent lighting and a clean ceiling layout are equally important.
Product Type: Modular Multi-Head Recessed Downlight
Module Diameter: Ø35 mm
Power Range: 4W–16W
Head Configurations: 1 / 2 / 4 Heads
Adjustment: 40° Single-Side Adjustment
Module: Independent Removable Light Modules
Aiming: Independent Adjustment for Each Head
Control: ON/OFF / TRIAC / DALI where available
Applications: Museum / Gallery / Premium Retail / Display Areas
Available in one-, two- and four-head configurations, each light module can be adjusted independently to direct light toward different products, artworks or display targets.
The modules are also independently removable, allowing individual replacement and servicing without changing the complete luminaire.
ORBI is especially suitable for museums, galleries, premium retail and display areas where flexible accent lighting and a clean ceiling layout are equally important.
Product Type: Modular Multi-Head Recessed Downlight
Module Diameter: Ø35 mm
Power Range: 4W–16W
Head Configurations: 1 / 2 / 4 Heads
Adjustment: 40° Single-Side Adjustment
Module: Independent Removable Light Modules
Aiming: Independent Adjustment for Each Head
Control: ON/OFF / TRIAC / DALI where available
Applications: Museum / Gallery / Premium Retail / Display Areas
Available products
Choose the right size
ORBI 35
Wattage: 4W
Size: Ø27*59mm
Lumen Output: 301lm
Beam Angle: 28° / 35° / 38° / 53°
Accessories
TEXTURED GLASS
HONEYCOMB LOUVER
CCT Selector Switch
LINEAR SPREAD LENS+1 more accessories
View details →TEXTURED GLASSHONEYCOMB LOUVERCCT Selector SwitchLINEAR SPREAD LENS
ORBI 35
Wattage: 4W*2
Size: Ø83*27mm
Lumen Output: 301lm
Beam Angle: 28° / 35° / 38° / 53°
AccessoriesTEXTURED GLASSHONEYCOMB LOUVERCCT Selector SwitchLINEAR SPREAD LENS+1 more accessories
View details →TEXTURED GLASSHONEYCOMB LOUVERCCT Selector SwitchLINEAR SPREAD LENS

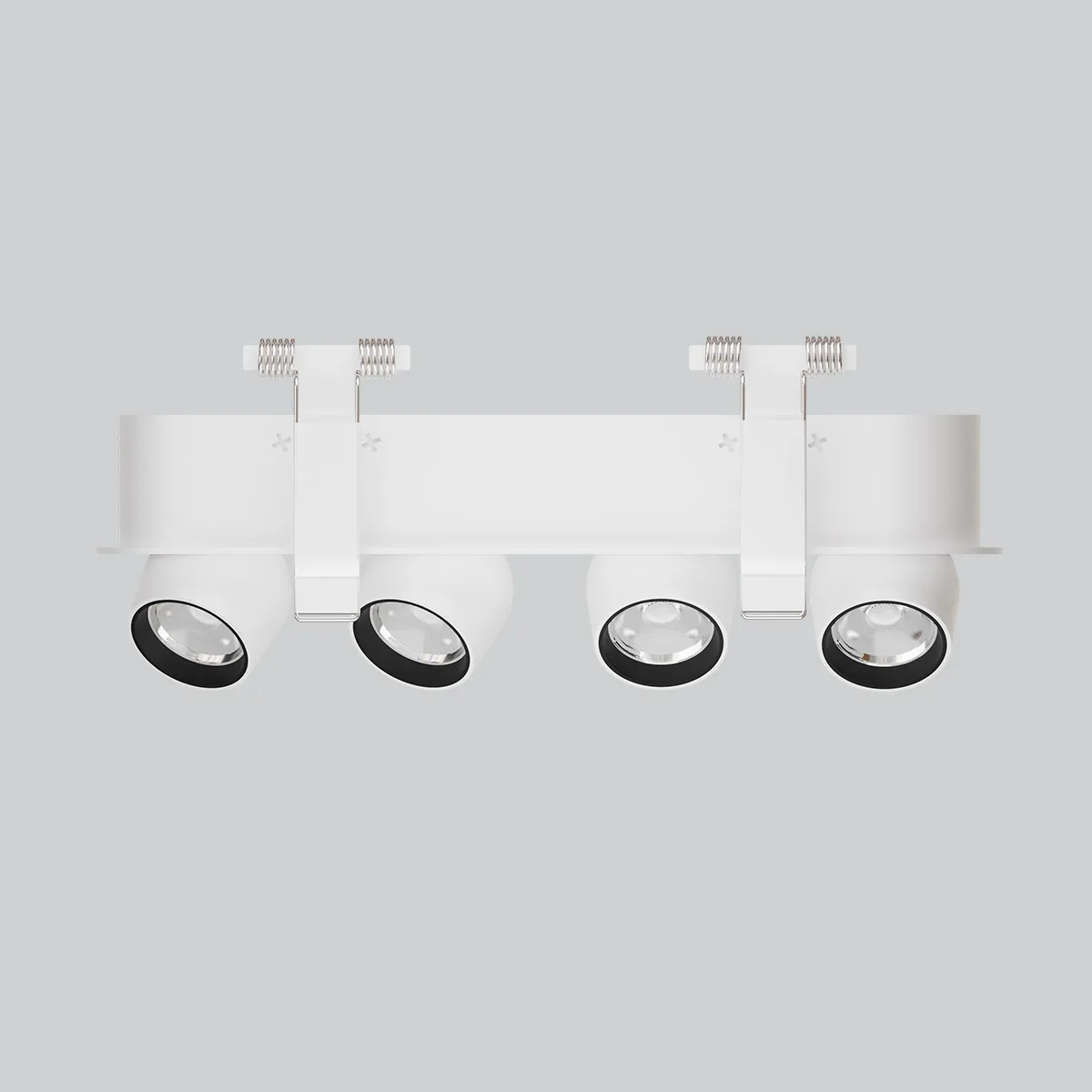

ORBI 35
Wattage: 4W*4
Size: Ø163*27mm
Lumen Output: 301lm
Beam Angle: 28° / 35° / 38° / 53°
AccessoriesTEXTURED GLASSHONEYCOMB LOUVERCCT Selector SwitchLINEAR SPREAD LENS+1 more accessories
View details →TEXTURED GLASSHONEYCOMB LOUVERCCT Selector SwitchLINEAR SPREAD LENSWhy Choose ORBI
ORBI is designed for projects where several lighting targets need to be illuminated from one ceiling position.
Each recessed spotlight module can be aimed independently, allowing different artworks, products or display areas to be illuminated from the same luminaire platform.
With one-, two- and four-head configurations and individually removable modules, ORBI provides greater flexibility while helping keep the ceiling layout clean and organized.
CHARACTERISTICS
What Defines ORBI
Independent Adjustable Aiming
Each light head can be adjusted independently, allowing multiple lighting directions from a single ceiling opening.
Independent Removable Modules
Each light module can be removed independently for easier replacement, servicing and project configuration.
Clean Ceiling Integration
Multiple accent lights are grouped within one recessed platform, helping reduce the number of separate ceiling openings and maintain a cleaner architectural layout.
APPLICATIONS
Where ORBI Performs Best
ORBI is developed for spaces where several display targets require independent accent lighting from one recessed ceiling position.

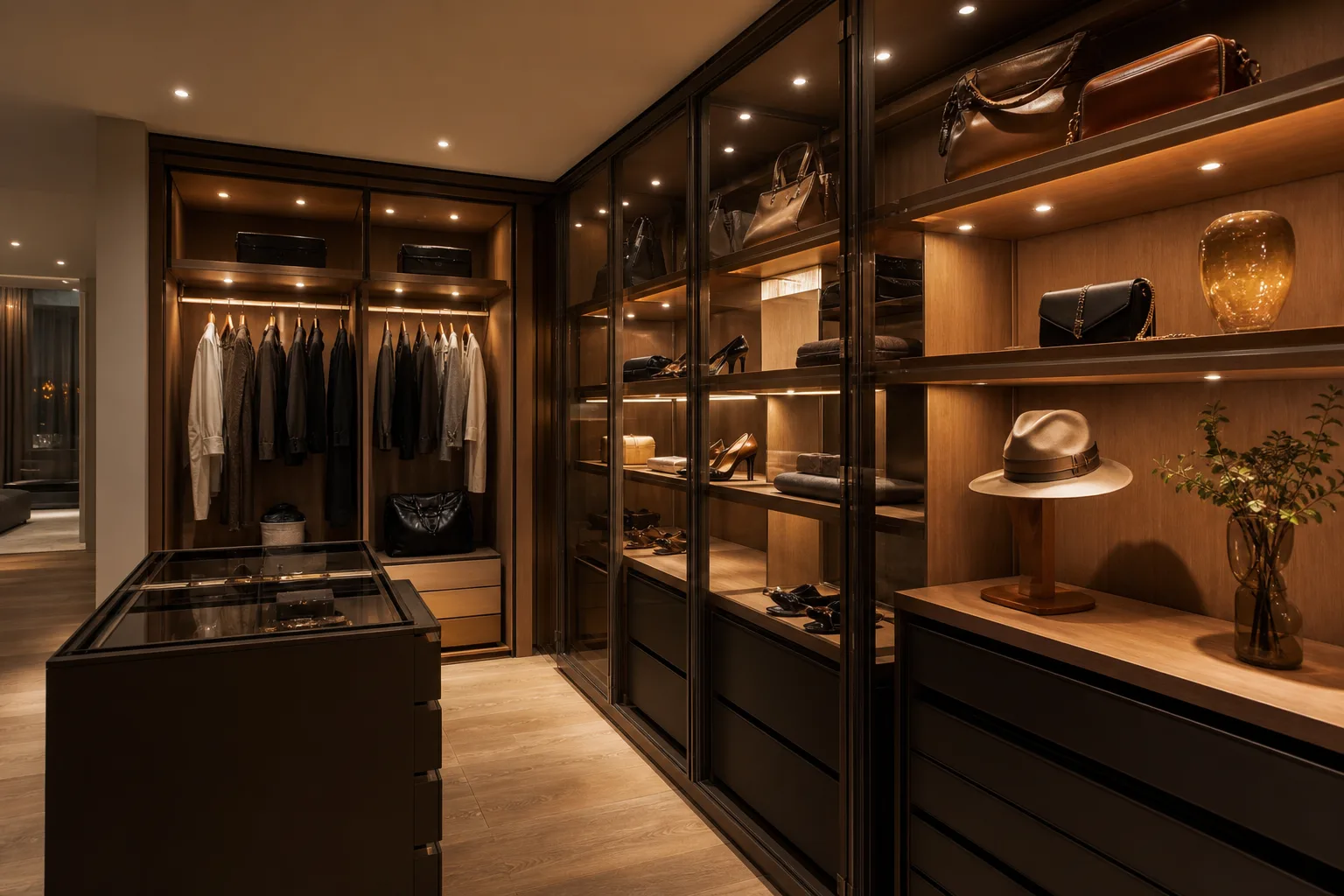

Walk-In Wardrobes
Independently adjustable heads support accent lighting for clothing and accessories from a compact recessed position.
- Walk-In Wardrobes
- Accessory Displays

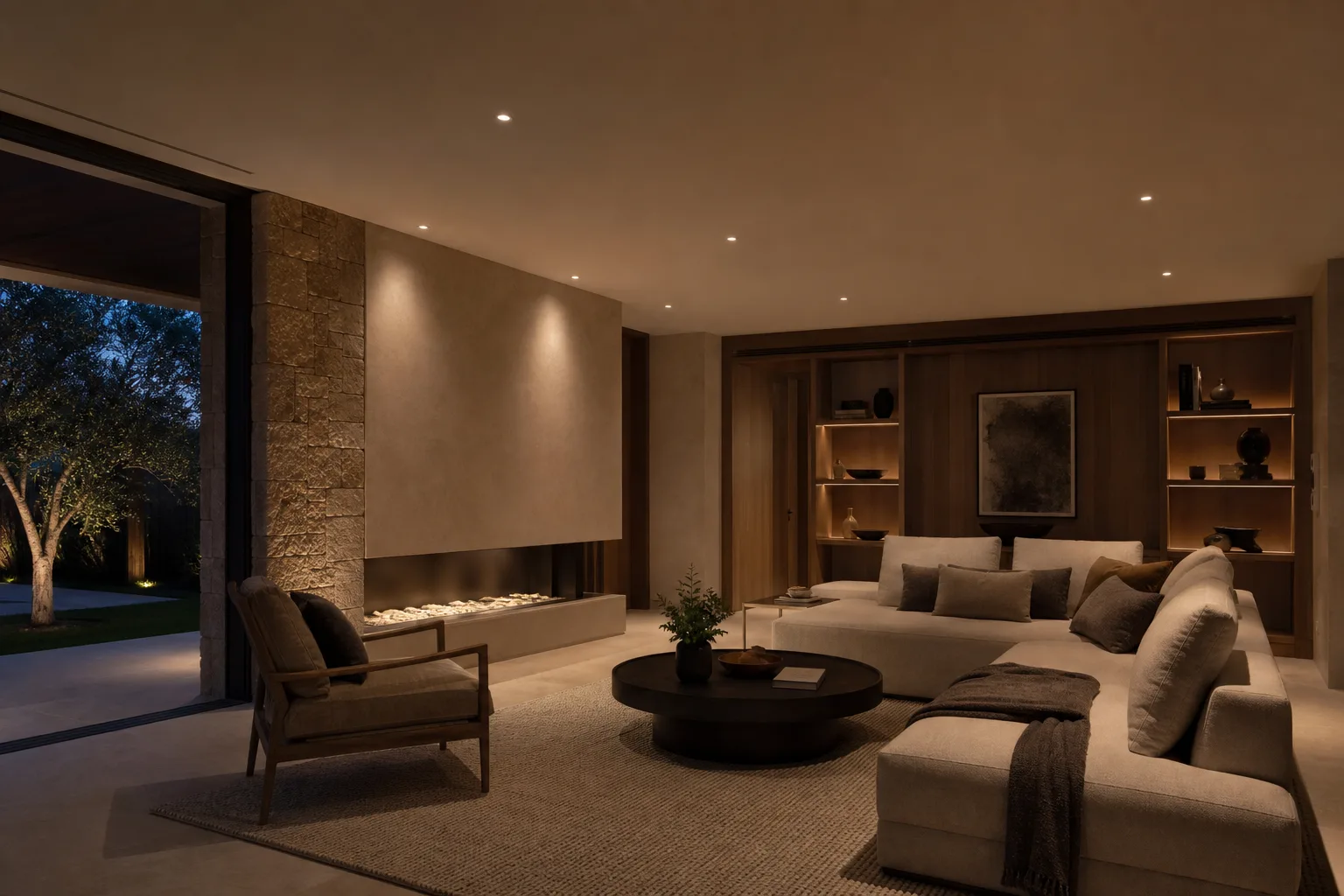

Residential Lounges
Separate light heads can highlight artwork and interior features while supporting a calm layered lighting scheme.
- Living Rooms
- Private Lounges
Private Dining
Independent aiming supports focused table lighting and accent illumination for selected dining-room features.
- Private Dining Rooms
- Restaurants

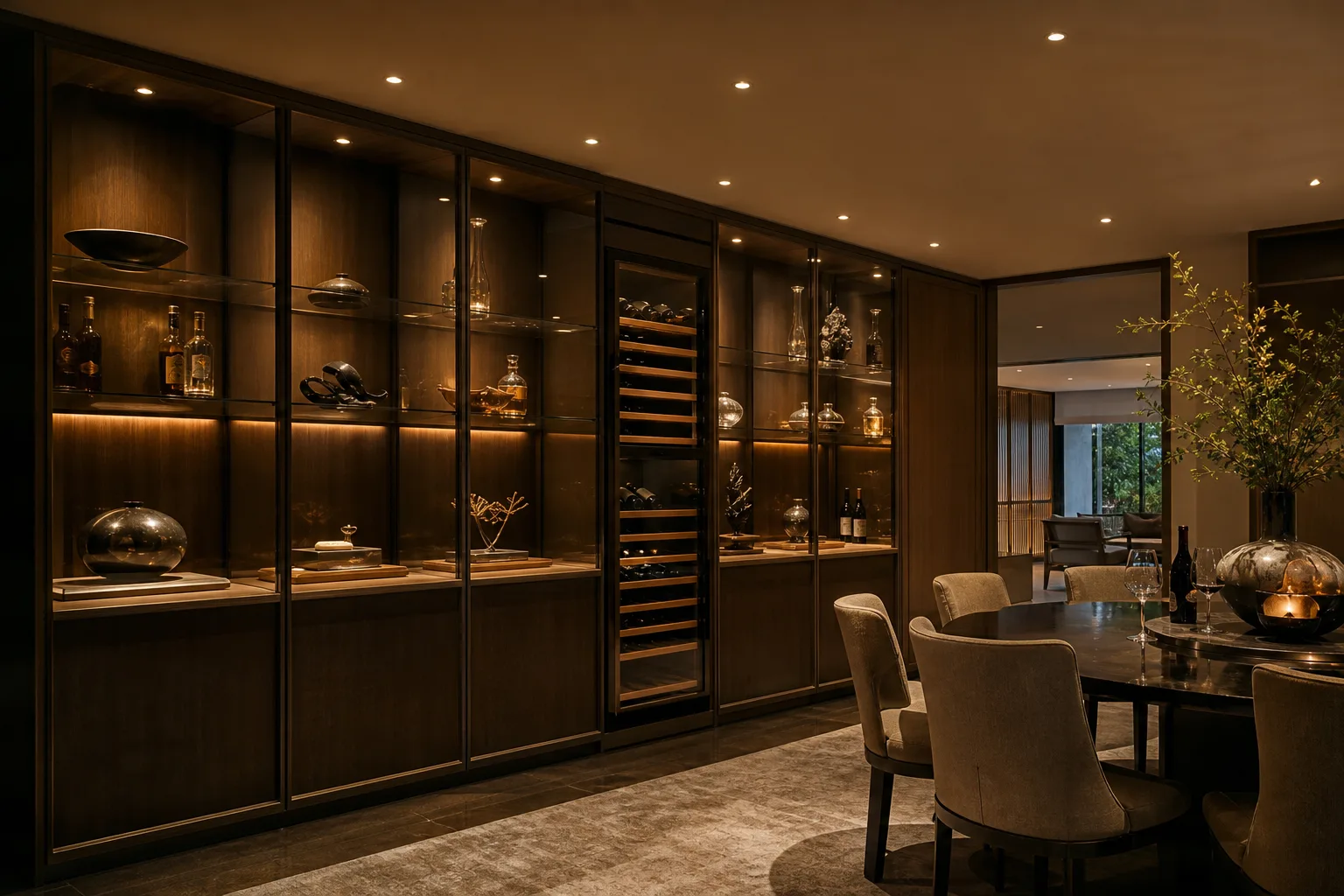

Wine & Display Rooms
Multi-head configurations support separate lighting targets around wine displays, decorative objects and dining areas.
- Wine Displays
- Residential Dining
LIGHTING REFERENCES
ORBI — Interior Lighting References
Interior references for planning ORBI multi-head recessed lighting in residential and dining spaces. These scenes illustrate application ideas, not verified completed project records.
RESIDENTIAL

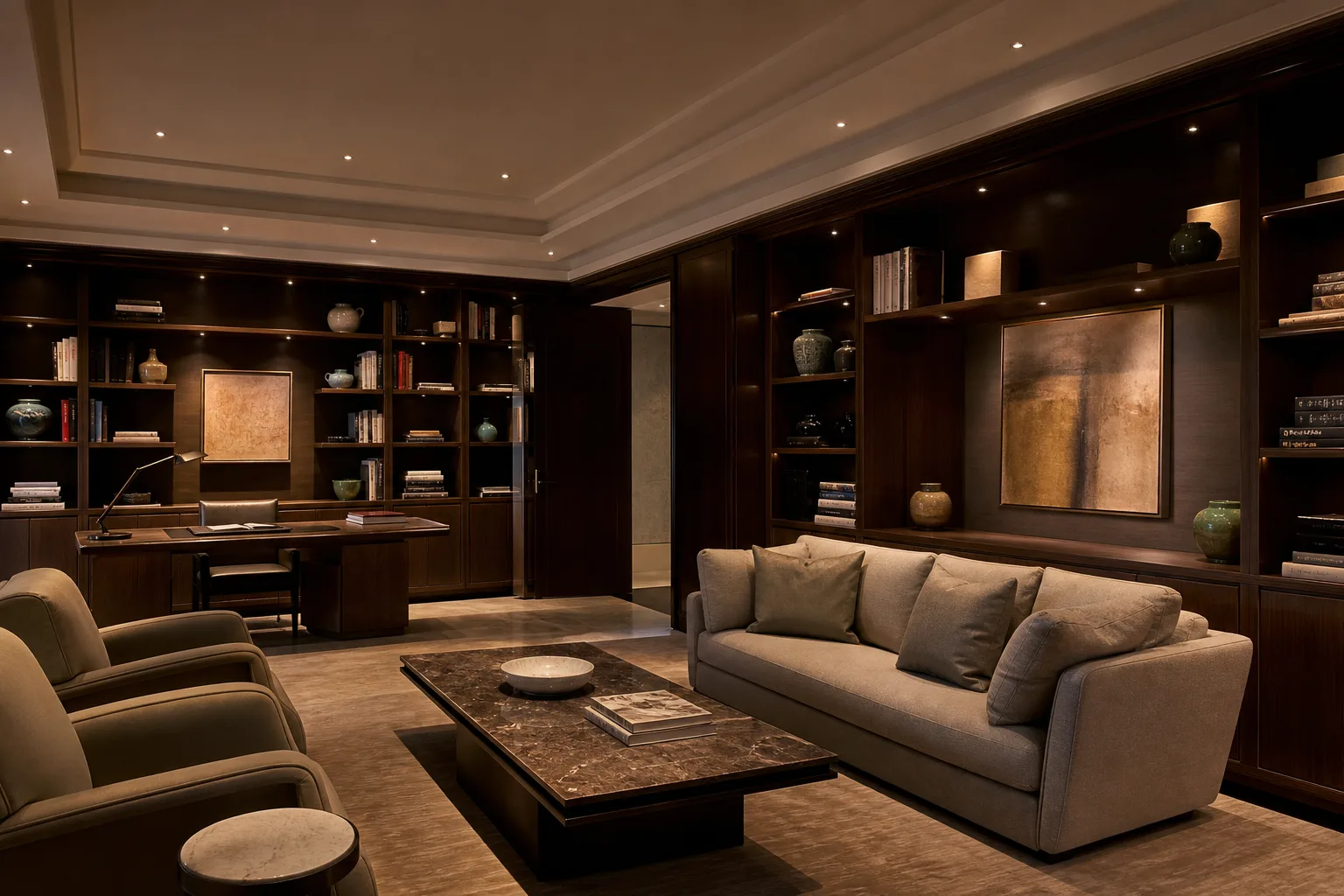

Villa Library Lighting Reference
Shelving, artwork and seating provide separate accent-lighting targets for a multi-head recessed lighting layout.
Product used
Beam angle
Control
RESTAURANT

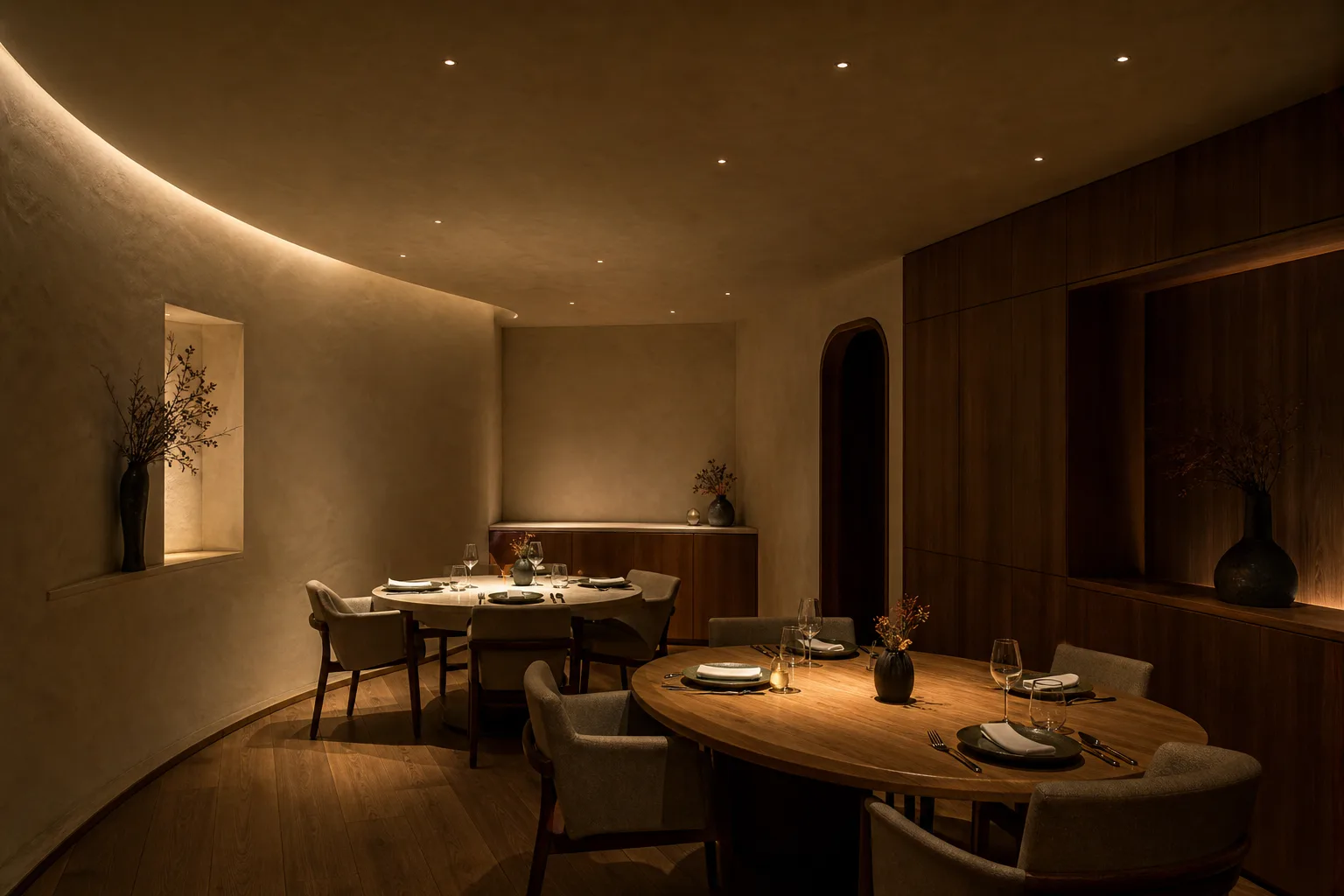

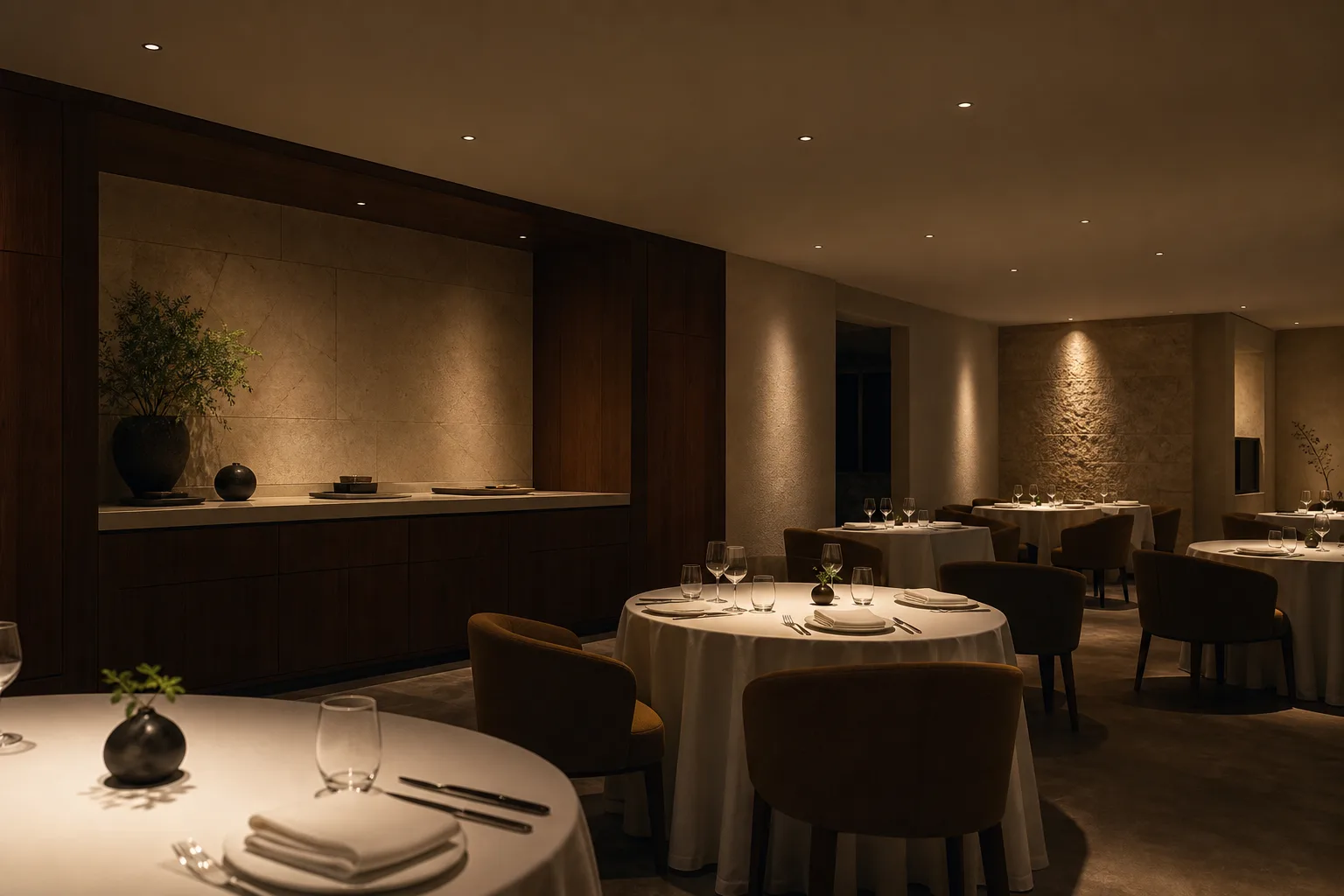

Private Dining Lighting Reference
A private dining setting illustrates the balance between focused table illumination and restrained background lighting.
Product used
Beam angle
Control
RESIDENTIAL

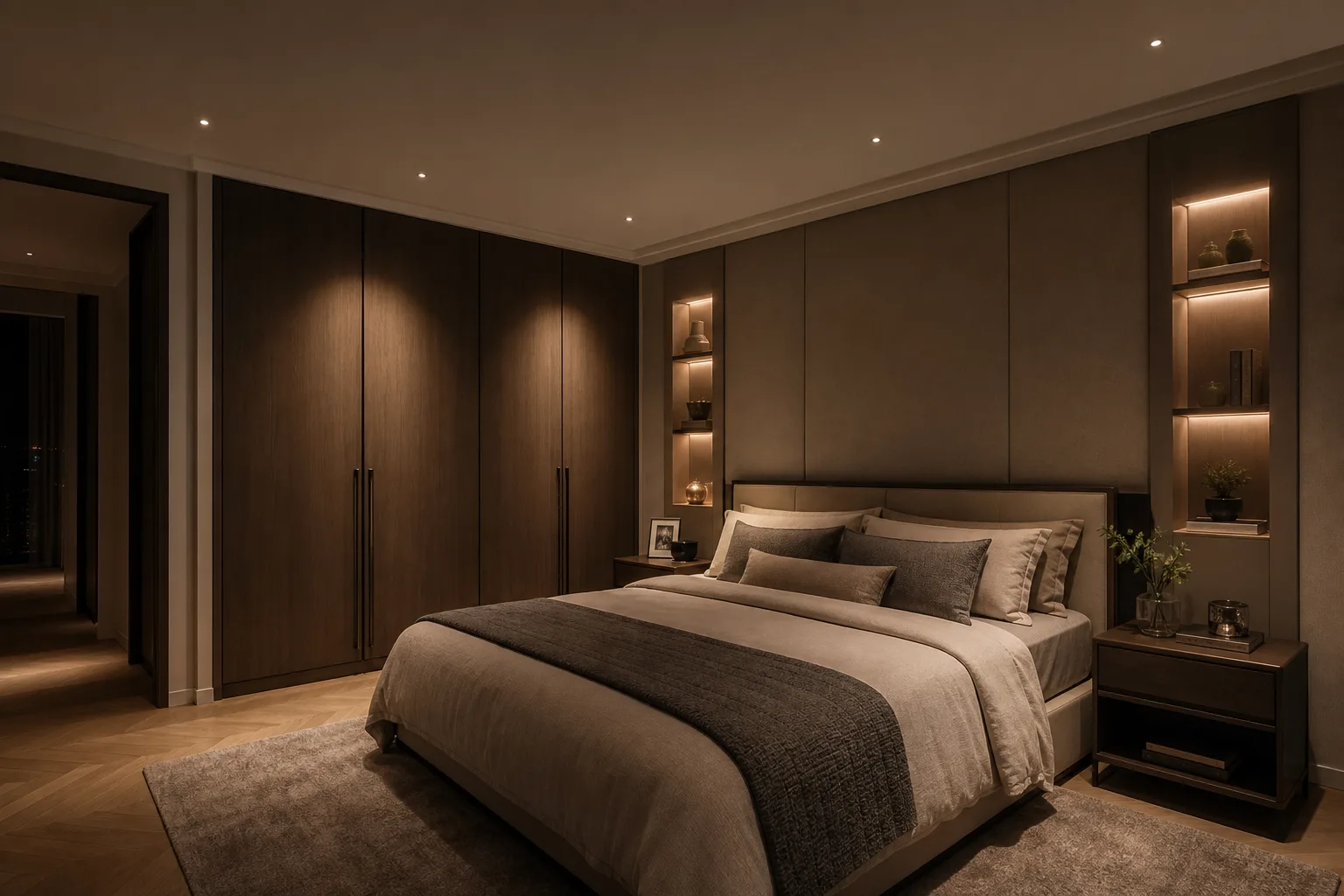

Bedroom Suite Lighting Reference
A bedroom suite illustrates a layered lighting approach for sleeping, dressing and display areas.
Product used
Beam angle
Control
SYSTEM CATALOGUE
Download ORBI Product Datasheet
Download the ORBI technical datasheet for module dimensions, power options, head configurations, adjustment details and control methods.
PROJECT SUPPORT
Configure ORBI for Your Project
Tell us how many lighting targets you need to illuminate, the required number of heads, beam direction and control method, and we can help recommend the suitable ORBI configuration.
