Display-focused System
Designed specifically for showcase and luxury display environments where object presentation is critical.
SHOWLITE PROFESSIONAL DISPLAY LIGHTING SYSTEM
Wall washer, adjustable, rotating and pull-out versions for high-flexibility displays.
* SHOWLITE is a professional display lighting system developed for showcases, jewellery stores, museums and luxury retail environments.
* Multiple versions including wall washer, adjustable, rotating and pull-out options help designers solve different display lighting tasks within one product family.
* The range is suitable for projects that require flexible, precise and serviceable display illumination.
Key Specifications
Applications: Jewellery / Museum / Showcase / Luxury Retail
Diameter Range: Ø30 / Ø45 / Ø50
Power Range: 4W
Versions: Wall washer / adjustable / rotating / pull-out
Function: Professional display lighting system
Flexibility: High flexibility
Control: ON/OFF / TRIAC / DALI where available
* Multiple versions including wall washer, adjustable, rotating and pull-out options help designers solve different display lighting tasks within one product family.
* The range is suitable for projects that require flexible, precise and serviceable display illumination.
Key Specifications
Applications: Jewellery / Museum / Showcase / Luxury Retail
Diameter Range: Ø30 / Ø45 / Ø50
Power Range: 4W
Versions: Wall washer / adjustable / rotating / pull-out
Function: Professional display lighting system
Flexibility: High flexibility
Control: ON/OFF / TRIAC / DALI where available
Available products
Choose the right size

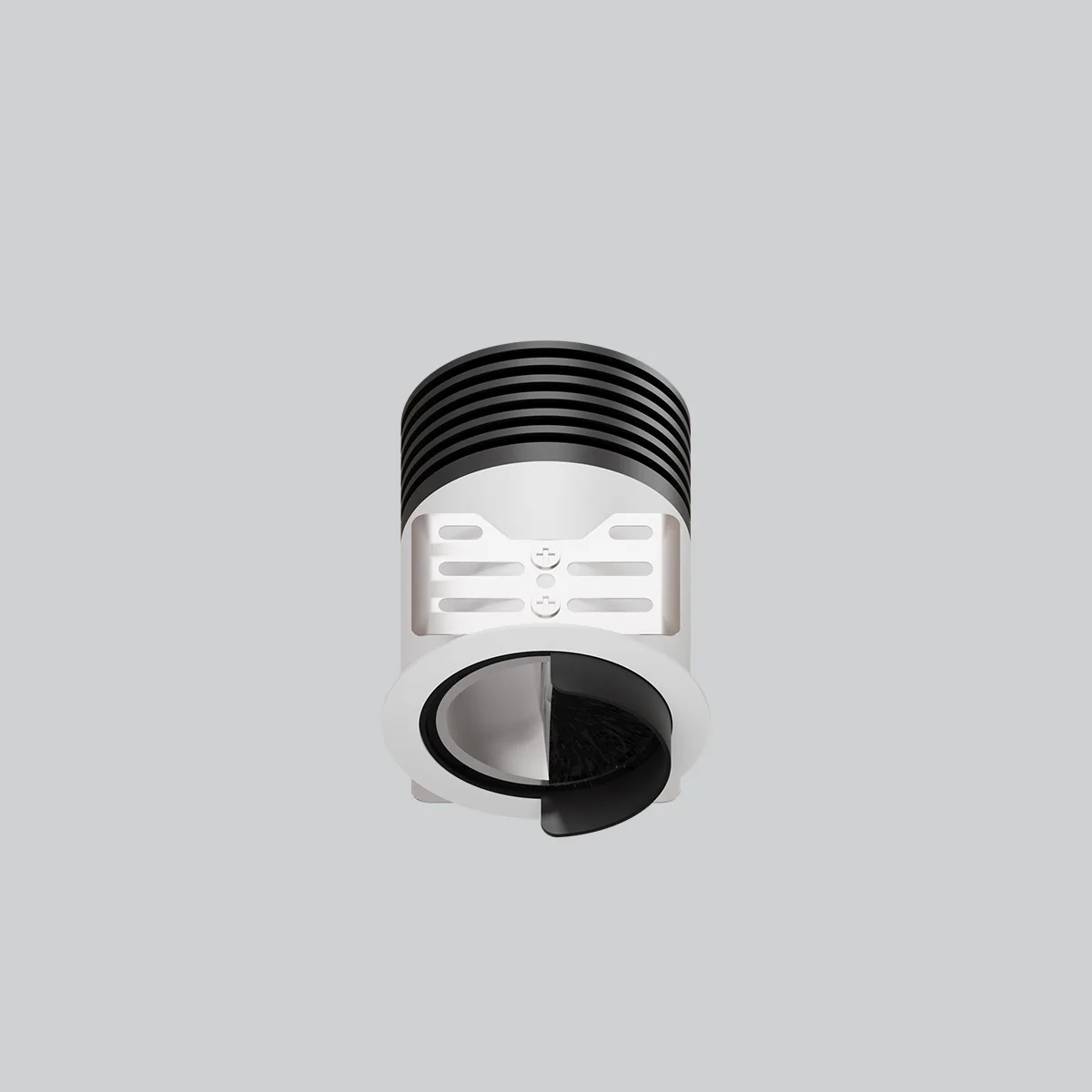

SHOWLITE 50
Wattage: 4W
Size: Ø55*31mm
Lumen Output: 301lm
Beam Angle: 28° / 35° / 38° / 53°
SHOWLITE 45
Wattage: 4W
Size: Ø52*32mm
Lumen Output: 285lm
Beam Angle: 19° / 23° / 28° / 46°
SHOWLITE 45
Wattage: 4W
Size: Ø52*40mm
Lumen Output: 277lm
Beam Angle: 19° / 23° / 28° / 40°
SHOWLITE 30
Wattage: 4W
Size: Ø36*35mm
Lumen Output: 150lm
Beam Angle: ww Tilted 10° Beam 45°
SHOWLITE 50
Wattage: 9W
Size: Ø55*64mm
Lumen Output: 425lm
Beam Angle: ww Tilted 10° Beam 48°
Why Choose SHOWLITE
SHOWLITE helps designers create a consistent lighting language while matching the functional needs of real architectural projects.
With its focused product positioning and application-specific features, the system simplifies specification while supporting visual comfort, reliable performance and design flexibility.
Suitable for jewellery / museum / showcase / luxury retail projects.
Characteristics
What defines SHOWLITE
Multiple Functional Versions
Wall washer, adjustable, rotating and pull-out versions support different display structures and lighting angles.
High Flexibility
The system adapts to changing merchandise, exhibit layouts and display furniture requirements.
Professional Accent Performance
SHOWLITE helps reveal small objects, jewellery, artworks and premium products with controlled illumination.
Applications
Where SHOWLITE Performs Best
SHOWLITE is a cabinet and showcase light for jewellery, museum cases, luxury retail shelves and display furniture where compact size, colour quality and close-range beam control matter. It should be planned together with cabinet depth, glass reflections, driver access and heat management.

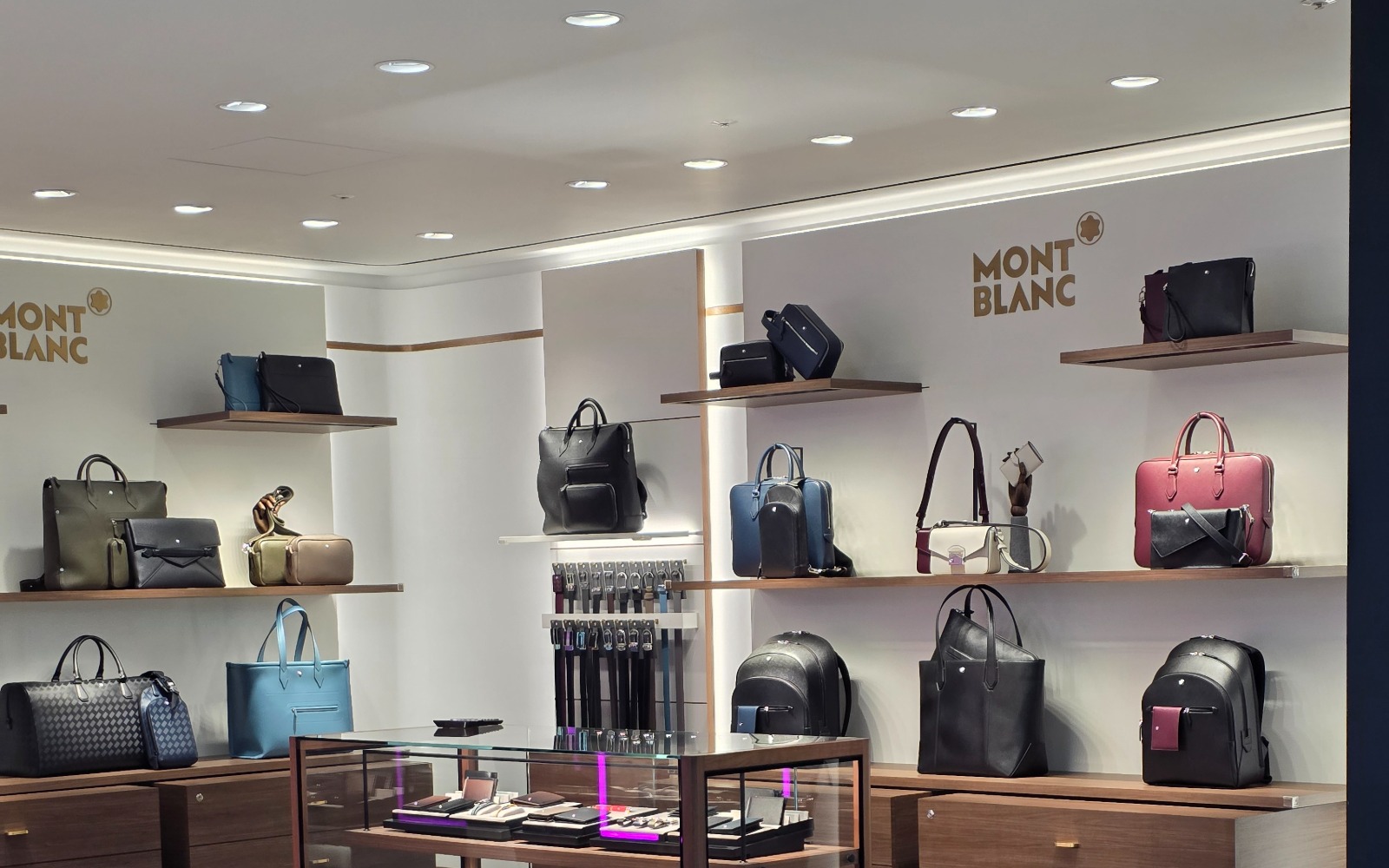

Jewellery Lighting
SHOWLITE is suited to jewellery counters and showcase interiors where small objects need sparkle and high contrast. Test beam angle and dimming on real glass and metal surfaces to avoid uncontrolled reflections.
- Best for jewellery cases
- watches and small luxury objects
- Close-range beam control helps create sparkle and product contrast
- Check glare and reflections from glass
- mirror and polished metal
- Plan driver access and maintenance before cabinet fabrication
Museum Showcase Lighting
For museum cases, SHOWLITE can illuminate small artefacts from a compact position. Confirm conservation limits, heat conditions and access for future replacement before finalizing the showcase detail.
- Suitable for small artefacts
- vitrines and protected display cases
- Compact source can be integrated into case structure
- Confirm lux limits
- heat and conservation requirements
- Use dimming and careful aiming to protect sensitive exhibits

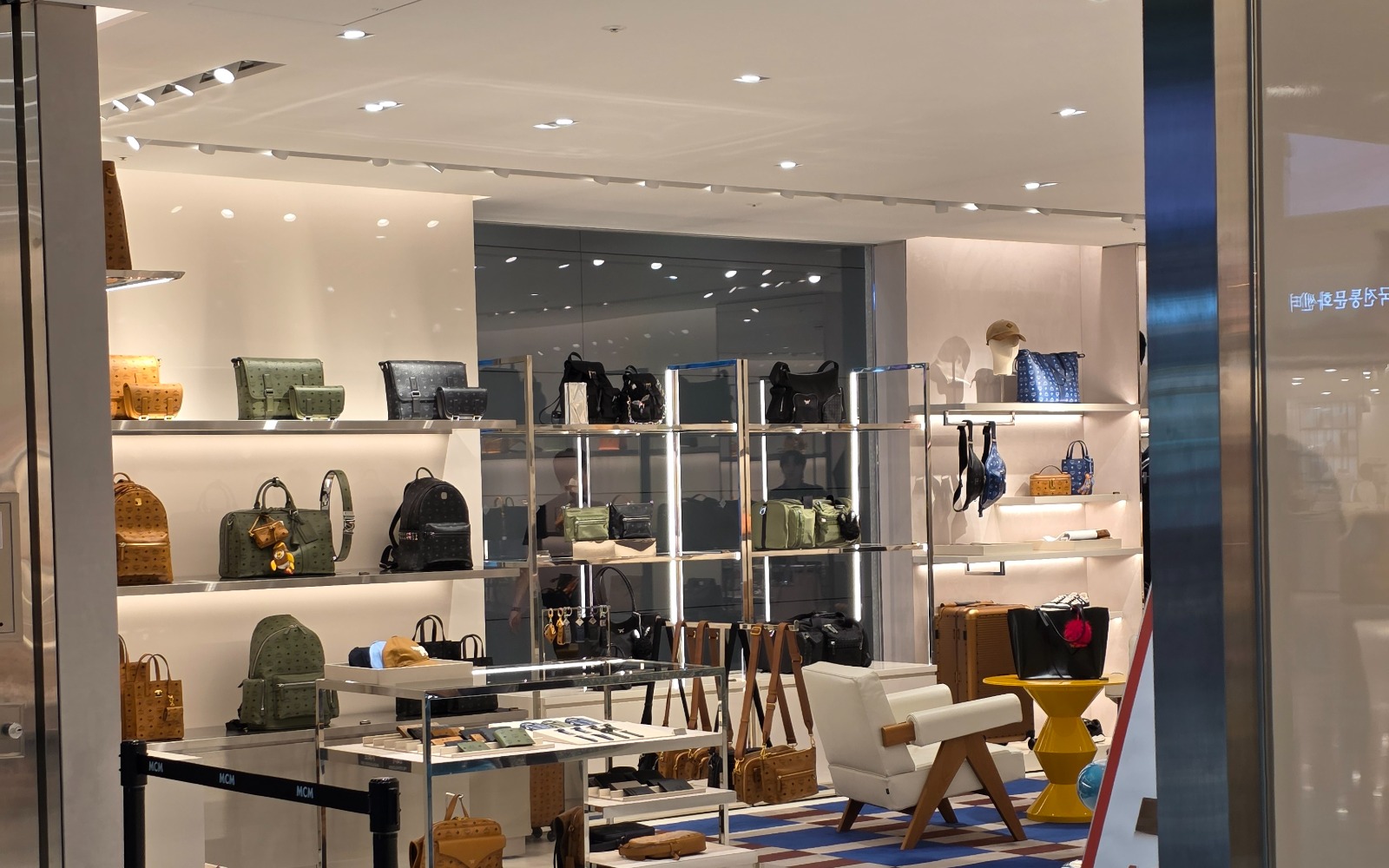

Luxury Retail Lighting
In luxury retail, SHOWLITE works inside shelves, niches and display furniture where standard ceiling lighting cannot reach the product face. Use it to support close details, not to light the whole store.
- Good for shelves
- niches
- accessories and close product details
- Brings light directly to merchandise inside furniture
- High colour quality helps materials and finishes read correctly
- Pair with ceiling accent lighting for overall product hierarchy
Display Cabinet Lighting
SHOWLITE should be coordinated with cabinet dimensions, shelf material and opening direction. A small change in fixture position can create visible glare, so sample testing is strongly recommended before production.
- Designed for cabinets
- showcases and display furniture
- Coordinate fixture position with shelf depth and door opening
- Test glass reflections and hotspot risk before mass production
- Document driver location for service teams
Projects
Projects using SHOWLITE
See how SHOWLITE delivers precision and performance in real-world projects.
Retail

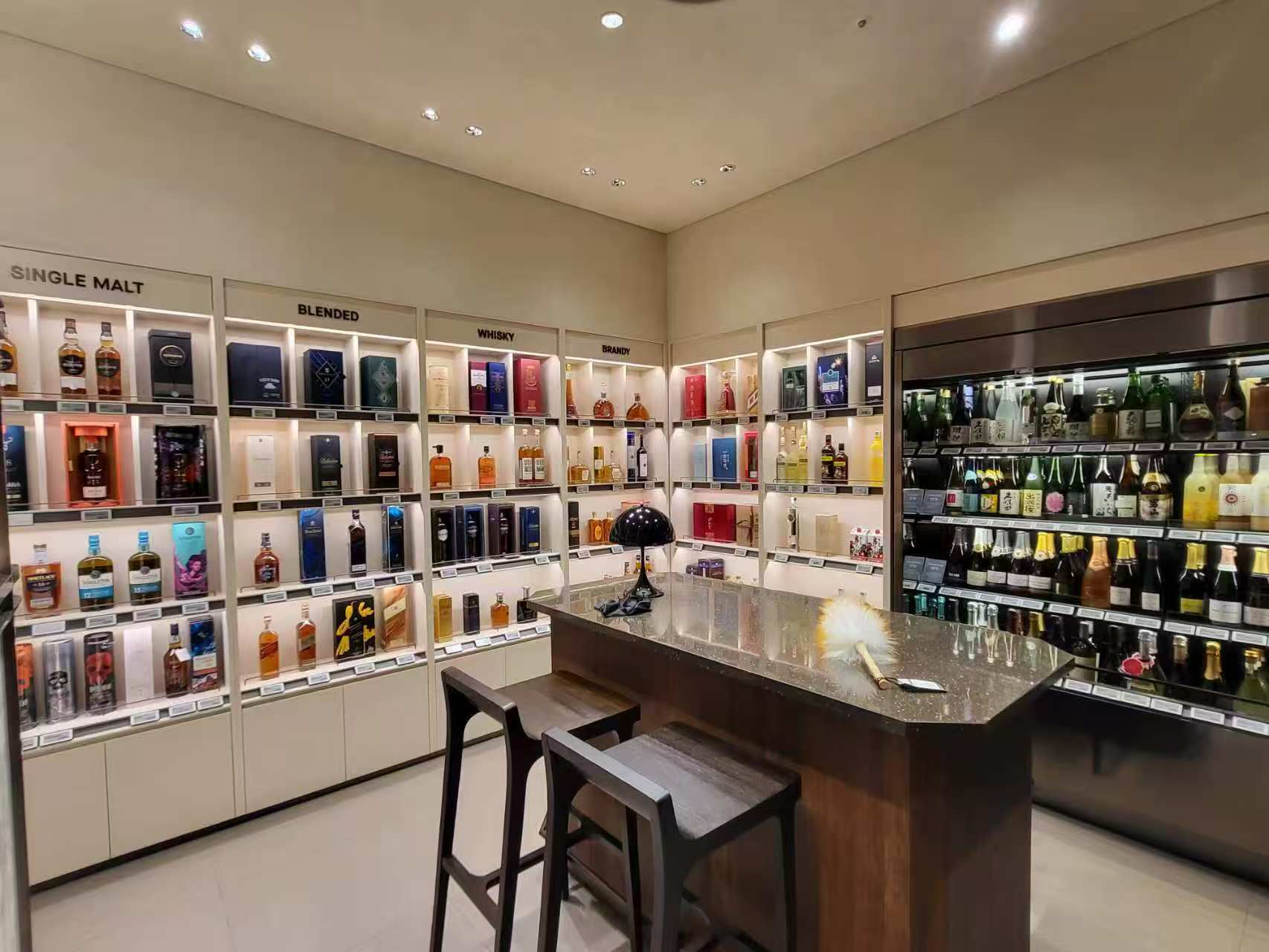

Lotte Duty Free Singapore Wine Gallery project
SHOWLITE track lights were selected for precise beam control and high visual comfort, enhancing the shopping experience and product presentation.
Product usedSHOWLITE 45
Beam angle28°
ControlDALI
Retail

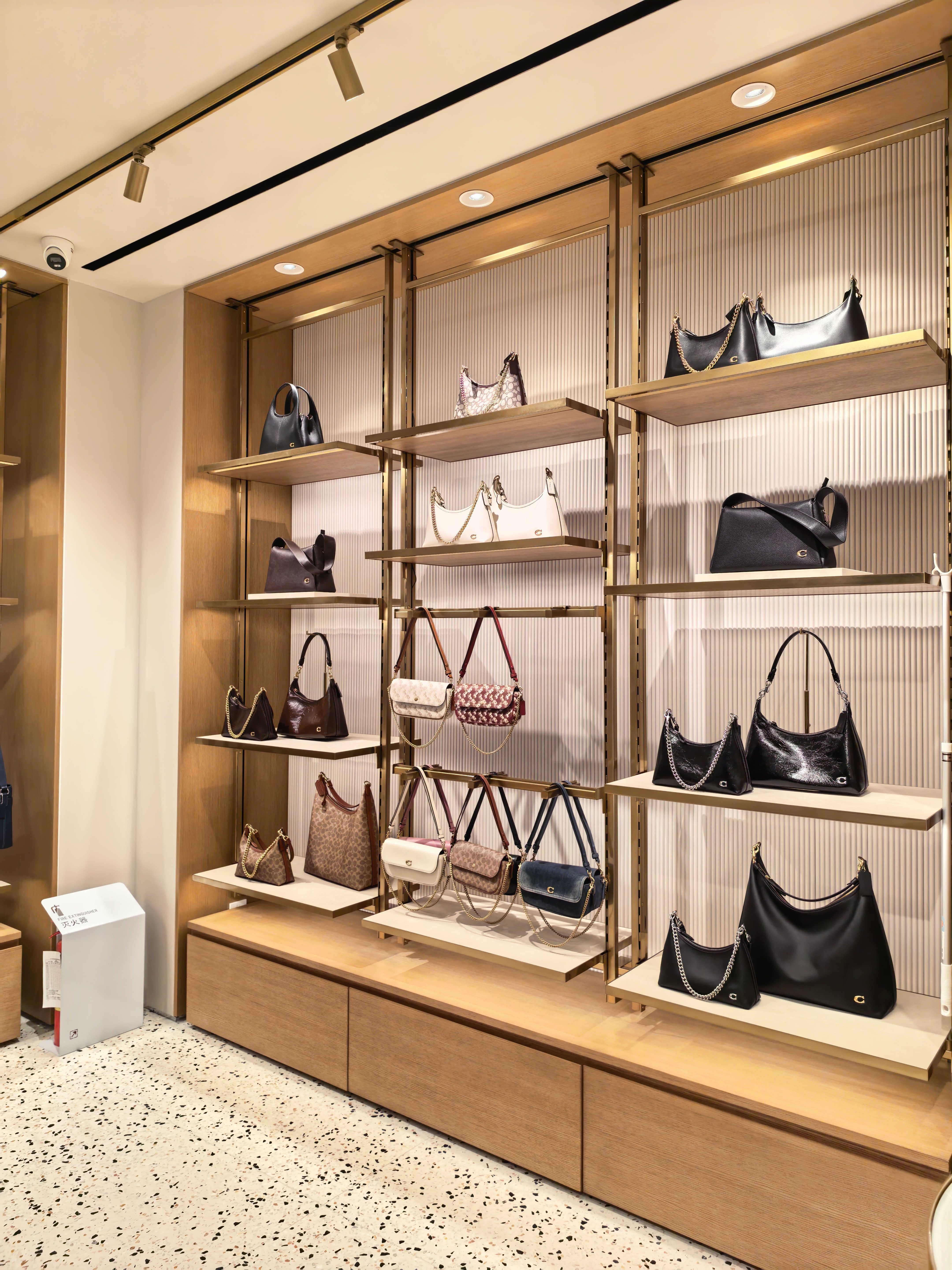

Xi'an Bag Store
Custom beam angles and high CRI lighting bring out the true texture and colour of fabrics and materials, creating an elegant and inviting atmosphere.
Product usedSHOWLITE 50
Beam angle35°
ControlTRIAC
Retail

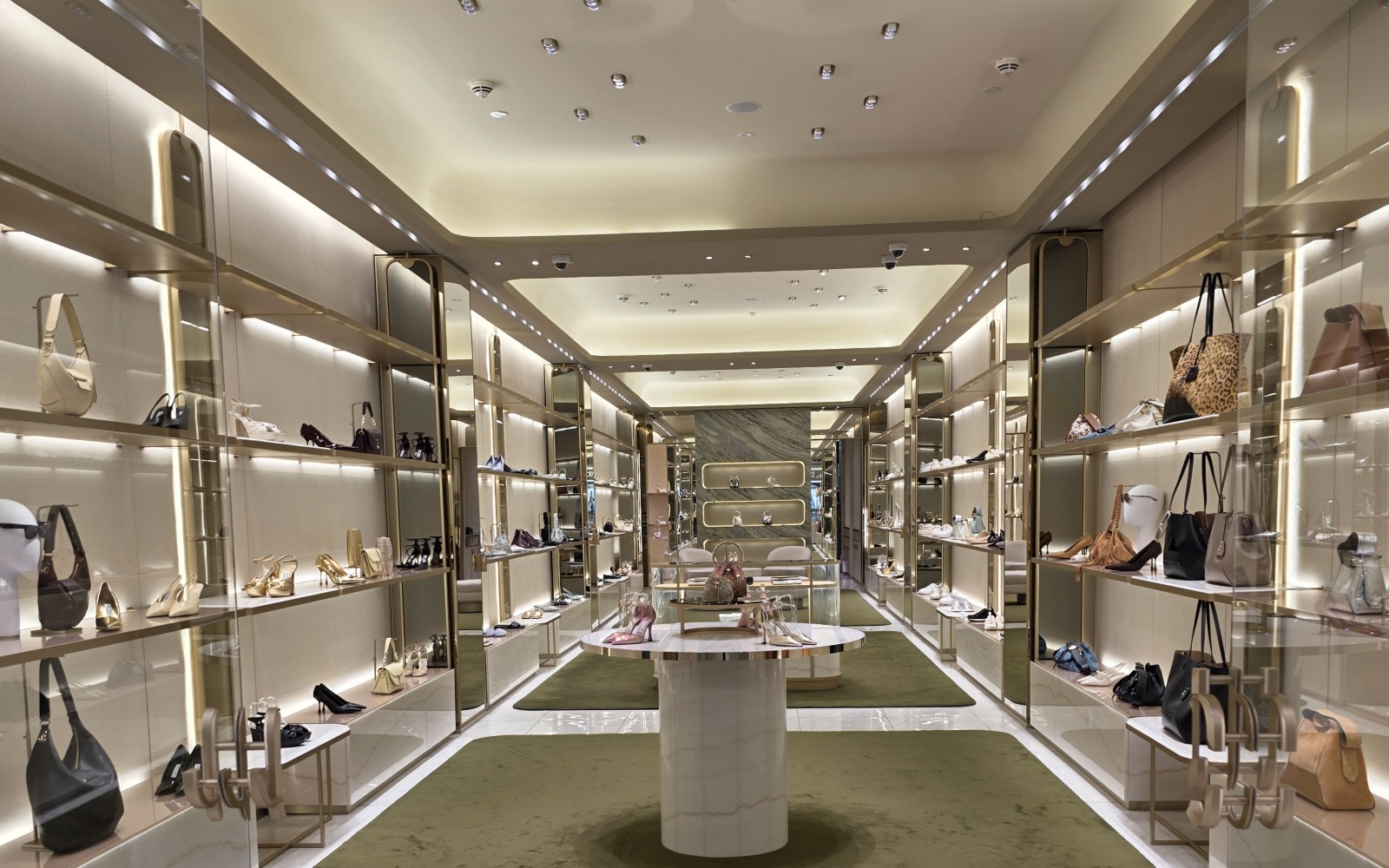

Luxury Accessories Store
SHOWLITE provides uniform and comfortable lighting, supporting productivity while maintaining a clean architectural aesthetic.
Product usedSHOWLITE 50
Beam angle38°
ControlDALI
System catalogue
Download SHOWLITE system catalogue
Download the latest family catalogue, technical files and specification resources for this product system.
Project support
Request SHOWLITE for your next project
Get quotation support, samples and technical files for this product family.
