Compact Cut-Out Sizes
Available in 55 mm, 75 mm and 95 mm cut-out sizes, SLIM E keeps the ceiling opening compact across different power levels.
A compact fixed commercial downlight with high lumen output and strong project value for retail, office and mall applications.
Available products

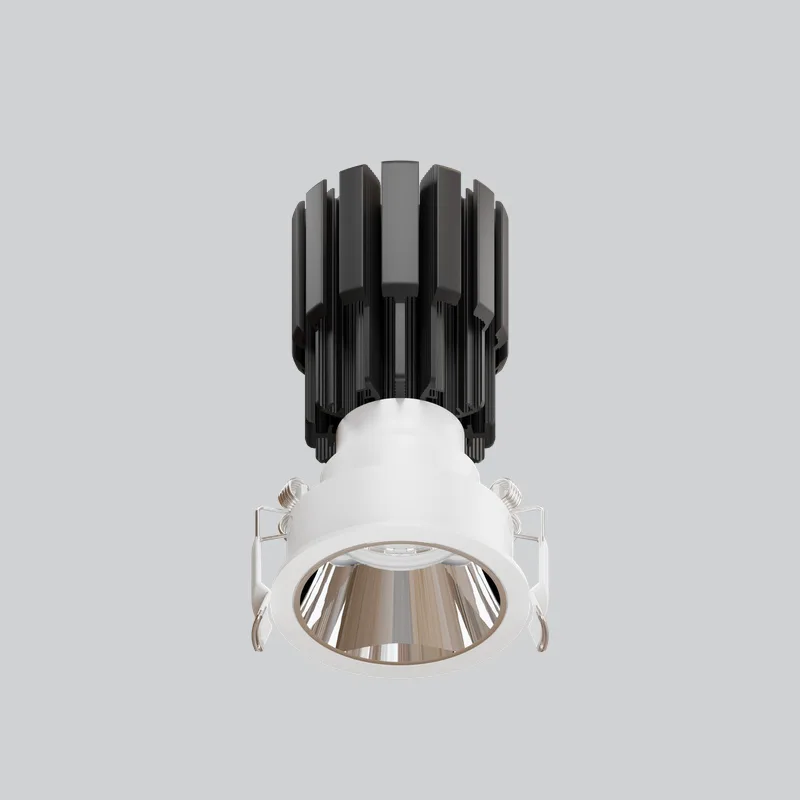

Wattage: 14W
Size: Ø61 × 110mm
Lumen Output: 1487lm at 3000K
Beam Angle: 25°/30°/37°/48°
TEXTURED GLASS
HONEYCOMB LOUVER
CCT Selector Switch
LINEAR SPREAD LENS

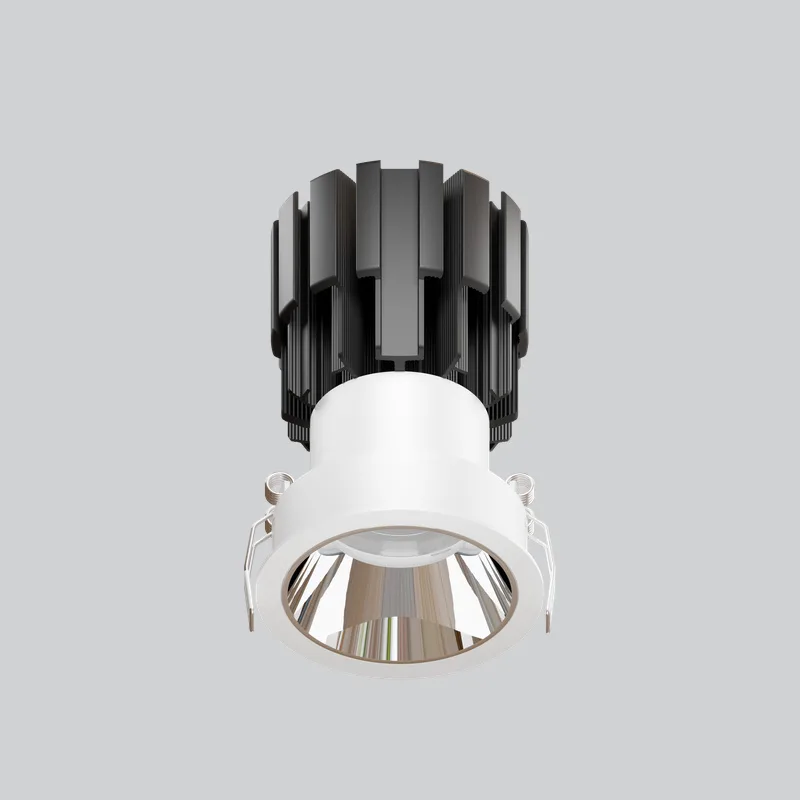

Wattage: 32W
Size: Ø83 × 128mm
Lumen Output: 3443lm at 3000K
Beam Angle: 25°/31°/52°/56°
TEXTURED GLASS
HONEYCOMB LOUVER
CCT Selector Switch
LINEAR SPREAD LENS

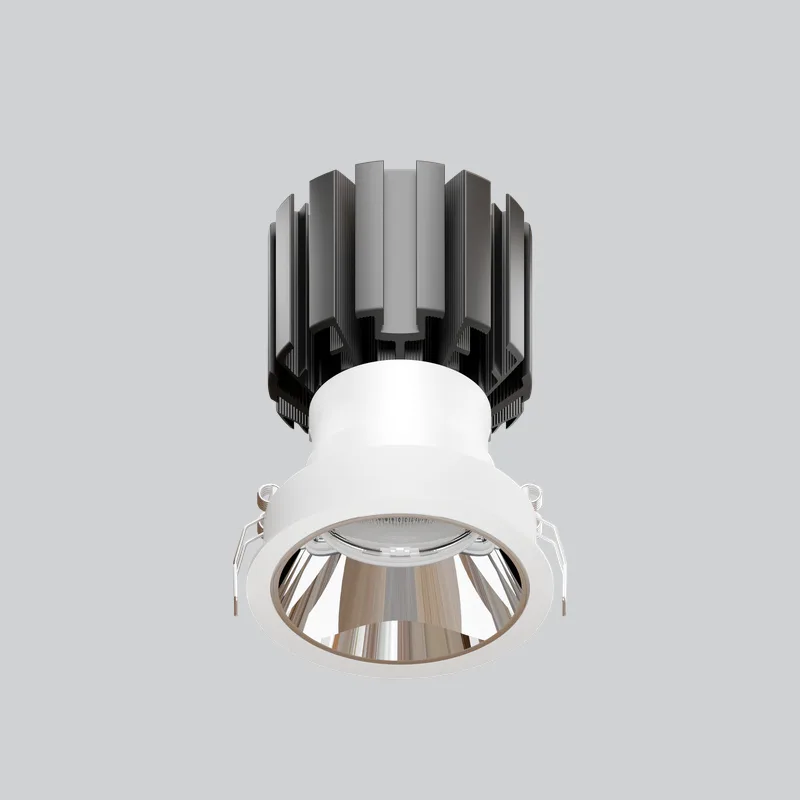

Wattage: 42W
Size: Ø105 × 141mm
Lumen Output: 4536lm at 3000K
Beam Angle: 22°/34°/35°/49°
TEXTURED GLASS
HONEYCOMB LOUVER
CCT Selector Switch
LINEAR SPREAD LENSSLIM E is designed for projects that need stronger lumen output without moving to a larger ceiling cut-out.
Its compact body supports relatively high power and lumen performance, while the fixed optical structure keeps the product simple, practical and cost-efficient.
This balance makes SLIM E especially suitable for commercial projects where ceiling space, output requirement and project budget all need to be considered.
CHARACTERISTICS
Available in 55 mm, 75 mm and 95 mm cut-out sizes, SLIM E keeps the ceiling opening compact across different power levels.
Up to 42W output is available within the compact family, providing stronger performance without requiring an oversized luminaire.
The family delivers up to 4536 lm for demanding retail, office and shopping mall lighting applications.
The fixed optical structure removes unnecessary adjustment mechanisms, helping simplify specification and improve overall project value.
APPLICATIONS
SLIM E is developed for commercial interiors where compact ceiling cut-outs, high output and practical project cost are key priorities.

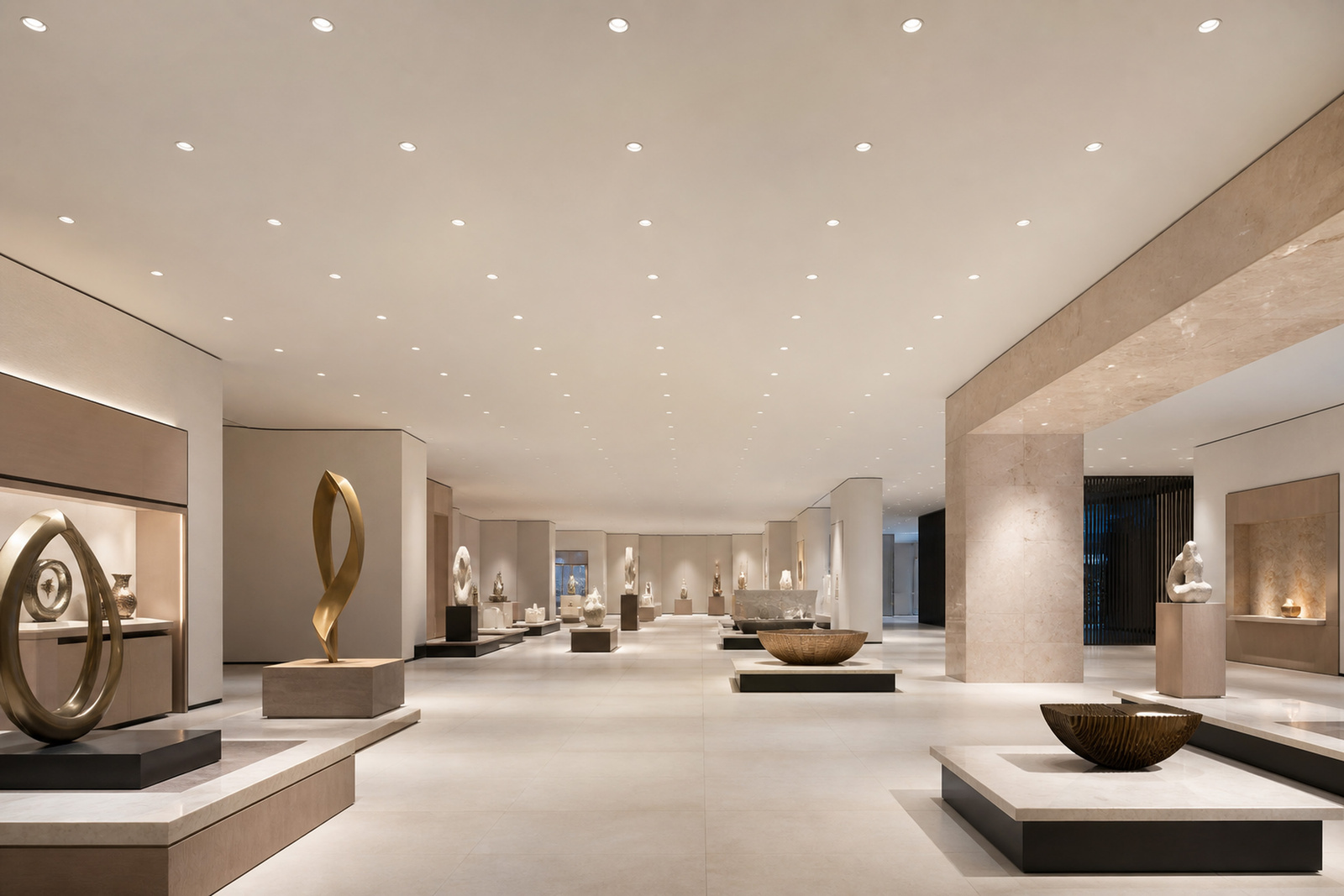

Fixed recessed downlights support general overhead illumination in exhibition halls while keeping ceiling openings compact.

A regular recessed lighting layout supports circulation between gallery spaces with a restrained ceiling appearance.

High-output configurations support general lighting across mall circulation routes and shared public areas.

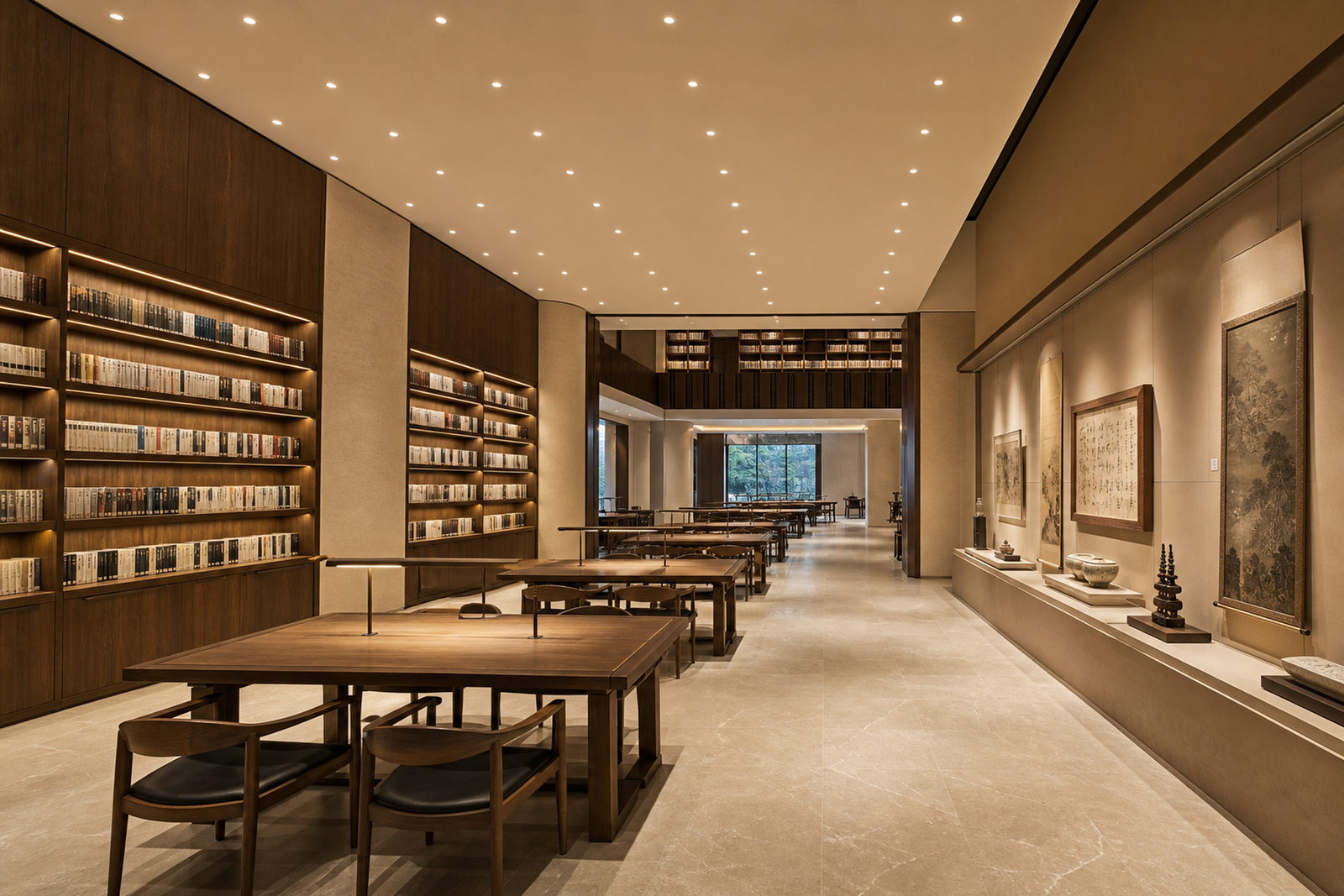

Compact fixed recessed downlights support general illumination around reading tables and circulation areas.
LIGHTING CONCEPTS
AI-generated application visualizations showing SLIM E in different commercial settings. These are design concepts, not photographs of completed projects.

SLIM E fixed recessed downlights illustrate overhead lighting for a contemporary menswear boutique. Deep silver reflectors and compact white trims complement the stone and walnut interior. AI-generated design concept; not a completed installation.

SLIM E fixed recessed downlights illustrate general lighting above an office reception counter and circulation area, alongside natural daylight and a glass meeting room. AI-generated design concept; not a completed installation.

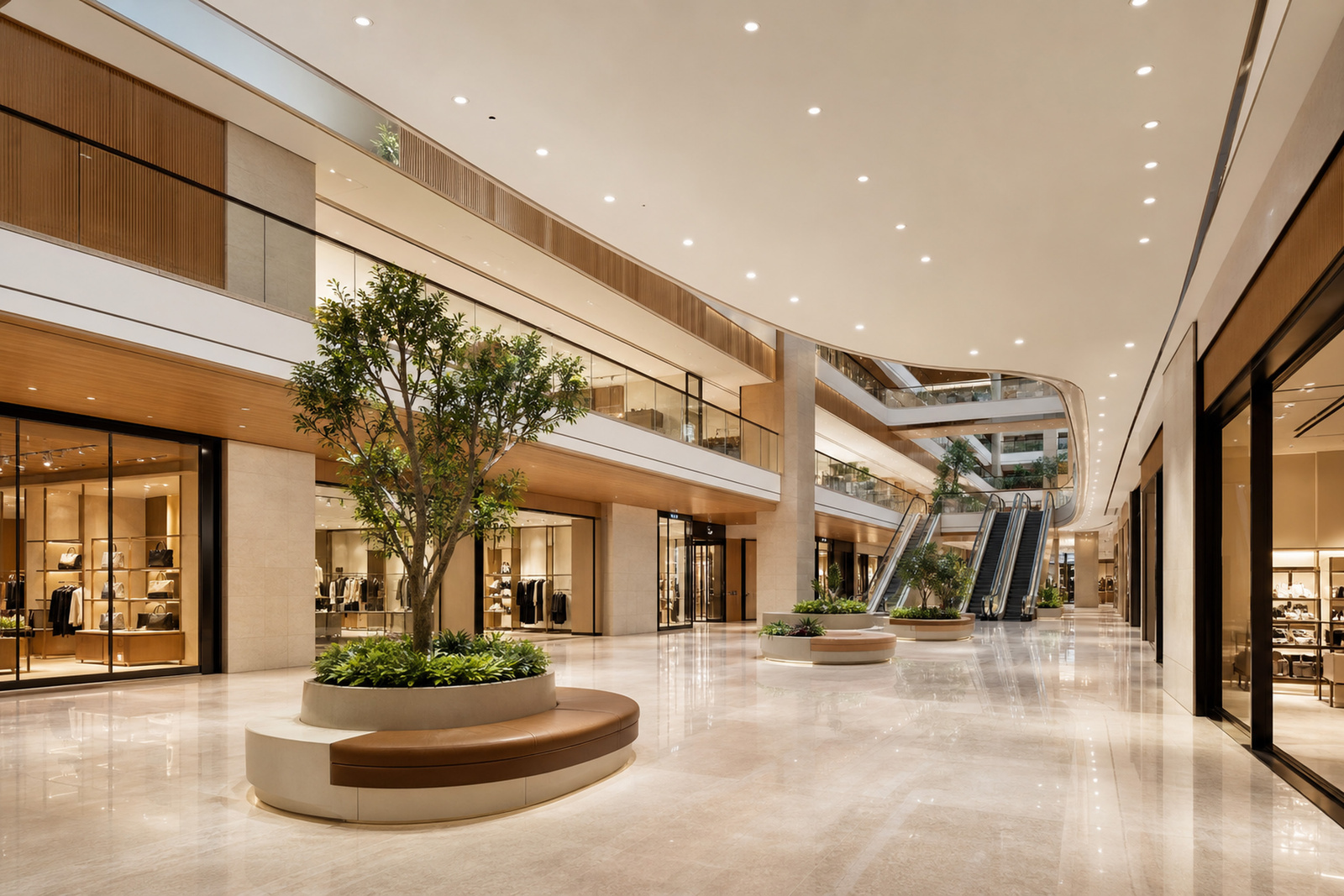

SLIM E fixed recessed downlights illustrate a regular lighting layout along a shopping mall corridor. Compact ceiling openings and deep silver reflectors maintain a discreet architectural appearance. AI-generated design concept; not a completed installation.
SYSTEM CATALOGUE
Download the SLIM E technical datasheet for cut-out sizes, power options, lumen output and beam configurations.
PROJECT SUPPORT
Tell us the cut-out size, required wattage, target lumen output and beam angle, and we can help recommend the suitable SLIM E configuration.
