18mm Ultra-thin Design
The slim profile supports lighting integration in shallow furniture and shelving systems.
ULTRA-SLIM 18MM CABINET LIGHTING SYSTEM
Minimal installation depth for shelves, wardrobes, showcases and display furniture.
* ULTRA-SLIM is an 18mm ultra-thin cabinet light designed for furniture-integrated lighting applications.
* Its minimal installation depth makes it suitable for shelves, wardrobes, showcases and display furniture where space is limited.
* The range helps improve product visibility and premium presentation without adding bulky visible hardware.
Key Specifications
Applications: Cabinet / Wardrobe / Showcase / Display Furniture
Diameter Range: Ø35
Power Range: 3W
Thickness: 18mm ultra-thin design
Installation: Minimal installation depth
Purpose: Designed specifically for shelving systems
Control: ON/OFF / TRIAC / DALI where available
* Its minimal installation depth makes it suitable for shelves, wardrobes, showcases and display furniture where space is limited.
* The range helps improve product visibility and premium presentation without adding bulky visible hardware.
Key Specifications
Applications: Cabinet / Wardrobe / Showcase / Display Furniture
Diameter Range: Ø35
Power Range: 3W
Thickness: 18mm ultra-thin design
Installation: Minimal installation depth
Purpose: Designed specifically for shelving systems
Control: ON/OFF / TRIAC / DALI where available
Available products
Choose the right size
ULTRA-SLIM 35
Wattage: 3W
Size: Ø40*17mm
Lumen Output: 106lm
Beam Angle: 19° / 23° / 29° / 53°
ULTRA-SLIM 35
Wattage: 3W
Size: Ø40*17mm
Lumen Output: 129lm
Beam Angle: 18° / 26° / 30° / 52°
ULTRA-SLIM 35
Wattage: 3W
Size: Ø40*17mm
Lumen Output: 129lm
Beam Angle: 18° / 26° / 30° / 52°
Why Choose ULTRA-SLIM
ULTRA-SLIM helps designers create a consistent lighting language while matching the functional needs of real architectural projects.
With its focused product positioning and application-specific features, the system simplifies specification while supporting visual comfort, reliable performance and design flexibility.
Suitable for cabinet / wardrobe / showcase / display furniture projects.
Characteristics
What defines ULTRA-SLIM
Furniture-focused Installation
Designed specifically for cabinets, wardrobes, showcases and display structures.
Display Visibility
The light helps reveal products and materials inside shelving or enclosed display areas.
Minimal Visual Impact
A compact form factor keeps attention on the displayed object rather than the luminaire.
Applications
Where ULTRA-SLIM Performs Best
ULTRA-SLIM is a very low-profile cabinet light for wardrobes, shelves, showcases and display furniture where depth is limited and the fixture must stay visually hidden. Plan it with furniture drawings, driver access, cable routing and reflection testing before production.
Cabinet Lighting
ULTRA-SLIM is designed for cabinet interiors where conventional fixtures are too deep or too visible. Use it close to shelves and vertical panels to reveal objects without making the light source dominant.
- Best for shallow cabinets
- shelves and integrated furniture details
- Ultra-slim profile helps hide the fixture in millwork
- Coordinate cable routing and driver location with furniture drawings
- Test brightness and reflection on the real cabinet finish
Wardrobe Lighting
For wardrobes, ULTRA-SLIM provides discreet light for clothes, accessories and drawer zones. Position it to avoid direct glare when doors open and check sensor/control strategy early.
- Suitable for wardrobes
- closets and dressing-room furniture
- Slim format supports hidden installation in shallow furniture sections
- Check door swing
- user eye line and reflective accessories
- Coordinate switch
- sensor or dimming control before fabrication
Showcase Lighting
In showcases, ULTRA-SLIM can bring soft, close-range light to products inside glass or acrylic structures. Sample testing is important because small fixture-position changes can create strong reflections.
- Good for glass showcases
- acrylic displays and close product shelves
- Close-range light helps product faces read clearly
- Test reflections
- hotspots and shadowing before mass production
- Plan access for cleaning and future replacement
Display Furniture Lighting
For display furniture, ULTRA-SLIM should be treated as part of the furniture system, not an afterthought. Confirm dimensions, cable exits, driver heat and maintenance method with the furniture supplier.
- Useful for retail furniture
- sample drawers and integrated display shelving
- Requires coordination with millwork dimensions and cable exits
- Check driver heat and ventilation in enclosed furniture
- Document installation detail for repeatable rollout production
Projects
Projects using ULTRA-SLIM
See how ULTRA-SLIM delivers precision and performance in real-world projects.

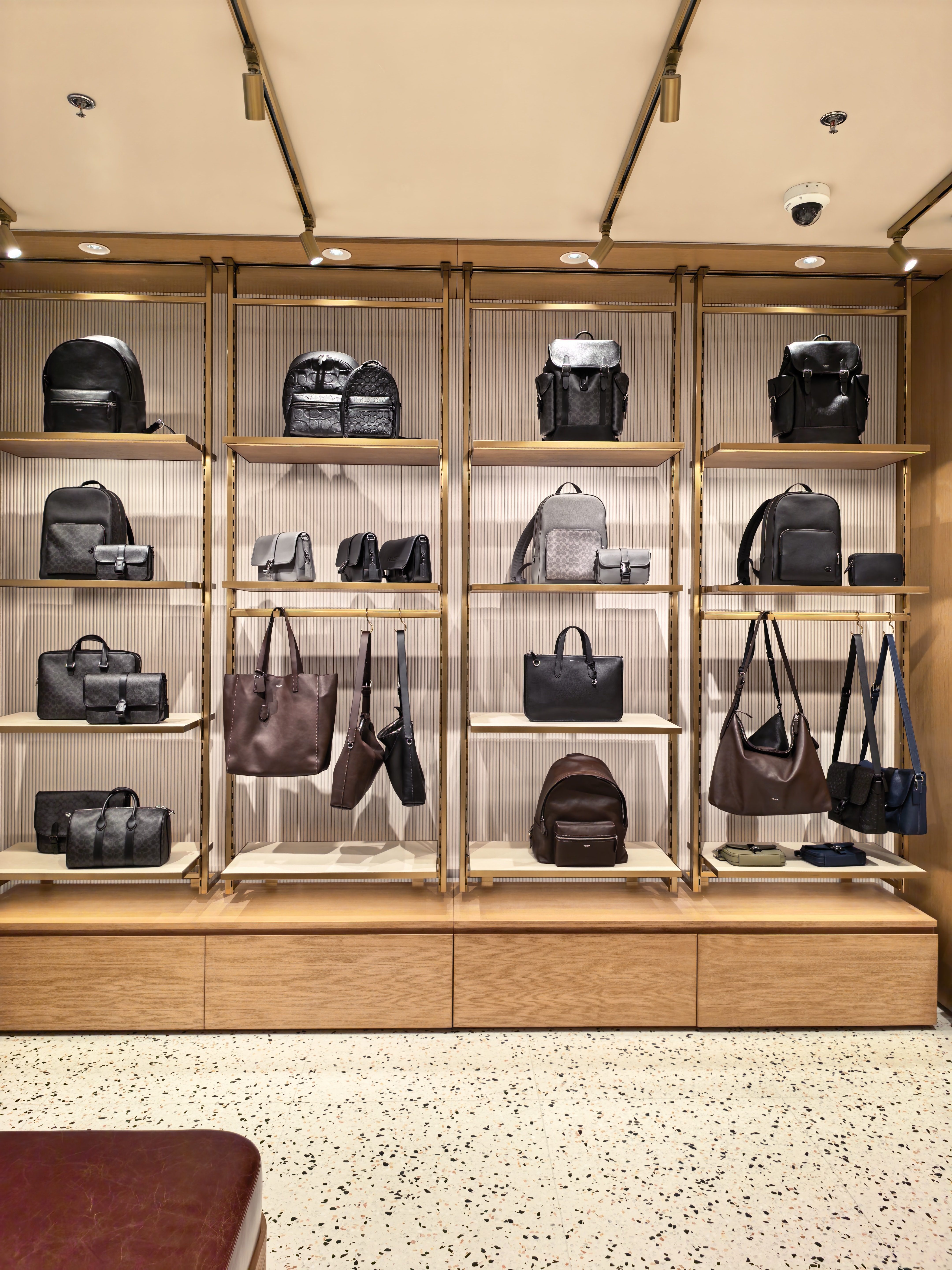

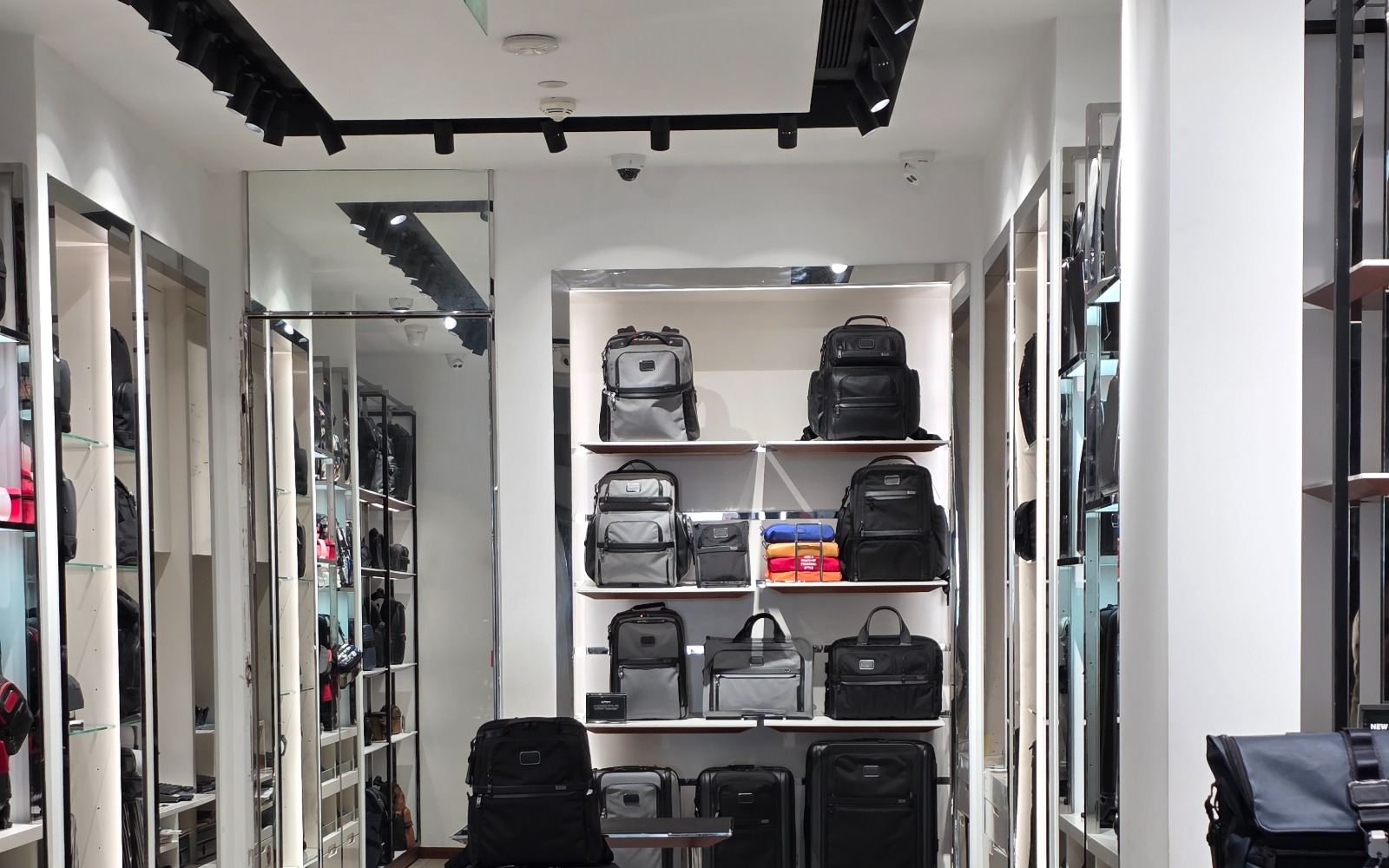

Retail
Bag Store
ULTRA-SLIM track lights were selected for precise beam control and high visual comfort, enhancing the shopping experience and product presentation.
Product usedULTRA-SLIM 35
Beam angle30°
ControlDALI
Retail
Project
Custom beam angles and high CRI lighting bring out the true texture and colour of fabrics and materials, creating an elegant and inviting atmosphere.
Product usedULTRA-SLIM 35
Beam angle29°
ControlTRIAC
Retail

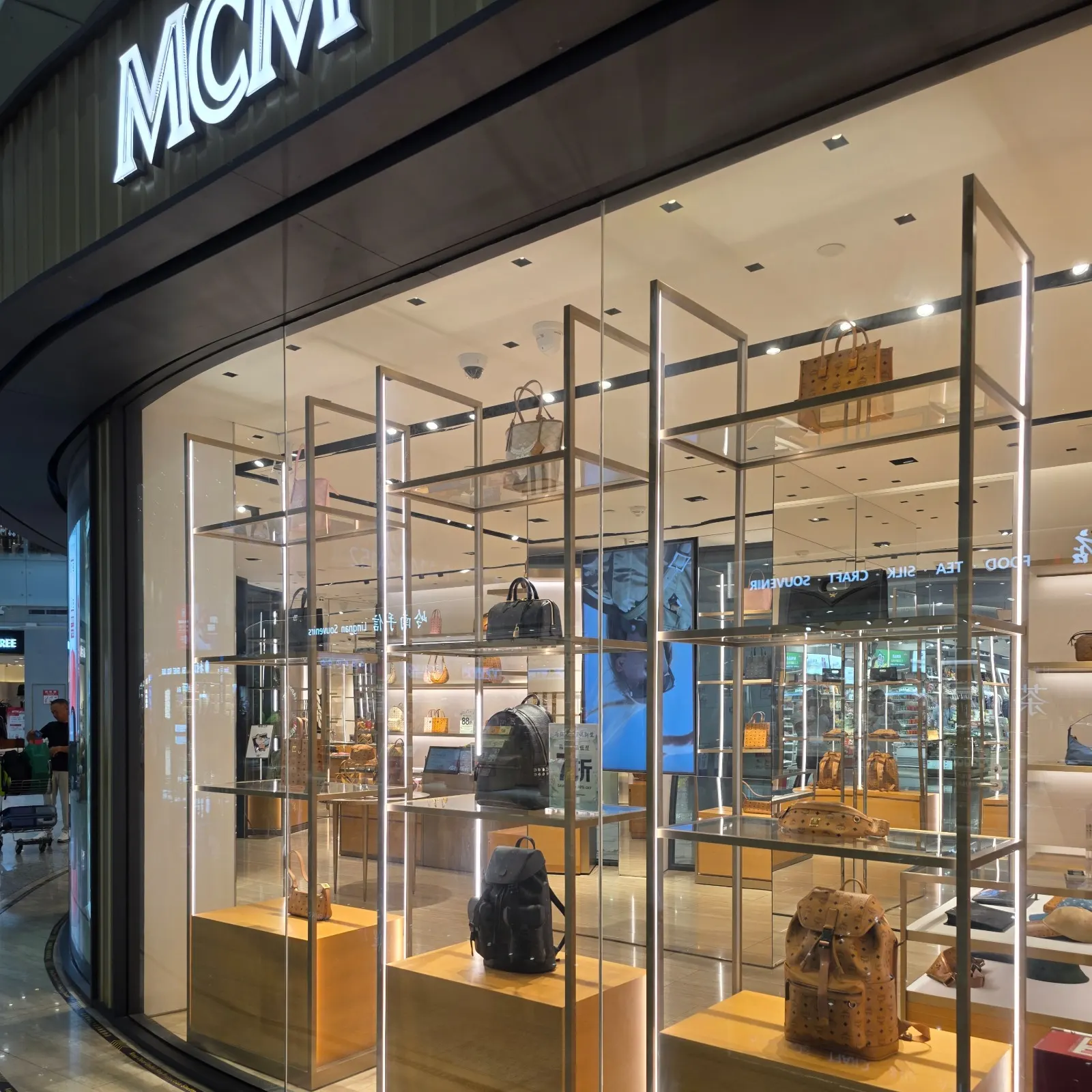

MCM Store
ULTRA-SLIM provides uniform and comfortable lighting, supporting productivity while maintaining a clean architectural aesthetic.
Product usedULTRA-SLIM 35
Beam angle26°
ControlDALI
System catalogue
Download ULTRA-SLIM system catalogue
Download the latest family catalogue, technical files and specification resources for this product system.
Project support
Request ULTRA-SLIM for your next project
Get quotation support, samples and technical files for this product family.
