Compact Design
Minimal fixture size blends seamlessly into modern magnetic track systems.
BEAMX PRECISION MAGNETIC TRACK LIGHT
Compact size. Precise beam control. Flexible magnetic lighting.
* BEAMX Magnetic is a precision spotlight family developed for low-voltage magnetic track systems and demanding architectural lighting projects.
* Its compact housing, multiple optical configurations and precision beam control provide outstanding flexibility for accent lighting, display lighting and feature illumination.
* The range is suitable for luxury retail stores, hospitality environments, museums, galleries and premium residential interiors where compact dimensions and visual comfort are equally important.
Key Specifications
Applications: Retail / Hospitality / Museum & Gallery / Residential
Diameter Range: Ø45 / Ø53 / Ø62
Power Range: 10W–20W
Optics: Precision optical reflector system
Performance: Compact high-performance accent lighting
Control: ON/OFF / 0–10V / DALI where available
* Its compact housing, multiple optical configurations and precision beam control provide outstanding flexibility for accent lighting, display lighting and feature illumination.
* The range is suitable for luxury retail stores, hospitality environments, museums, galleries and premium residential interiors where compact dimensions and visual comfort are equally important.
Key Specifications
Applications: Retail / Hospitality / Museum & Gallery / Residential
Diameter Range: Ø45 / Ø53 / Ø62
Power Range: 10W–20W
Optics: Precision optical reflector system
Performance: Compact high-performance accent lighting
Control: ON/OFF / 0–10V / DALI where available
Available products
Choose the right size

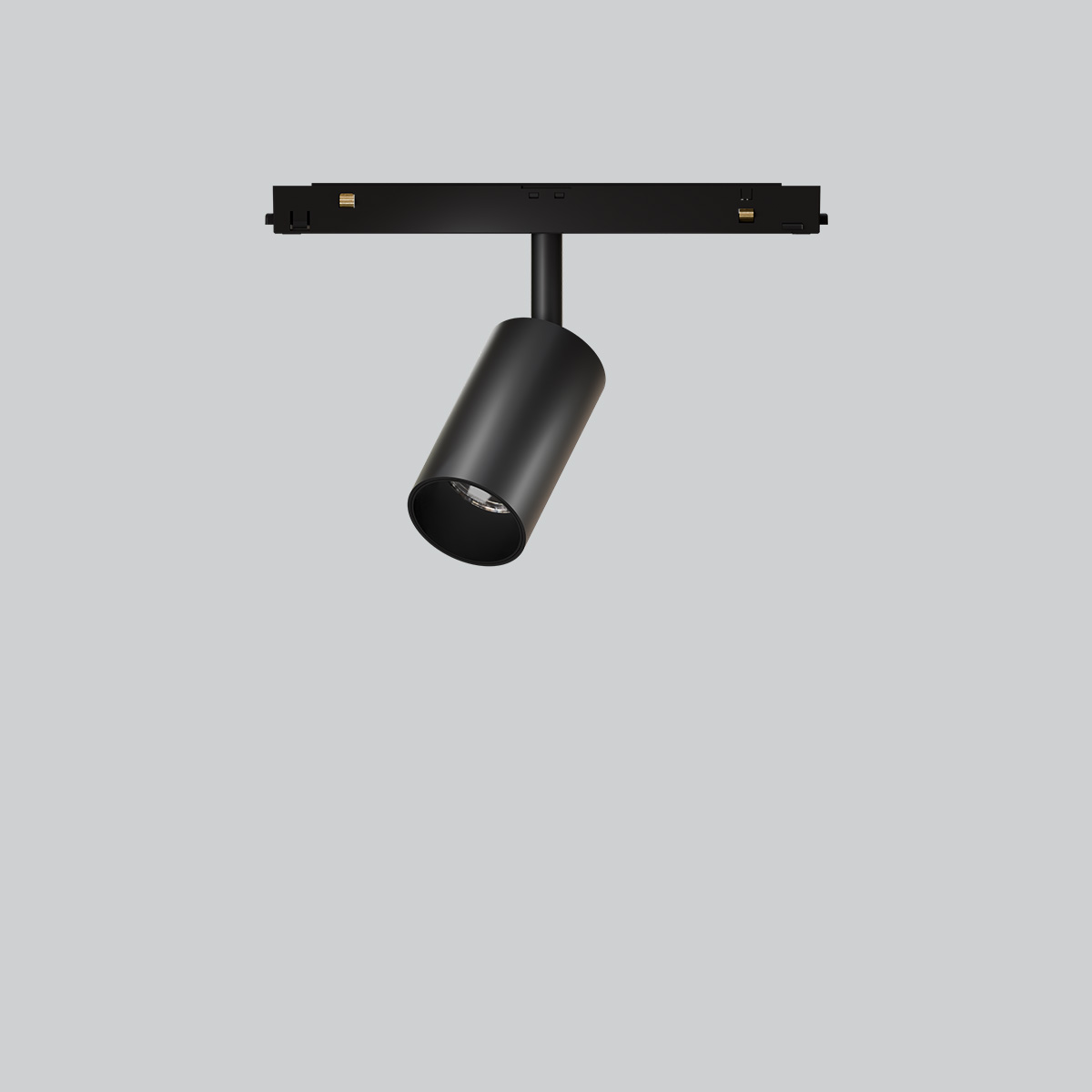

BEAMX 45
Wattage: 10W
Size: Ø45*80mm
Lumen Output: 903lm
Beam Angle: 20° / 27° / 40° / 55°

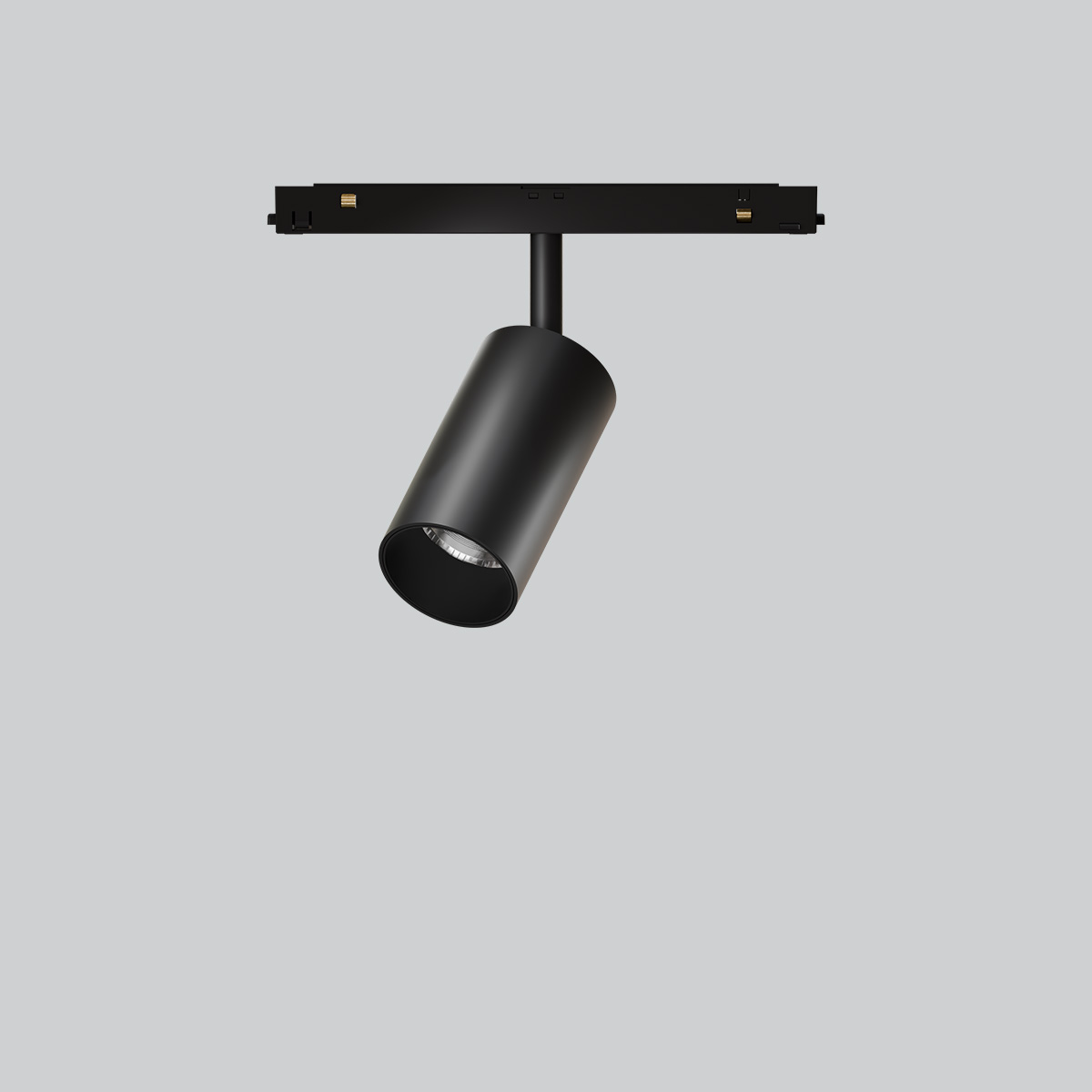

BEAMX 53
Wattage: 15W
Size: Ø53*100mm
Lumen Output: 1396lm
Beam Angle: 17° / 27° / 37° / 51°

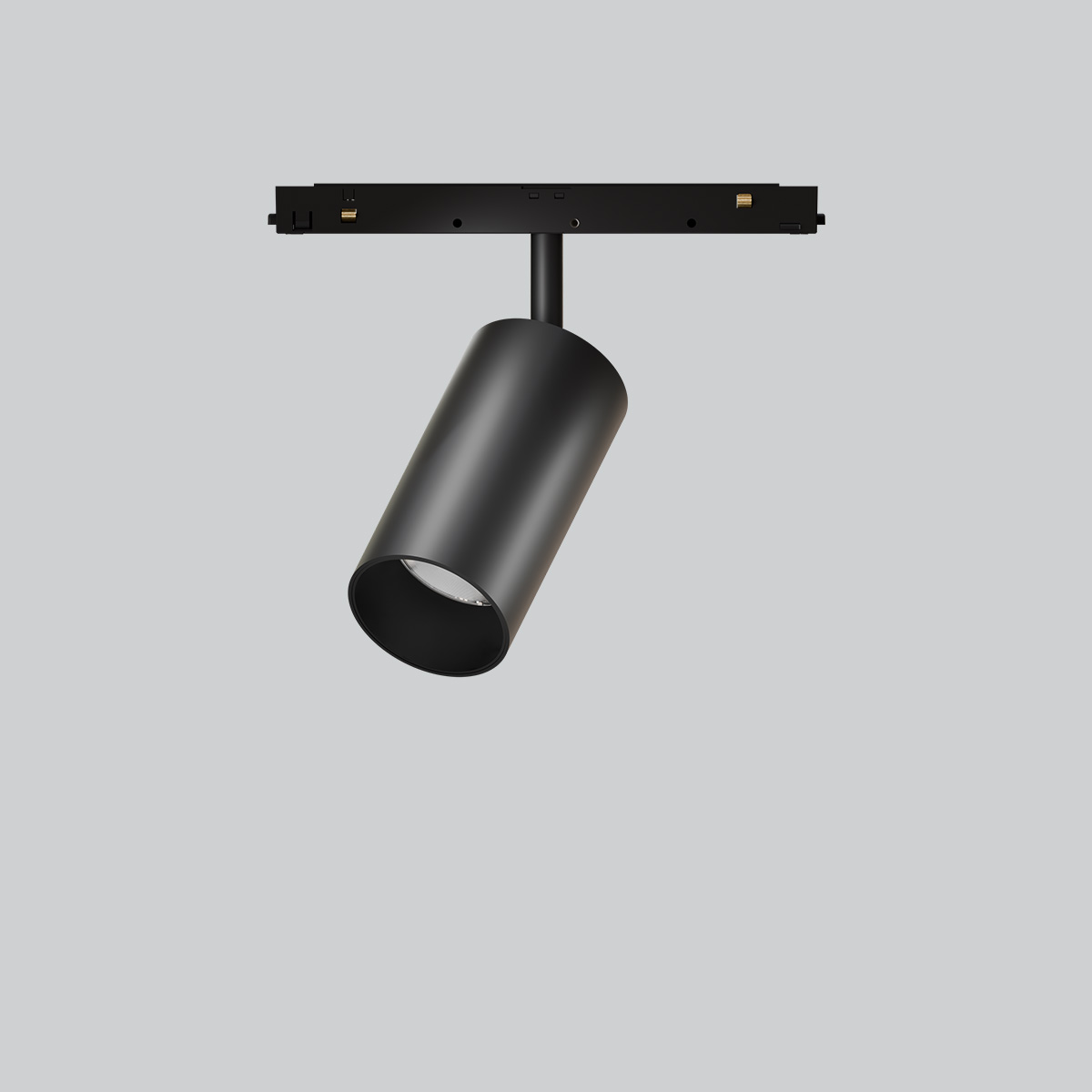

BEAMX 62
Wattage: 20W
Size: Ø62*120mm
Lumen Output: 1958lm
Beam Angle: 17° / 27° / 37° / 51°
Why Choose BEAMX
BEAMX combines compact dimensions with outstanding optical performance.
Its small form factor makes it ideal for projects requiring discreet fixtures without compromising brightness or beam precision.
Characteristics
What defines BEAMX
Precision Beam Control
Multiple beam angles provide accurate highlighting for products and architectural details.
Flexible Configuration
Available in different wattages, finishes and dimming options.
Professional Performance
High efficiency optics deliver consistent illumination with excellent glare control.
Applications
Where BEAMX Performs Best
BEAMX Low Voltage is for precise low-voltage accent lighting where the object, artwork or jewellery display needs a controlled beam from a compact track module. It is strongest in 2.5–3.5 m interiors and close-range display scenes, not as a general high-output lighting tool.
Jewellery Lighting
Use BEAMX Low Voltage for jewellery counters, glass cases and small luxury objects where narrow, controlled accent light is needed. Final output, beam angle and glare should be checked on real counter height because polished metal, glass and mirrors can produce strong reflections.
- Best for jewellery counters
- glass showcases and small premium objects
- Narrow beam control helps create sparkle and focal contrast
- Check reflections from glass
- metal and mirror surfaces on site
- Coordinate driver access and dimming for evening display scenes

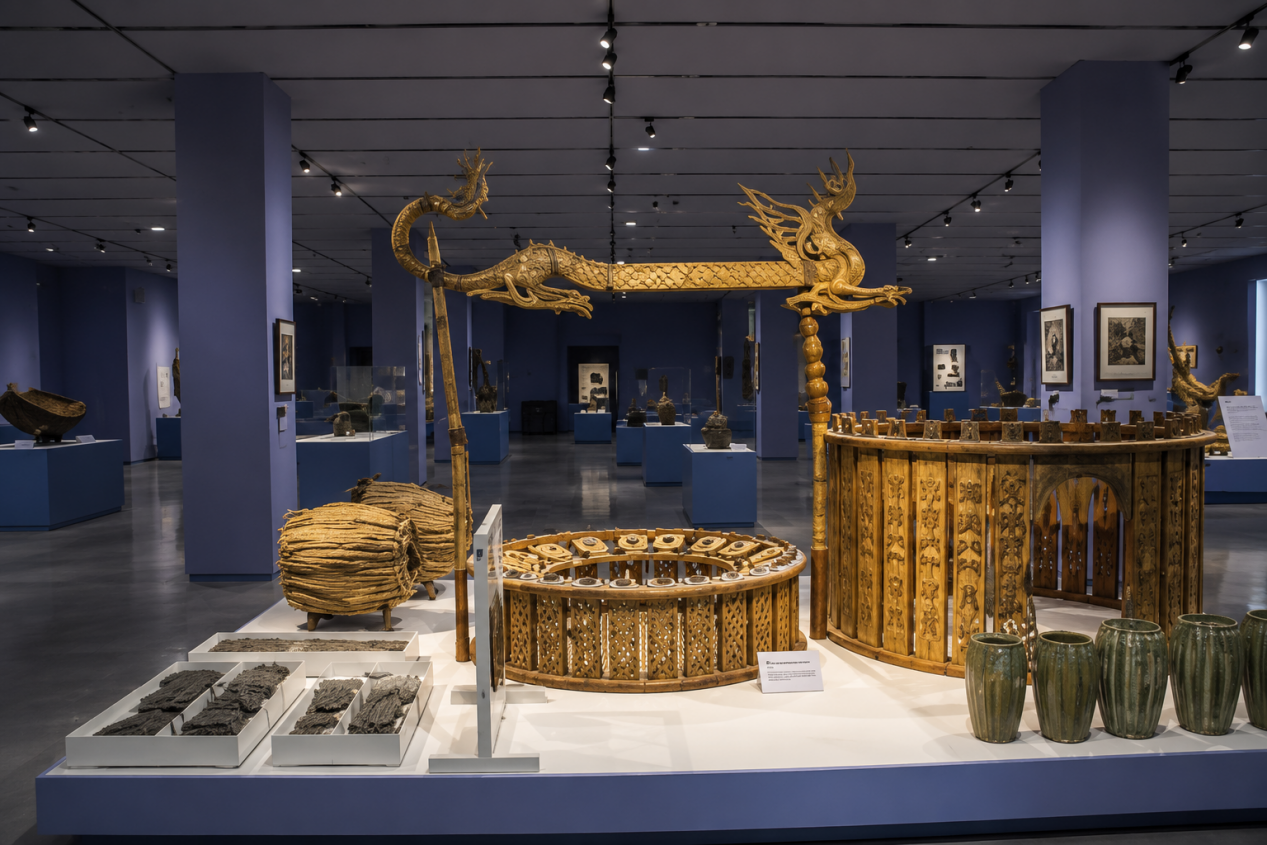

Museum Lighting
For museums, BEAMX Low Voltage is most useful on small artefacts, wall details and temporary displays that require a clean, focused beam. Use it with tested aiming positions and conservation-level illuminance control rather than relying on generic brightness assumptions.
- Suitable for artefacts
- small sculpture details and exhibit highlights
- Controlled beam helps isolate objects from background surfaces
- Confirm lux limits
- UV/heat requirements and visitor glare
- Use broader wall washers when the full wall needs even brightness
Gallery Lighting
In galleries, BEAMX Low Voltage supports close-range artwork accents where a small spotlight is preferred over larger track heads. Keep track placement consistent with artwork height and use IES files to confirm whether the beam edge suits the curator’s visual intent.
- Good for small-format artwork and detailed focal points
- Compact module keeps the ceiling visually quiet
- Use consistent wall offset and aiming angle for repeatable results
- Select SPECTRUM or higher-output heads for larger canvases or higher ceilings
Luxury Display Lighting
BEAMX Low Voltage is a practical choice for watches, accessories, cosmetics and other small display items where contrast sells the object. It should be specified together with target distance, beam angle and dimming range so the display does not become over-lit.
- Designed for small-object display
- shelves and premium showcase details
- High contrast helps product edges and texture stand out
- Avoid using too many narrow beams in one area without ambient fill
- Document final aiming for store staff after installation
Projects
Projects using BEAMX
See how BEAMX delivers precision and performance in real-world projects.

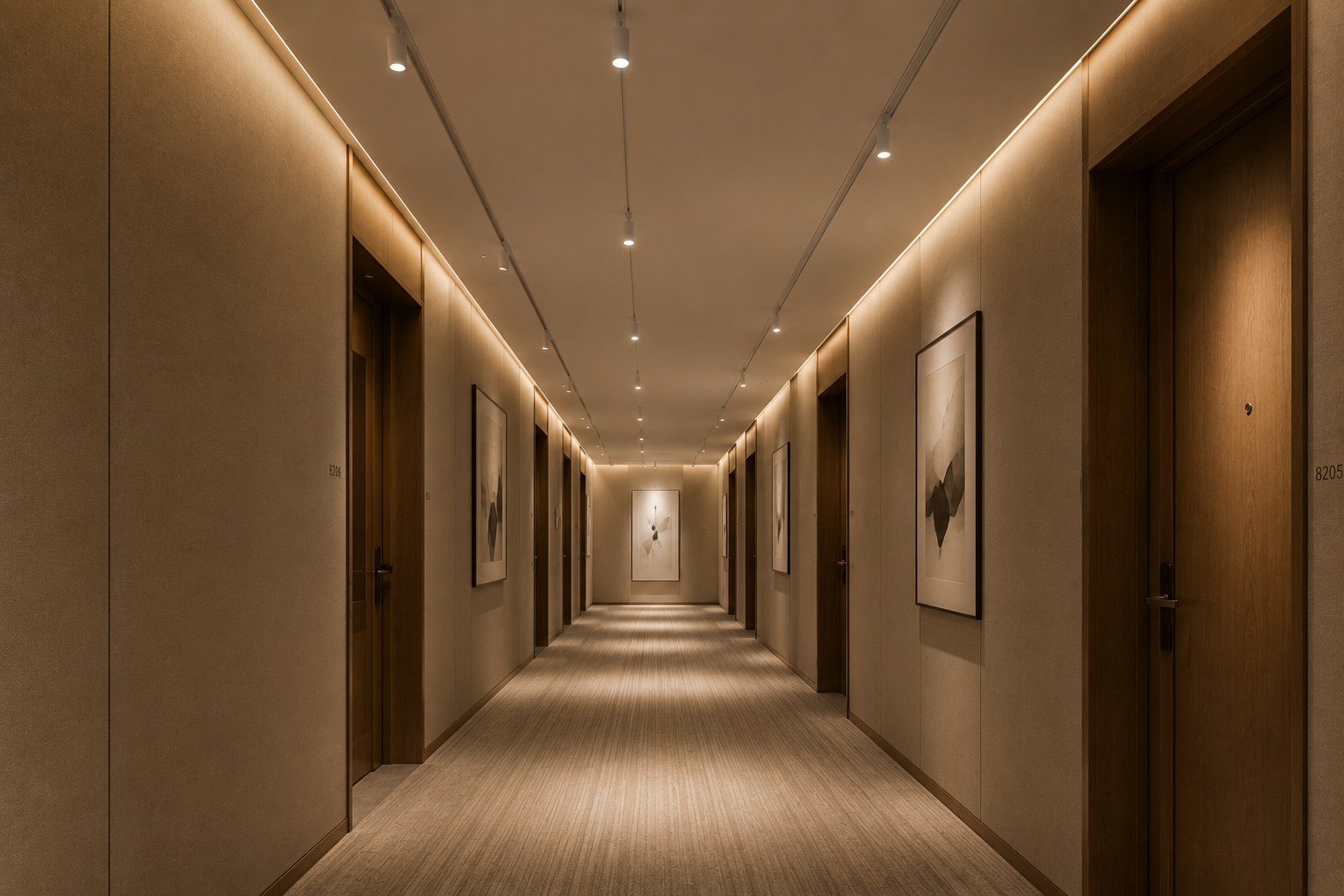

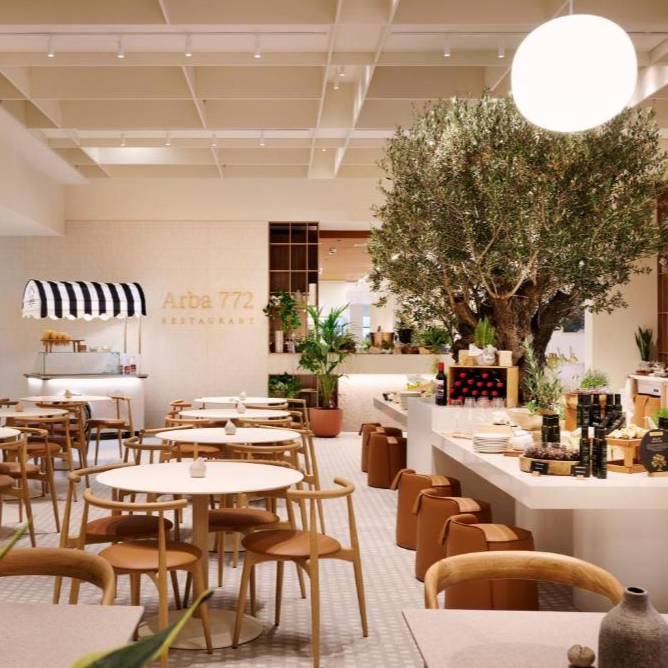

Hospitality
Hotel Restaurant
BEAMX track lights were selected for precise beam control and high visual comfort, enhancing the shopping experience and product presentation.
Product usedBEAMX 45/BEAMX 53
Beam angle20° / 31°
ControlDALI
Office
Modern Office
Custom beam angles and high CRI lighting bring out the true texture and colour of fabrics and materials, creating an elegant and inviting atmosphere.
Product usedBEAMX 62
Beam angle17° / 27°
Control0-10V
Retail
Ferragamo Boutique
BEAMX provides uniform and comfortable lighting, supporting productivity while maintaining a clean architectural aesthetic.
Product usedBEAMX 53
Beam angle27°
ControlDALI
System catalogue
Download BEAMX system catalogue
Download the latest family catalogue, technical files and specification resources for this product system.
Project support
Request BEAMX for your next project
Get quotation support, samples and technical files for this product family.
