BEAMX 53

BEAMX 53 62.05312 magnetic systems from Artdon Lighting for professional architectural projects.
BEAMX 53

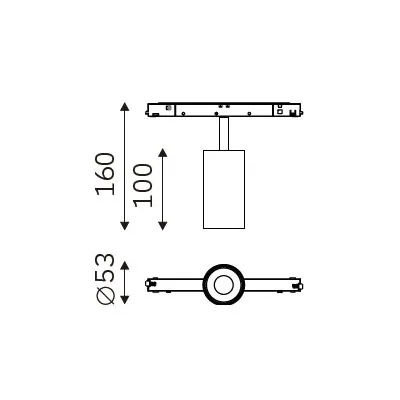

BEAMX 53 dimension drawing

BEAMX 53 62.05312 magnetic systems from Artdon Lighting for professional architectural projects.

Product familyBEAMX
Model62.05312
DimensionsØ53*100mm
Power15W
Luminous flux1396lm
Efficacy93lm/W
Voltage48V
CCT2700K/3000K/4000K
CRICRI90
Beam angle17° / 27° / 37° / 51°
IP ratingIP20
FinishWhite/Black
MountingLow Voltage Track
DimmingOn/Off / Dali / Triac
Get a quoteTechnical filesPDF / Print

Product overview

Technical product information

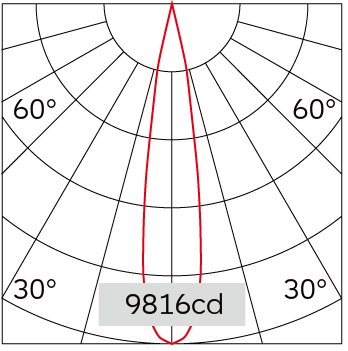

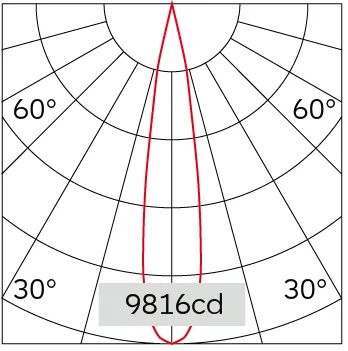

17°
17°

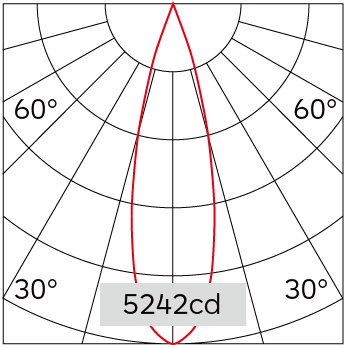

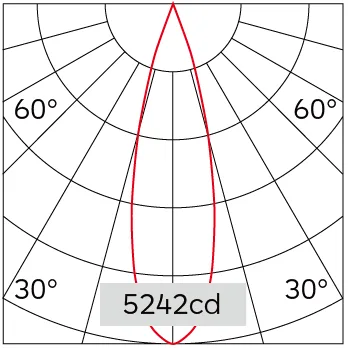

27°
27°

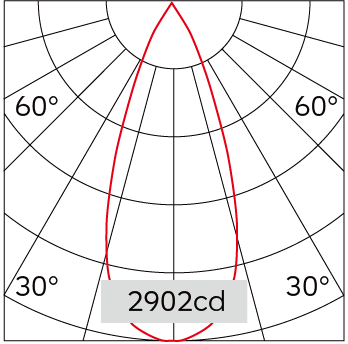

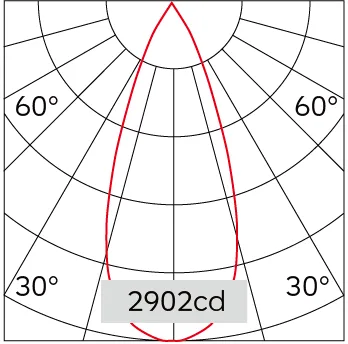

37°
37°

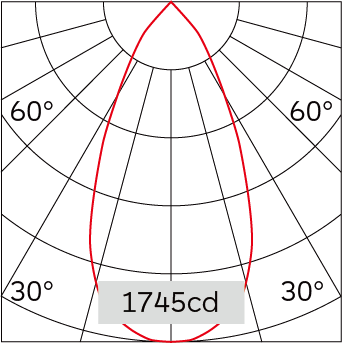

51°
51°

Technical files

Technical Downloads

DatasheetPDF · EN · Generated PDFDownload ↗IES / LDTZIP · EN · 765 KBDownload ↗Product imageWEBP · EN · 8 KBDownload ↗Dimension drawingWEBP · EN · 5 KBDownload ↗

Other sizes

More products in BEAMX

View family →
BEAMX 45

BEAMX 45

Wattage: 10W

Size: Ø45*80mm

Lumen Output: 903lm

Beam Angle: 20° / 27° / 40° / 55°
BEAMX 62

BEAMX 62

Wattage: 20W

Size: Ø62*120mm

Lumen Output: 1958lm

Beam Angle: 17° / 27° / 37° / 51°
