BEAMX 62

BEAMX 62 62.06226 magnetic systems from Artdon Lighting for professional architectural projects.
BEAMX 62

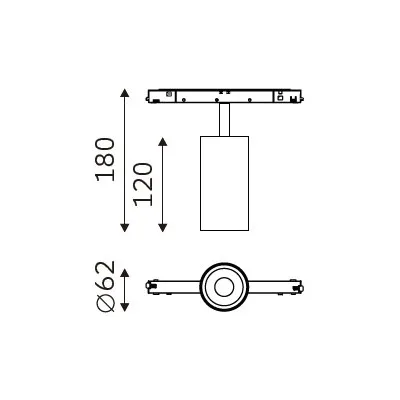

BEAMX 62 dimension drawing

BEAMX 62 62.06226 magnetic systems from Artdon Lighting for professional architectural projects.

Product familyBEAMX
Model62.06226
DimensionsØ62*120mm
Power20W
Luminous flux1958lm
Efficacy82.9lm/W
Voltage48V
CCT2700K/3000K/4000K
CRICRI90
Beam angle17° / 27° / 37° / 51°
IP ratingIP20
FinishWhite/Black
MountingLow Voltage Track
DimmingOn/Off / Dali / Triac
Get a quoteTechnical filesPDF / Print

Product overview

Technical product information

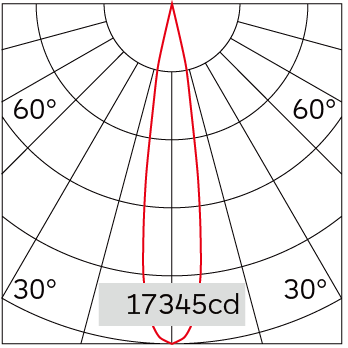

17°
17°

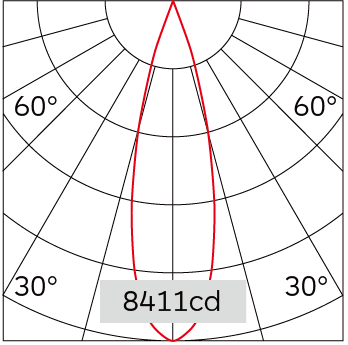

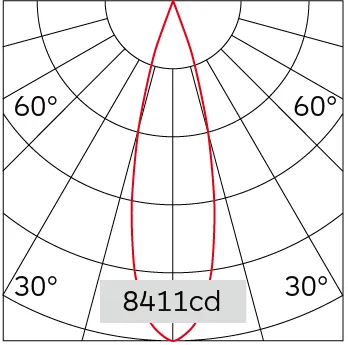

27°
27°

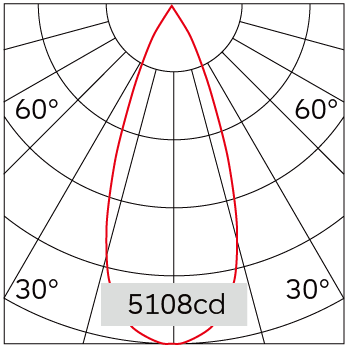

37°
37°

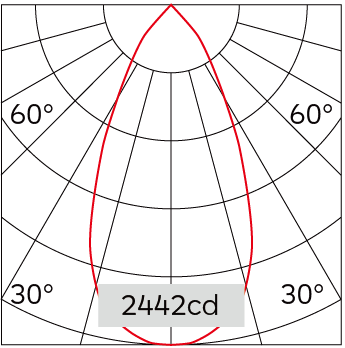

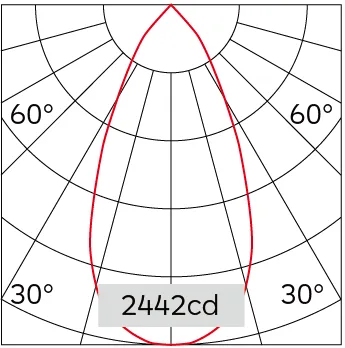

51°
51°

Technical files

Technical Downloads

DatasheetPDF · EN · Generated PDFDownload ↗IES / LDTZIP · EN · 949 KBDownload ↗Product imageWEBP · EN · 8 KBDownload ↗Dimension drawingWEBP · EN · 5 KBDownload ↗

Other sizes

More products in BEAMX

View family →
BEAMX 45

BEAMX 45

Wattage: 10W

Size: Ø45*80mm

Lumen Output: 903lm

Beam Angle: 20° / 27° / 40° / 55°
BEAMX 53

BEAMX 53

Wattage: 15W

Size: Ø53*100mm

Lumen Output: 1396lm

Beam Angle: 17° / 27° / 37° / 51°
