MAGENTRA 197
MAGENTRA 197 61.02372 magnetic systems from Artdon Lighting for professional architectural projects.
MAGENTRA 197 61.02372 magnetic systems from Artdon Lighting for professional architectural projects.
Product familyMAGENTRA
Model61.02372
Dimensions197*22mm
Power11W
Luminous flux959lm
Efficacy87lm/W
Voltage48V
CCT2700K/3000K/4000K
CRI90

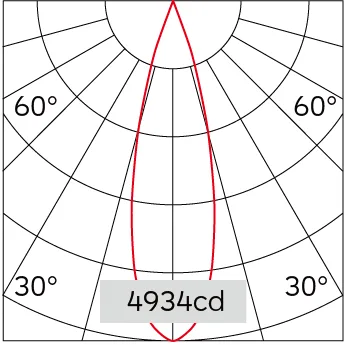

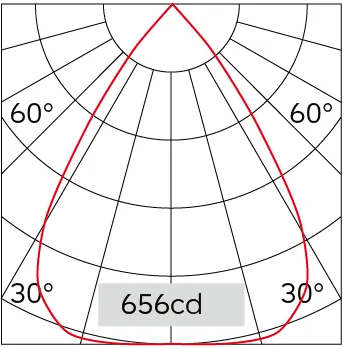

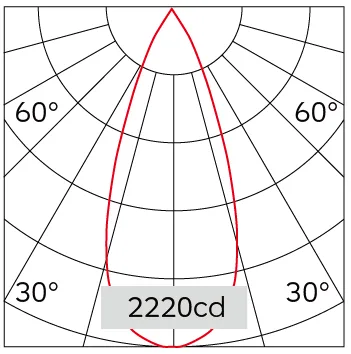

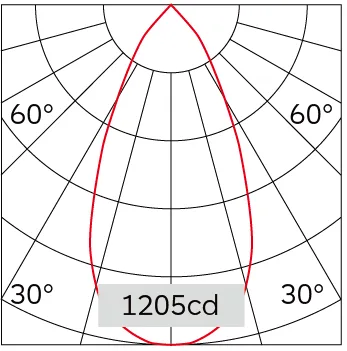

Beam angle26° / 36° / 50° / 69°
IP ratingIP20
FinishWhite/Black
MountingLow Voltage Track
DimmingOn/Off / Dali / Triac
Product overview
Technical product information
Technical files
Technical Downloads
Other sizes
More products in MAGENTRA
MAGENTRA 388
Wattage: 22W
Size: 388*22mm
Lumen Output: 1995lm
Beam Angle: 27° / 36° / 50° / 69°
MAGENTRA 580
Wattage: 29W
Size: 580*22mm
Lumen Output: 2817lm
Beam Angle: 27° / 36° / 50° / 69°
MAGENTRA 438
Wattage: 22W
Size: 438*22mm
Lumen Output: 1839lm
Beam Angle: 25° / 36° / 49° / 67°
MAGENTRA 822
Wattage: 29W
Size: 822*22mm
Lumen Output: 2422lm
Beam Angle: 24° / 37° / 49° / 70°
