MAGENTRA 580
MAGENTRA 580 61.02375 magnetic systems from Artdon Lighting for professional architectural projects.
MAGENTRA 580 61.02375 magnetic systems from Artdon Lighting for professional architectural projects.
Product familyMAGENTRA
Model61.02375
Dimensions580*23mm
Power29W
Luminous flux2817lm
Efficacy97lm/W
Voltage48V
CCT2700K/3000K/4000K
CRI90

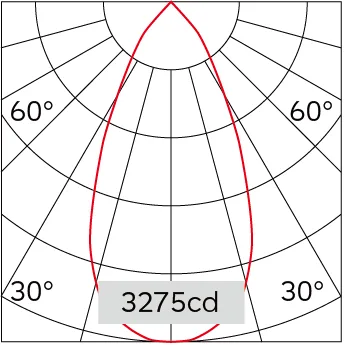

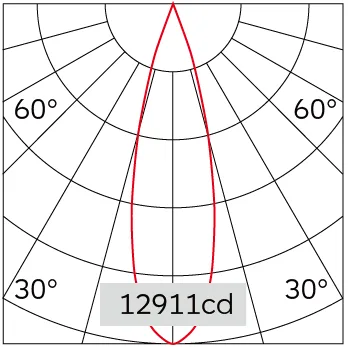

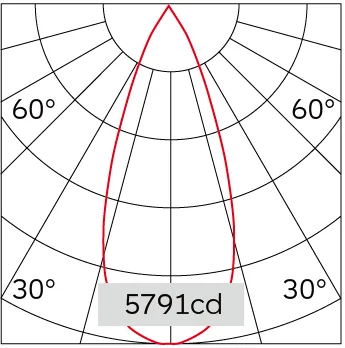

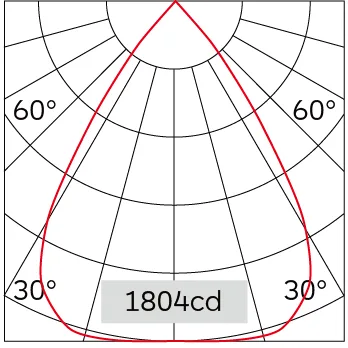

Beam angle27° / 36° / 50° / 69°
IP ratingIP20
FinishWhite/Black
MountingLow Voltage Track
DimmingOn/Off / Dali / Triac
Product overview
Technical product information
Technical files
Technical Downloads
Other sizes
More products in MAGENTRA
MAGENTRA 197
Wattage: 11W
Size: 197*22mm
Lumen Output: 959lm
Beam Angle: 26° / 36° / 50° / 69°
MAGENTRA 388
Wattage: 22W
Size: 388*22mm
Lumen Output: 1995lm
Beam Angle: 27° / 36° / 50° / 69°
MAGENTRA 438
Wattage: 22W
Size: 438*22mm
Lumen Output: 1839lm
Beam Angle: 25° / 36° / 49° / 67°
MAGENTRA 822
Wattage: 29W
Size: 822*22mm
Lumen Output: 2422lm
Beam Angle: 24° / 37° / 49° / 70°
